Hikvision DS-KIS704EY video intercom kit
Brand: HIKVISION INTERCOM
- Video doorbell kit
- 2-wire HD technology with WiFi
- Outdoor panel and monitor | Supports 8 additional monitors
- Easy configuration firmware without network
- Mobile app with P2P | Stainless steel
- Surface mount | IP65, IK08
Hikvision DS-KIS704EY video intercom kit
- Hikvision
- Video intercom kit
- 2-wire HD technology

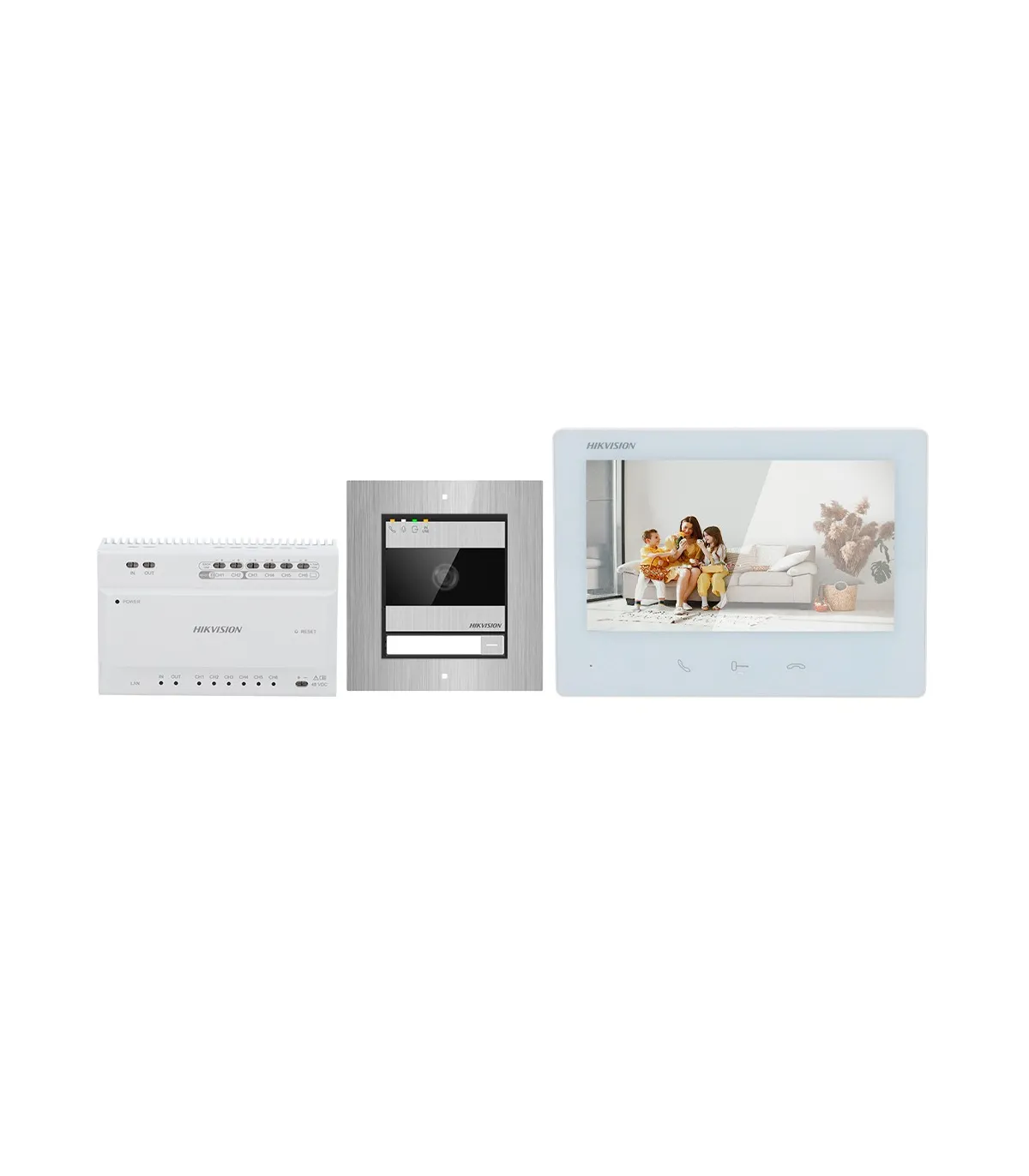

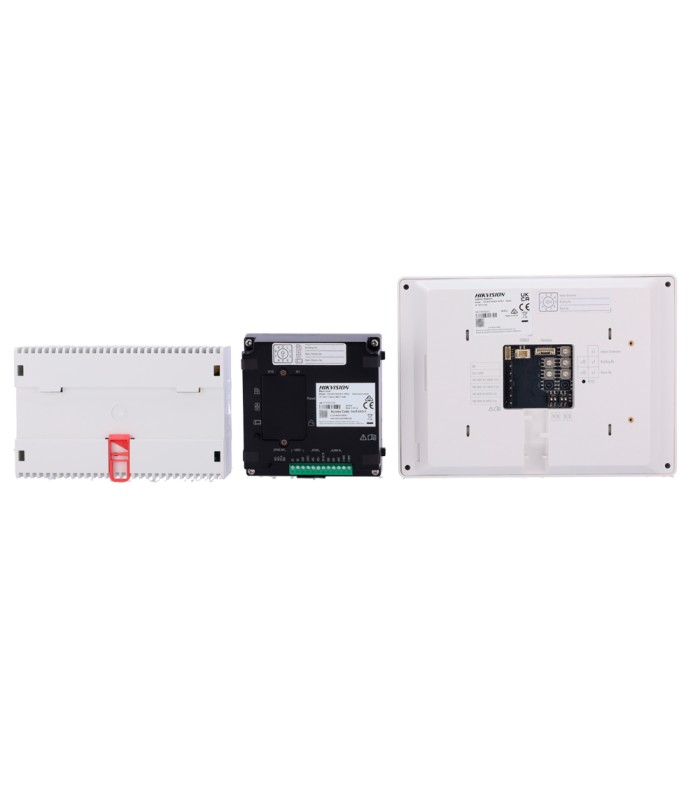

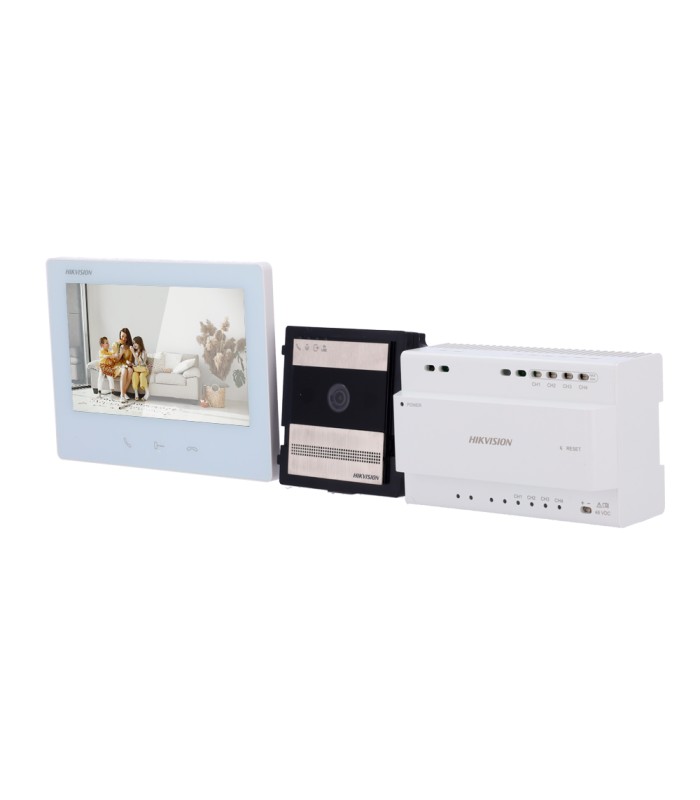

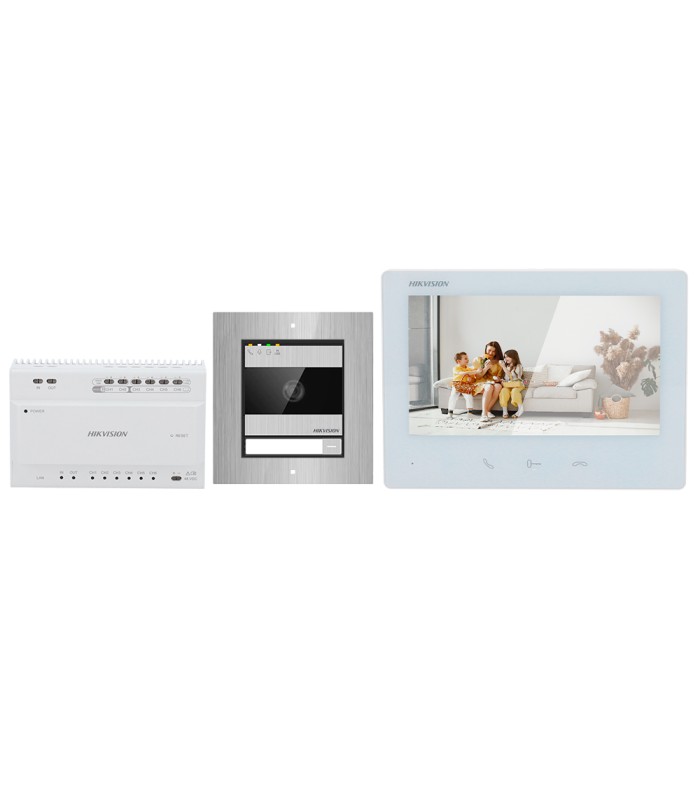

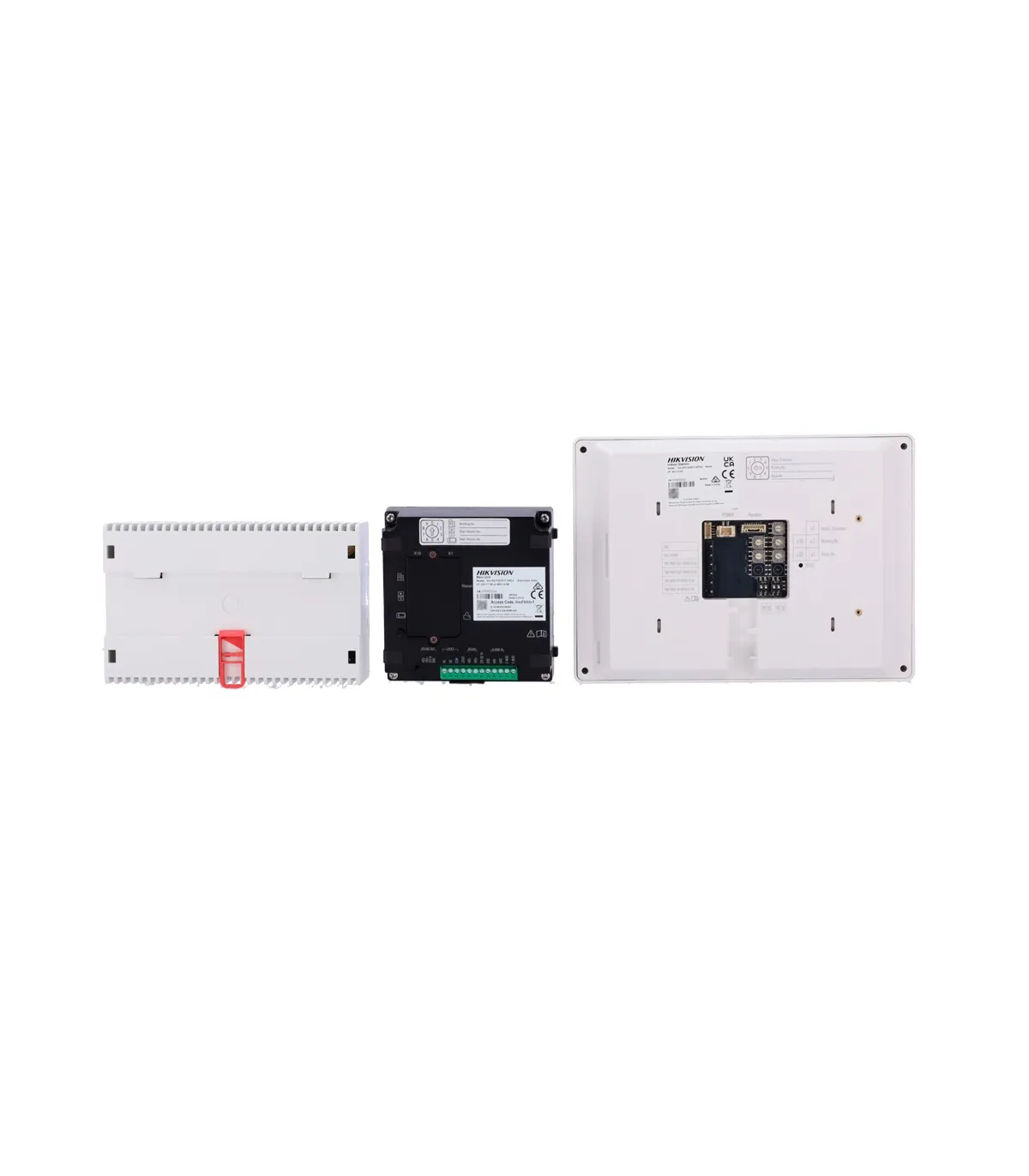

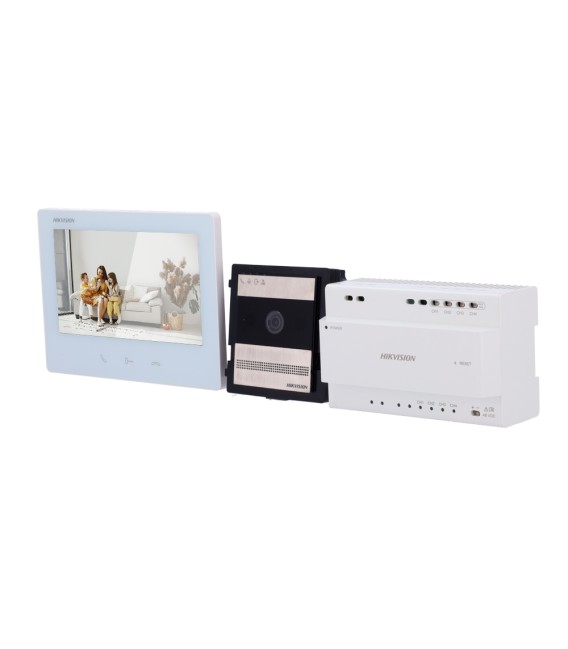

- Kit consisting of: DS-KD7003EY-IME2 surface-mounted video intercom exterior panel with 2 Mpx HD camera, DS-KH7300EY-WTE2/White WiFi indoor monitor with 7" TFT LCD screen and DS-KAD7060EY 2-wire HD distributor
- Monitoring via Hik-Connect mobile app
- Allows you to add up to 8 additional monitors as extensions
Technical specifications
DS-KAD7060EY | |
| Brand | Hikvision |
| Model | DS-KAD7060EY |
| Operation mode | Power, video and audio through 2-wire HD technology |
| Outputs | 2 channels of 2-wire HD with 15 W max. of power each 4 2-wire HD channels with 110 W max. of power between the four |
| Cascade | 2 channels for cascade connection of DS-KAD7060EY |
| Communication | 2-wire HD technology (up to 6 devices) |
| Power | DC 48 V / 3.2 A max. |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 144 (W) x 92 (H) x 66 (D) mm |
| Weight | 250 g |
DS-KH7300EY-WTE2/White | |
| Brand | Hikvision |
| Model | DS-KH7300EY-WTE2/White |
| Operating system | Linux |
| LCD | 7" TFT color touchscreen |
| Screen resolution | 1024 x 600 |
| Operation mode | Additional touch keypad: call start, call end and door opening LED status indicators |
| Inputs | 1 x 2-wire HD input, 1 x handheld headset |
| Outputs | 1 x 2-wire HD output |
| Audio | Two-way audio with built-in microphone and speaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | 2 wires HD / RTSP / WiFi 802.11b/g/n (only for connection to app via P2P) |
| Remote access | iVMS-4200 software Hik-Connect mobile application |
| Power | Via specific Hikvision hub for 2-wire HD video intercoms (4 W max.) |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 138 (H) x 190 (W) x 20 (D) mm |
| Weight | 350 g |
| Color | White |
| Slave monitors | Monitors that do not belong to the unit cannot be used HD 2-wire system |
DS-KAW150-4N | |
| Brand | Hikvision |
| Model | DS-KAW150-4N |
| Power input | AC 100~240 V / 1.8 A / 50/60 Hz |
| Power output | DC 48 V / 3.2 A |
| Voltage range | Adjustable 43.2~55.2 V |
| Maximum output power | 150 W |
| Number of outputs | 2 |
| Temp. operation | -10º C ~ +70º C |
| Dimensions | 178 (W) x 97 (H) x 38 (D) mm |
| Weight | 540 g |
DS-KD7003EY-IME2 | |
| Brand | Hikvision |
| Model | DS-KD7003EY-IME2 |
| Operating system | Linux |
| Image Sensor | Low Illumination 2 Mpx IR |
| Image functions | BLC / WDR / DNR |
| Viewing angle | H: 133º, V: 82º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | 2 x mechanical call button with LED personalization label |
| Outputs | 2 x relay for lock (1 with DC 12 V / 500 mA), 1 x module output |
| Inputs | 2 x auxiliary inputs (exit button, door sensor), 1 x tamper |
| Remote access | Hik-Connect mobile app WiFi AP mode for configuration |
| Network interface | Network connection through 2 HD wires |
| Modular | Compatible with Hikvision modular boards |
| Power | DC 48 V with 2-wire hub HD DS-KAD7060EY / 12 V / 1700 mA max. |
| Degree of protection | Suitable for outdoors IP65 Anti-vandal IK08 |
| Material | Plastic and stainless steel |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 98 (H) x 100 (W) x 35 (D) mm |
| Weight | 290 g |
Contents

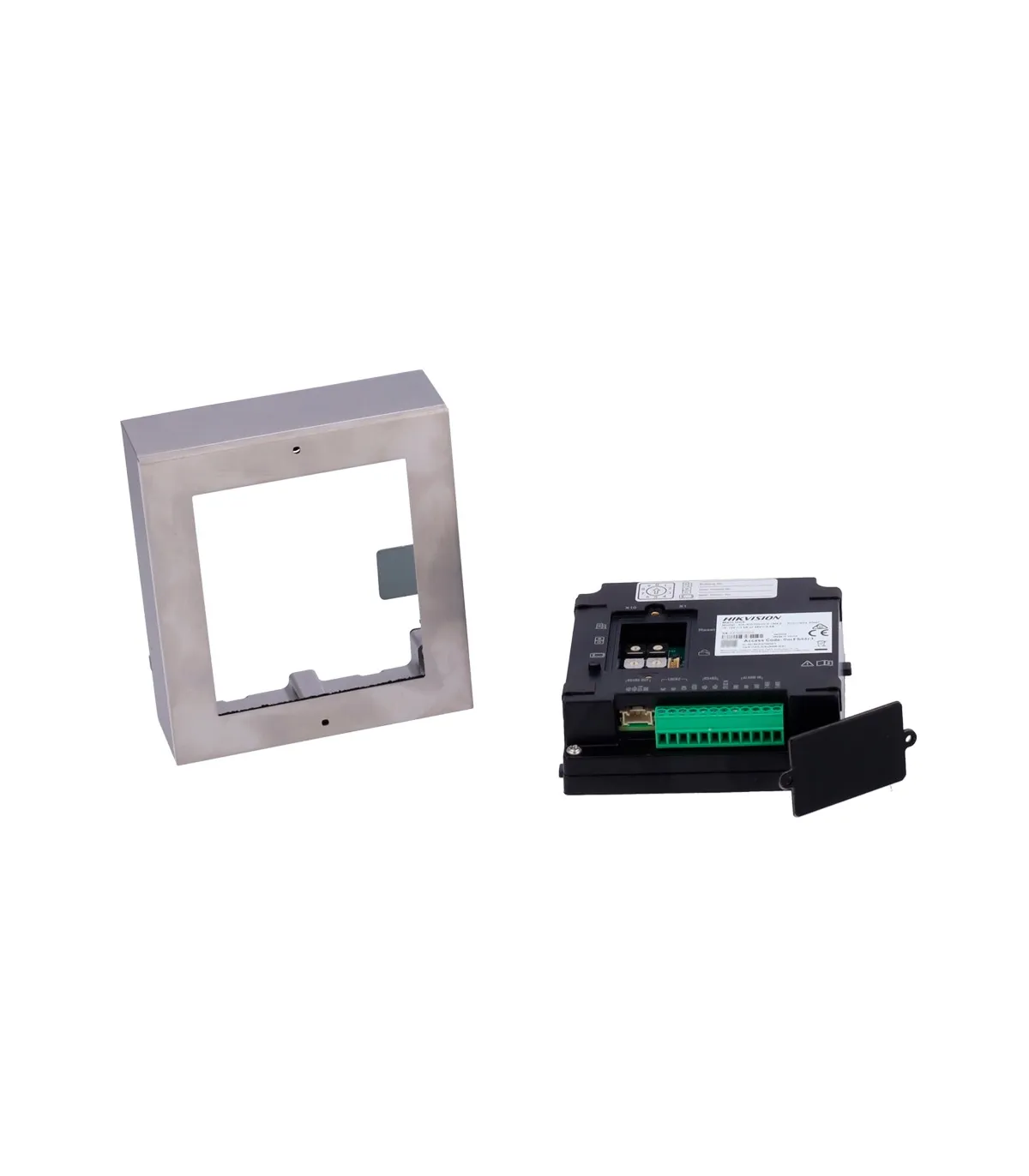

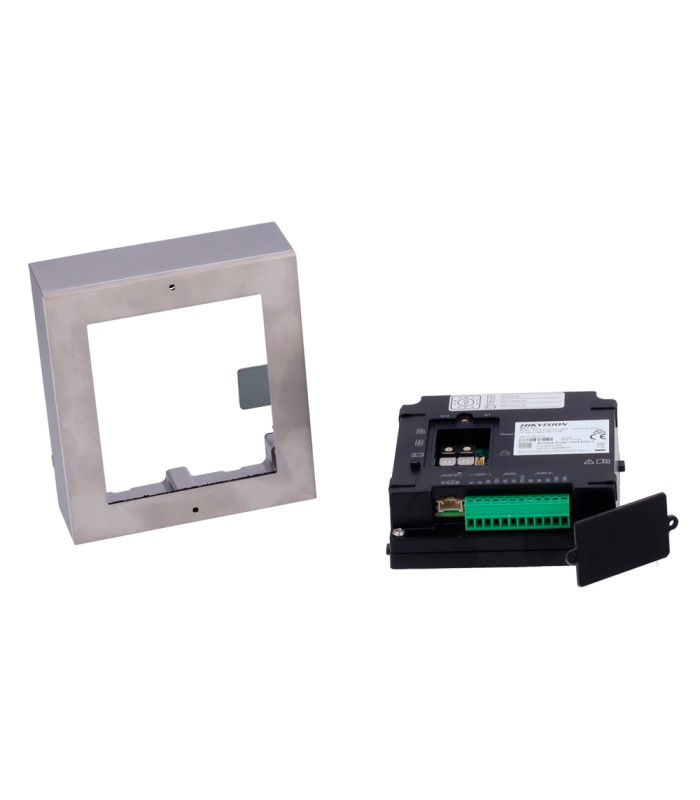

- Hikvision video intercom exterior panel for surface installation
- Surface support
- Hikvision indoor monitor
- Distributor
- 32GB microSD card
- DC power supply 48V DIN rail
