Hikvision DS-KIS703Y-P video intercom kit
Brand: Hikvision
- Video door phone kit
- 2-wire technology with TCP/IP & WiFi
- Outdoor panel and monitor | Supports only 1 monitor
- Easy firmware configuration without network
- Mobile app with P2P connection
- Surface mount or flush mount installation | IP65 rated
Hikvision DS-KIS703Y-P video intercom kit
- Hikvision
- Video intercom kit
- 2-wire technology

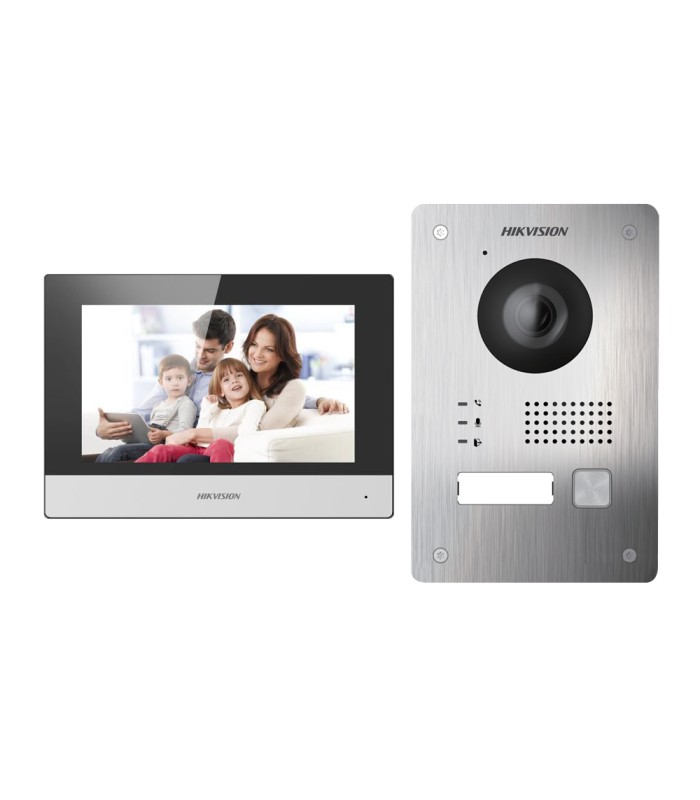

- Kit consisting of: DS-KV8103Y-IMPE2 video intercom exterior panel for surface or built-in with 2 Mpx HD camera and DS-KH6320Y-WTPE2 WiFi indoor monitor with 7" TFT LCD screen
- Monitoring via iVMS-4200 software or Hik-Connect mobile app
Technical specifications
DS-KH6320Y-WTPE2 | |
| Brand | Hikvision |
| Model | DS-KH6320Y-WTPE2 |
| Operating system | Linux |
| LCD | TFT 7" color touch |
| Screen resolution | 1024 x 600 |
| Inputs | 8 x configurable alarm inputs, 1 x RS485 |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Memory | No has |
| Connection | 2 wires / RTSP / SIP 2.0 Protocol / WiFi 802.11b/g/n (only for connection to app via P2P) |
| Remote access | iVMS-4200 software Hik-Connect mobile application |
| Power | DC 24 V / 1.5 A max. Integrated distributor to power and supply network to outdoor panel |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 140 (H) x 200 (W) x 15 (D) mm |
| Weight | 327 g |
| Slave monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |
DS-KV8103Y-IMPE2 | |
| Brand | Hikvision |
| Model | DS-KV8103Y-IMPE2 |
| Operating system | Linux |
| Image sensor | 2 Mpx CMOS low illumination with IR |
| View angle | H: 140º, V: 85º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | Mechanical call button with LED customization label |
| Outputs | 2 x relay for lock, 1 x DC 12 V / 500 mA max |
| Inputs | 2 x alarm inputs (exit button or door sensor), 1x tamper |
| Communication | Networking via 2 threads / SIP 2.0 Protocol |
| Power | DC 24 V / 500 mA max. (via 2-wire monitor) |
| Protection degree | Suitable for outdoor use IP65 |
| Material | Stainless steel |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 164 (H) x 105 (W) x 35 (D) mm |
| Weight | 600 g |
Contents
- Hikvision video intercom exterior panel
- Surface support with visor
- Recessed support
- Hikvision indoor monitor
- DC 24V power supply
