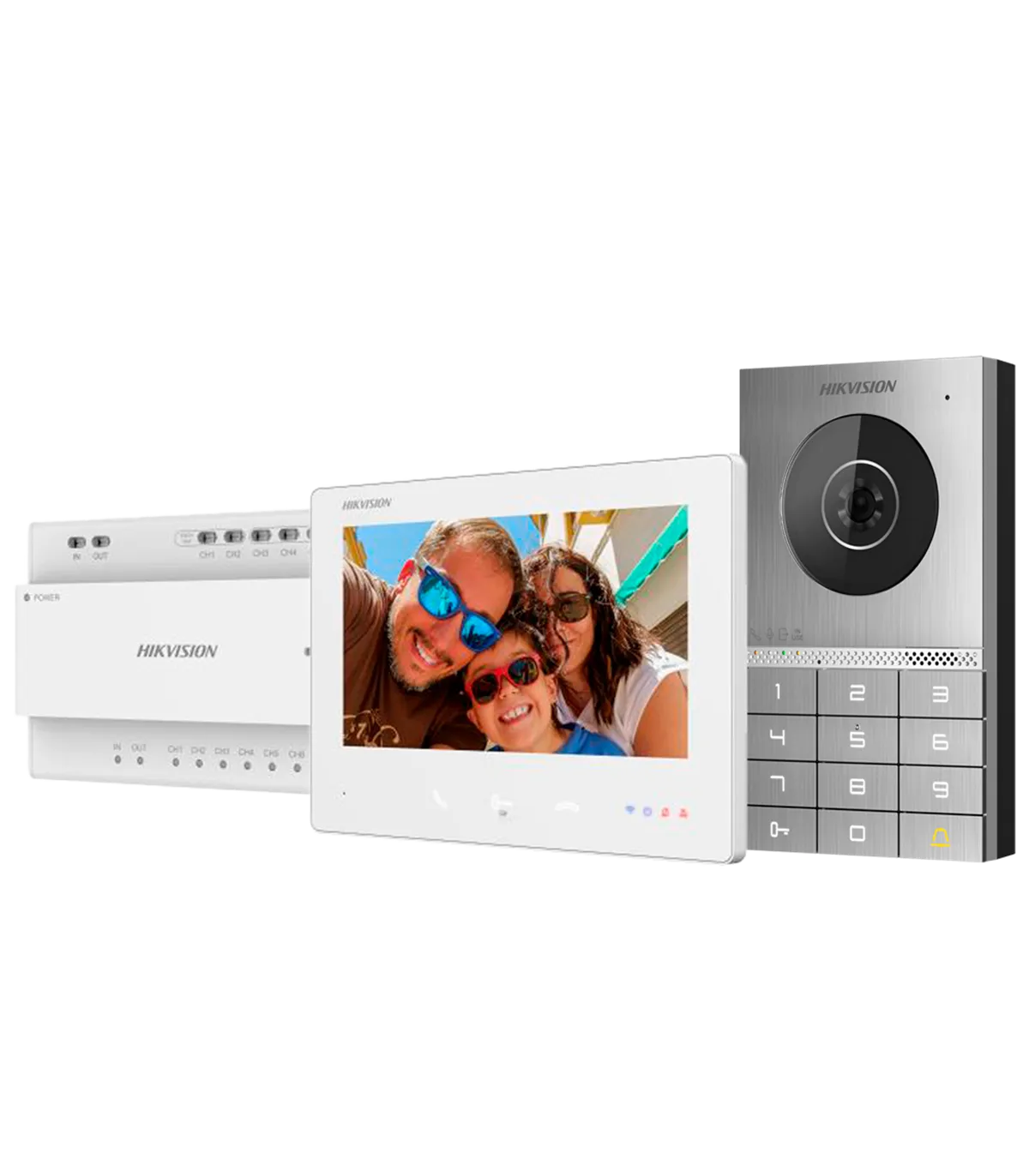

The DS-KIS706EY is a comprehensive video intercom kit designed for residential and commercial applications. This system utilizes HD 2-wire technology to ensure high-quality video and audio transmission. Ideal for enhancing security, it includes a 2 MP HD outdoor panel, a 7" TFT LCD WiFi indoor monitor, and a HD distributor, making it suitable for various installation environments. The system supports remote monitoring via the Hik-Connect mobile app and allows for the addition of up to 8 additional monitors, providing flexibility and scalability for users.
DS-KAD7060EY | |
| Brand | Hikvision |
| Model | DS-KAD7060EY |
| Operation Mode | Power, video, and audio via HD 2-wire technology |
| Outputs | 2 HD 2-wire channels with max 15 W power each 4 HD 2-wire channels with max 110 W power among the four |
| Cascade | 2 channels for cascading connection of DS-KAD7060EY |
| Capacity | Can power up to 22 WiFi monitors (DS-KH7300EY-WTE2) or 64 non-WiFi monitors (DS-KH7300EY-TE2) Can power up to 16 mini distributors DS-KAD7061EY or DS-KAD7062EY |
| Communication | HD 2-wire technology (up to 6 devices) |
| Power Supply | DC 48 V / 3.2 A max. |
| Operating Temperature | -10º C ~ +55º C |
| Dimensions | 144 (W) x 92 (H) x 66 (D) mm |
| Weight | 250 g |
DS-KH7300EY-WTE2/White | |
| Brand | Hikvision |
| Model | DS-KH7300EY-WTE2/White |
| Operating System | Linux |
| LCD | 7" color touch TFT |
| Screen Resolution | 1024 x 600 |
| Operation Mode | Additional touch button panel: call start, call end, and door opening LED status indicators |
| Inputs | 1 x HD 2-wire, 1 x handset |
| Outputs | 1 x HD 2-wire |
| Audio | Two-way audio with built-in microphone and speaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | HD 2-wire / RTSP / WiFi 802.11b/g/n (only for app connection via P2P) |
| Remote Access | Hik-Connect mobile app |
| Power Supply | Via specific Hikvision hub for HD 2-wire video intercoms (4 W max.) |
| Operating Temperature | -10 ºC ~ +50 ºC |
| Dimensions | 138 (H) x 190 (W) x 20 (D) mm |
| Weight | 350 g |
| Color | White |
| Slave Monitors | Monitors not belonging to the HD 2-wire system cannot be used |
DS-KAW150-4N | |
| Brand | Hikvision |
| Model | DS-KAW150-4N |
| Power Input | AC 100~240 V / 1.8 A / 50/60 Hz |
| Power Output | DC 48 V / 3.2 A |
| Voltage Range | Adjustable 43.2~55.2 V |
| Max Power Output | 150 W |
| Number of Outputs | 2 |
| Operating Temperature | -10º C ~ +70º C |
| Dimensions | 178 (W) x 97 (H) x 38 (D) mm |
| Weight | 540 g |
DS-KV7023EY-IME2 | |
| Brand | Hikvision |
| Model | DS-KV7023EY-IME2 |
| Operating System | Linux |
| Image Sensor | Low Illumination 2 MP IR |
| Image Functions | BLC / WDR / DNR |
| Viewing Angle | H: 135º, V: 85º |
| Audio | Two-way audio with microphone and speaker |
| Access Control | Door opening with MF card 13.56 MHz and password Up to 2,000 users and 10,000 cards/passwords |
| Keyboard | Mechanical call button and numeric keypad |
| Outputs | 2 x relay for lock (1 with DC 12 V / 300 mA), 1 x RS485 |
| Inputs | 2 x auxiliary inputs (exit button, door sensor), 1 x tamper |
| Remote Access | Hik-Connect mobile app AP WiFi mode for configuration |
| Network Interface | Network connection via HD 2-wire |
| Power Supply | DC 48 V with HD 2-wire hub DS-KAD7060EY / 12 V / 1700 mA max. |
| Protection Grade | Outdoor suitable IP65 Vandal-proof IK08 |
| Material | Plastic and stainless steel |
| Operating Temperature | -40 ºC ~ +60 ºC |
| Dimensions | 165 (H) x 95 (W) x 25 (D) mm |
| Weight | 400 g |
The DS-KIS706EY video intercom kit is perfect for modern residential buildings and commercial properties. Installers can easily set up the system using the plug-and-play feature, allowing for quick deployment without extensive wiring. The outdoor panel, equipped with a 2 MP HD camera, provides clear video feeds, enhancing security for users. The indoor monitor, featuring a 7" TFT LCD screen, allows for easy interaction and monitoring. With the ability to connect up to 22 WiFi monitors, this system is ideal for larger properties, ensuring that every area is covered. Additionally, the Hik-Connect mobile app enables remote monitoring, allowing users to see who is at the door from anywhere. The robust design, rated IP65 for outdoor use, ensures durability in various weather conditions, making it a reliable choice for any installation.
