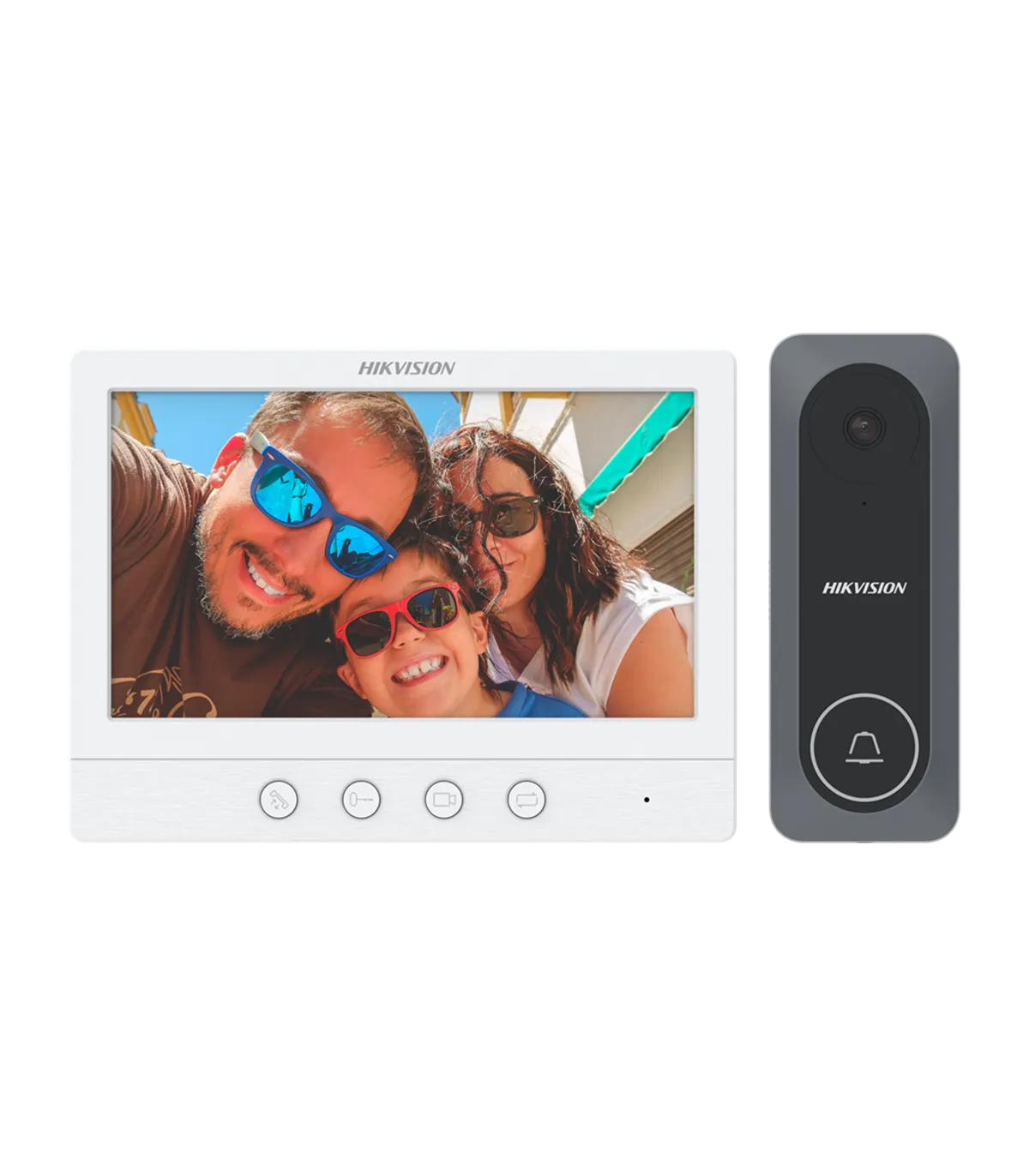

DS-KH2230T | |
| Brand | Hikvision |
| Model | DS-KH2230T |
| Operating System | Embedded Analog Operating System |
| Screen Type | 7" Color TFT |
| Screen Resolution | 1024 x 600 |
| Operation Mode | 4 Physical Buttons |
| Inputs | 2 x 4-Wire for Outdoor Panels, 1 x Analog Camera |
| Outputs | 2 x 4-Wire for Indoor Monitor |
| Audio | Two-way audio with built-in microphone and speaker |
| Connection | 4-Wire Analog |
| Power Supply | DC 12 V / 420 mA max. |
| Operating Temperature | -10 ºC ~ +50 ºC |
| Dimensions | 178 (H) x 132 (W) x 19 (D) mm |
| Weight | 335 g |
| Color | White |
DS-KB2412T-IM | |
| Brand | Hikvision |
| Model | DS-KB2412T-IM |
| Operating System | Embedded Analog Operating System |
| Image Sensor | HD TVI IR |
| Viewing Angle | H: 130º, V: 70º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | Mechanical Call Button |
| Outputs | 1 x Relay Output |
| Inputs | 1 x 4-Wire |
| Communication | 4-Wire |
| Power Supply | DC 12 V / 420 mA max. (via monitor using 4 wires) |
| Protection Rating | Suitable for Indoor Use |
| Material | Aluminum Alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 136 (H) x 51 (W) x 21 (D) mm |
| Weight | 300 g |
