Hikvision DS-KIS606-P video intercom kit
- Hikvision
- Video intercom kit
- IP & WiFi technology

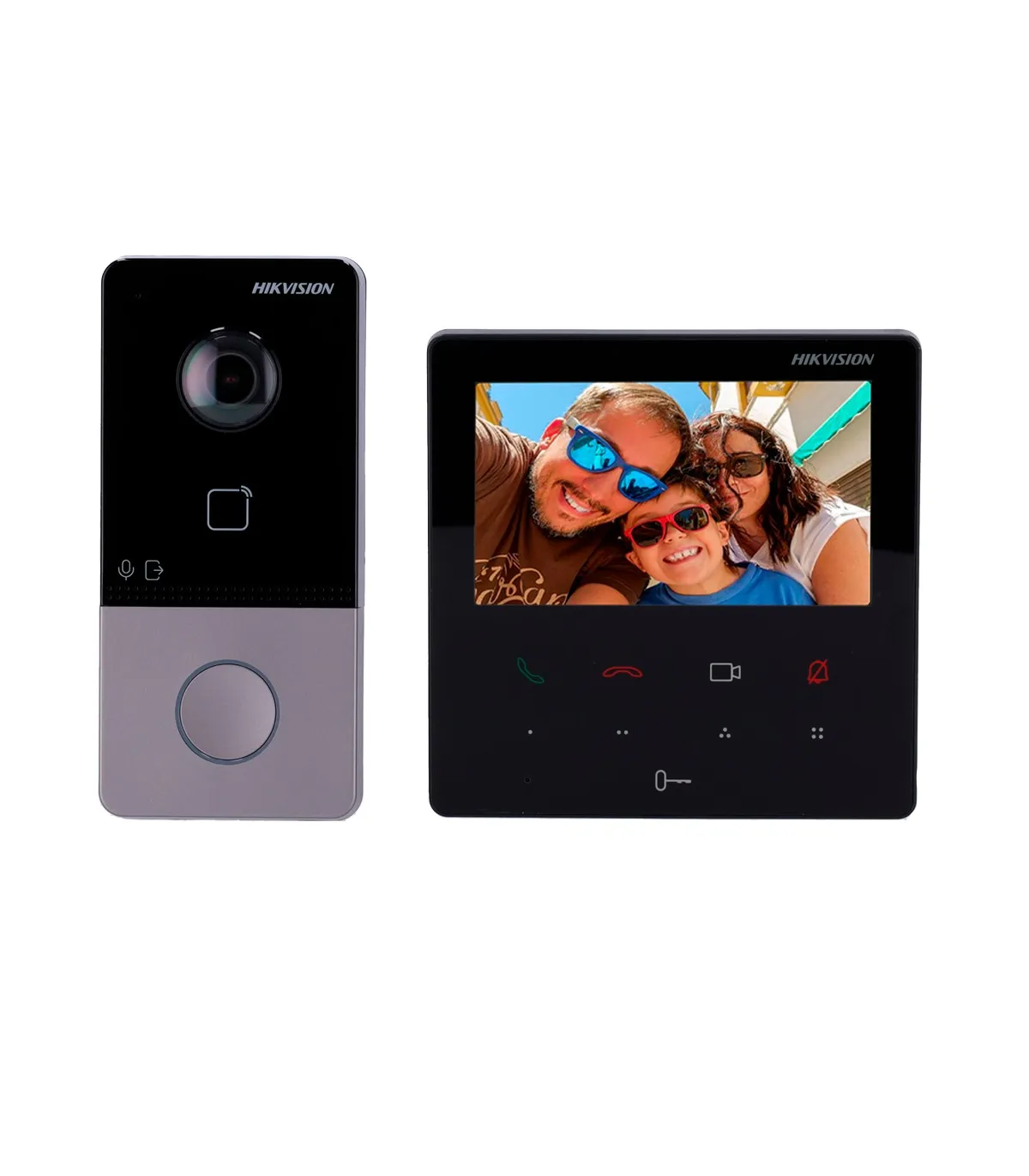

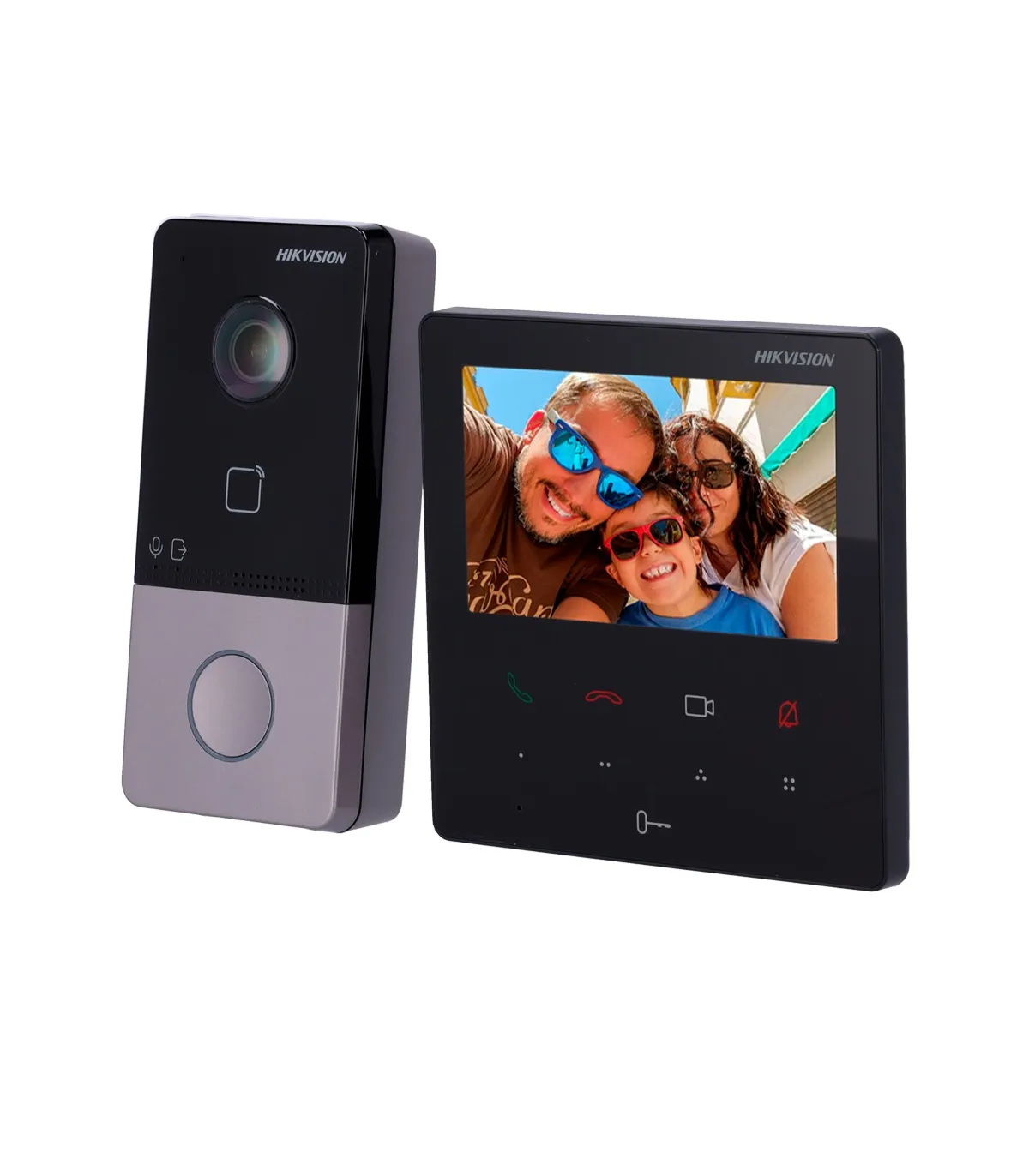

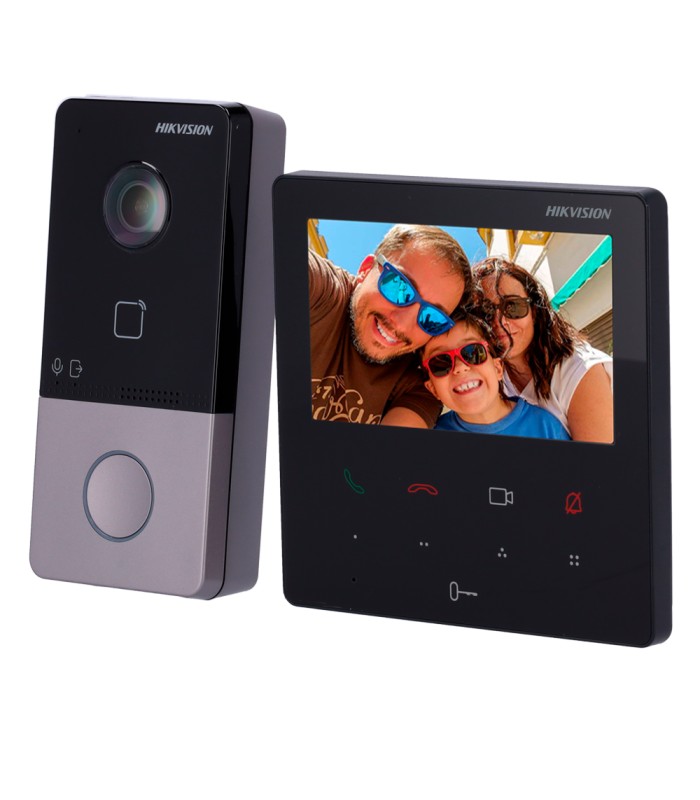

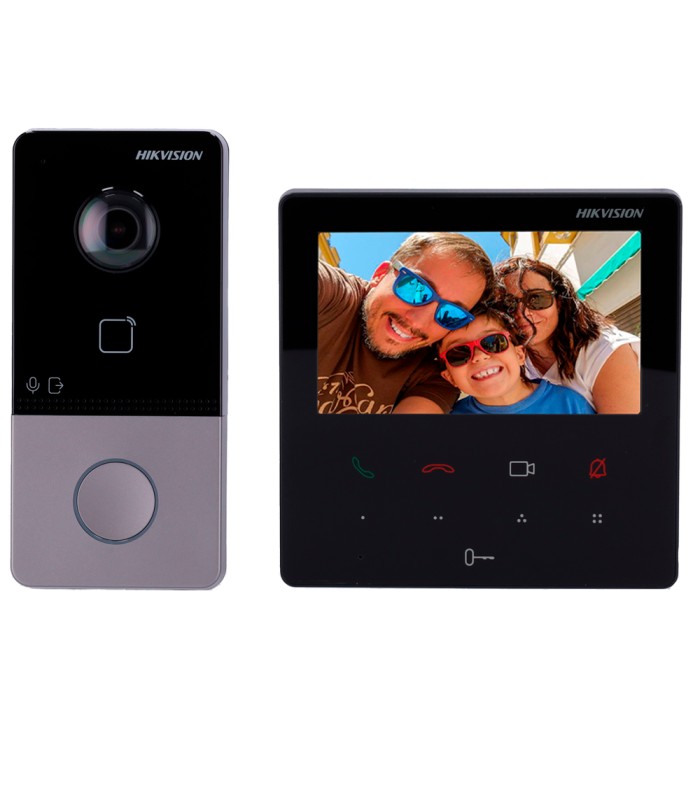

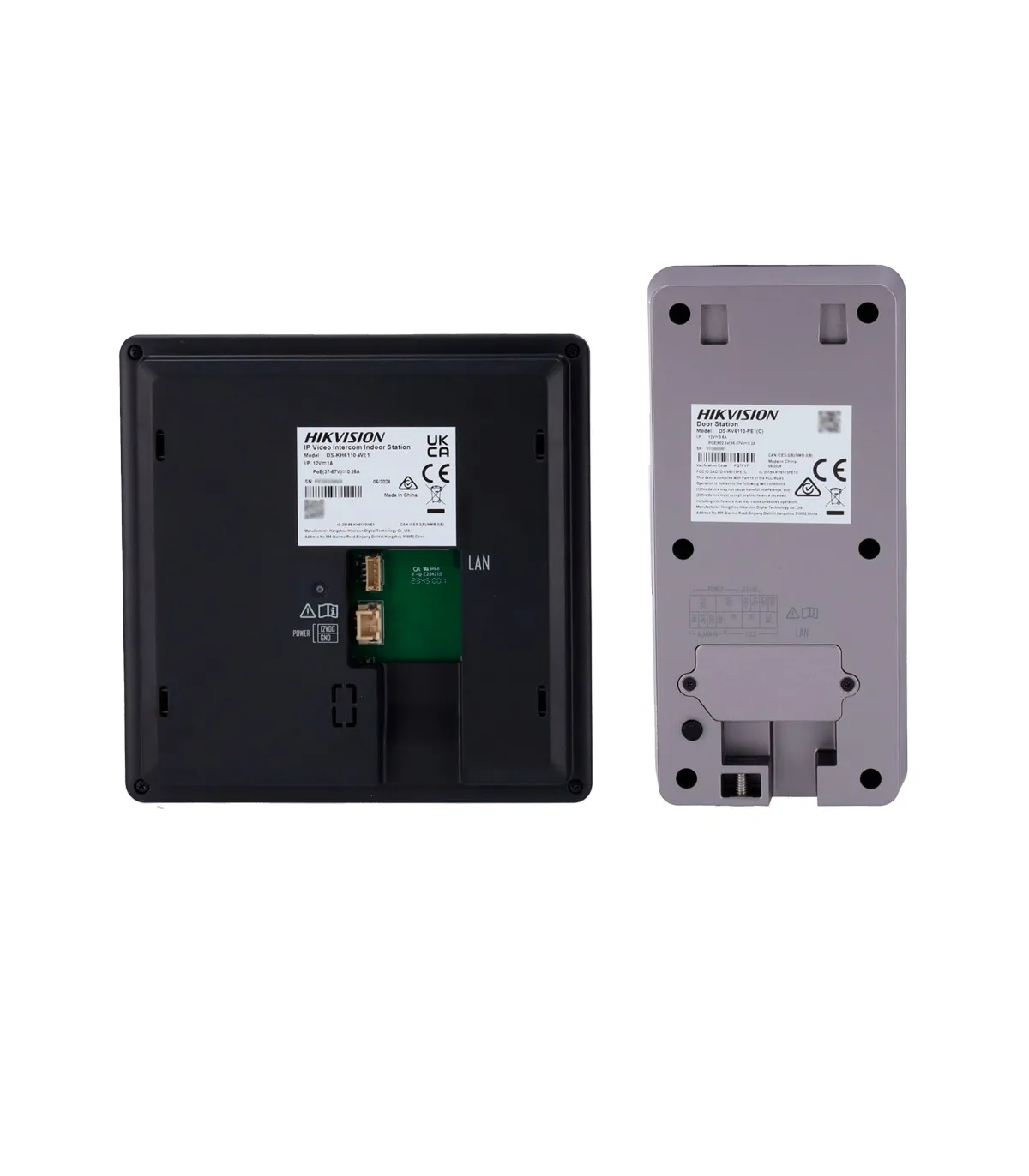

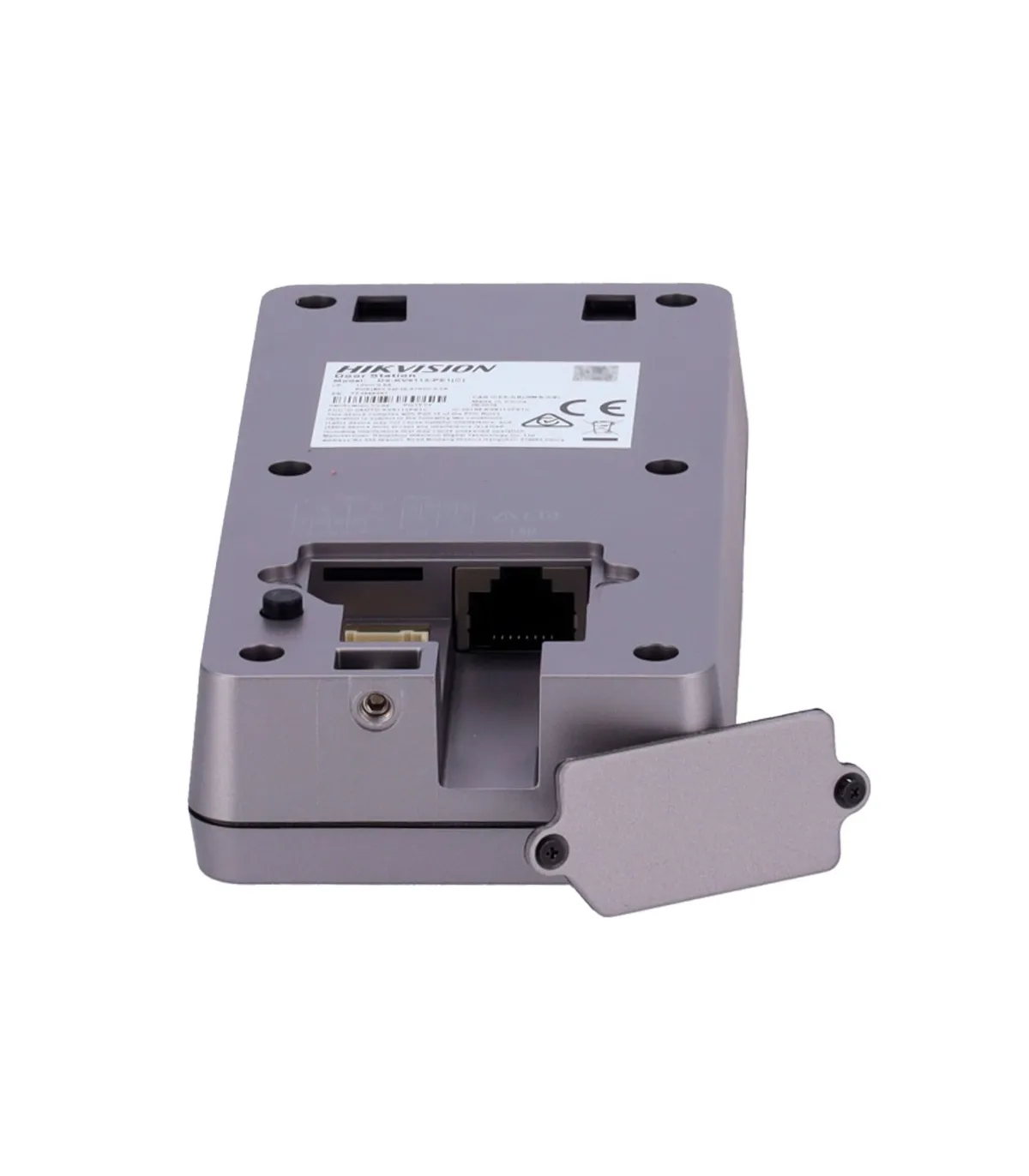

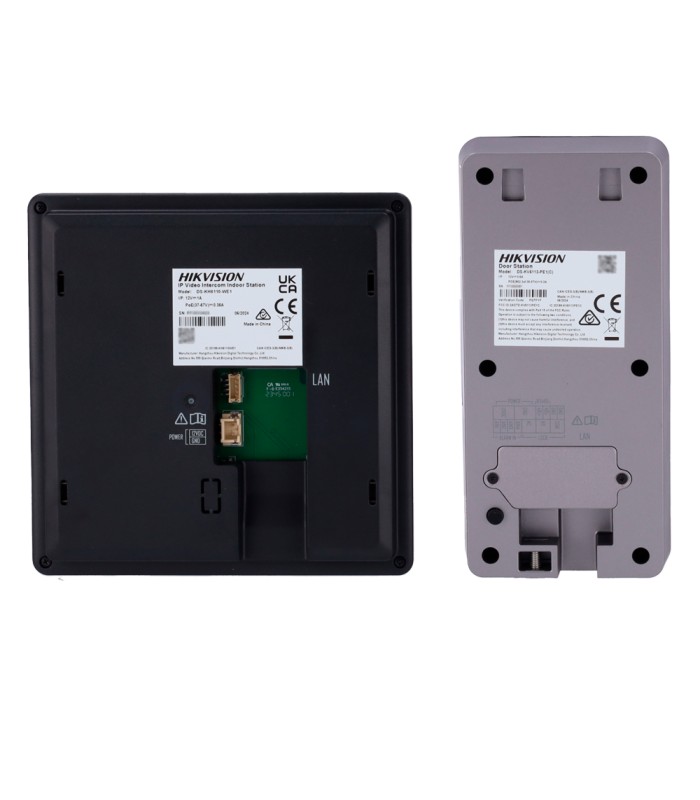

- Kit consisting of: DS-KV6113-WPE1(C) outdoor video intercom panel for surface with 2 Mpx HD camera and DS-KH6110-WE1 WiFi indoor monitor with 4.3" TFT LCD screen
- MF card reader
- Monitoring through iVMS-4200 software or Hik-Connect mobile app
- Allows you to add up to 16 additional monitors as extensions
Technical specifications
DS-KABV6113-RS/Surface | |
| Brand | Hikvision |
| Model | DS-KABV6113-RS |
| Compatibility | DS-KV6103-PE1 and DS-KV6113-WPE1 boards |
| Material | Methacrylate |
| Dimensions | 150 (H) x 80 (W) x 49 (D) mm |
| Mounting | Surface |

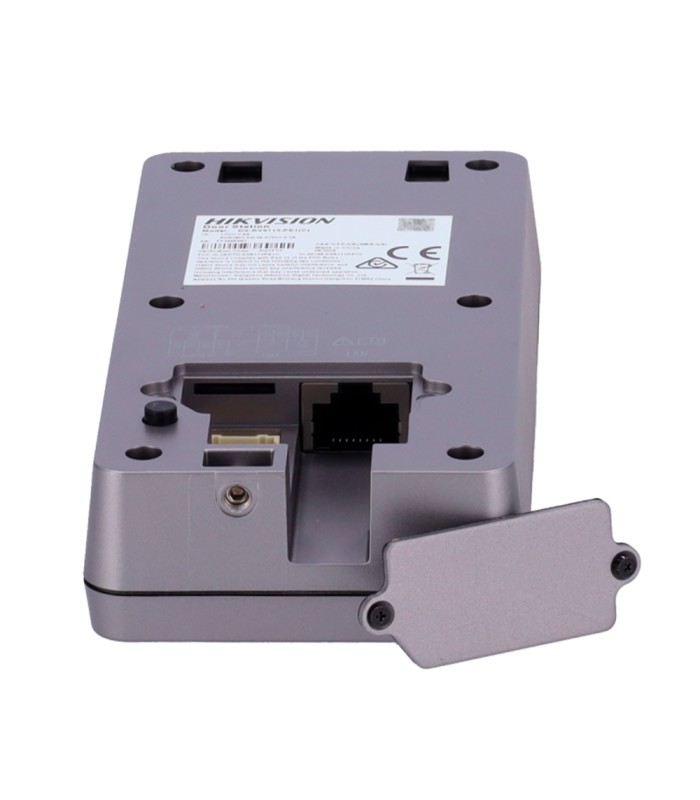

DS-KV6113-WPE1(C) | |
| Brand | Hikvision |
| Model | DS-KV6113-WPE1(C) |
| Operating system | Linux |
| Image sensor | 1/3" 2 Mpx CMOS wide angle IR |
| Image functions | BLC / WDR / DNR |
| Viewing angle | H: 131º, V: 78º |
| Audio | Two-way audio with microphone and speaker |
| Access control | Door opening with MF 13.56 MHz card Up to 2,000 users and 10,000 cards |
| Keyboard | Mechanical button call |
| Outputs | 1 x relay for lock, 1 x RS485 |
| Inputs | 4 x auxiliary inputs (exit button, feedback, door sensor), 1 x tamper |
| Remote access | Web browser iVMS-4200 software Hik-Connect mobile application |
| Interface network | Ethernet 10/100 BaseT / SIP 2.0 protocol / WiFi (only for connection to app via P2P) |
| Power | DC 12 V / 1000 mA max. / PoE IEEE802.3af |
| Protection degree | Suitable for outdoor use IP65 |
| Material | Plastic |
| Temp. operation | -40º C ~ +55º C |
| Dimensions | 138 (H) x 65 (W) x 27 (D) mm |
| Weight | 265 g |

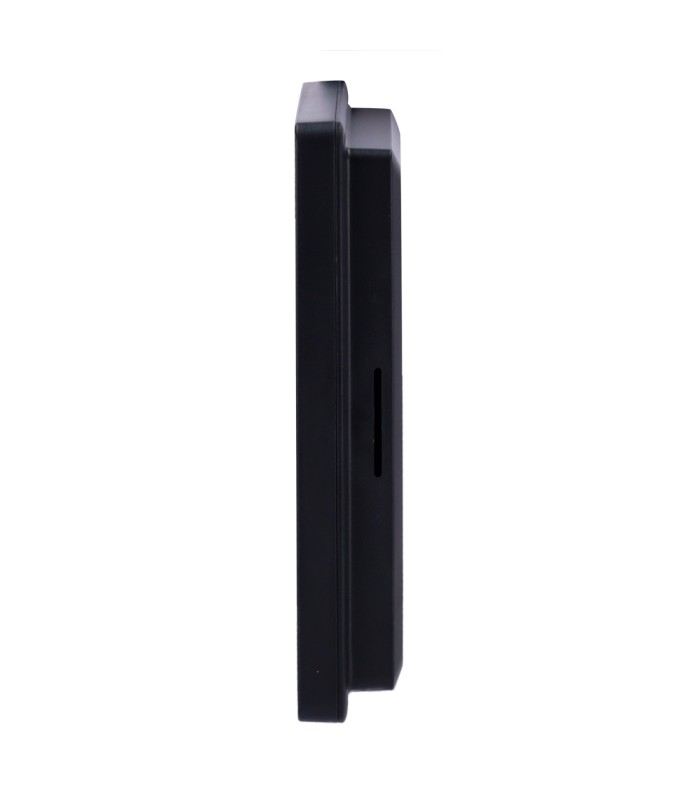

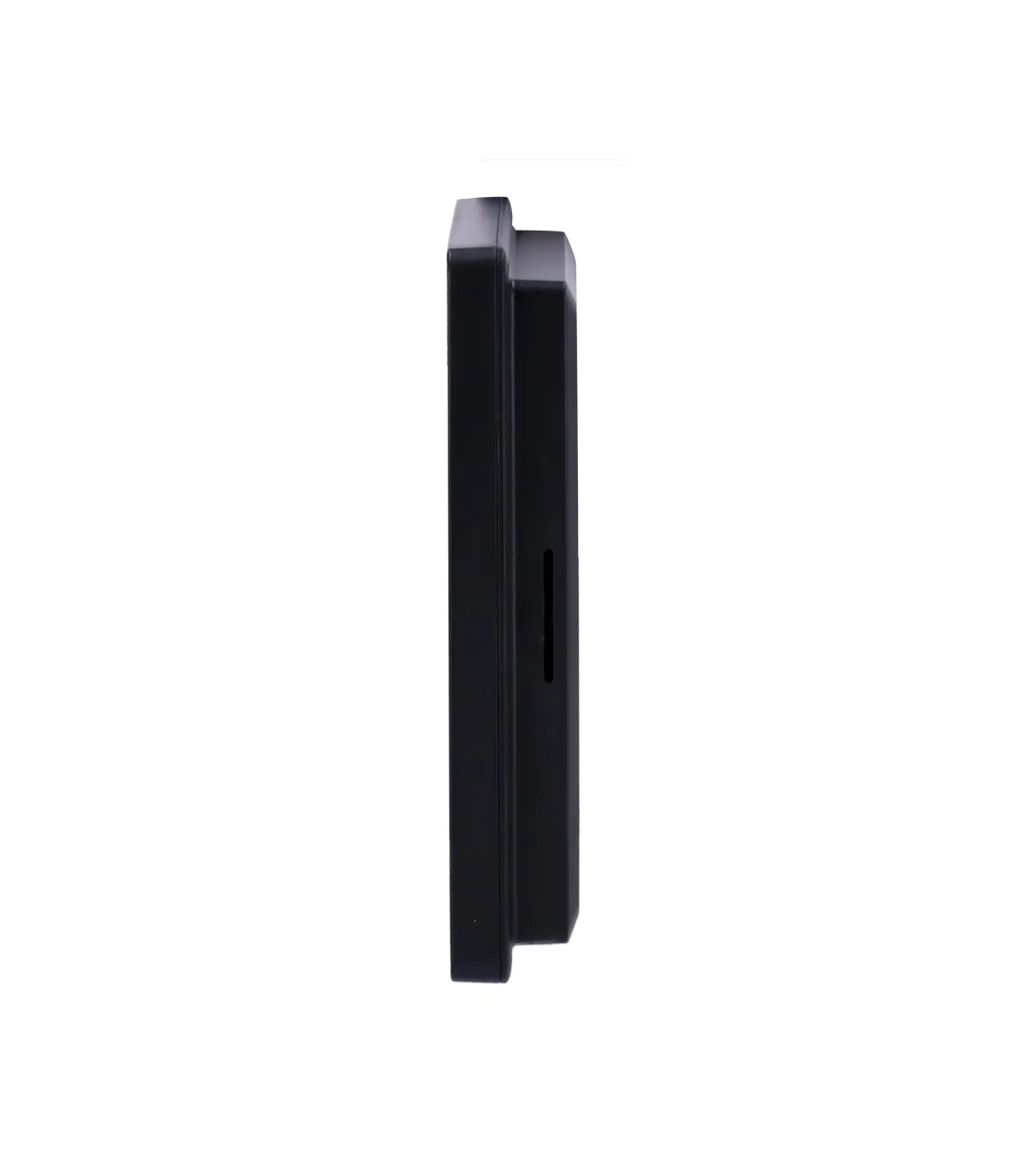

DS-KH6110-WE1 | |
| Brand | Hikvision |
| Model | DS-KH6110-WE1 |
| Operating system | Linux |
| Screen type | 4.3" TFT color touchscreen |
| Screen resolution | 480 x 272 |
| Operation mode | 9 x Touch operation buttons (call functions, menu actions and door opening) |
| Inputs | Not available |
| Outputs | Not available |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Memory | Not available |
| Connection | Ethernet 10/100 BaseT / RTSP / SIP 2.0 Protocol / WiFi 802.11 b/g/n (only for connection to app via P2P) |
| Remote Access | iVMS-4200 Software Hik-Connect Mobile App |
| Power | DC 12 V / 1 A max. / PoE IEEE802.3af |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 120 (H) x 120 (W) x 21 (D) mm |
| Weight | 198 g |
| Slave monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |
Contents
- Video intercom exterior panel for surface installation Hikvision
- Hikvision indoor monitor
- Rain visor
- 2 x power supply
