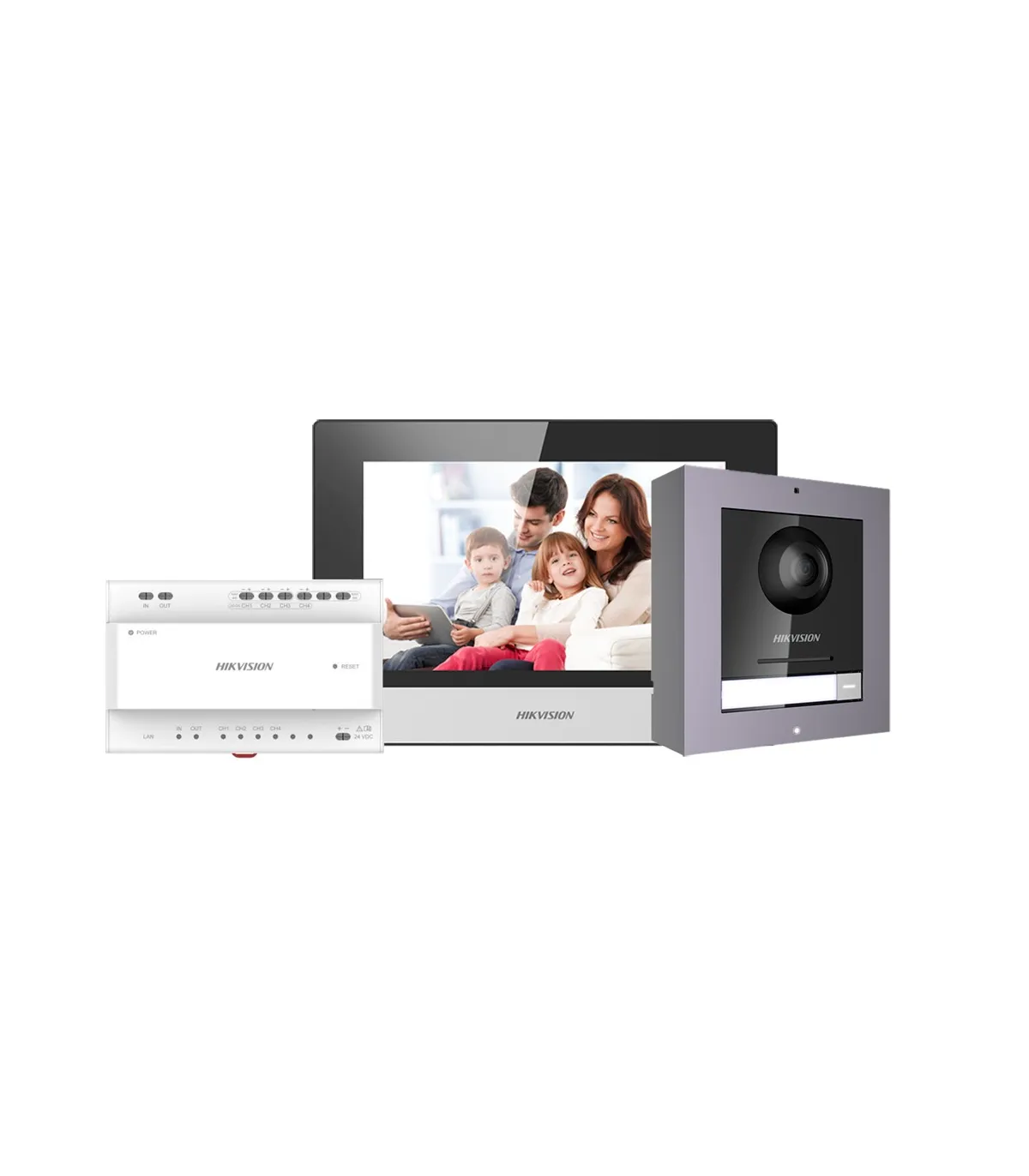

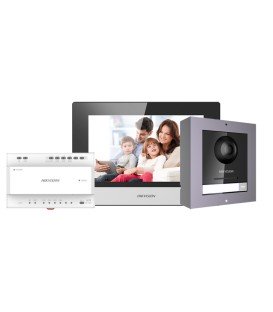

Hikvision DS-KIS702EY video intercom kit
Brand: Hikvision
- Video intercom kit
- 2-wire technology with TCP/IP & WiFi
- Outdoor panel and monitor | Supports up to 16 additional monitors
- Easy configuration firmware without network
- Mobile app with P2P | Internal relays in monitor
- Surface mount | IP65 rated

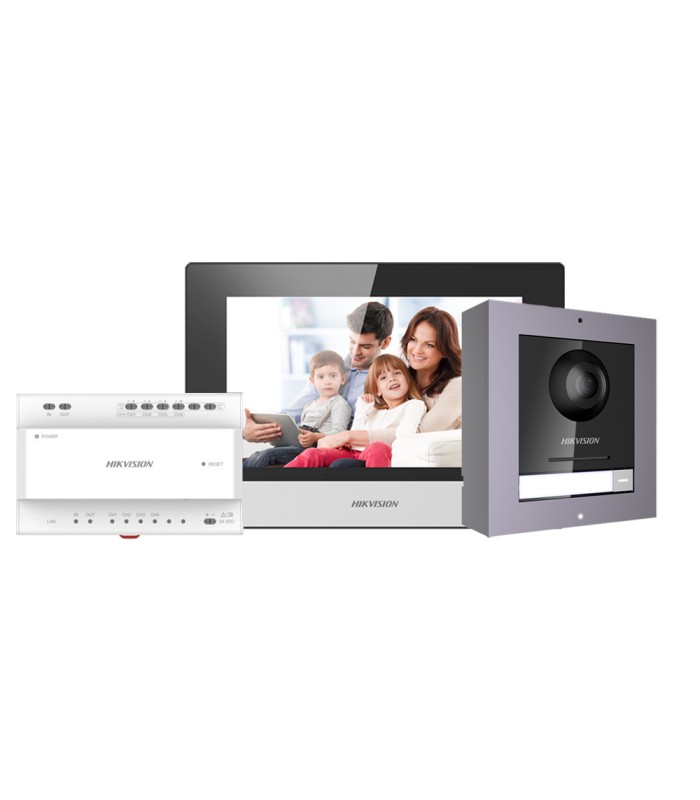

Hikvision DS-KIS702EY video intercom kit
- Hikvision
- Video intercom kit
- 2-wire technology
- Kit consisting of: DS-KD8003Y-IME2 video intercom exterior panel for surface with 2 Mpx HD camera, DS-KH6320Y-WTE2 WiFi indoor monitor with 7" TFT LCD screen and DS-KAD704Y 2-wire to IP converter hub
- Monitoring through iVMS-4200 software or Hik-Connect mobile app
- Firmware without network configuration
- Allows you to add up to 16 additional monitors as extensions
Specifications techniques
DS-KD8003Y-IME2 | |
| Brand | Hikvision |
| Model | DS-KD8003Y-IME2 |
| Operating system | Linux |
| Image Sensor | Low Illumination 2 Mpx IR |
| Image functions | BLC / WDR / DNR |
| Viewing angle | H: 146º, V: 82º, D: 180º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | Mechanical call button with LED customization label |
| Outputs | 2 x relay for lock, 1 x module output, 1 x DC 12 V / 500 mA max |
| Inputs | 4 x auxiliary inputs (exit button, feedback, door sensor), 1 x tamper |
| Remote access | Software iVMS-4200 Hik-Connect mobile application |
| Network interface | 2-wire networking / SIP 2.0 protocol |
| Modular | Compatible with Hikvision modular boards |
| Power | DC 24 V with hub 2 wires / 12 V / 1700 mA max. |
| Protection degree | Suitable for outdoor use IP65 |
| Material | Plastic |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 98 (H) x 100 (W) x 42 (D) mm |
| Weight | 374 g |

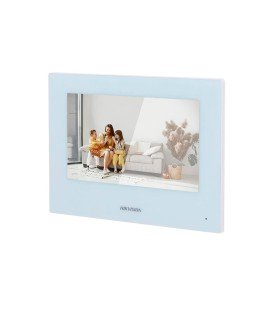

DS-KH6320Y-WTE2 | |
| Brand | Hikvision |
| Model | DS-KH6320Y-WTE2 |
| Operating system | Linux |
| LCD | 7" TFT color touchscreen |
| Screen resolution | 1024 x 600 |
| Inputs | 8 x configurable alarm inputs, 1 x RS485 |
| Outputs | 2 x relay outputs |
| Audio | Two-way audio with built-in microphone and speaker Noise reduction and echo cancellation |
| Memory | microSD card slot (up to 128 GB) |
| Connection | 2 wires / RTSP / SIP 2.0 Protocol / WiFi 802.11b/g/n (only for connection to app via P2P) |
| Remote access | Software iVMS-4200 Hik-Connect mobile application |
| Power | Through specific Hikvision hub for 2-wire video intercoms (6 W max.) |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 140 (H) x 200 (W) x 15 (D) mm |
| Weight | 327 g |
| Slave monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |
DS-KAD704Y | |
| Brand | Hikvision |
| Model | DS-KAD704Y |
| Operation mode | Power, video and audio through 2-wire technology |
| Outputs | 4 channels of 2 wires |
| Cascade | 2 channels for cascade connection of DS-KAD706Y or DS-KAD706Y |
| Communication | 2-wire technology (up to 4 devices) |
| Network interface | Ethernet 10/100 BaseT |
| Power | DC 24 V / 2.5 A max |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 144 (W) x 92 (H) x 66 (D) mm |
| Weight | 250 g |
Contents
- Hikvision video intercom exterior panel for surface installation
- Surface support
- Hikvision indoor monitor with specific firmware
- Converter hub
- microSD card
- DC power supply 24V DIN rail
