Hikvision DS-KIS313-P video intercom kit
- Hikvision
- Video intercom kit
- 4-wire analog technology

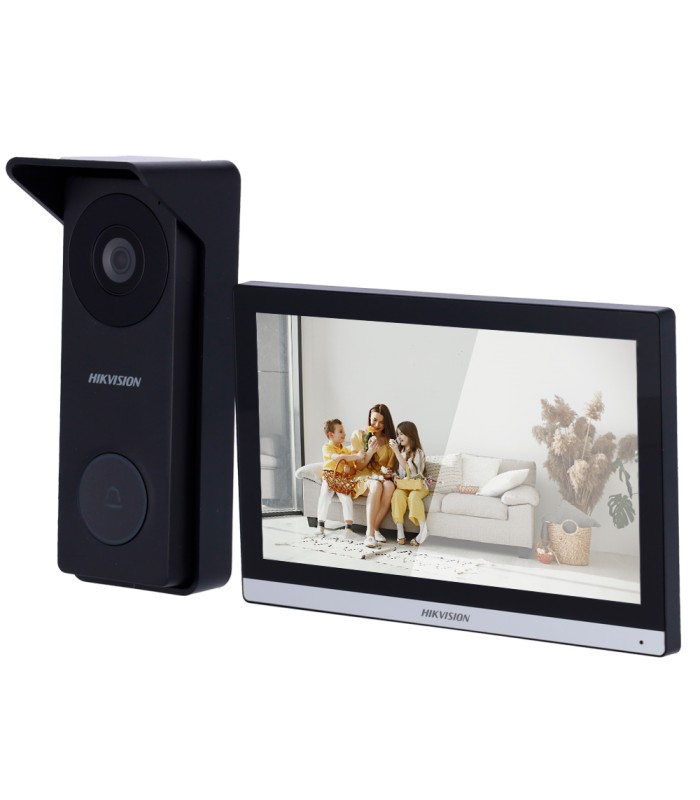

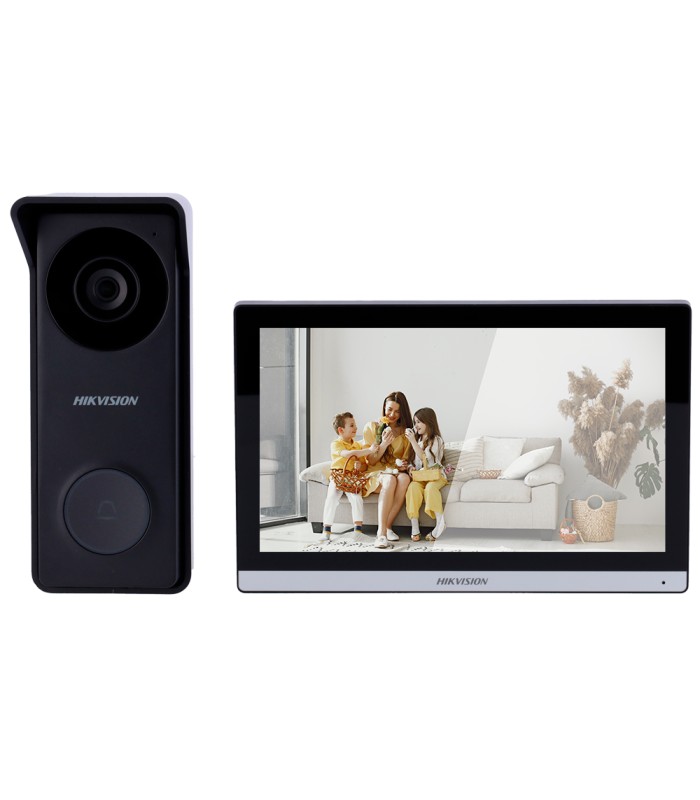

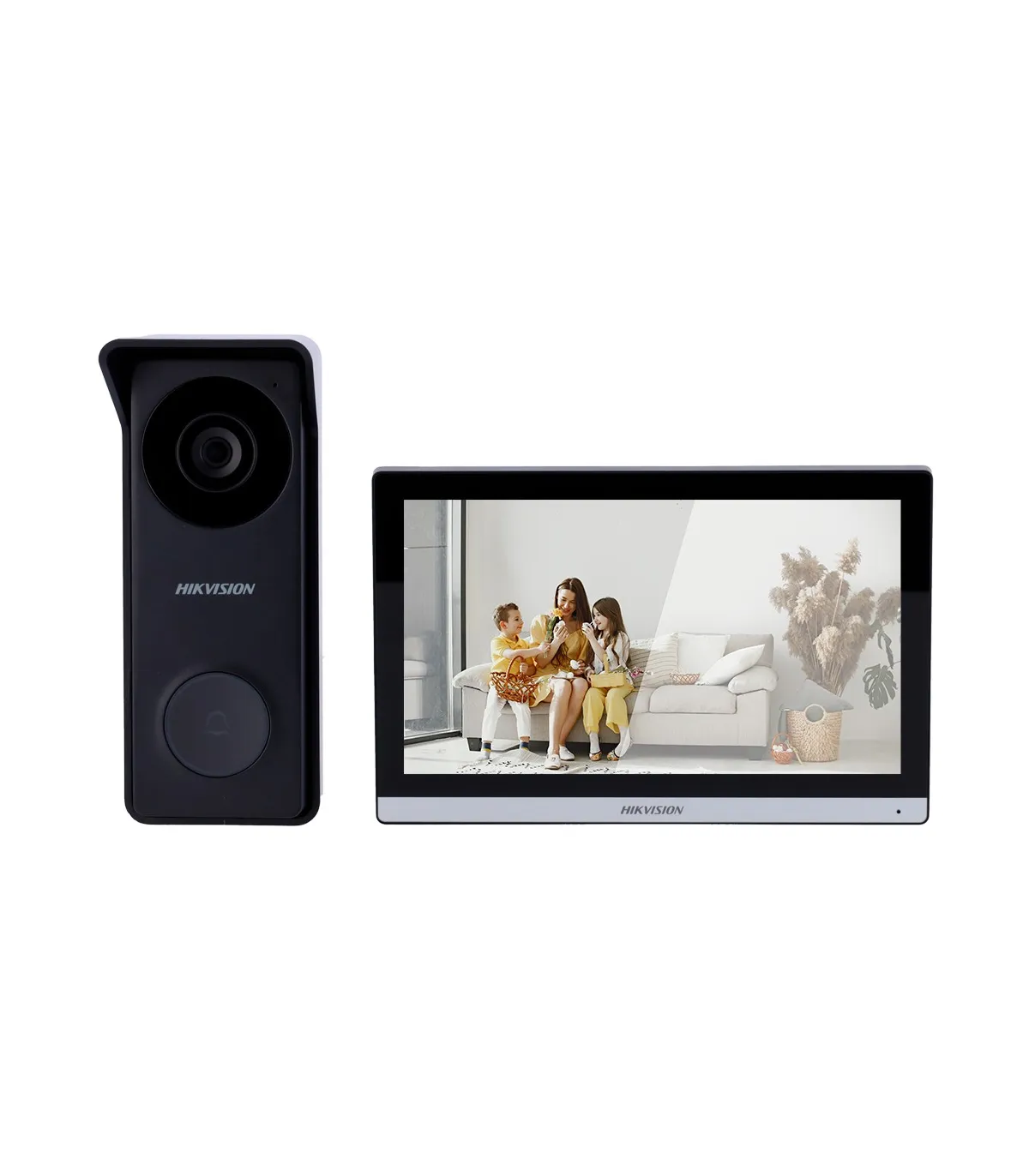

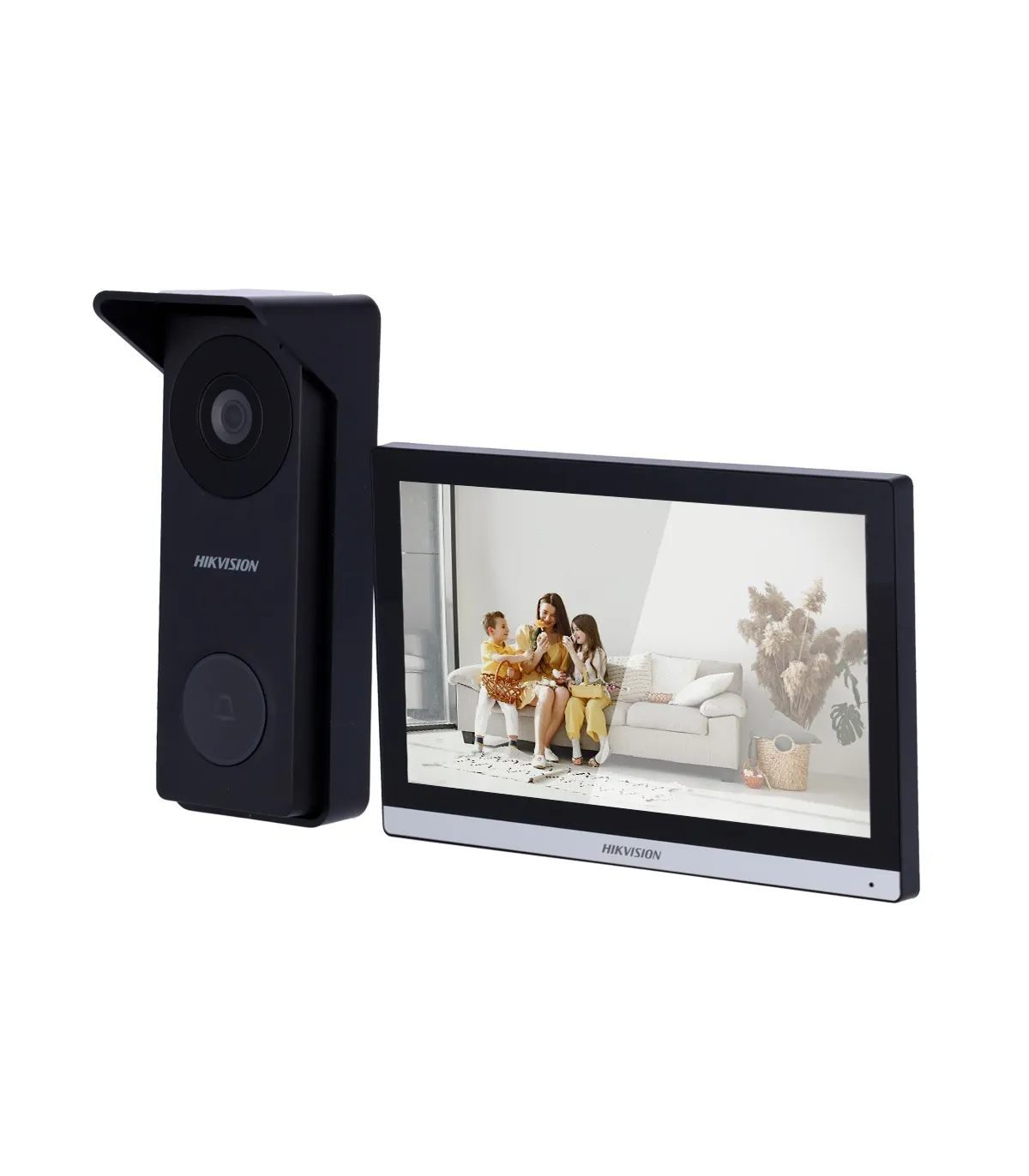

- Kit consisting of: DS-KB2422T-IM surface-mounted video intercom exterior panel with 2 Mpx HD camera and DS-KH6352-WTDE6 WiFi indoor monitor with 7" TFT LCD screen
- Monitoring via Hik-Connect mobile app
- Allows you to add up to 2 additional monitors as extensions
Technical specifications
DS-KH6352-WTDE6 | |
| Brand | Hikvision |
| Model | DS-KH6352-WTDE6 |
| Operating system | Linux |
| Display type | 7" color touch TFT |
| Screen resolution | 1024 x 600 |

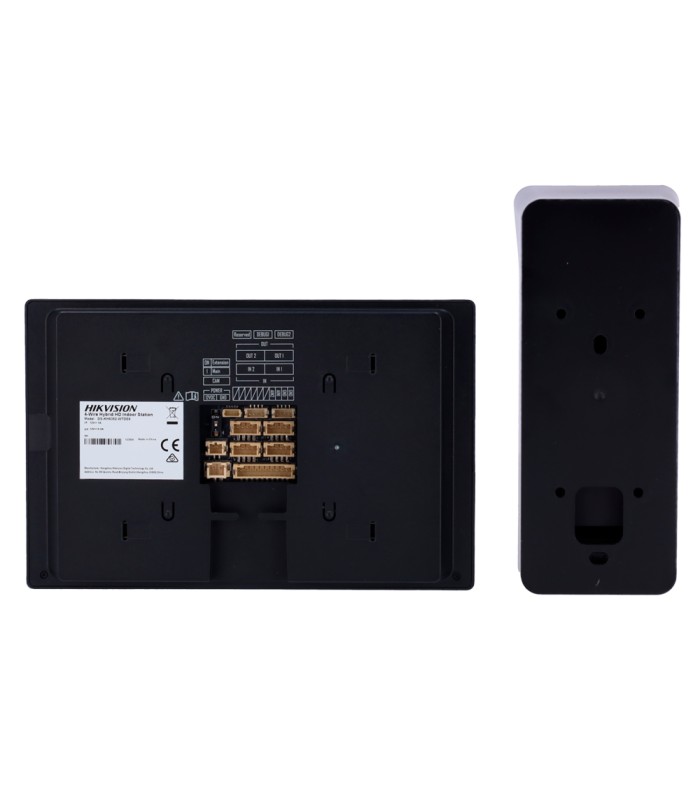

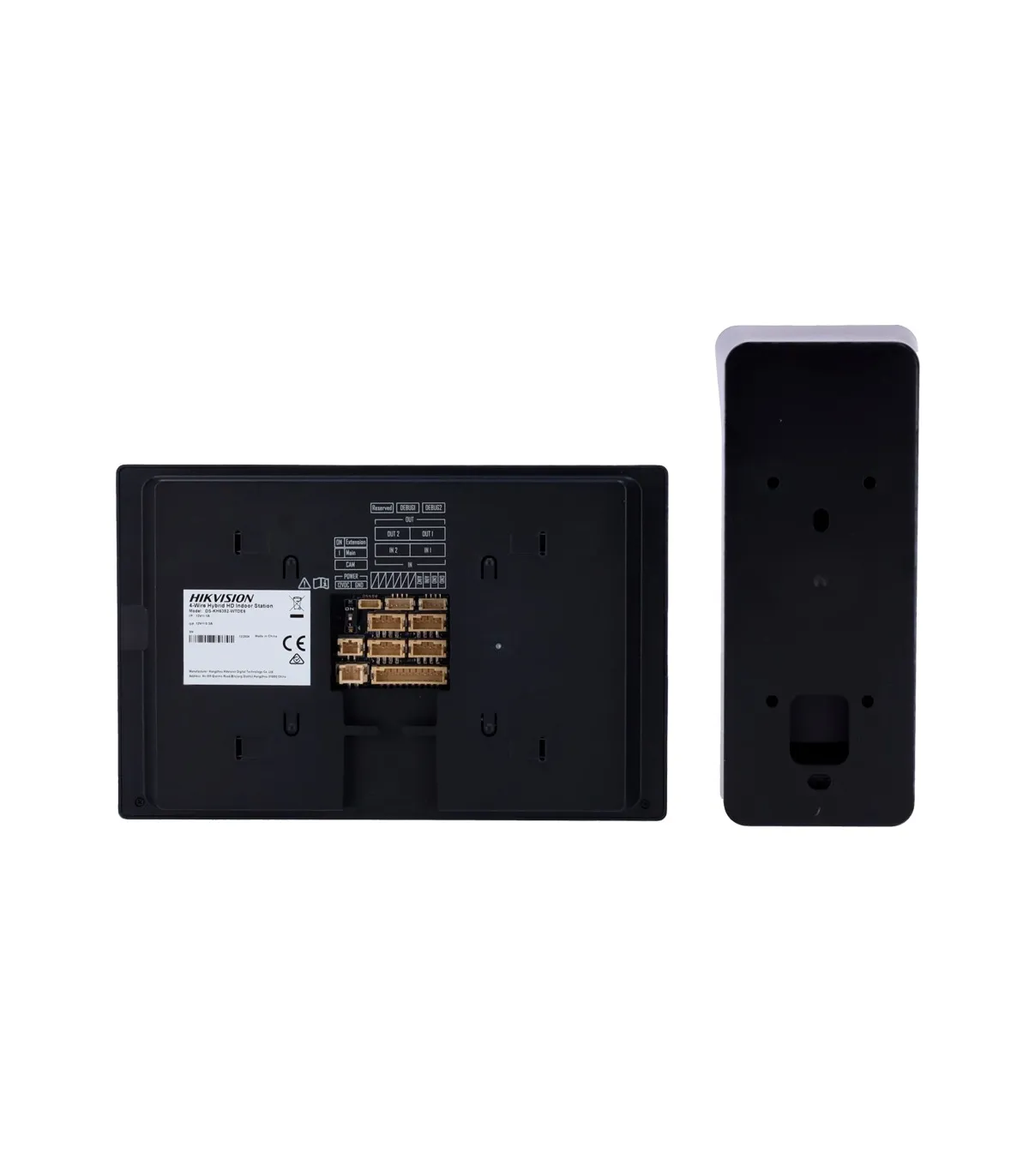

| Inputs | 2 x 4-wire input for external panels, 1 x analog camera input, 2 x alarm input |
| Outputs | 2 x 4-wire output for indoor monitor, 2 x relay output |
| Audio | Two-way audio with built-in microphone and speaker Noise reduction and echo cancellation |
| Memory | microSD card slot (up to 128 GB) |
| Connection | 4-wire analog / WiFi 802.11 b/g/n (only for connection to app via P2P) |
| Remote access | Hik-Connect mobile app |
| Power | DC 12 V / 420 mA max. |
| Temp. operation | -10º C ~ +50º C |

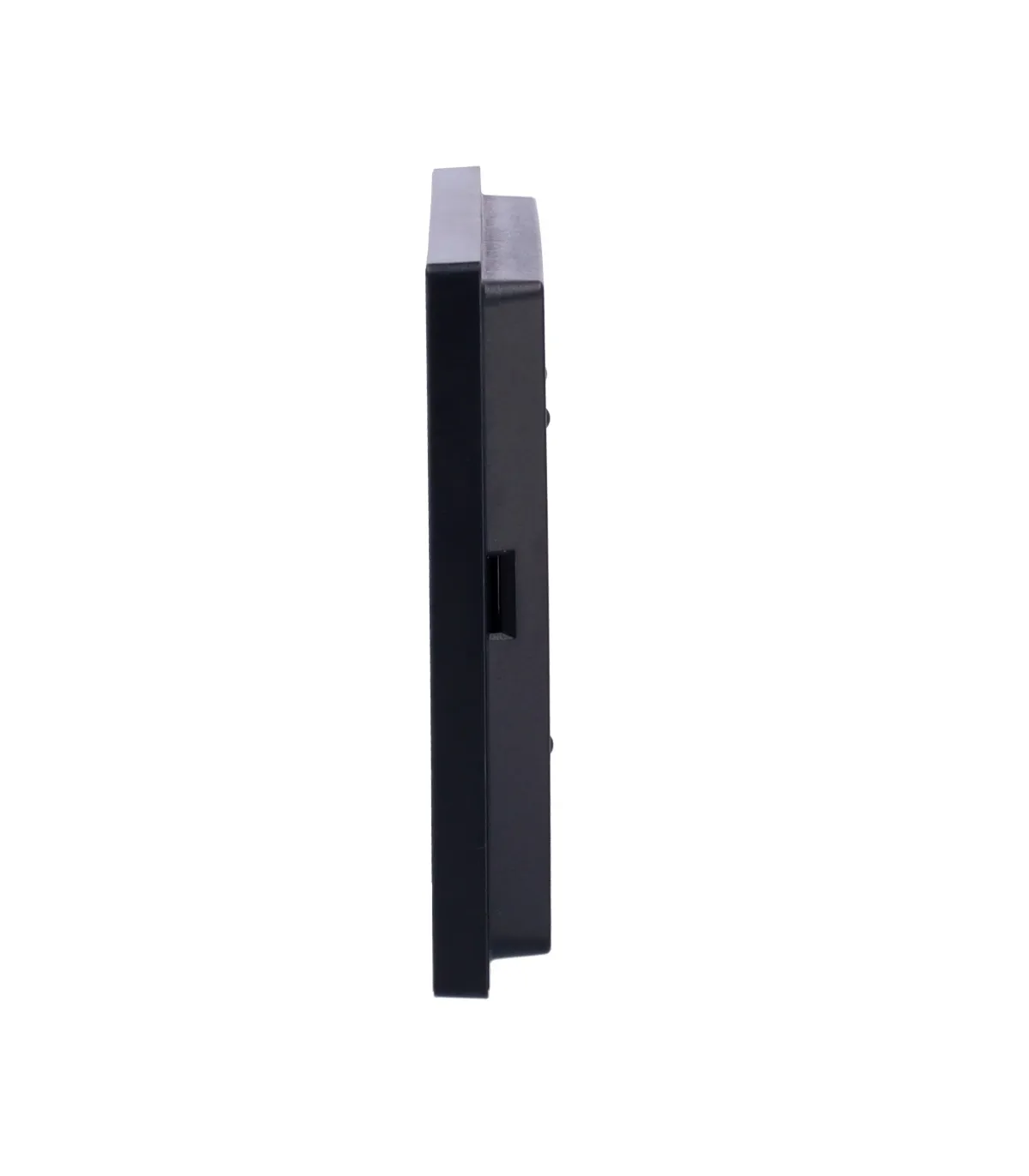

| Dimensions | 114 (H) x 175 (W) x 18 (D) mm |
| Weight | 260 g |

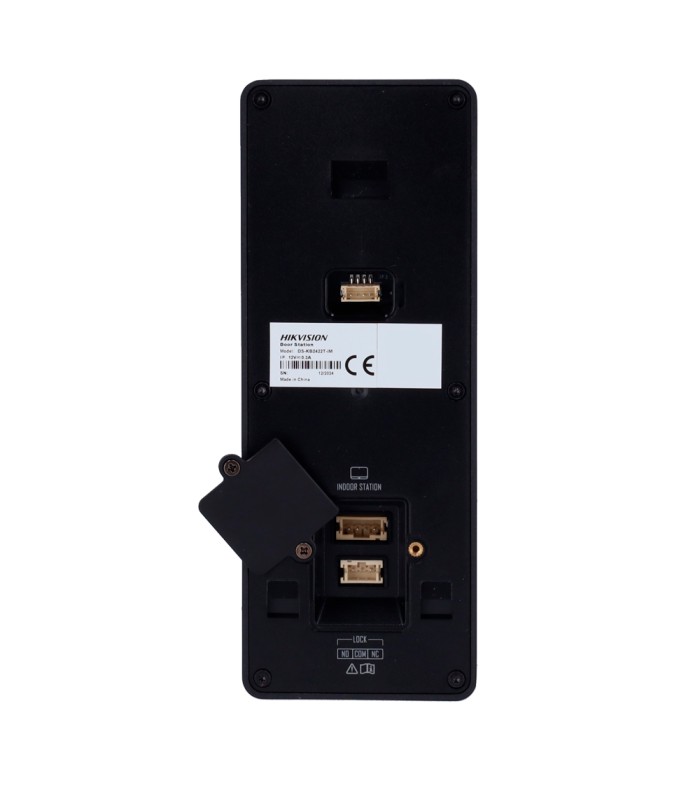

DS-KB2422T-IM | |
| Brand | Hikvision |
| Model | DS-KB2422T-IM |
| Operating system | Embedded analog operating system |
| Image sensor | 1/2.7" 2 Mpx CMOS IR |
| Viewing angle | H: 117º, V: 70º, D: 141º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | Mechanical call button |
| 4 wires | |
| Power | DC 12 V / 330 mA max. (via 4-wire monitor) |
| Protection degree | Suitable for outdoor use IP65 |
| Material | Aluminum alloy Anti-vandal IK08 |
| Temp. operation | -30 ºC ~ +60 ºC |
| Dimensions | 145 (H) x 55 (W) x 24 (D) mm |
| Weight | 200 g |
Contents
- Hikvision video intercom exterior panel for surface installation
- Surface support

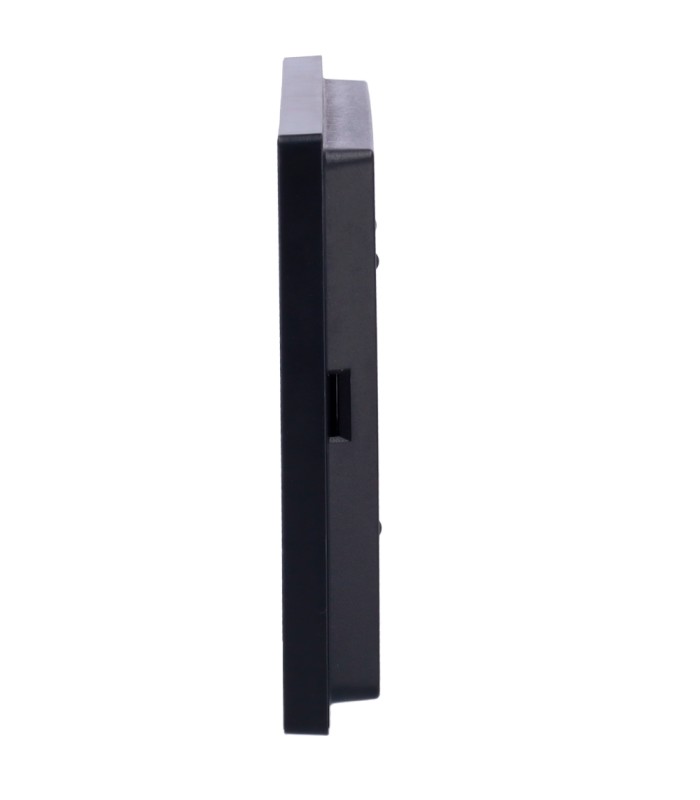

- Hikvision indoor monitor
- 5 meter 4-wire cable
- Power supply
