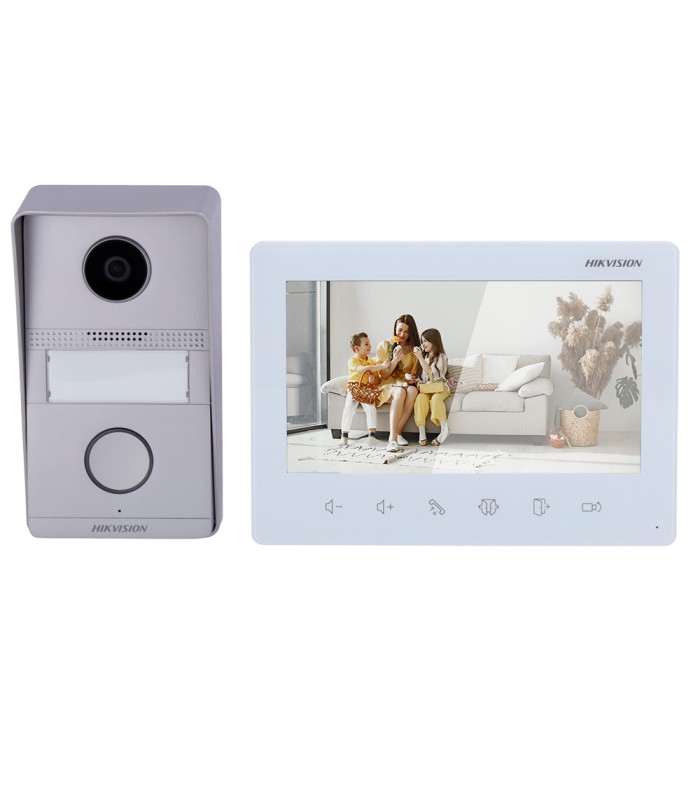

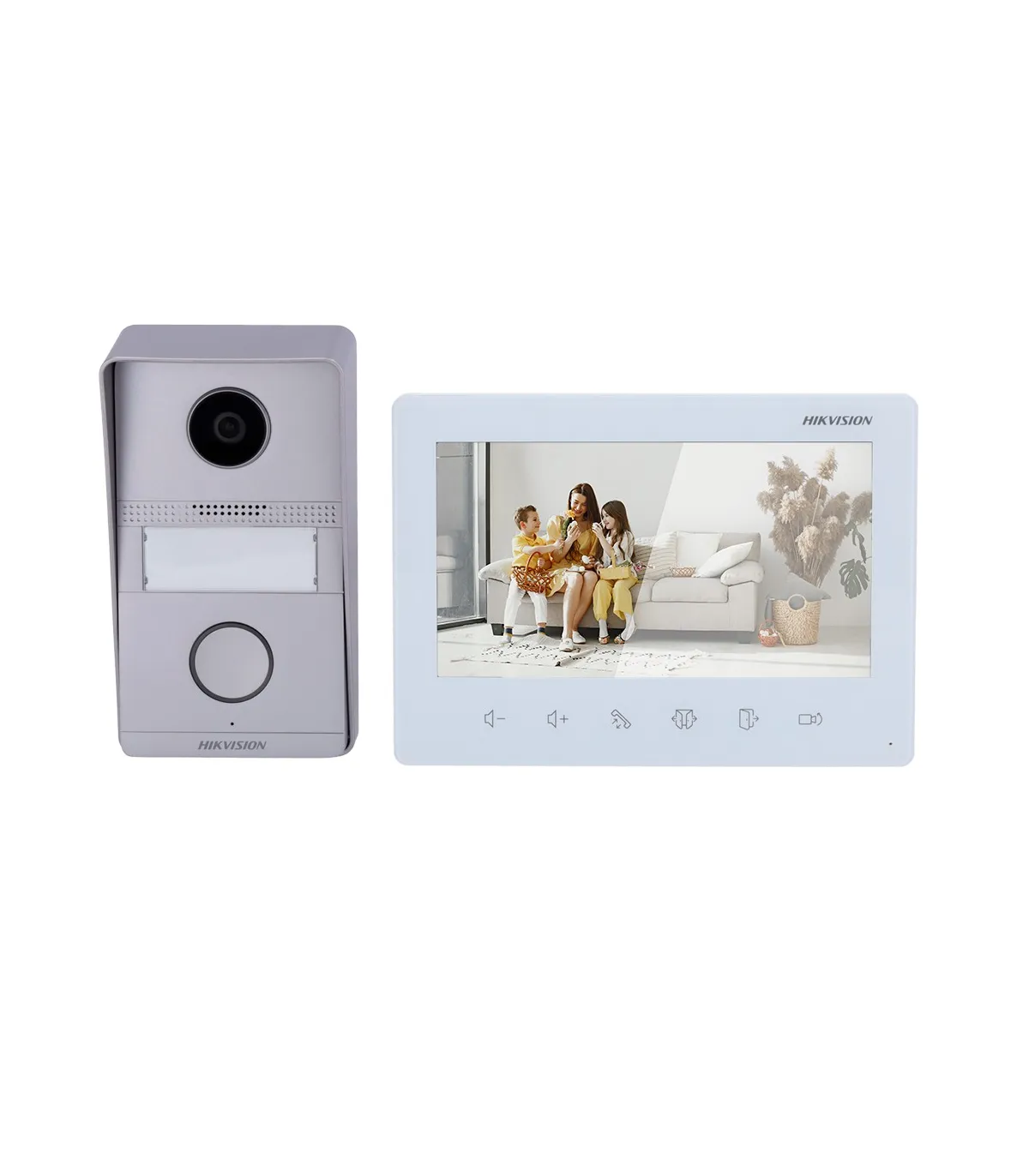

Hikvision DS-KIS101-P/Surface video intercom kit
- Hikvision
- Video intercom kit
- 2-wire analog technology
- Kit consisting of: DS-KV1101-ME2/Surface video intercom exterior panel for surface with 2 Mpx camera and DS-KH1200 indoor monitor with 7" TFT LCD screen and touch button panel
- Vandal-proof aluminum alloy surface
- Plug & Play installation
- Allows you to add up to 2 additional monitors as extensions
Technical specifications
DS-KV1101-ME2/Surface | |
| Brand | Hikvision |
| Model | DS-KV1101-ME2/Surface |
| Operating system | Embedded analog operating system |
| Sensor image | 2 Mpx CMOS low illumination with IR and white LEDs |
| Viewing angle | H: 100º, V: 69º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | Mechanical call button with LED personalization label |
| Outputs | 2 x relay outputs (powers lock up to 12 V / 1 A) |
| Inputs | 1 x monitor input, 4 x alarm inputs, 2 x push button, 2 x door sensor, 1x tamper |
| Communication | 2 wires |
| Power | DC 48 V / 500 mA max. (via 2-wire monitor) |
| Protection degree | Suitable for outdoor use IP65 Vandal-resistant IK07 |
| Material | Aluminum alloy |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 150 (H) x 82 (W) x 23.5 (D) mm |
| Weight | 345 g |
DS-KH1200 | |
| Brand | Hikvision |
| Model | DS-KH1200 |
| Operating system | Embedded analog operating system |
| Display type | 7" color TFT |
| Screen resolution | 1024 x 600 |
| Mode of operation | 6 touch buttons |
| Inputs | 2 x 2-wire input for entrance panels, 1 x analog camera input |
| Outputs | 1 x 2-wire output for indoor monitor |
| Audio | Two-way audio with integrated microphone and speaker |
| Connection | 2 wires analog |
| Power | DC 48 V / 9 A max. |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 187 (H) x 137 (W) x 25.4 (D) mm |
| Weight | 335 g |
| Color | White |
Contents
- Hikvision surface-mounted video intercom exterior panel
- Indoor monitor Hikvision
- DC 48V power supply
