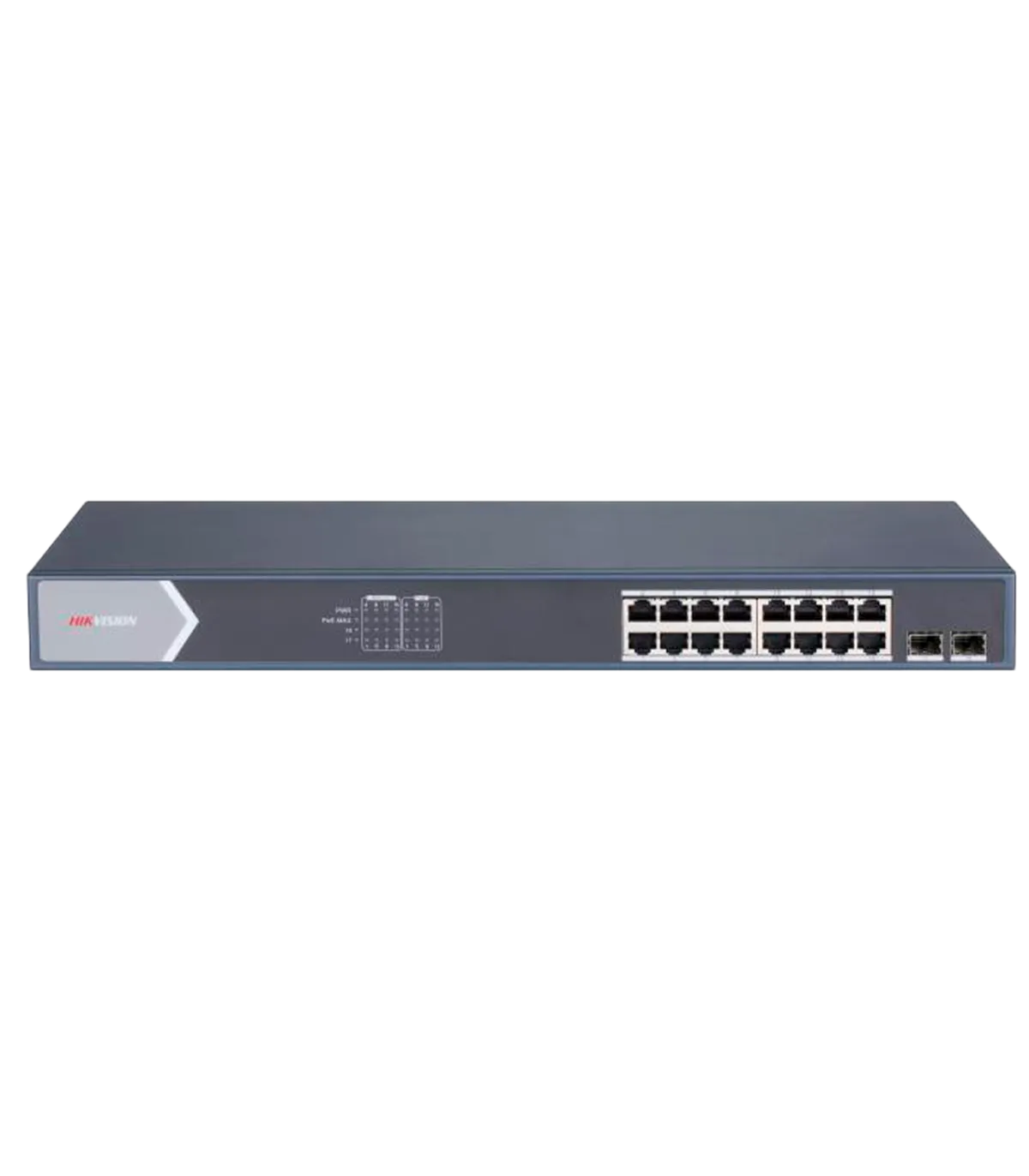

The DS-3E1518P-SI is a sophisticated managed switch designed for seamless integration into modern electronic security systems. With its 16 RJ45 10/100/1000 Mbps PoE ports and 2 Gigabit SFP ports, this device is ideal for powering and connecting multiple IP cameras and other network devices in a variety of environments. Its advanced features, including PoE management and extended reach capabilities, make it a perfect fit for both small and large-scale installations.
| Interfaces | 16 PoE RJ45 10/100/1000 Mbps + 2 Gigabit SFP ports |
| PoE Features | Up to 30W on ports 1-16 802.3af/at Up to 225W total PoE power Pinout ports 1-16 1,2,7,8- / 3,6,4,5+ |
| PoE Functionalities | Extended PoE ports 1-16 up to 300 meters at 10Mbps Port Isolation for ports 1-16 PoE Watchdog for ports 1-16 resets cameras if unresponsive VIP ports 1-8 prioritize these ports when bandwidth is insufficient |
| L2 Functionalities | Static link aggregation (1 group) Loop prevention protocols (802.1D STP and 802.1w RSTP) VLAN (Max. 4094) 802.1Q Tag 802.1ab LLDP DHCP Client Port Mirroring |
| HikPartner Pro Functionalities | Supports one-click remote management via Hik Partner Pro (Supported functions) 1. View port speed. 2. View port bandwidth utilization. 3. Display PoE power usage. 4. Show network topology information. 5. View alarm status. 6. Restart ports and devices. 7. Enable extended mode for ports. 8. Remotely update the device. |
| Management | Web management Management via Hik-Central Pro Management via Hik-Partner Pro. |
| MAC Table | 16K |
| Bandwidth | 9.2Gbps |
| Forwarding Rate | 6.84Mbps |
| Internal Cache | 4 Mbits |
| Installation | Rack, Desktop, Wall-mounted |
| Surge Protection | 6kV |
| Power Supply | AC 100 ~240, 50/60Hz, Max 4A |
| Operating Temperature | 0º C ~ 45º C |
| Consumption | Standby 20W / With PoE 250W |
| Dimensions | 220 (L) x 44.5 (H) x 440 (W) mm |
| Weight | 2.59Kg |
The DS-3E1518P-SI is ideally suited for deployment in environments requiring robust network infrastructure, such as corporate offices or educational institutions. In a typical installation, the switch can be positioned in a server room or network closet, providing reliable connectivity for multiple IP cameras and other network devices. With its PoE capabilities, installers can easily power devices without the need for additional electrical outlets, simplifying the setup process. The PoE Watchdog feature ensures that any unresponsive cameras are automatically reset, maintaining system reliability. Additionally, the switch's remote management capabilities via Hik Partner Pro allow for efficient monitoring and troubleshooting, making it an excellent choice for both installers and end users looking for a dependable solution.
