DS-KH6352-WTDE6 | |
| Brand | Hikvision |
| Model | DS-KH6352-WTDE6 |
| Operating System | Linux |
| Screen Type | 7" Color Touch TFT |
| Screen Resolution | 1024 x 600 |
| Inputs | 2 x 4-wire for outdoor panels, 1 x analog camera, 2 x alarm |
| Outputs | 2 x 4-wire for indoor monitor, 2 x relay |
| Audio | Two-way audio with built-in microphone and speaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | 4-wire analog / WiFi 802.11 b/g/n (only for app connection via P2P) |
| Remote Access | Hik-Connect mobile app |
| Power Supply | DC 12 V / 420 mA max. |
| Operating Temperature | -10 ºC ~ +50 ºC |
| Dimensions | 114 (H) x 175 (W) x 18 (D) mm |
| Weight | 260 g |

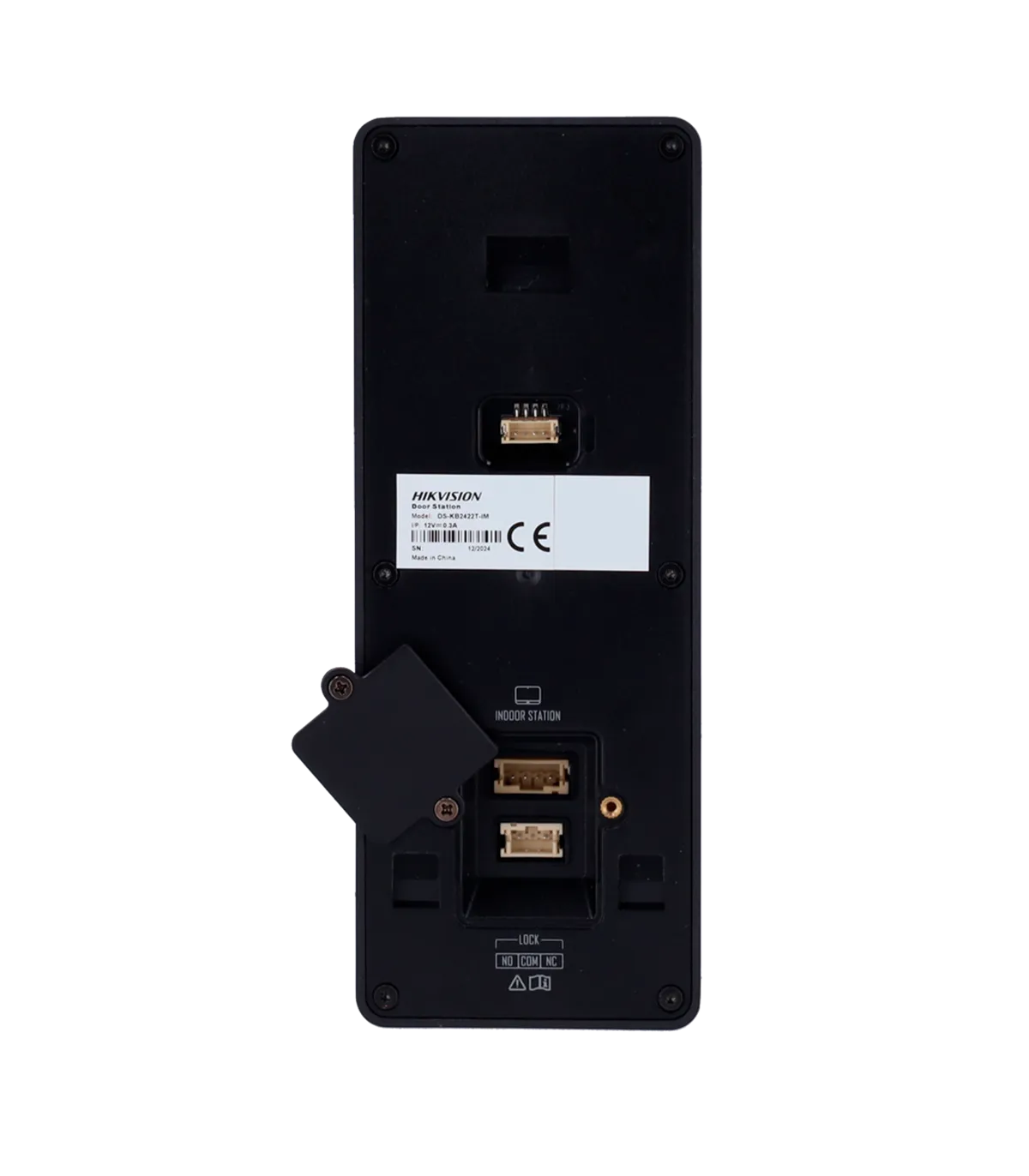

DS-KB2422T-IM | |
| Brand | Hikvision |
| Model | DS-KB2422T-IM |
| Operating System | Embedded Analog Operating System |
| Image Sensor | HD TVI IR |
| Viewing Angle | H: 117º, V: 70º, D: 141º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | Mechanical call button |
| Outputs | 1 x relay output |
| Inputs | 1 x 4-wire |
| Communication | 4-wire |
| Power Supply | DC 12 V / 330 mA max. (via monitor using 4 wires) |
| Protection Rating | Outdoor suitable IP65 |
| Material | Aluminum Alloy Vandal-proof IK08 |
| Operating Temperature | -30 ºC ~ +60 ºC |
| Dimensions | 145 (H) x 55 (W) x 24 (D) mm |
| Weight | 200 g |
