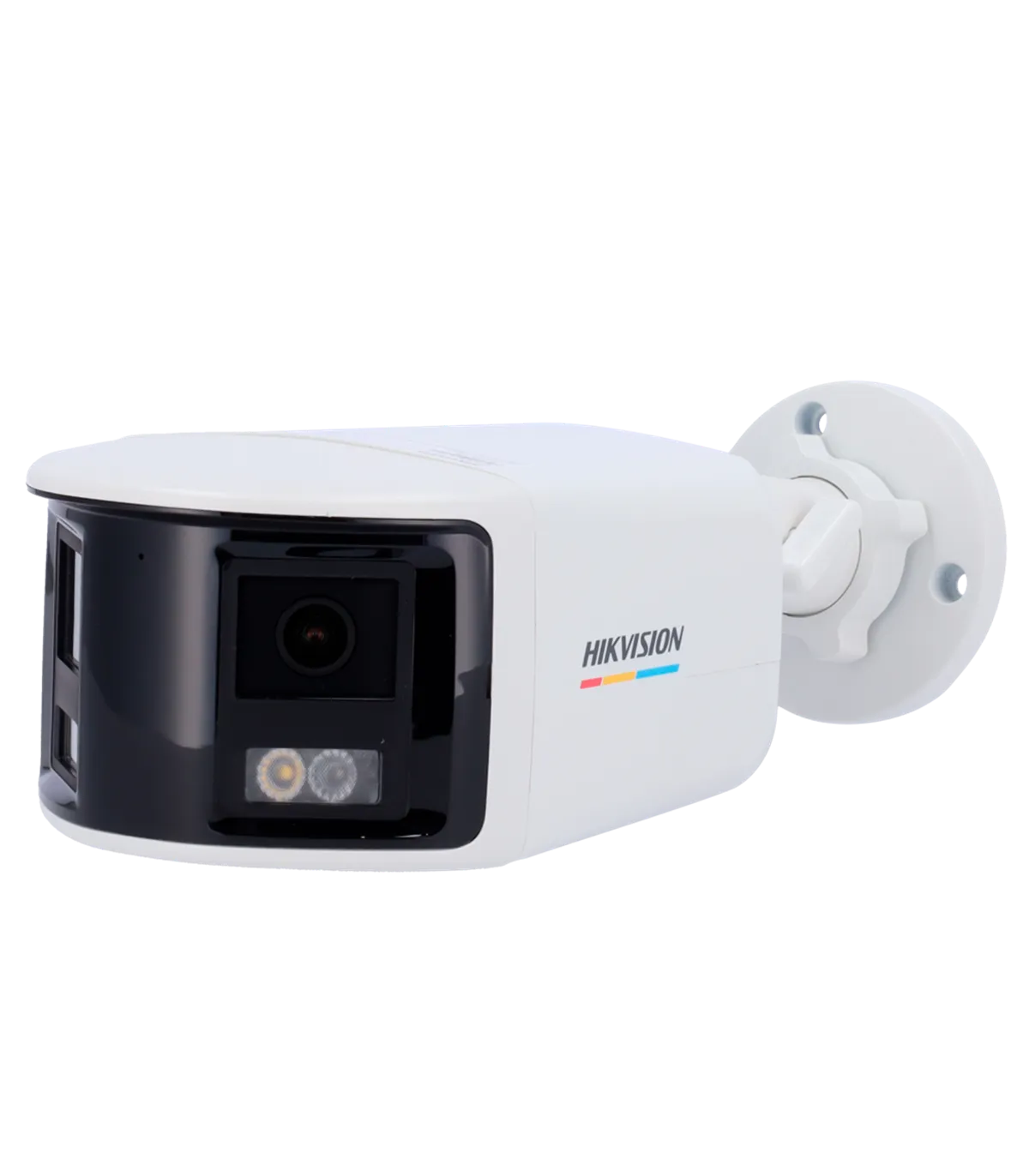

The DS-2CD1T67G2HP-LIUF/SL(2.8mm) is a high-performance IP bullet camera designed for comprehensive surveillance solutions. Ideal for both indoor and outdoor environments, this camera features a 180º panoramic view and is equipped with advanced technologies such as ColorVu for 24-hour color imaging. With its hybrid light capabilities, it ensures visibility even in complete darkness, making it suitable for various security applications.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3632x1632) |
| Main Stream Rate | 20 fps (3632x1632) |
| Extra Stream Rate | 20 fps (1200x536, 960x432) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Dual lens 2.8 mm |
| Field of View (FOV) | H: 180°, V: 79° |
| DORI | 44 m (D), 17 m (O), 8 m (R), 4 m (I) |
| Electronic Shutter | 1~1/100,000 s |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid light: IR range 30 m White light range 30 m |
| Day/Night | ColorVu: 24-hour color image |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated microphone and speaker |
| Deterrent Alarm | Integrated siren and strobe light in the camera |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | 1 RJ45 Ethernet 10 M/100 M self-adaptive |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 830 mA / 10 W max. PoE IEEE802.3af |
| Protection Grade | IP67 waterproof |
| Material | Cover: Metal Body: Plastic Bracket: Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 103.6 mm (W) x 76 mm (H) x 234.5 mm (D) |
| Base Dimensions | Ø base 70 mm / Ø screw spacing 55 mm / 3 screws |
| Weight | 560 g |
The DS-2CD1T67G2HP-LIUF/SL(2.8mm) camera is perfect for a variety of surveillance applications, including retail stores, parking lots, and residential areas. Its 180º panoramic view allows for extensive coverage, reducing the number of cameras needed for complete monitoring. With features like ColorVu technology, users can enjoy clear, color images even in low-light conditions, enhancing security during nighttime. The integrated microphone and speaker facilitate two-way audio communication, making it ideal for interactive monitoring. Additionally, the motion detection capabilities with human and vehicle classification ensure that alerts are relevant and actionable. This camera's IP67 waterproof rating guarantees durability in various weather conditions, making it a reliable choice for outdoor installations. Overall, the DS-2CD1T67G2HP-LIUF/SL(2.8mm) is an excellent solution for those seeking advanced surveillance technology.
