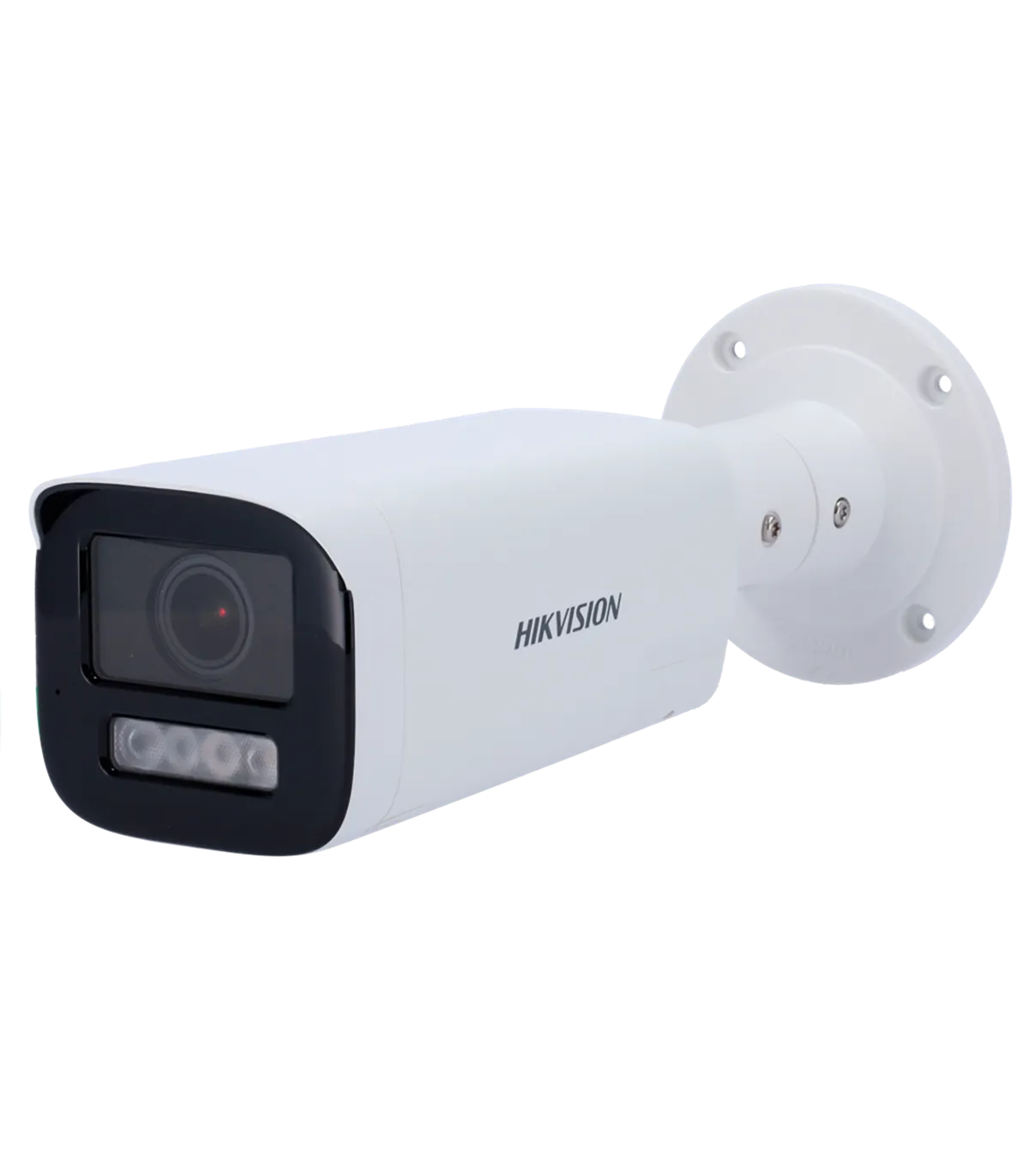

The DS-2CD1623G2-LIZSU/SL(2.8-12mm) is a high-performance IP bullet camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera offers exceptional image quality with its 2 Megapixel resolution, making it suitable for monitoring large areas. The device features a motorized varifocal lens ranging from 2.8 to 12 mm, allowing for flexible field of view adjustments. With its hybrid light technology, it provides effective illumination up to 50 meters, ensuring reliable performance in various lighting conditions.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 102.4~31.2°, V: 54.4~17.5°, D: 121.8~35.7° |
| DORI | 68~200 m (D), 27~79 m (O), 13.6~40 m (R), 6.8~20 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Illumination | Hybrid light: IR and white light IR range: 50 m White light range: 50 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and flash in the camera |
| Audio | 1 input / 1 output Integrated microphone and speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 900 mA / 11 W max. PoE IEEE802.3af |
| Protection Rating | IP67 waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 105 mm x 285.8 mm (Fo) |
| Base Dimensions | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 780 g |
The DS-2CD1623G2-LIZSU/SL(2.8-12mm) is ideally suited for a variety of surveillance scenarios, such as retail stores, parking lots, and residential areas. For instance, in a retail environment, the camera can be strategically placed at entrances and checkout areas to provide comprehensive coverage. With its remote monitoring capabilities, store managers can easily access live feeds via the Hik-Connect app, ensuring they can respond promptly to any suspicious activity. The camera's motion detection 2.0 feature enhances security by classifying detected movements as human or vehicle, allowing for more accurate alerts. Additionally, the integrated deterrent siren and flash can be activated to discourage potential intruders. The robust IP67 waterproof rating ensures reliable operation in various weather conditions, making it a dependable choice for outdoor installations. Overall, this camera provides a comprehensive security solution that combines advanced technology with user-friendly features.
