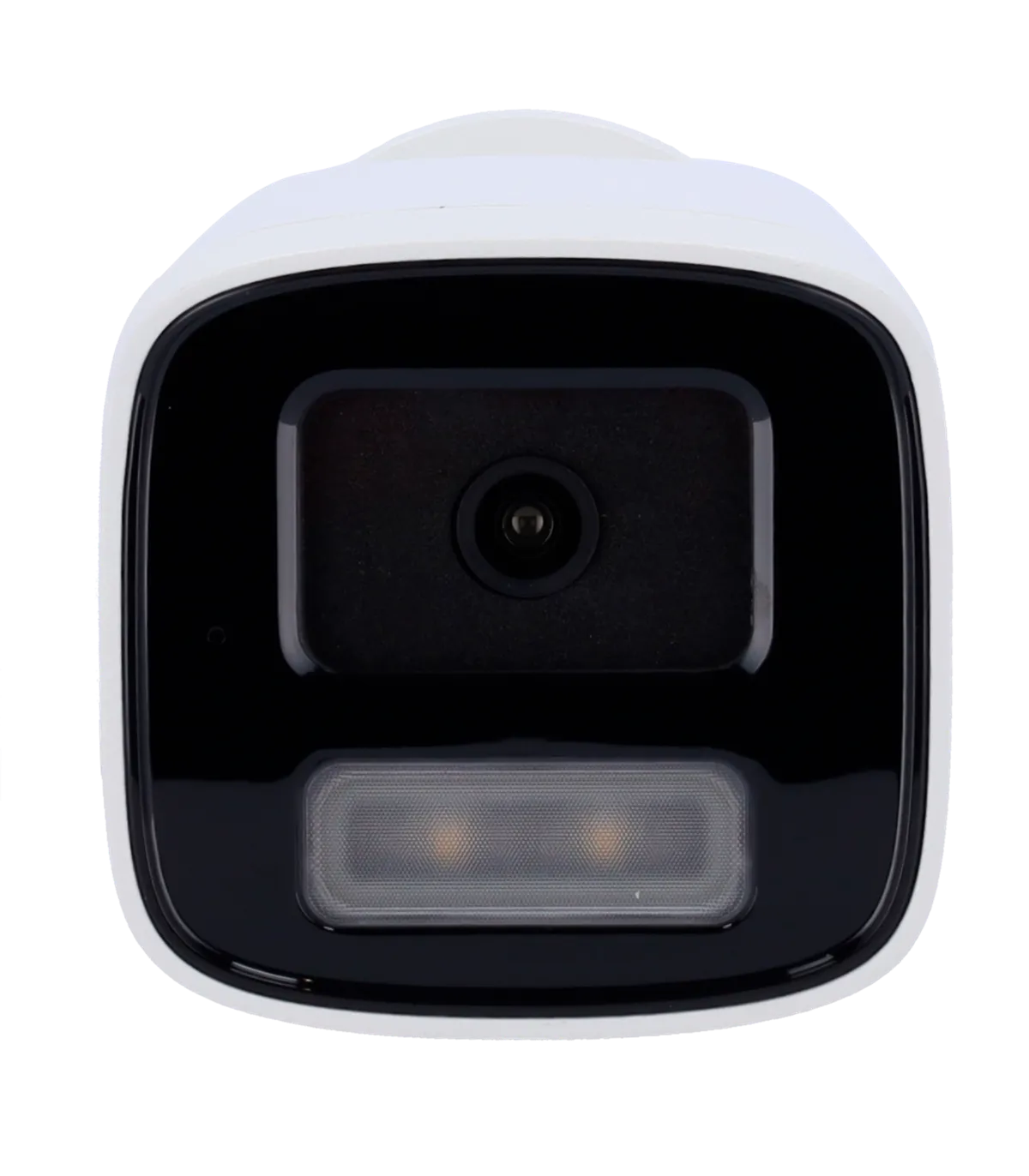

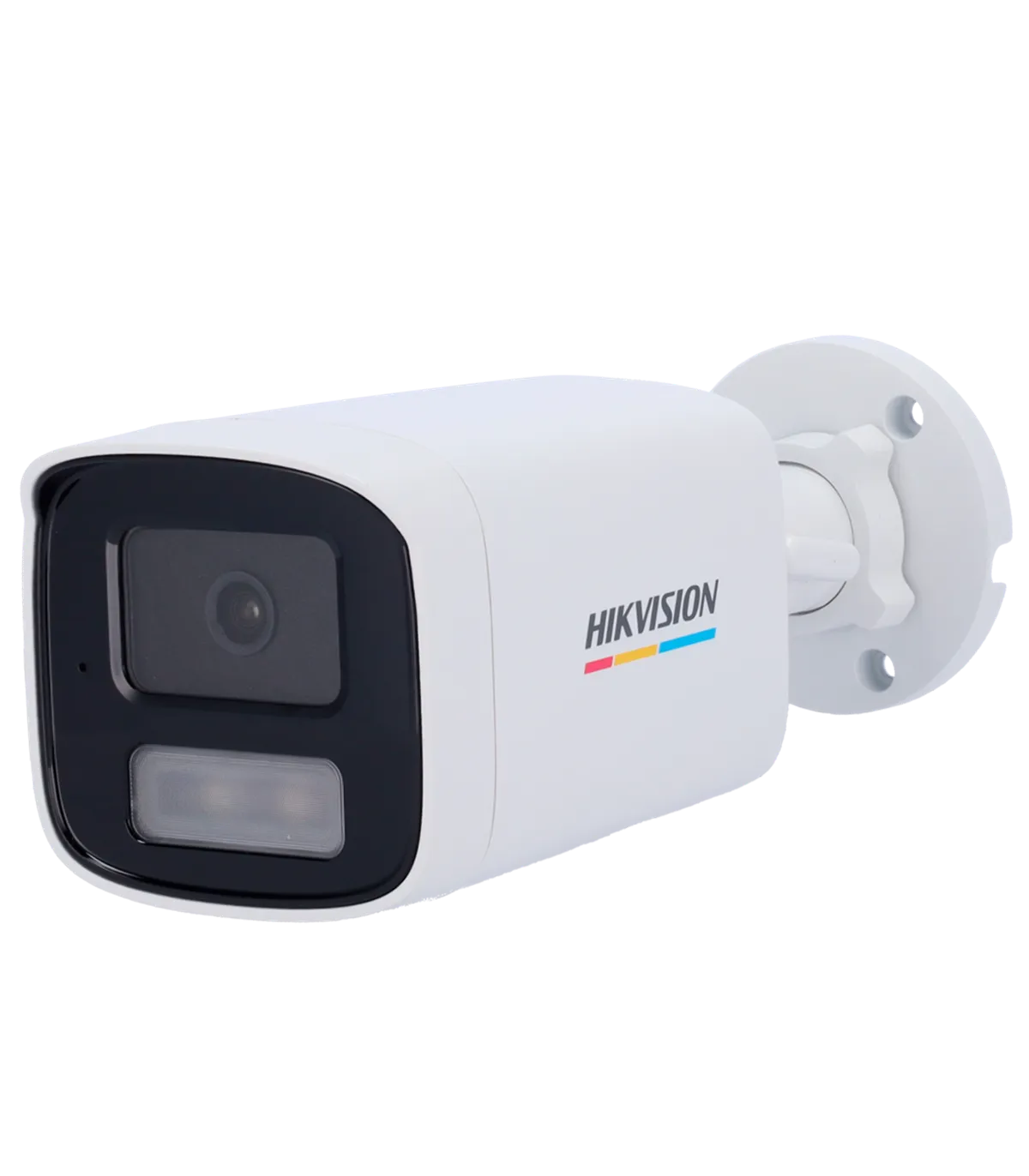

- Hikvision Value Series Bullet IP Camera
- Resolution 6 MP (3200x1800)
- Lens 2.8 mm
- Hybrid Light 50 m | ColorVu
- Motion Detection 2.0
- PoE | IP67 | Built-in Microphone
Description & Key Features: DS-2CD1T67G2H-LIU(2.8mm)
The DS-2CD1T67G2H-LIU(2.8mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its advanced ColorVu technology, this camera provides vibrant color images even in low-light conditions, making it ideal for 24/7 monitoring. Its robust features, including motion detection and WDR (Wide Dynamic Range), ensure clear and detailed footage, enhancing security measures in residential and commercial settings.
- Hikvision
- Value Series
- IP Bullet Camera
- 1/2.4" Progressive Scan CMOS
- 6 Megapixel (3200x1800)
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and White Light
- Hybrid Light Range 50 m
- ColorVu: Color Image 24 Hours
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- WDR (120 dB)
- 3D DNR
- Integrated Microphone
- RJ-45 10/100M BaseT
- PoE IEEE802.3af
- Web, CMS, Smartphone, and NVR Interface
- ONVIF Compatible
- IP67 Waterproof
Specifications: DS-2CD1T67G2H-LIU(2.8mm)
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 20 fps (1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 115°, V: 60°, D: 143° |
| DORI | 64 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR range 50 m White light range 50 m |
| Day/Night | ColorVu: Color Image 24 Hours |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal Storage | Not available |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T), ISAPI, SDK |
| Power Supply | DC 12 V / 600 mA / 7.2 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Front Cover: Metal Body: Plastic Bracket: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 81 mm (H) x 83.7 mm (W) x 201.96 mm (D) |

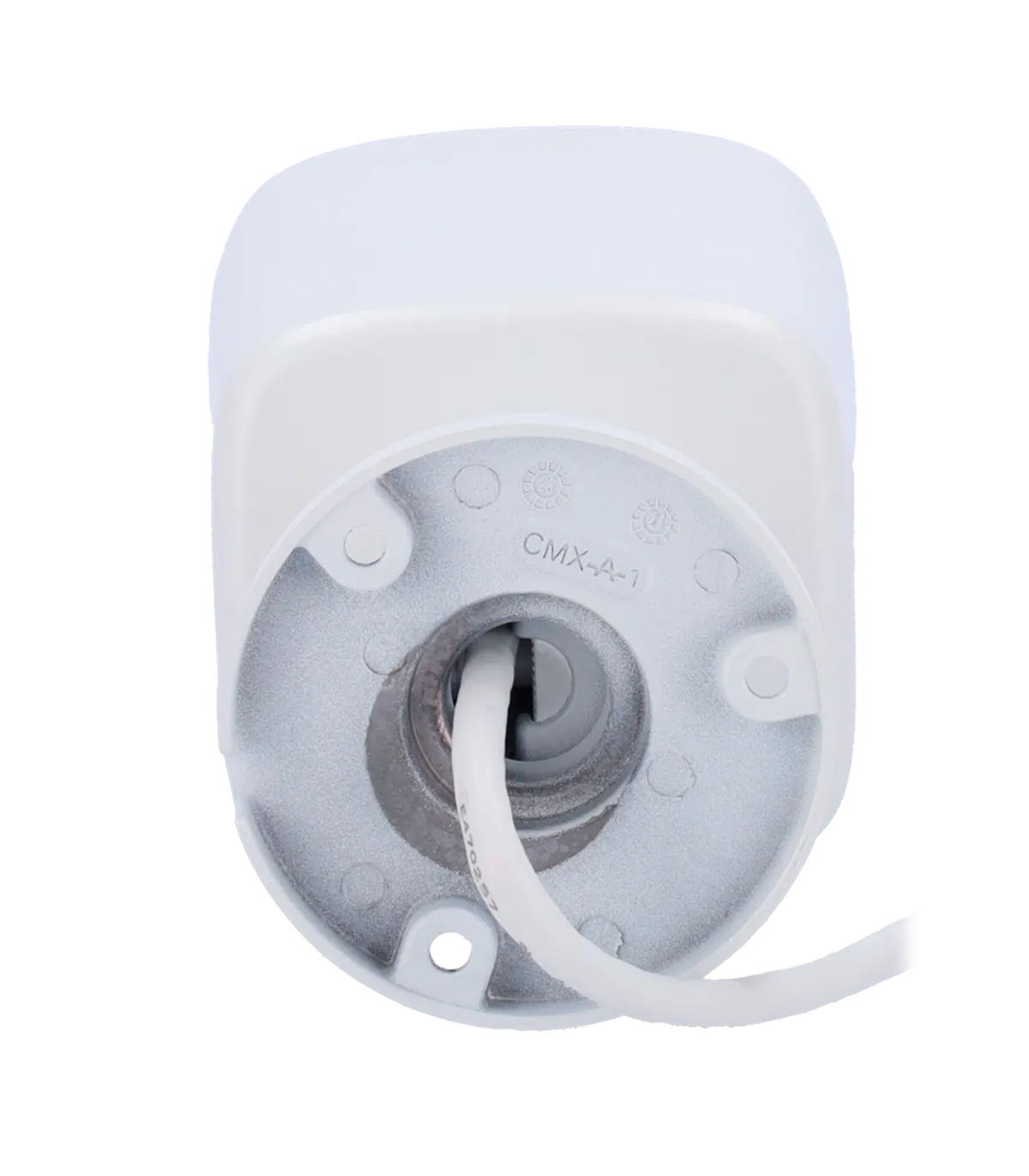

| Base Dimensions | Ø base 70.08 mm / Ø between screws 55 mm / 3 screws |
| Weight | 550 g |
Package Contents
- Hikvision Value IP Bullet Camera
- Installation Materials
- User Manual
Use Case
The DS-2CD1T67G2H-LIU(2.8mm) is an excellent choice for both residential and commercial security installations. For instance, a retail store can deploy this camera at entry points to monitor customer traffic and deter theft. With its high-resolution imaging and motion detection capabilities, store owners can receive alerts on suspicious activities in real-time. The camera's IP67 waterproof rating ensures reliable performance in various weather conditions, making it suitable for outdoor use. Additionally, the remote access feature allows users to view live feeds from their smartphones, enhancing security management. The integration of ColorVu technology guarantees clear images even at night, providing peace of mind for business owners. Overall, this camera is a versatile solution for enhancing security in diverse environments.
Data sheet
- Brand
- HIKVISION
- Resolution
- 6 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 50 m
- Audio
- Micrófono integrado
- SD Slot
- No dispone
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- No dispone
- Series
- VALUE
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-XS,DS-1280ZJ-XS,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS
Specific References
- EAN13
- 6942160447988
