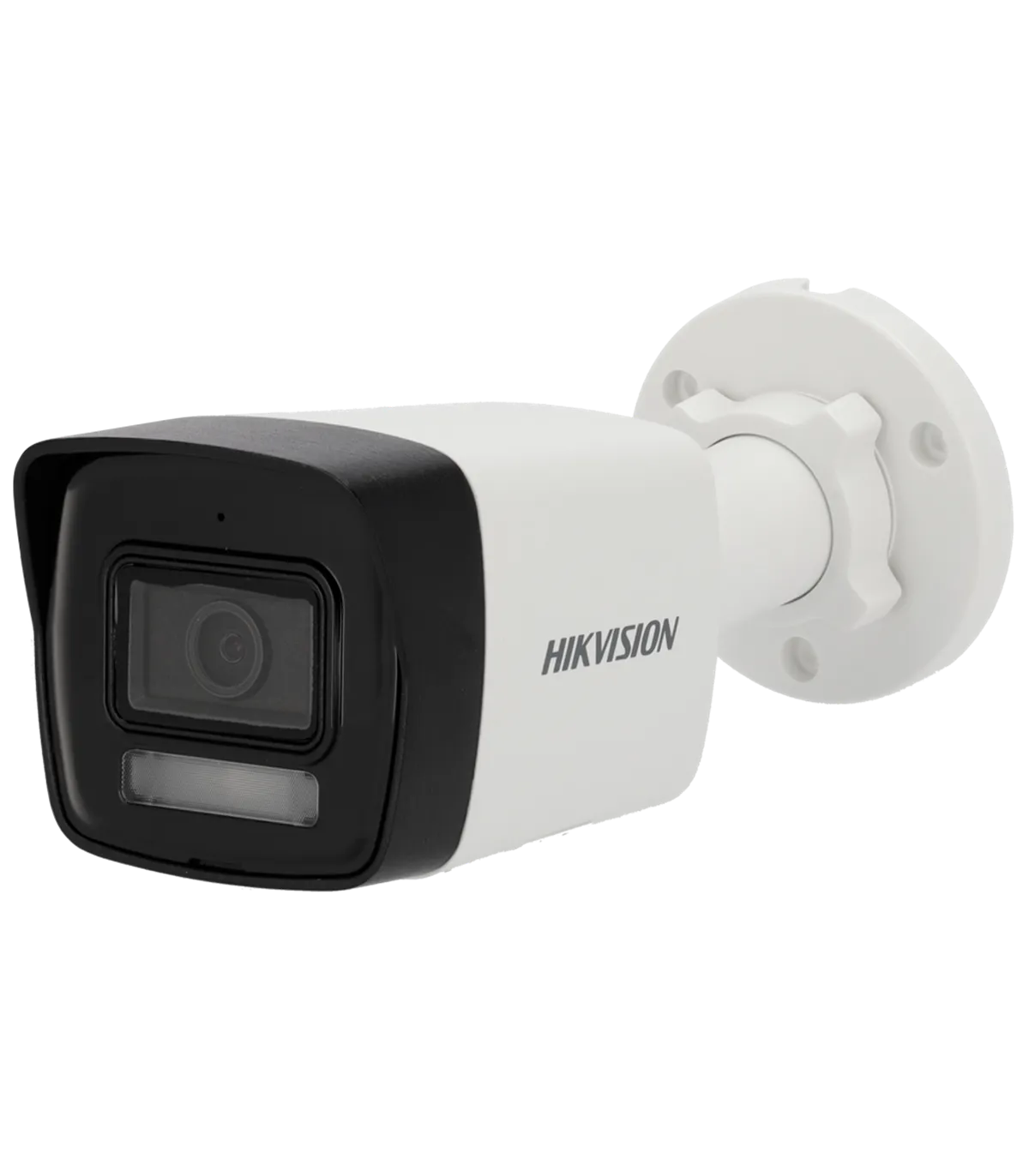

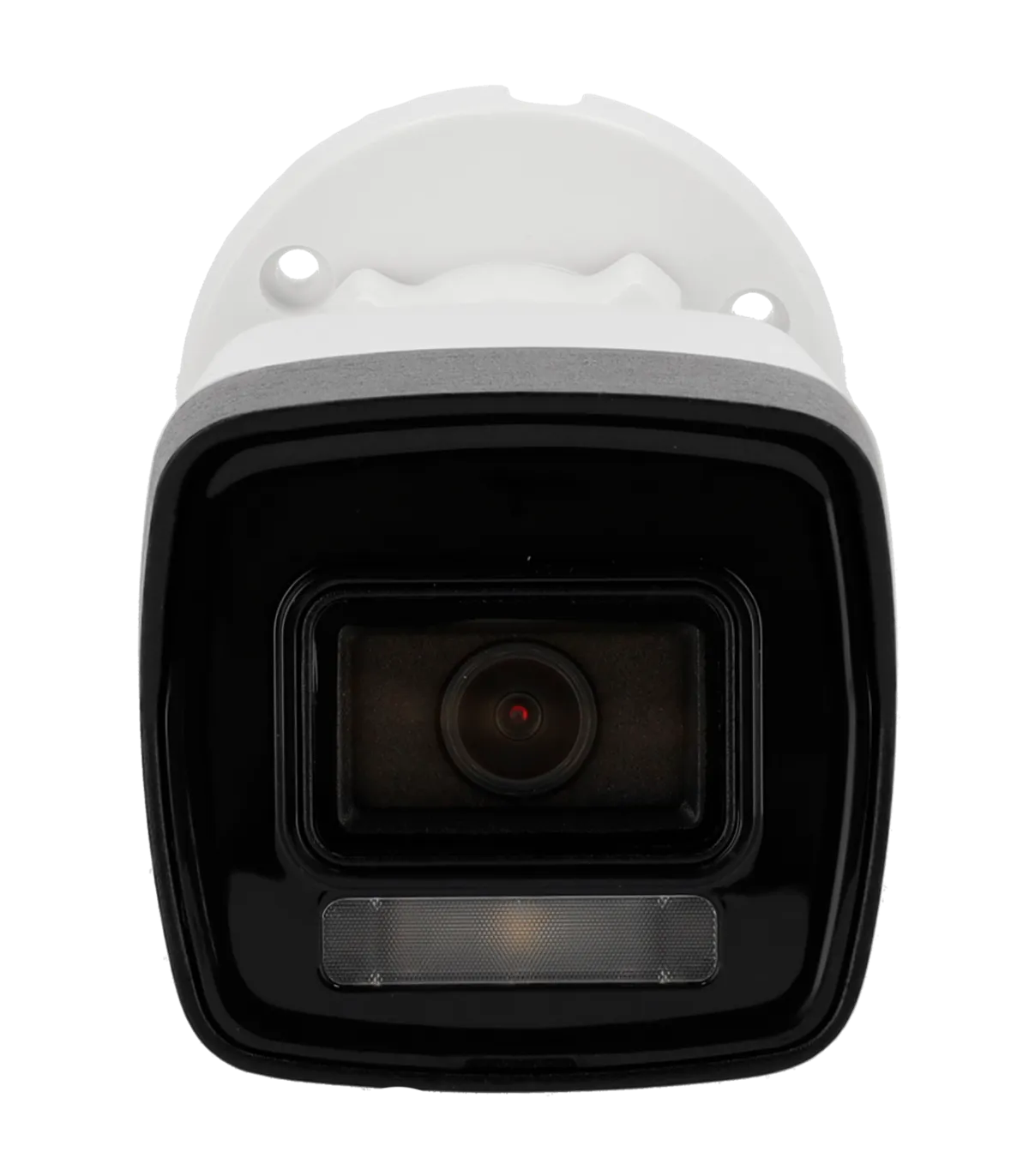

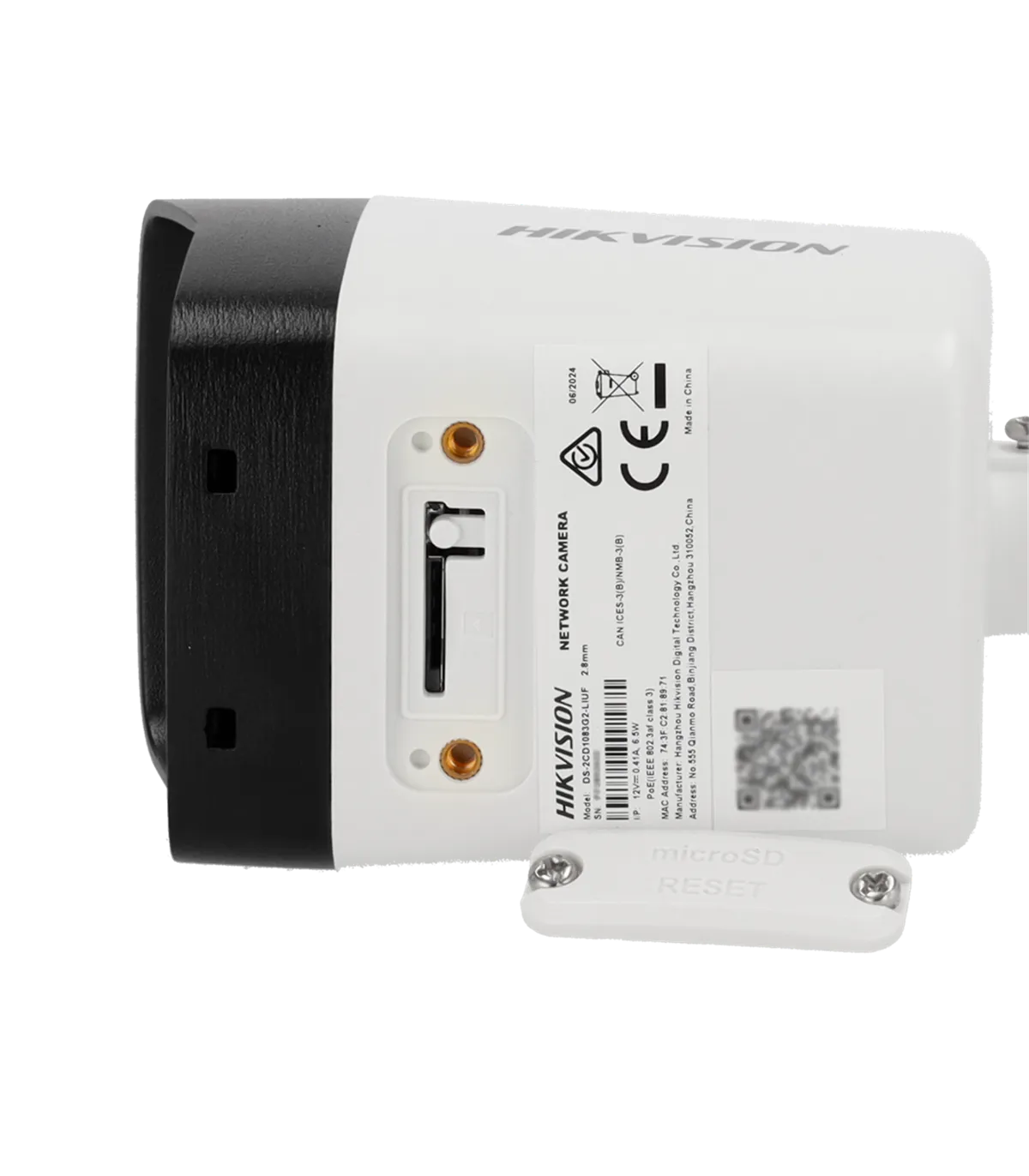

The DS-2CD1083G2-LIU(2.8mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its 8 Megapixel resolution, this camera captures detailed images, making it ideal for monitoring large areas such as parking lots, retail spaces, and outdoor facilities. The device features a 2.8 mm lens that provides a wide field of view, ensuring comprehensive coverage. Its advanced features, including H.265+ compression and motion detection, enhance efficiency and reduce bandwidth usage, making it a perfect choice for modern security systems.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840X2160) |
| Main Stream Rate | 12.5 fps (3840X2160, 3200x1800, 2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 12.5 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 113°, V: 62°, D: 134° |
| DORI | 79 m (D), 31 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 410 mA / 5 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal and plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 66 mm (H) x 69.1 mm (W) x 170.8 mm (D) |

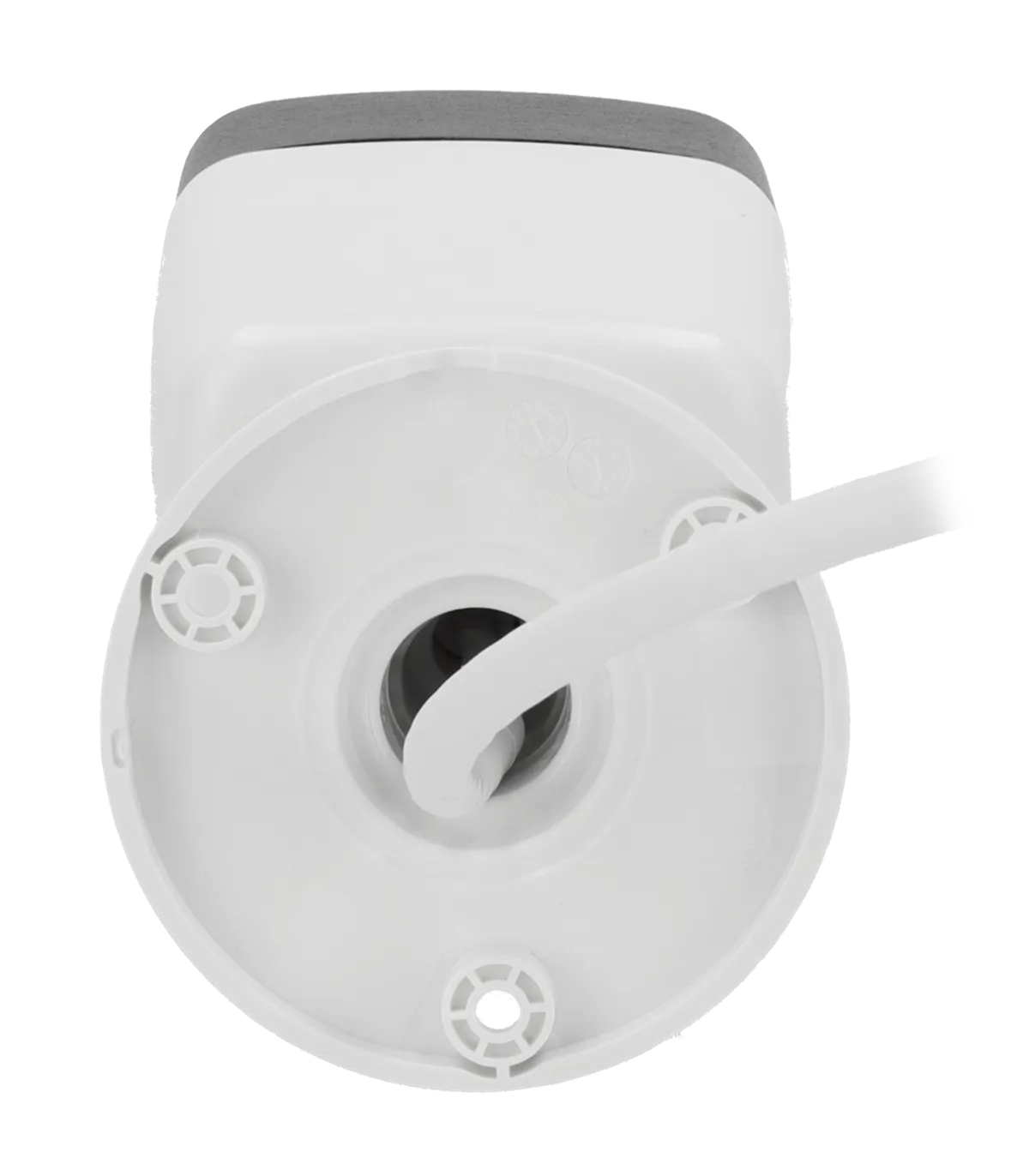

| Base Dimensions | Ø base 70 mm / Ø screw spacing 55 mm / 3 screws |
| Weight | 285 g |
The DS-2CD1083G2-LIU(2.8mm) is ideally suited for installation in retail environments, where security is paramount. For instance, a store owner can deploy this high-resolution camera at entry points to monitor customer activity and deter theft. The camera's motion detection capabilities allow for real-time alerts, enhancing security measures. Additionally, its remote monitoring feature enables the owner to access live feeds via a smartphone app, providing peace of mind while away from the premises. The IP67 waterproof rating ensures durability in various weather conditions, making it suitable for outdoor use. With its integrated microphone, the camera can also capture audio, adding another layer of surveillance. Overall, the DS-2CD1083G2-LIU(2.8mm) offers a comprehensive solution for effective security management.
