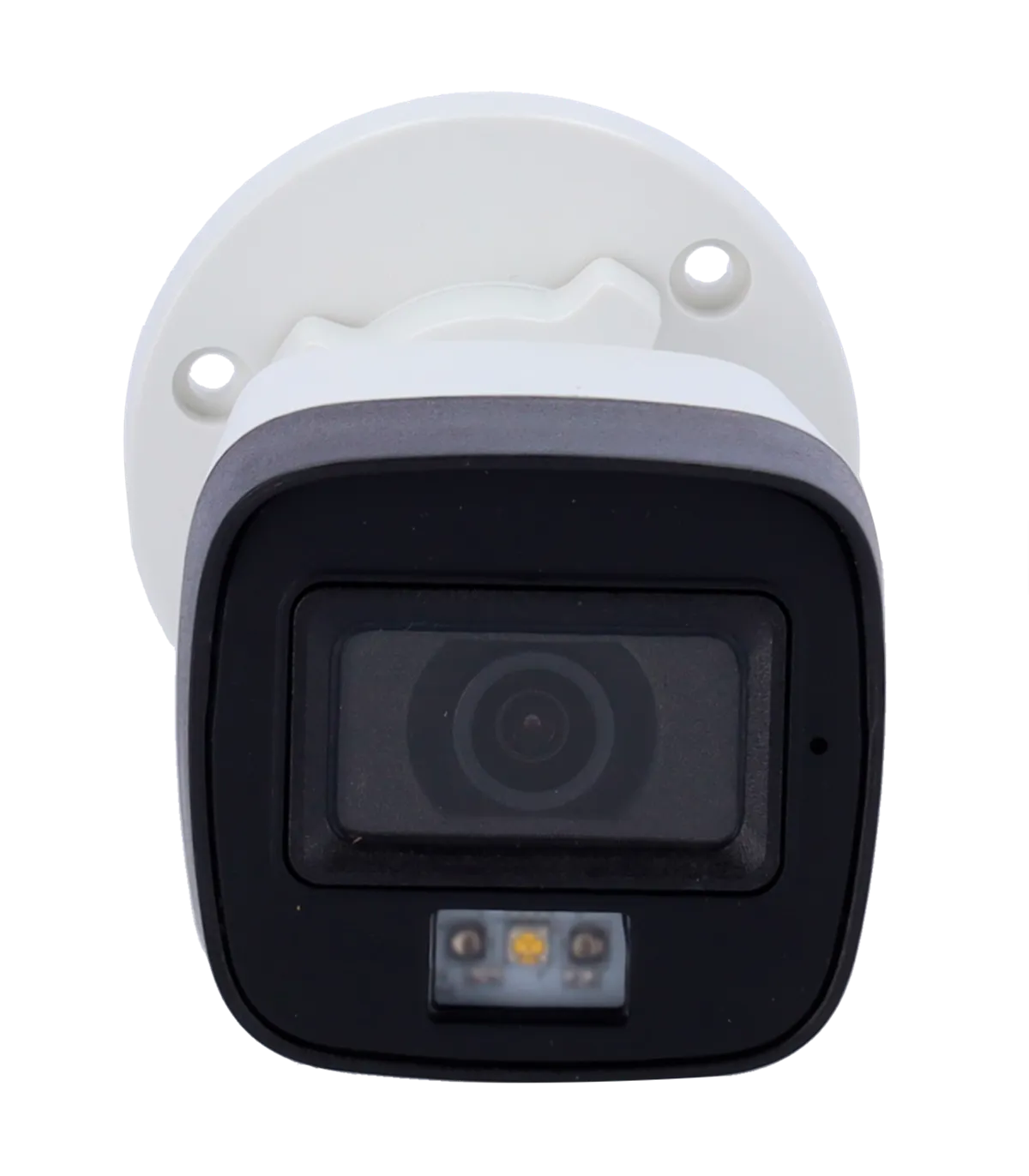

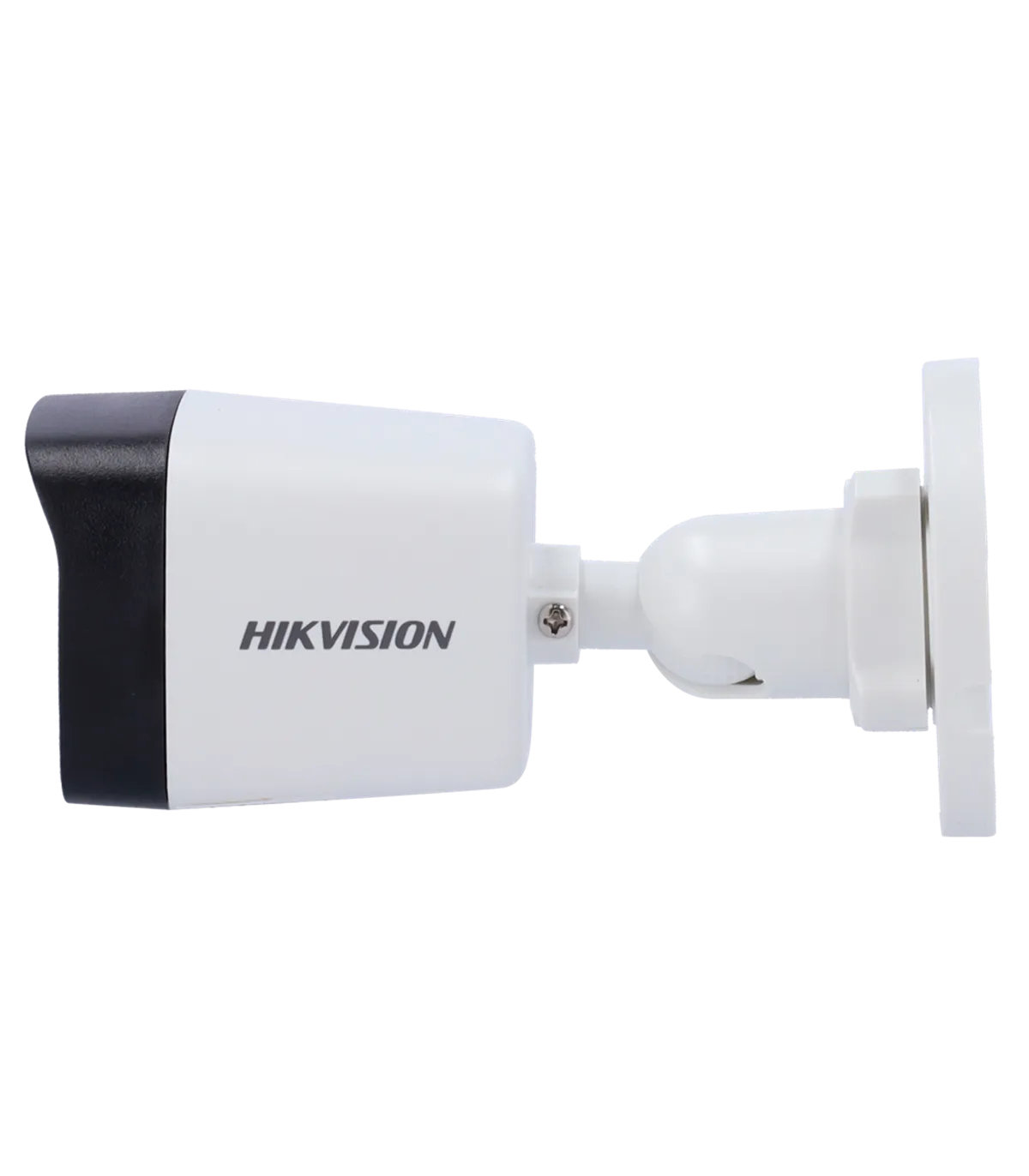

The DS-2CD1041G2-LIU(2.8mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its 4 Megapixel resolution, this camera captures clear and detailed images, making it ideal for both indoor and outdoor applications. The device features a 2.8 mm lens that provides a wide field of view, ensuring comprehensive coverage. Its hybrid lighting capability, combining IR and white light, allows for effective monitoring even in low-light conditions.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 104°, V: 57°, D: 123° |
| DORI | 53 m (D), 21 m (O), 13 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.2, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 20 m White Light Range 15 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 |
| Interoperability | ONVIF (Profile S, T), ISAPI, SDK |
| Power Supply | DC 12 V / 420 mA / 5 W max. PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Plastic |
| Operating Temperature | -30º C ~ +45º C |
| Dimensions | 57.9 mm (H) x 60.9 mm (W) x 138.8 mm (D) |

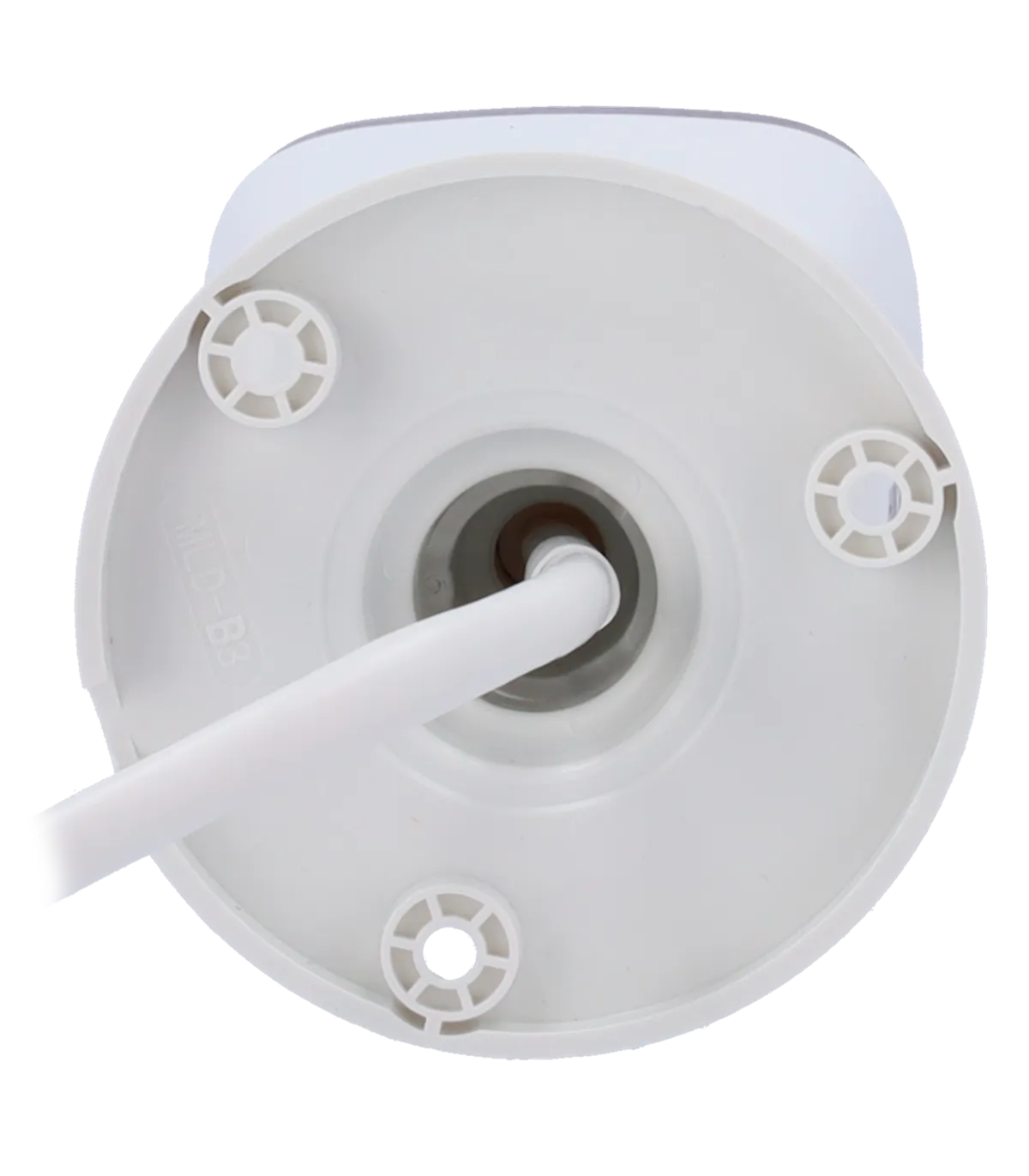

| Base Dimensions | Ø base 70 mm / Ø screw spacing 55 mm / 3 screws |
| Weight | 175 g |
The DS-2CD1041G2-LIU(2.8mm) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For installers, the plug-and-play setup simplifies the installation process, allowing for quick deployment. End users benefit from the remote monitoring capabilities via the Hik-Connect app, enabling them to access live feeds from anywhere. The camera's motion detection feature, enhanced with human and vehicle classification, ensures that users receive alerts only for relevant activities. Additionally, the IP67 waterproof rating guarantees reliable performance in various weather conditions, making it a durable choice for outdoor use. With its hybrid lighting technology, the camera provides clear images even in complete darkness, ensuring comprehensive security coverage.
