- Hikvision
- PRO Series Bullet IP Camera
- 4 Megapixel Resolution (2688x1520)
- 2.8 mm Lens | ColorVu | Microphone and Speaker
- Hybrid Light 40 m | Face Capture
- Motion Detection 2.0 | AcuSense | Black
Description & Key Features: DS-2CD2047G2H-LIU/SL(2.8)/eF//BLACK

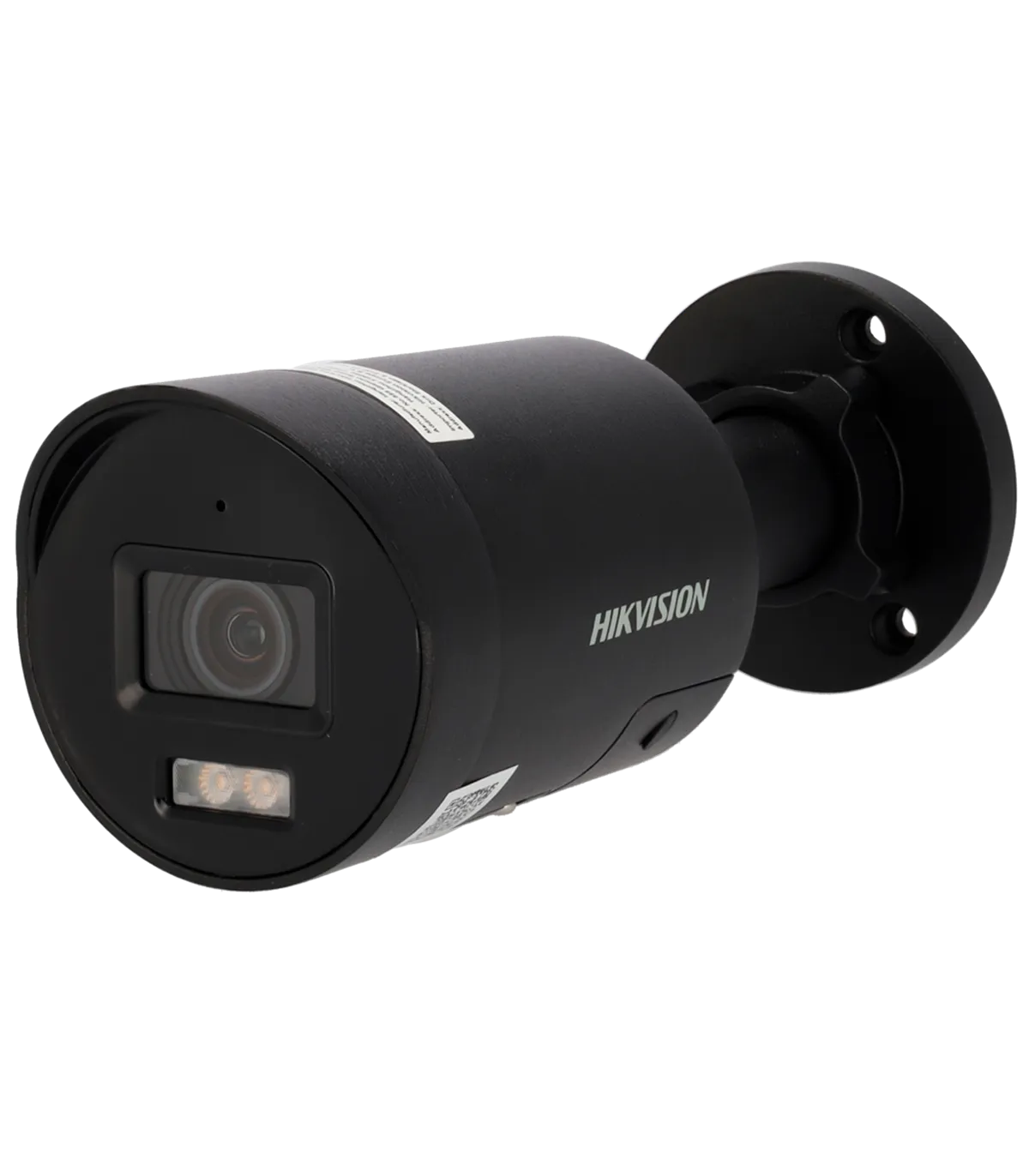

The DS-2CD2047G2H-LIU/SL(2.8)/eF//BLACK is a high-performance IP Bullet Camera designed for advanced surveillance applications. With its 4 Megapixel resolution and ColorVu technology, this camera delivers vibrant color images even in low-light conditions, making it ideal for 24/7 monitoring. The device features a hybrid light system that combines infrared and white light, ensuring visibility up to 40 meters. Its robust design and IP67 waterproof rating make it suitable for both indoor and outdoor installations.
- Hikvision
- PRO Series
- IP Bullet Camera
- 1/1.8" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and White Light
- Hybrid Light Range 40 m
- ColorVu: 24-hour Color Imaging
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (Line Crossing, Area Intrusion, Entry Region, Exit Region)
- Face Capture
- WDR (130 dB)
- 3D-DNR
- Integrated Microphone and Speaker
- Integrated Siren and Strobe Light
- MicroSD Card Slot up to 512 GB
- WEB, CMS, Smartphone, and NVR Interface
- ONVIF Compatible
- PoE (IEEE802.3af)
- IP67 Waterproof
- Black Color
Specifications: DS-2CD2047G2H-LIU/SL(2.8)/eF//BLACK
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640x360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 111.9°, V: 60.5°, D: 133.6° |
| DORI | 58.2 m (D), 23.1 m (O), 11.6 m (R), 5.8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with Hybrid Light |
| Night Illumination | Hybrid IR/White Light Range 40 m |
| Day/Night | ColorVu: 24-hour Color Imaging |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Effect, Privacy Masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Deterrent Alarm | Integrated Siren and Strobe Light in the camera |
| Audio | Integrated Microphone and Speaker |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 540 mA / 6.5 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 74.4 mm x 179.2 mm (Fo) |
| Base Dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 510 g |
| Color | Black |
Package Contents
- Hikvision IP Bullet Camera
- Installation Materials
- User Instructions
Use Case
The DS-2CD2047G2H-LIU/SL(2.8)/eF//BLACK is an excellent choice for both residential and commercial security installations. For instance, a retail store can utilize this camera to enhance its remote monitoring capabilities, ensuring that all areas are under constant surveillance. The hybrid light feature allows for clear imaging even in complete darkness, making it perfect for nighttime security. Additionally, the motion detection capabilities, combined with AcuSense technology, significantly reduce false alarms, allowing store owners to focus on genuine threats. The integrated microphone and speaker facilitate two-way audio communication, enhancing security responses. Furthermore, the camera's IP67 waterproof rating ensures durability in various weather conditions, making it suitable for outdoor use. Overall, this camera provides a comprehensive security solution that meets the demands of modern surveillance needs.
Data sheet
- Brand
- HIKVISION
- Technology
- IP
- WDR
- WDR (130 dB)
- IR Distance
- 40 m
- Audio
- Micrófono / Altavoz disuasorio
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- No dispone
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-XS,DS-1276ZJ-SUS,DS-1275ZJ-SUS-BLACK
Specific References
- EAN13
- 6942160440026
