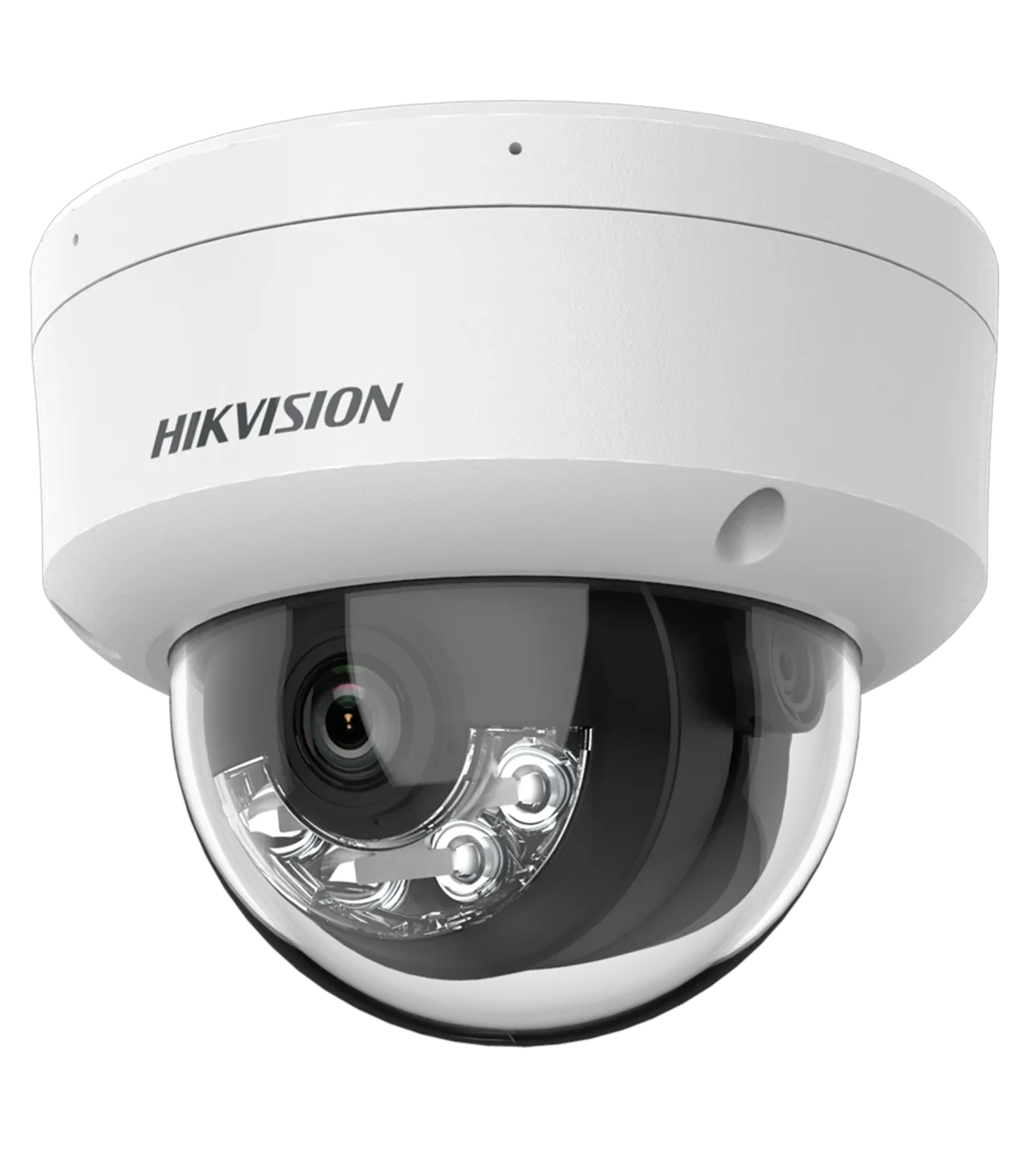

The DS-2CD1143G2-LIU(2.8mm) is a high-performance IP dome camera designed for effective surveillance in various environments. With its 4 Megapixel resolution and advanced features, this camera is ideal for both indoor and outdoor applications, providing clear images even in low-light conditions. The device supports H.265+ compression, ensuring efficient storage and bandwidth usage. Its robust design, rated at IP67 for waterproofing and IK08 for vandal resistance, makes it suitable for challenging conditions.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 98°, V: 54°, D: 114° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 30 m White Light Range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 500 mA / 5.5 W max. PoE IEEE802.3af |
| Protection Rating | Waterproof IP67 Vandal Resistant IK08 |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.4 x 97.7 mm (H) |
| Base Dimensions | Ø base 121.4 mm / Ø screw hole distance 104.8 mm / 3 screws |
| Weight | 550 g |
The DS-2CD1143G2-LIU(2.8mm) is an excellent choice for both residential and commercial surveillance needs. For instance, in a retail environment, this camera can be strategically placed at entry points to monitor customer activity and deter theft. With its high-resolution imaging and motion detection capabilities, store owners can receive real-time alerts on suspicious activities. The integrated microphone allows for audio monitoring, enhancing security measures. Additionally, the camera's remote access feature enables users to view live feeds from their smartphones, providing peace of mind while away from the premises. Its robust design ensures durability in various weather conditions, making it suitable for outdoor installations. Overall, the DS-2CD1143G2-LIU(2.8mm) offers a comprehensive solution for effective surveillance, combining advanced technology with user-friendly features.
