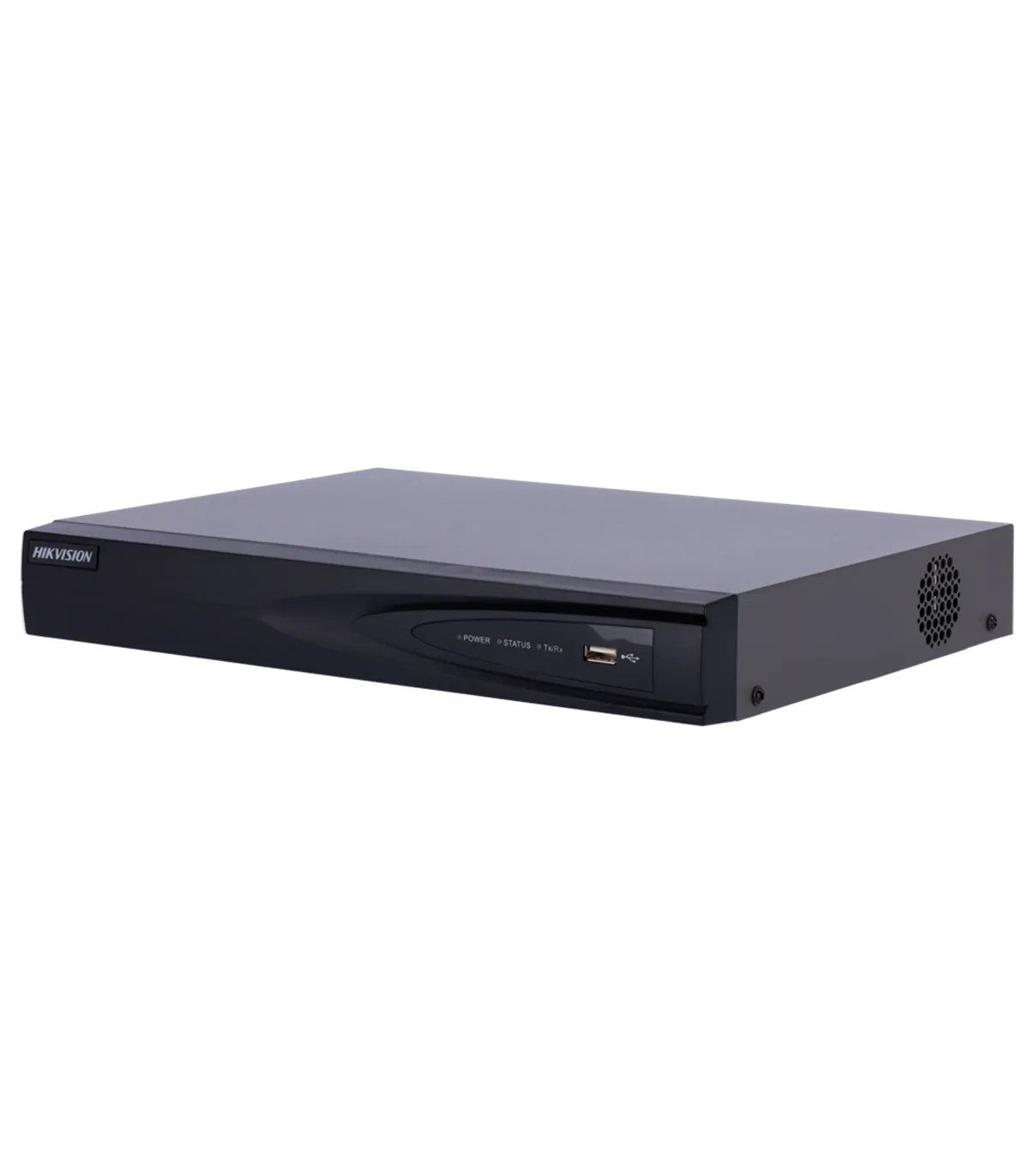

The DS-7608NI-K1/8P(C)/alarm is a professional-grade NVR designed for IP camera surveillance. It is ideal for medium to large installations, providing robust features for video recording and remote access. With support for up to 8 channels and advanced motion detection capabilities, this device ensures comprehensive security monitoring.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | 8-port switch |
| PoE Power | 8-port PoE switch IEEE802.3af/at (max. 75 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xVGA simultaneous |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 4096x2160, 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 80 Mbps input / 80 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | 1CH@8MPx, 3CH@4MP, 6CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available in up to 4 channels. * Motion detection and Acusense cannot be enabled simultaneously on the same device. |
| Alarms | 4 Inputs / 1 Relay |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 32 |
| Internal Storage | 1 SATA 3.5" HDD up to 8 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 48 V / 1.88 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 48 (H) x 320 (W) x 240 (D) mm / 1 Kg (without HDD) |
The DS-7608NI-K1/8P(C)/alarm is particularly suited for installations in commercial settings such as retail stores, offices, and warehouses. With its 8-channel support, users can easily connect multiple IP cameras to monitor various areas simultaneously. The device's remote monitoring capabilities allow users to access live feeds and recorded footage from anywhere using the Hik-Connect app or web browser. This flexibility is essential for businesses that require constant surveillance. Additionally, the advanced motion detection feature enhances security by providing alerts for suspicious activities, ensuring that users can respond promptly. The NVR's compatibility with ONVIF ensures seamless integration with a wide range of IP cameras, making it a versatile choice for any security system.
