The DS-7632NXI-K2(D) is a high-performance NVR designed for IP camera systems, supporting up to 32 channels. This device is ideal for medium to large-scale surveillance installations, offering advanced features such as motion detection and facial recognition. With a maximum resolution of 12 MP and support for H.265+ compression, it ensures efficient storage and high-quality video output. The NVR is equipped with dual-stream access for enhanced flexibility in remote monitoring and management.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 32 channels |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA input / 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 256 Mbps input / 160 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | With AI enabled: 1CH@12MP, 2CH@8MP, 4CH@4MP, 8CH@1080p With AI disabled: 2CH@12MP, 3CH@8MP, 6CH@4MP, 12CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection For the NVR: Available on all channels up to 4 MP (up to 8 MP with SVC mode enabled). With cameras with motion detection 2.0: Available on all channels. |
| AcuSense | Rule-based VCA perimeter protection with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 2 channels of 4 MP. With AcuSense cameras: Available on all channels. |
| Facial Recognition | Face comparison, face capture, face search. Storage in up to 16 libraries with up to 20,000 faces in total (each image ≤ 4 MB, total capacity ≤ 1 GB). Facial detection and analysis tools up to 1CH with 8 MP. Face comparison on up to 4 CH. |
| Alarms | 4 Inputs / 1 Output |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 128 |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Internal Storage | 2 SATA 3.5" HDDs of up to 16 TB each (not included) |

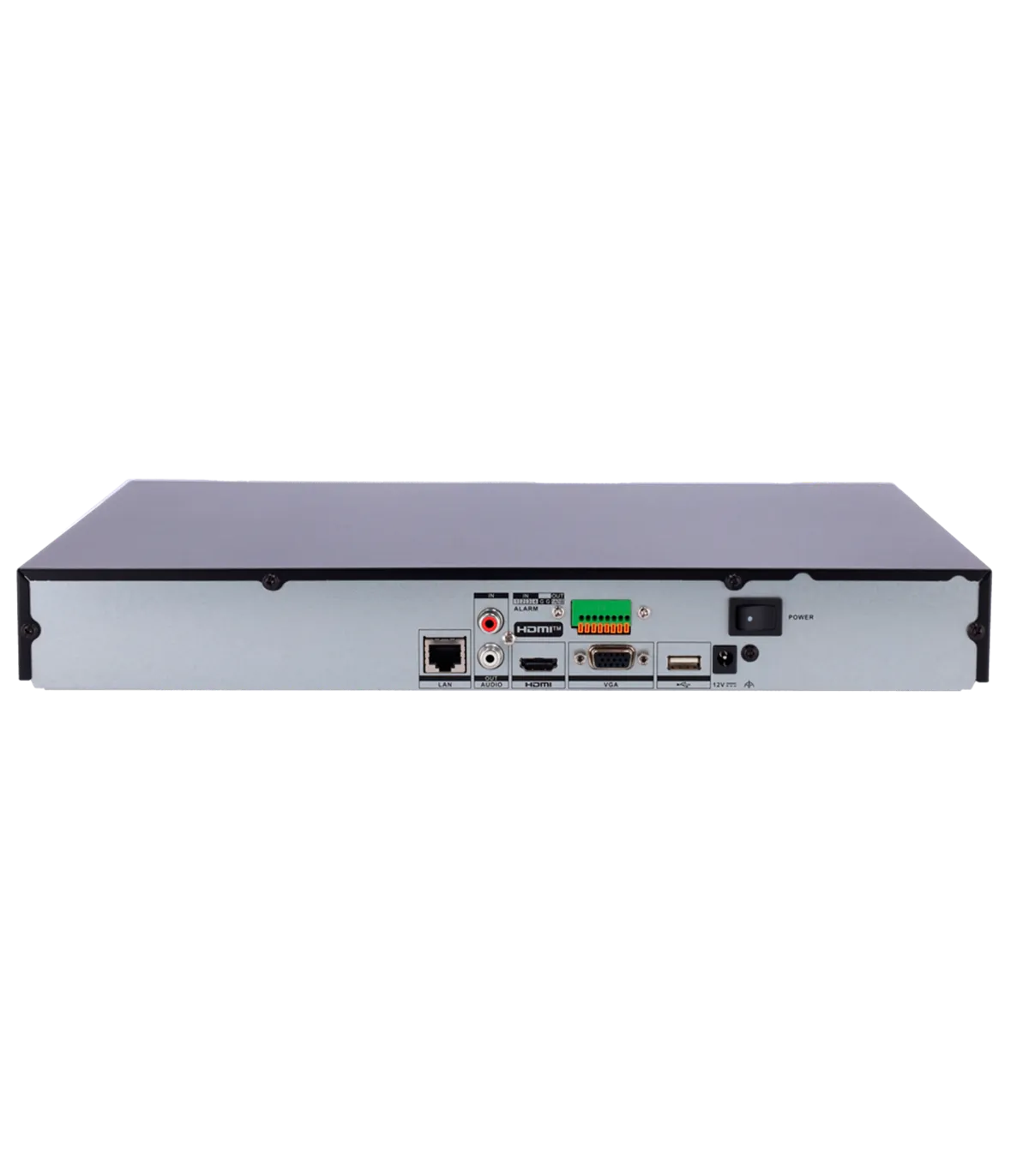

| Communication | 1 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 12 V / 3.33 A, ≤ 15 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 52 (H) x 385 (W) x 315 (D) mm / 1 Kg (without HDD) |
The DS-7632NXI-K2(D) NVR is perfectly suited for a variety of surveillance applications, including retail stores, office buildings, and residential complexes. In a retail environment, for instance, the NVR can be deployed to monitor customer activity and enhance security. With its 256 Mbps bandwidth support, the device can handle multiple high-resolution streams simultaneously, ensuring that every corner of the store is covered. The facial recognition feature allows for quick identification of individuals, which can be crucial for loss prevention strategies. Additionally, the AcuSense technology minimizes false alarms by filtering out non-threatening movements, such as those from customers simply passing by. This not only saves time for security personnel but also enhances the overall efficiency of the surveillance system. Furthermore, the ability to access the NVR remotely via the Hik-Connect app provides users with peace of mind, allowing them to monitor their premises from anywhere at any time.
