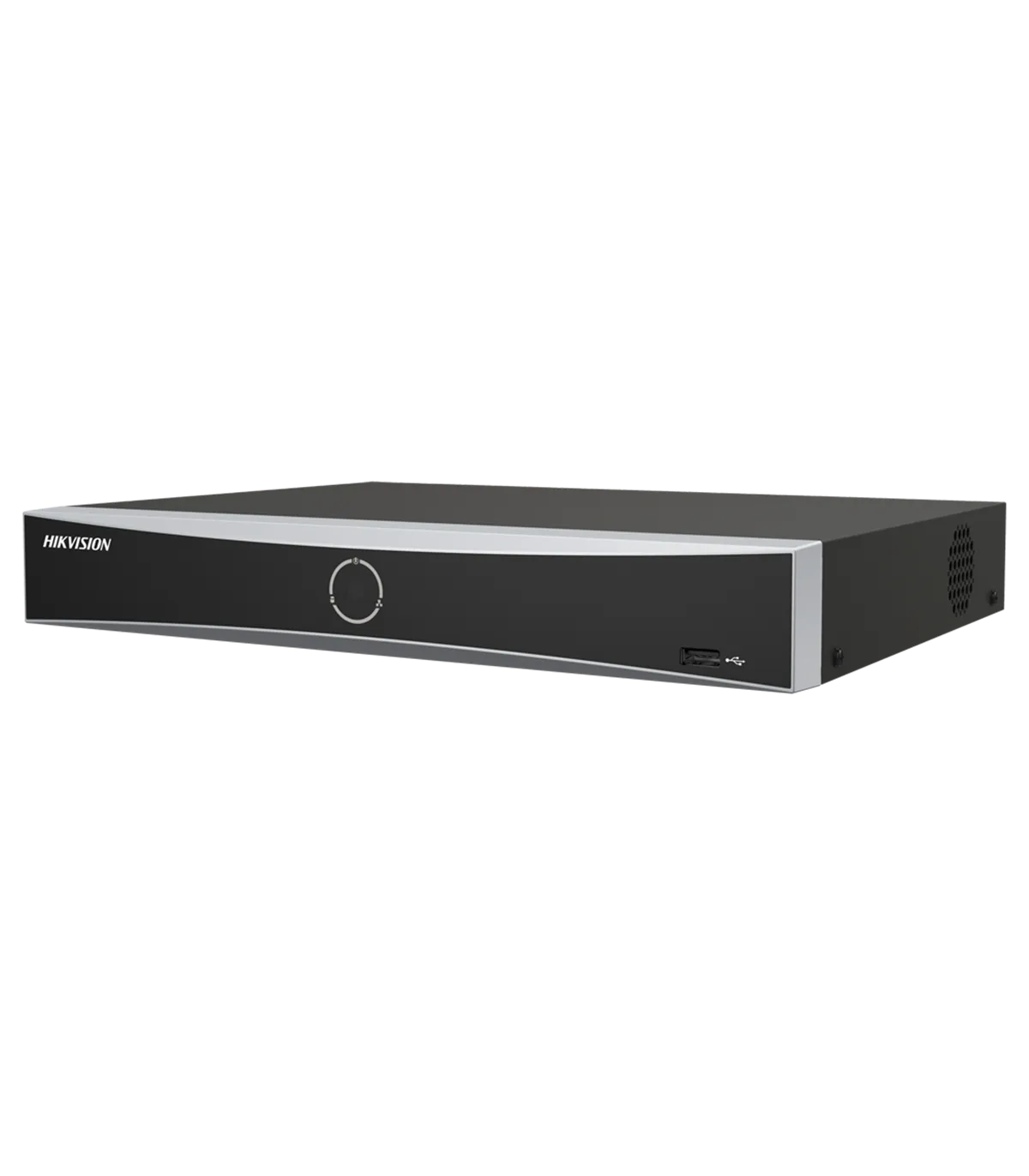

The DS-7608NXI-K1(D) is a professional-grade NVR designed for IP camera surveillance systems, ideal for both commercial and residential applications. With support for up to 8 channels and a maximum resolution of 12 MP, this device is perfect for users seeking high-definition video quality and advanced features. The NVR supports H.265+ compression, ensuring efficient storage management while maintaining exceptional video clarity. Its dual stream capability allows for simultaneous viewing and recording, making it a versatile choice for comprehensive security solutions.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 8 channels |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA input / 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 80 Mbps input / 80 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | With AI enabled: 2CH@12MP, 3CH@8MP, 6CH@4MP, 12CH@1080p With AI disabled: 2CH@12MP, 4CH@8MP, 8CH@4MP, 16CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection For the NVR: Available on all channels up to 4 MP (up to 8 MP with SVC mode enabled). With cameras with motion detection 2.0: Available on all channels. |
| AcuSense | Rule-based VCA perimeter protection with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 1 channel of 4 MP. With AcuSense cameras: Available on all channels. |
| Facial Recognition | Face comparison, face capture, face search. Storage in up to 16 libraries with up to 20,000 faces in total (each image ≤ 4 MB, total capacity ≤ 1 GB). Facial detection and analysis tools up to 1CH with 8 MP. Face comparison on up to 4 CH. |
| Alarms | Not available |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 1 SATA 3.5" HDD up to 16 TB (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 12 V / 1.5 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 48 (H) x 320 (W) x 240 (D) mm / 1 Kg (without HDD) |
The DS-7608NXI-K1(D) NVR is ideally suited for a variety of surveillance applications, including retail stores, office buildings, and residential complexes. In a retail environment, for instance, the NVR can be deployed to monitor customer activity and enhance security. With its motion detection 2.0 feature, the system can accurately differentiate between human and vehicle movements, reducing false alarms and ensuring reliable monitoring. The facial recognition capability allows for enhanced security by identifying known individuals, which is particularly beneficial for loss prevention strategies. Additionally, the device supports remote monitoring via web browsers and mobile apps, enabling users to access live feeds and recorded footage from anywhere. The dual stream functionality ensures that users can view high-quality video while simultaneously recording, making it a robust solution for comprehensive security management. Overall, the DS-7608NXI-K1(D) offers a powerful combination of features that cater to the needs of both installers and end users, ensuring a secure and efficient surveillance experience.
