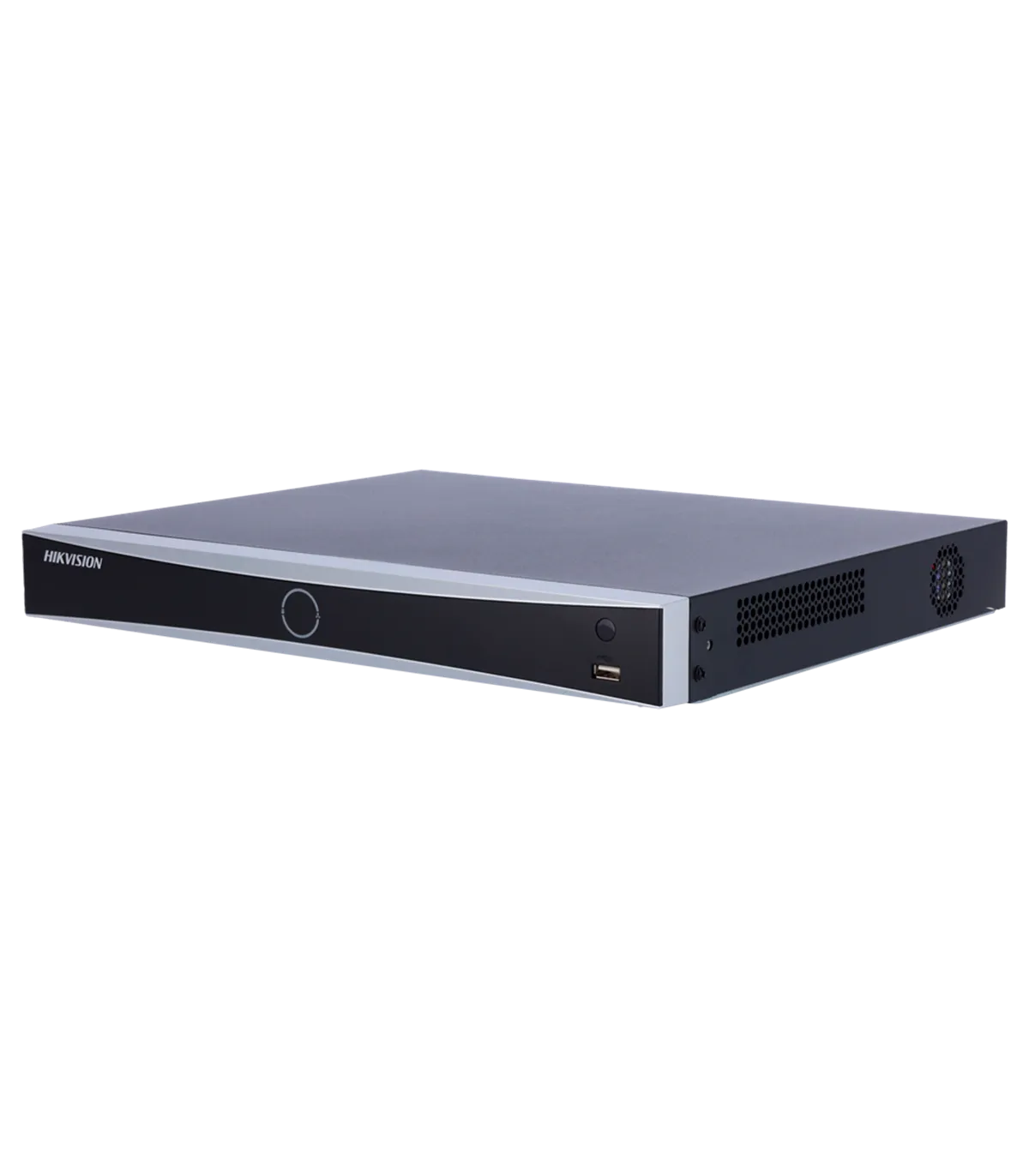

The DS-7608NXI-K2/8P(D) is a high-performance NVR designed for IP camera surveillance systems, making it ideal for both residential and commercial applications. This device supports up to 8 channels with PoE capabilities, ensuring seamless integration and power supply for connected cameras. With advanced features such as motion detection and AcuSense technology, it enhances security by minimizing false alarms and providing reliable monitoring.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 8 channels |
| PoE Power | 8-port PoE switch IEEE802.3af/at (max. 80 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 80 Mbps input / 160 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | With AI enabled: 2CH@12MP, 3CH@8MP, 6CH@4MP, 12CH@1080p With AI disabled: 2CH@12MP, 4CH@8MP, 8CH@4MP, 16CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection For the NVR: Available on all channels up to 4 MP (up to 8 MP with SVC mode enabled). With cameras with motion detection 2.0: Available on all channels. |
| AcuSense | Rule-based VCA perimeter protection with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 2 channels of 4 MP. With AcuSense cameras: Available on all channels. |
| Facial Recognition | Face comparison, face capture, face search. Storage in up to 16 libraries with up to 20,000 faces in total (each image = 4 MB, total capacity = 1 GB). Facial detection and analysis tools up to 1CH with 8 MP. Face comparison on up to 4 CH. |
| Alarms | 4 Inputs / 1 Output |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 2 SATA 3.5" HDDs of up to 16 TB each (not included) |
| Communication | 2 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100/1000M (Ethernet) |
| Power Supply | DC 48 V / 2.5 A, ≤ 15 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 52 (H) x 385 (W) x 315 (D) mm / 3 Kg (without HDD) |
The DS-7608NXI-K2/8P(D) is ideally suited for a variety of surveillance applications, including retail stores, office buildings, and residential complexes. In a retail environment, for instance, the NVR can be deployed to monitor customer interactions and prevent theft. With its remote monitoring capabilities, store managers can access live feeds and recorded footage from anywhere using the Hik-Connect app. The dual stream feature allows for efficient bandwidth management, ensuring high-quality video without overwhelming the network. Additionally, the AcuSense technology significantly reduces false alarms, allowing security personnel to focus on genuine threats. The facial recognition feature enhances security by enabling quick identification of individuals, making it a valuable tool for loss prevention. Overall, the DS-7608NXI-K2/8P(D) provides a comprehensive solution for effective surveillance and security management.
