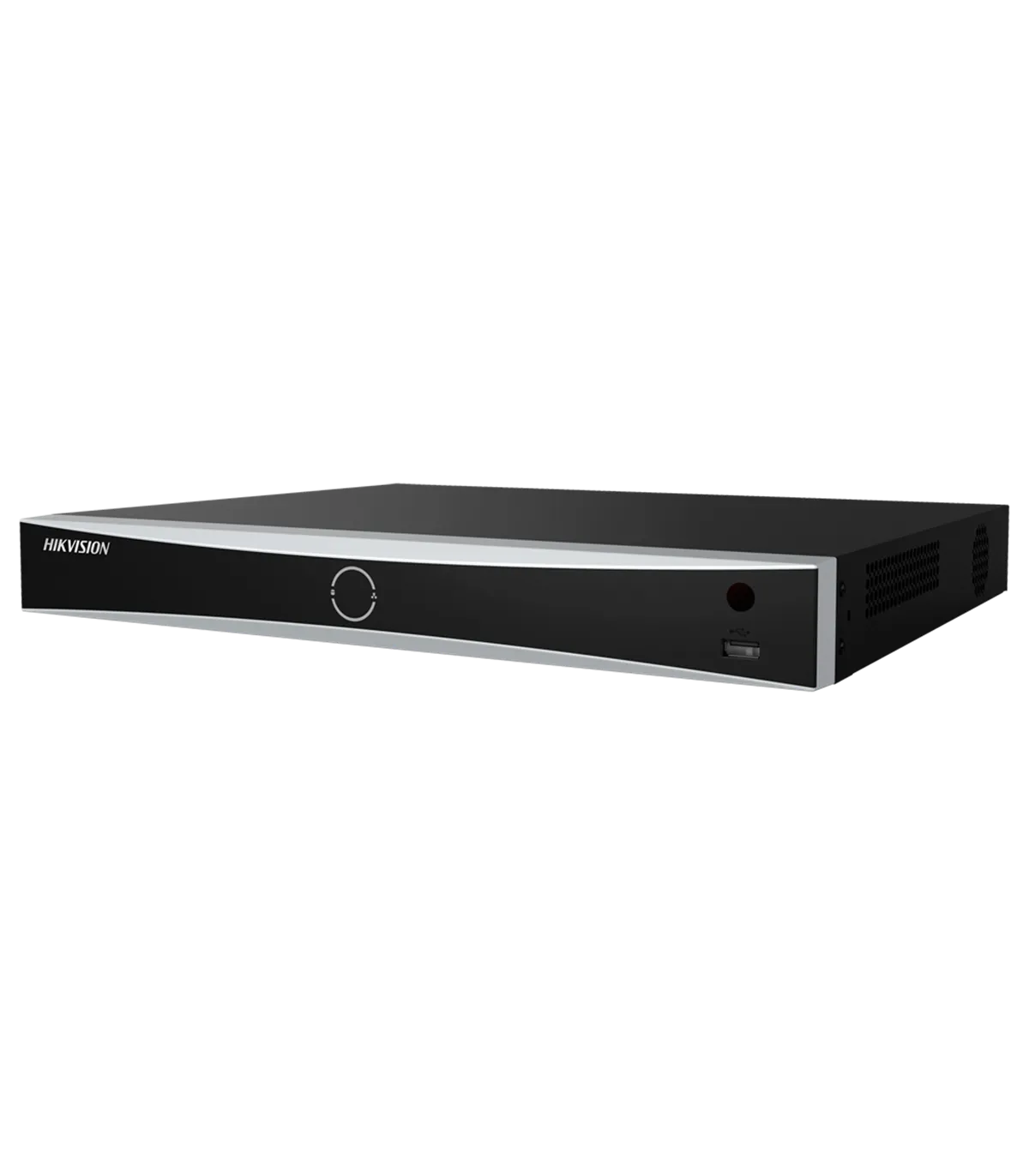

The DS-7616NXI-I2/S(E) is a high-performance NVR designed for IP camera systems, ideal for both residential and commercial security applications. With support for up to 16 channels and a maximum incoming bandwidth of 160 Mbps, this device is perfect for comprehensive surveillance setups. It features advanced video compression technologies such as H.265+ and H.265, ensuring efficient storage and high-quality video output. The NVR also supports 4K HDMI output, making it suitable for high-resolution monitoring environments.
| Brand | Hikvision |
| Series | AcuSense |
| IP Camera Inputs | LAN port up to 16 channels |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Total Bandwidth | 160Mbps input / 256 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | 16CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification available on all channels. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Facial Recognition | Face Capture on 1 CH with a maximum resolution of 8 MP (Valid for cameras with HIKVISION or ONVIF protocol) Up to 4CH with cameras having Face Capture up to 2 MP per channel (Cameras XX6G2/XX7G2) Storage for 16 Libraries with up to 10,000 faces Comparison by match level (Successful / Failed) or by Stranger Search by: Comparison type, Stored image in your Library, or Name * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available on up to 4 channels with 2MP per channel. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Alarms | 4 Inputs / 1 Output |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 2 SATA 3.5" HDDs up to 10 TB each (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100M (Ethernet) |
| Power Supply | AC 100~240 V, ≤ 15 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 52 (H) x 385 (W) x 315 (D) mm / 1.6 Kg (without HDD) |
The DS-7616NXI-I2/S(E) NVR is ideally suited for a variety of security installations, from small businesses to large enterprises. For instance, a retail store can deploy this NVR to monitor multiple areas simultaneously, leveraging its 16-channel capability and remote monitoring features. The integration of facial recognition technology allows for enhanced customer tracking and security, while the AcuSense functionality minimizes false alarms, ensuring that security personnel can focus on genuine threats. Additionally, the device's 4K HDMI output provides crystal-clear video playback, which is essential for detailed surveillance analysis. With its robust backup options and compatibility with various IP cameras, the DS-7616NXI-I2/S(E) is a versatile solution for any security professional looking to enhance their surveillance capabilities.
