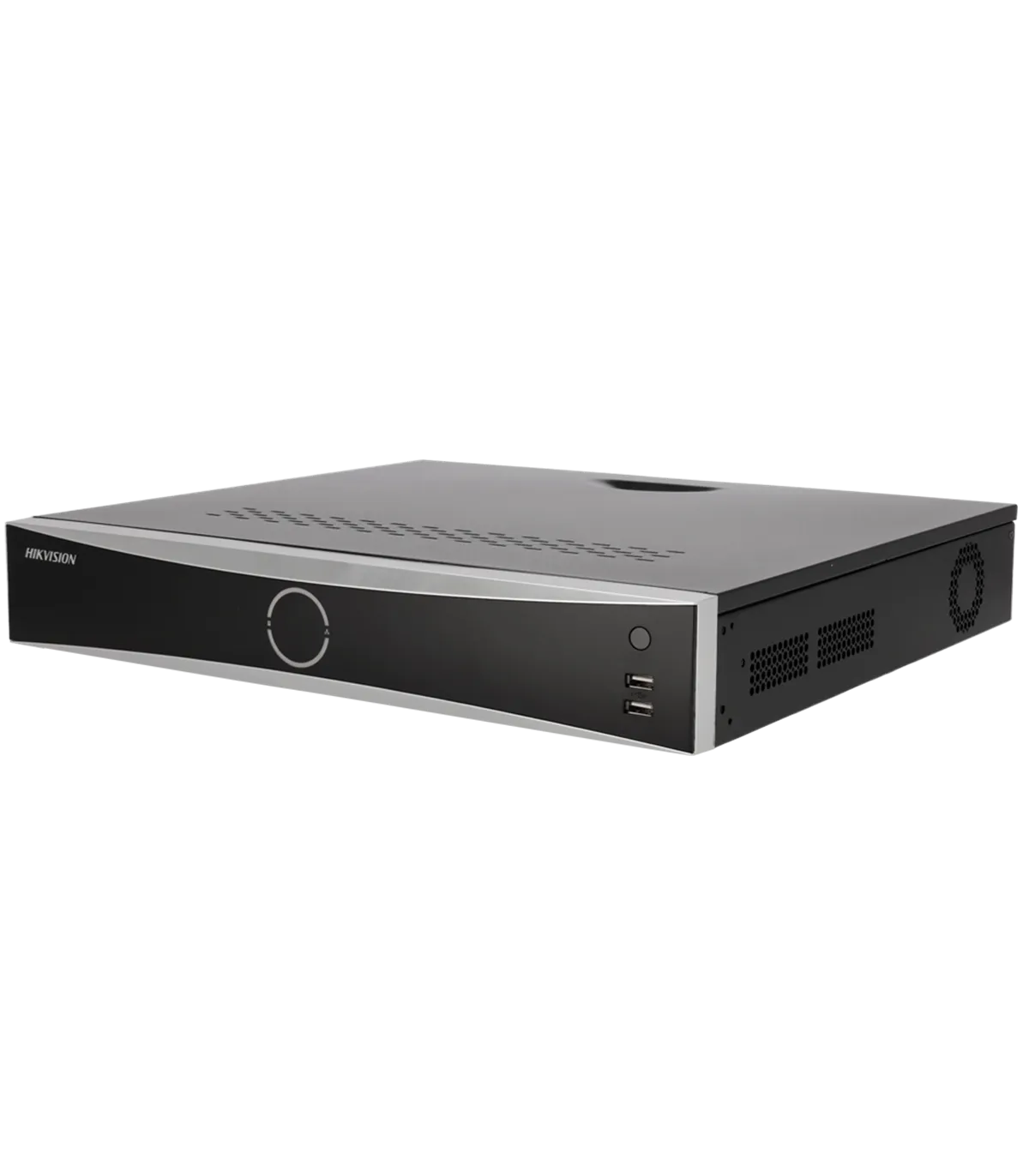

The DS-7732NXI-I4/16P/S(E) is a high-performance NVR designed for IP camera systems, ideal for medium to large-scale surveillance installations. This device supports up to 32 channels, making it suitable for comprehensive security coverage in various environments such as commercial buildings, retail spaces, and industrial sites. With features like facial recognition and ANPR (Automatic Number Plate Recognition), it enhances security management while providing advanced analytics. The device also supports remote monitoring through web interfaces and mobile applications, ensuring users can access their surveillance feeds anytime, anywhere.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 32 channels |
| PoE Power Supply | 16-port PoE switch IEEE802.3af/at (max. 200 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Video Outputs | 2xHDMI 4K, 1xVGA (HDMI 1 and VGA simultaneous, HDMI 2 and VGA independent) |
| Display Resolution | HDMI 4K: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Total Bandwidth | 256 Mbps input / 256 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | 20CH@1080p (with smart features enabled) 32CH@1080p (with smart features disabled) |
| Simultaneous Multi-Function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification available on all channels. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Facial Recognition | Available on all channels with Face Capture up to 2 MP per channel (Cameras XX6G2/XX7G2) Face image comparison up to 8 channels. Face Capture on up to 4 CH with a maximum resolution of 8 MP (valid for cameras with HIKVISION or ONVIF protocol) Storage of 16 libraries with up to 50,000 faces. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Smart Features | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available on up to 4 channels with 2 MP per channel. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| ANPR License Plate Recognition | Available on all channels with license plate recognition cameras. Vehicle attributes: Vehicle make, vehicle color, vehicle type. License plate attributes: License plate number, license plate color, license plate type. |
| Alarms | 16 Inputs / 9 Outputs |
| Two-Way Audio | 1 RCA input / 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 4 SATA 3.5" HDDs up to 10 TB each (not included) |
| Communication | 2 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100M (Ethernet) / 2 x RS-485 / 1 x RS-232 / 1 x eSATA |
| Power Supply | AC 100~240 V, ≤ 30 W (without HDD) |
| Power Output | DC 12 V, 1 A |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 75 (H) x 440 (W) x 391 (D) mm / 3.6 Kg (without HDD) |
The DS-7732NXI-I4/16P/S(E) NVR is an excellent choice for a variety of surveillance applications, particularly in environments requiring robust security measures. For instance, in a retail setting, this NVR can manage up to 32 IP cameras, providing comprehensive coverage of the premises. With its 4K HDMI output, users can monitor live feeds in high definition, ensuring that every detail is captured. The facial recognition feature allows for enhanced security by identifying known individuals, while the ANPR capability aids in tracking vehicle movements. Additionally, the device's remote monitoring capabilities enable store managers to access live footage from their smartphones, ensuring peace of mind even when away from the premises. The integration of AcuSense technology further reduces false alarms, making it a reliable choice for busy retail environments. Overall, the DS-7732NXI-I4/16P/S(E) offers a powerful solution for modern security needs.
