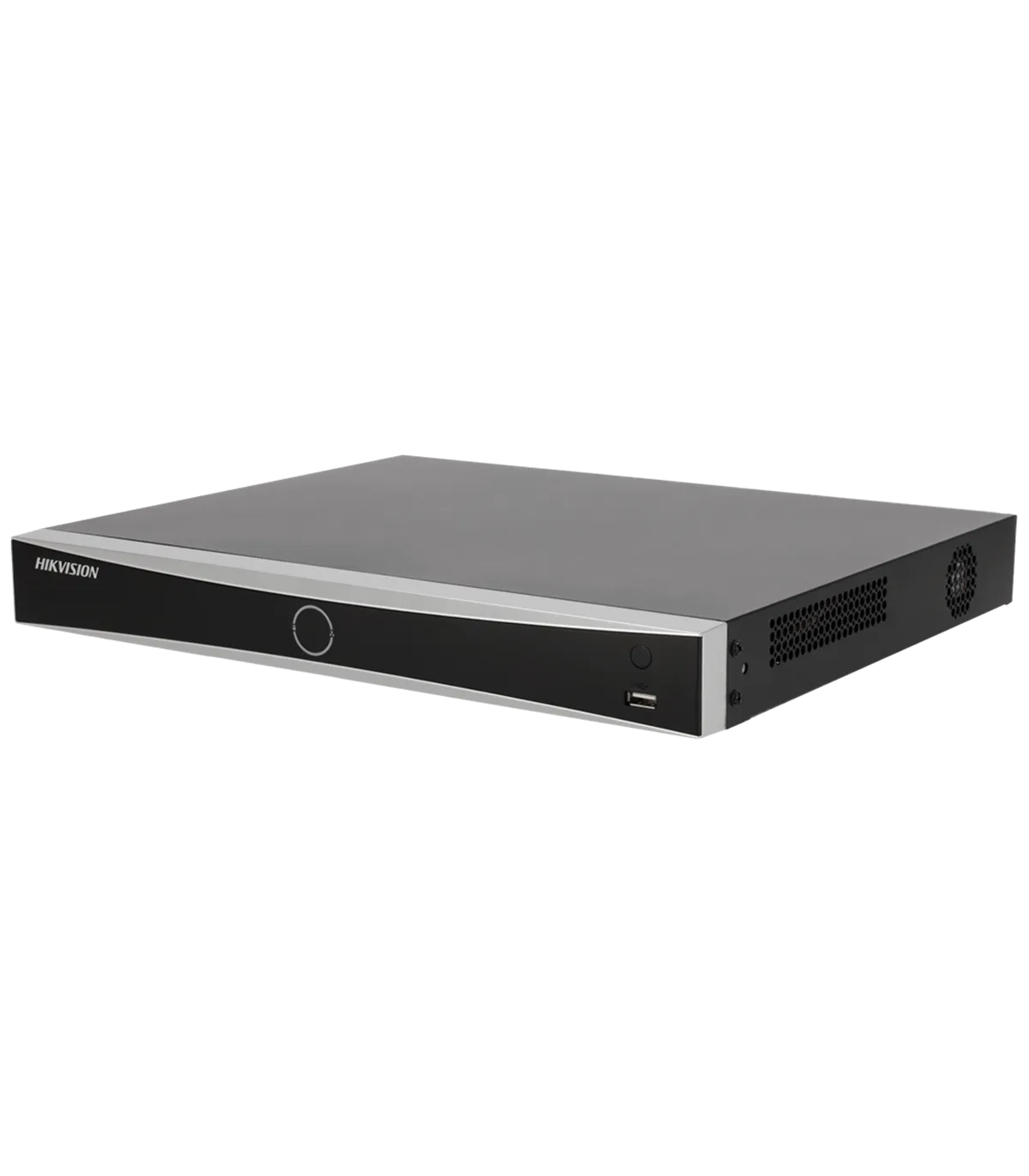

Hikvision 8-Channel AcuSense NVR with 8 PoE Ports DS-7608NXI-I2/8P/VPro
- Hikvision
- PRO Series
- NVR Recorder 8 CH IP / 8x POE af/at Ports
- Maximum Resolution 32Mpx | Alarms | AcuSense
- Bandwidth 96 Mbps | Supports 2 Hard Drives
- AcuSeek, text-based search up to 8CH
Description & Key Features: DS-7608NXI-I2/8P/VPro
The Hikvision DS-7608NXI-I2/8P/VPro is a state-of-the-art NVR designed for IP camera systems, featuring advanced artificial intelligence capabilities. This device is ideal for medium to large-scale surveillance installations, providing efficient video management and intelligent search functionalities. With its support for up to 8 channels and a maximum resolution of 32 MP, it ensures high-quality video recording and playback, making it a perfect fit for security-conscious environments.
The Hikvision AcuSense VPRO series recorders include artificial intelligence based on a large-scale algorithm known as Guanlan. This series features functionalities such as AcuSeek and AcuSearch across its 8 channels.
AcuSeek: Search through large amounts of video recordings using natural language text descriptions.
AcuSearch: Search for events based on a target image. The recorder can search for a target of interest across all NVR channels.
- Hikvision
- AcuSense VPRO series
- NVR for IP cameras
- 8 CH
- Supported incoming bandwidth 96 Mbps
- Maximum resolution 32 MP
- Compression H.265+/H.265/H.264+/H.264
- 4K HDMI and VGA output
- Artificial intelligence based on the large-scale Guanlan algorithm
- Motion detection 2.0 across all channels
- AcuSeek, text-based search in natural language
- AcuSearch, image-based target search across all channels
- Facial recognition
- AcuSense
- Alarms
- Audio
- POS
- Space for 2 HDDs
- Compatible with ONVIF
- 8x PoE af/at ports
Specifications: DS-7608NXI-I2/8P/VPro
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 8 channels |
| PoE Ports | 8x PoE IEEE 802.3 af/at Consumption ≤ 120W |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Video Outputs | 1x HDMI 4K, 1x independent VGA |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 * HDMI and VGA are independent |
| Total Bandwidth | 96 Mbps input / 256 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | 20CH@1080p 30fps (AI enabled on NVR) 32CH@1080p 30fps (AI disabled on NVR) |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection Available on all channels. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Facial Recognition | Face Capture on 4 CH with a maximum resolution of 8 MP (Valid for cameras with HIKVISION or ONVIF protocol) Storage of 16 Libraries with up to 50,000 faces Comparison by match level (Successful / Failed) or by Stranger Searches by: Type of comparison, Image stored in your Library or Name * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available on up to 4 channels with 2MP per channel * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSeek | Search through large amounts of video recordings using natural language text descriptions. If the cameras support AcuSense technology and have the AcuSearch function enabled, the NVR supports AcuSeek on all channels and can model 300,000 targets per day. |
| AcuSearch | Video search based on target images. Multiple targets can be detected simultaneously in the image and the desired target can be selected for searching. If the cameras support AcuSense technology and have the AcuSearch function enabled, the NVR supports AcuSearch on all channels and can model 300,000 targets per day. |
| ANPR | Supports license plate search on all channels with cameras that support ANPR function |
| POS | Yes |
| Alarms | 4 Inputs / 1 Output |
| Audio | 1 input / 1 output |
| Two-way Audio | 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 2 SATA 3.5" HDDs up to 20 TB each (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 3.0 rear / 1 x RJ45 10/100/1000M (Ethernet) |
| Power Supply | AC 100~240 V, ≤ 50 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Rack Mountable | 1U |
| Dimensions / Weight | 52 (H) x 384 (W) x 371 (D) mm / 4 Kg (without HDD) |
Package Contents
- Hikvision NVR Recorder
- Mouse
- Ethernet Cable
- User Manual
- Cabling to connect hard drive
- Power Adapter
Use Case
The Hikvision DS-7608NXI-I2/8P/VPro is ideally suited for a variety of surveillance applications, such as retail stores, office buildings, and industrial sites. In a retail environment, for instance, the NVR can be deployed to monitor customer interactions and prevent theft. With its remote monitoring capabilities, security personnel can access live feeds and recorded footage from anywhere, ensuring a rapid response to incidents. The motion detection 2.0 feature enhances security by classifying human and vehicle movements, reducing false alarms. Additionally, the AcuSeek and AcuSearch functionalities allow users to quickly locate specific events or individuals within vast amounts of recorded data, streamlining investigations. This NVR's compatibility with ONVIF ensures seamless integration with various IP cameras, making it a versatile choice for installers and end-users alike. Overall, the DS-7608NXI-I2/8P/VPro provides a comprehensive solution for modern security needs, combining advanced technology with user-friendly features.
Data sheet
- Brand
- HIKVISION
- Technology
- IP
- Wi-Fi
- No dispone
- Series
- Pro
- Channels
- 8
Specific References
- EAN13
- 6936422158460
