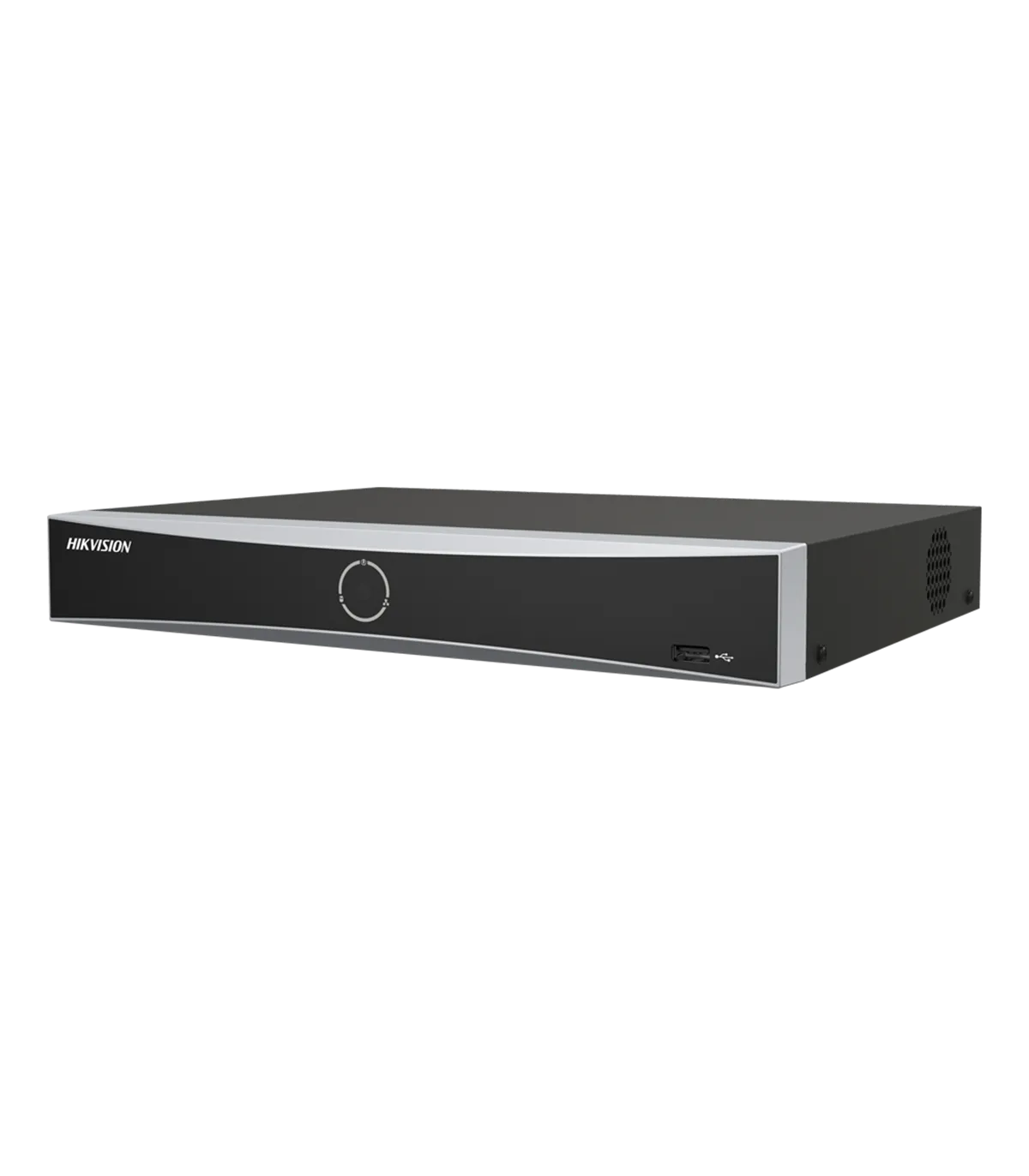

The DS-7604NXI-K1(D) is a professional-grade NVR designed for IP camera surveillance systems. It is ideal for small to medium-sized installations, providing robust features such as motion detection and facial recognition. This device supports a maximum resolution of 12 MP and offers advanced compression technologies like H.265+, ensuring efficient storage and high-quality video output. With its dual-stream access and compatibility with ONVIF, it seamlessly integrates into existing security infrastructures.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 4 channels |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA input / 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 40 Mbps input / 80 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | With AI enabled: 2CH@12MP, 3CH@8MP, 6CH@4MP, 12CH@1080p With AI disabled: 2CH@12MP, 4CH@8MP, 8CH@4MP, 16CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection For the NVR: Available on all channels up to 4 MP (up to 8 MP with SVC mode enabled). With cameras with motion detection 2.0: Available on all channels. |
| AcuSense | Rule-based VCA perimeter protection with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 1 channel of 4 MP. With AcuSense cameras: Available on all channels. |
| Facial Recognition | Face comparison, face capture, face search. Storage in up to 16 libraries with up to 20,000 faces in total (each image ≤ 4 MB, total capacity ≤ 1 GB). Facial detection and analysis tools on up to 1CH with 8 MP. Face comparison on up to 4 CH. |
| Alarms | Not available |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 128 |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Internal Storage | 1 SATA 3.5" HDD up to 16 TB (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 12 V / 1.5 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 48 (H) x 320 (W) x 240 (D) mm / 1 Kg (without HDD) |
The DS-7604NXI-K1(D) NVR is an excellent choice for a variety of surveillance applications, particularly in retail environments or small office settings. Installers can easily set up this plug-and-play device, allowing for quick deployment without extensive configuration. With its remote monitoring capabilities, users can access live feeds and recorded footage from anywhere using the Hik-Connect app. The motion detection feature enhances security by alerting users to potential intrusions, while the facial recognition technology provides an additional layer of identification for enhanced safety. Furthermore, the device's compatibility with ONVIF ensures seamless integration with existing security systems, making it a versatile solution for modern surveillance needs.
