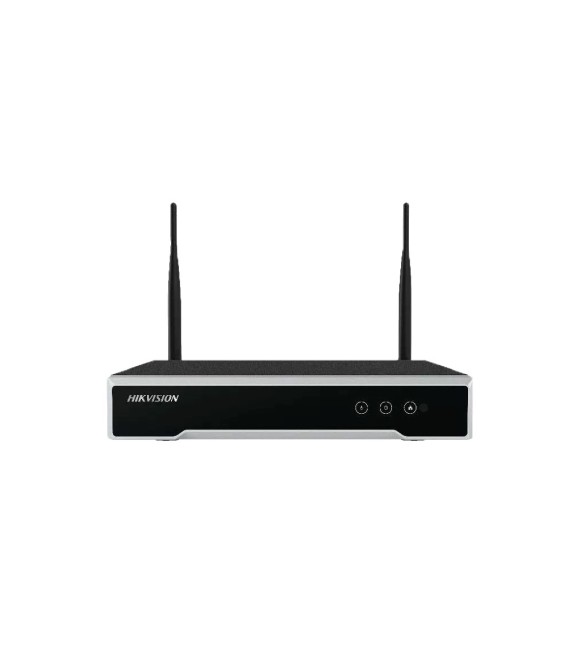

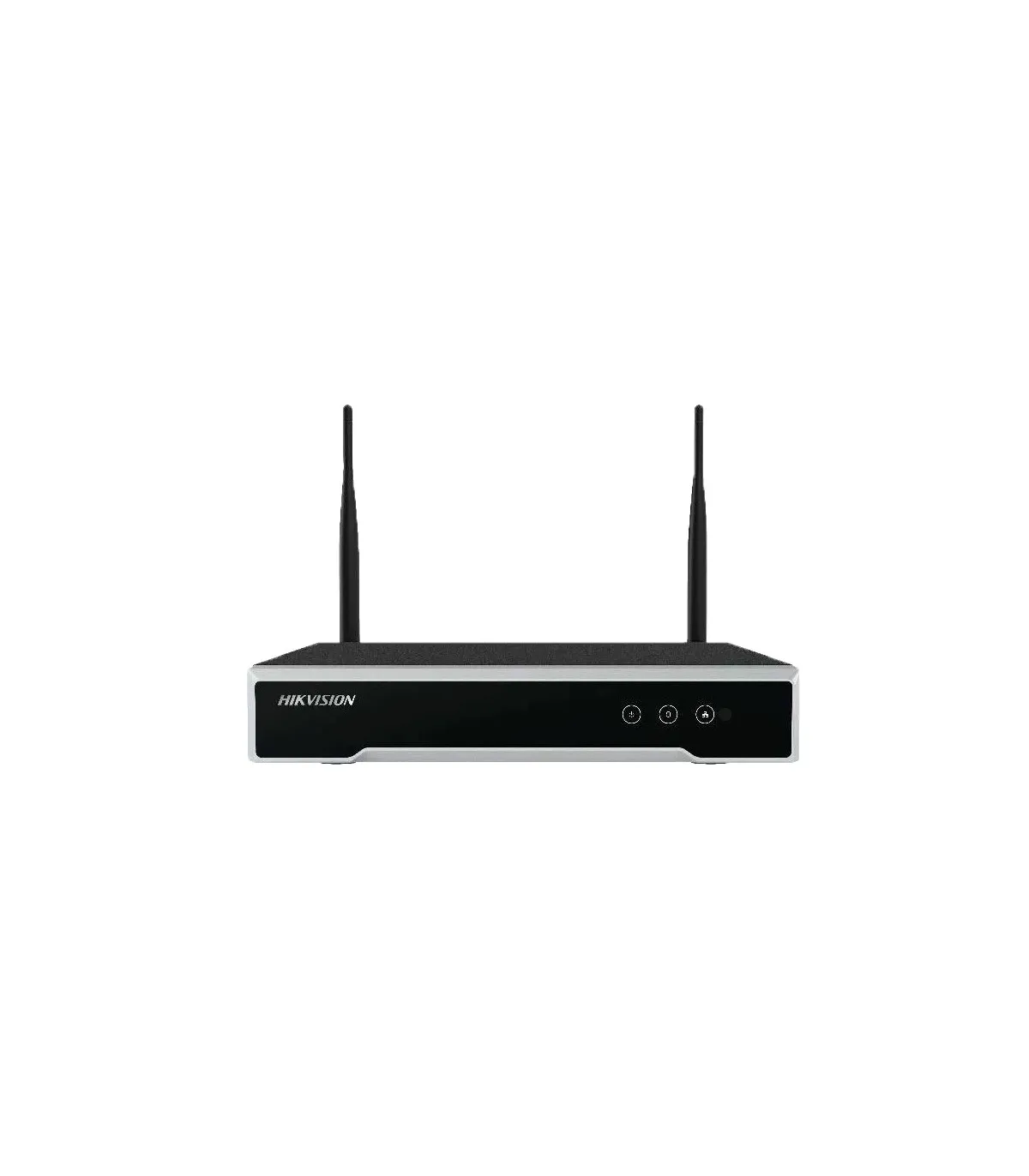

NVR recorder for HIKVISION IP cameras DS-7104NI-K1/W/M (C)
Brand: HIKVISION VALUE
- Hikvision
- VALUE Series
- NVR Recorder for IP Cameras / Wifi Module
- 4 CH video / Maximum resolution 4 Mpx
- Bandwidth 50 Mbps
- Supports 1 hard drive
HIKVISION DS-7104NI-K1/W/M (C) IP Camera NVR Recorder
- Hikvision
- Value Range
- IP Camera NVR Recorder
- 4 Channels
- WiFi Module for creating an access point to add cameras
- Supported incoming bandwidth 50 Mbps
- Maximum resolution 4 MP
- Compression H.265+/H.265/H.264+/H.264
- FullHD HDMI and VGA output
- RCA audio output
- Dual Stream IP Access
- Mouse included
- Space for 1 HDD
- WEB, CMS, and Smartphone Interface
- ONVIF Compatible
Technical Specifications
| Brand | Hikvision |
| Range | Value |
| IP Camera Inputs | LAN Port up to 4 channels |
| PoE Power | Not available |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Audio | 1 RCA output |
| Video Outputs | 1xHDMI FullHD, 1xVGA simultaneous |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Total Bandwidth | 50 Mbps input / 40 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 4MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capacity | 4CH@4MPx, 4CH@1080p |
| Simultaneous Function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / CD-RW USB / DVR-RW USB |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 16 |
| Internal Storage | 1 SATA 3.5" HDD up to 6 TB (not included) |
| Wireless Communication with Cameras | WiFi Module IEEE 802.11b/g/n 144Mbps 2.4GHz |
| Communication | 2 x USB 2.0 (Back) / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 12 V / 1.6 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 48 (H) x 265 (W) x 246 (D) mm / 1.6 Kg (without HDD) |
Content
- Hikvision NVR Recorder
- Mouse
- Ethernet Cable
- Instruction Manual
- Wiring for connecting hard drive
- Power Adapter
