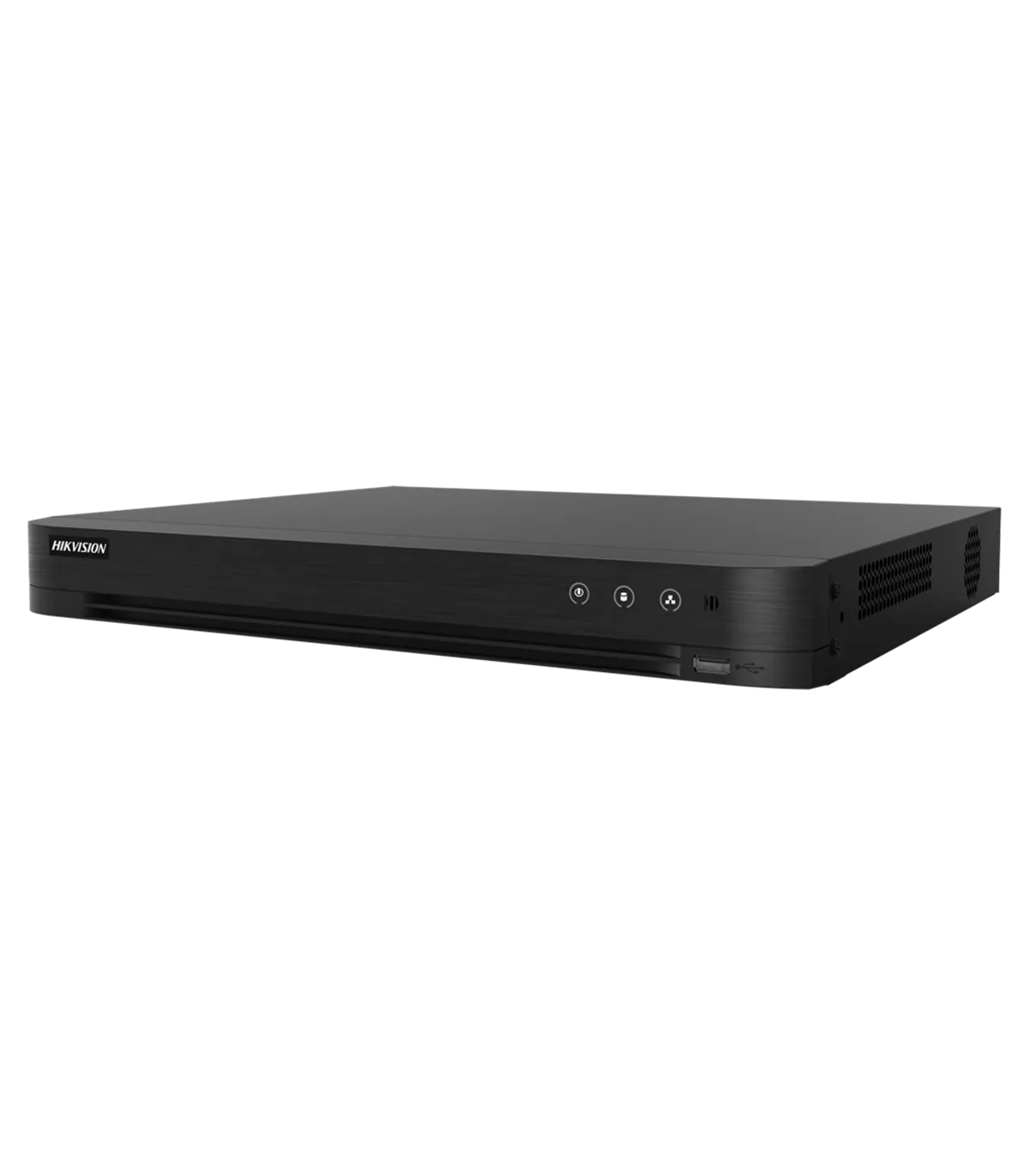

The DS-7604NI-Q1/4P(D)/Alarm is a professional-grade NVR designed for IP camera surveillance systems. It is ideal for small to medium-sized installations, providing reliable performance and advanced features. With support for up to 4 channels and a maximum resolution of 8 MP, this device ensures high-quality video recording and playback. The H.265+ compression technology optimizes storage efficiency, making it a perfect choice for users seeking effective video surveillance solutions.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | 4-port switch |
| PoE Power | 4-port PoE switch IEEE802.3af/at (max. 50 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xVGA simultaneous |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 4096x2160, 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 40 Mbps input / 80 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | 1CH@8MPx, 3CH@4MP, 6CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on up to 1 channel. * Motion detection and Acusense cannot be enabled simultaneously on the same device. |
| Alarms | 4 Inputs / 1 Relay |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 32 |
| Internal Storage | 1 SATA 3.5" HDD up to 8 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 48 V / 1.35 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 48 (H) x 320 (W) x 240 (D) mm / 1.18 Kg (without HDD) |
The DS-7604NI-Q1/4P(D)/Alarm is ideally suited for a variety of surveillance applications, including retail stores, offices, and residential properties. In a typical deployment, installers can easily set up the device using its plug-and-play functionality, allowing for quick integration with existing IP cameras. The device's remote monitoring capabilities enable users to access live feeds and recorded footage from anywhere via the Hik-Connect app or web browser. This flexibility is enhanced by the dual stream feature, which allows simultaneous viewing and recording without compromising quality. Additionally, the advanced motion detection technology ensures that users receive timely alerts for any suspicious activity, making it an essential tool for enhancing security. With a maximum resolution of 8 MP, the DS-7604NI-Q1/4P(D)/Alarm delivers crystal-clear images, ensuring that every detail is captured for effective monitoring.
