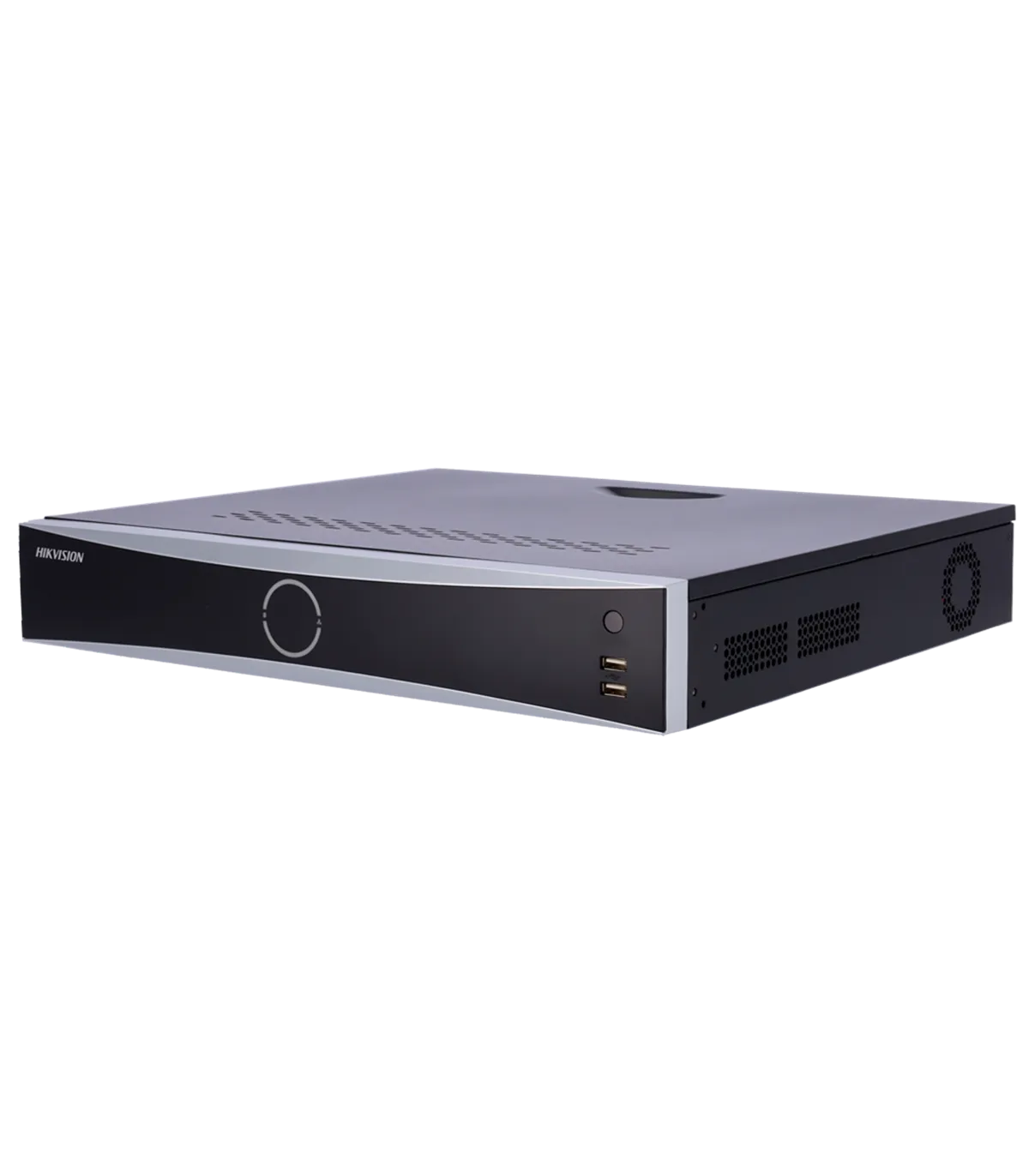

The Hikvision DS-7716NXI-I4/16P/VPro is a state-of-the-art NVR designed for IP camera systems, featuring advanced artificial intelligence capabilities. This device is ideal for large-scale surveillance applications, providing efficient video management and intelligent search functionalities. With its 16 channels and support for high-resolution video, it is perfect for both commercial and residential security installations.
The Hikvision AcuSense VPRO series recorders include artificial intelligence based on a large-scale algorithm known as Guanlan. This series features functionalities such as AcuSeek and AcuSearch across its 16 channels.
AcuSeek: Search through large amounts of video recordings using natural language text descriptions.
AcuSearch: Search for events based on a target image. The recorder can search for a target of interest across all NVR channels.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 16 channels |
| POE Ports | 16x POE ports IEEE 802.3 af/at Power consumption ≤ 200W |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Video Outputs | 1xHDMI 4K, 1xHDMI 1080p, 1xVGA |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI 1: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 HDMI 2: 1920x1080, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 * HDMI 1 and VGA are independent |
| Total Bandwidth | 192 Mbps input / 256 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | 20CH@1080p 30fps (AI enabled by NVR) 32CH@1080p 30fps (AI disabled by NVR) |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied to motion detection Available on all channels. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Facial Recognition | Face Capture on 4 CH with a maximum resolution of 8 Mpx (Valid for cameras with HIKVISION or ONVIF protocol) Storage of 16 Libraries with up to 50,000 faces Comparison by match level (Successful / Failed) or by Stranger Searches by: Type of comparison, Image stored in your Library, or Name * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available on up to 4 channels with 2Mpx per channel * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSeek | Search through large amounts of video recordings using natural language text descriptions. If the cameras support AcuSense technology and have the AcuSearch function enabled, the NVR supports AcuSeek on all channels and is capable of modeling 300,000 targets per day. |
| AcuSearch | Video search based on target images. Multiple targets can be detected simultaneously in the image and the desired target can be selected for searching. If the cameras support AcuSense technology and have the AcuSearch function enabled, the NVR supports AcuSearch on all channels and is capable of modeling 300,000 targets per day. |
| ANPR | Supports license plate search on all channels with cameras that support ANPR function |
| POS | Yes |
| Alarms | 16 Inputs / 9 Outputs |
| Audio | 1 input / 1 output |
| Two-way Audio | 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 4 SATA 3.5" HDDs of up to 20 TB each (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100/1000M (Ethernet) |
| Power Supply | AC 100~240 V, ≤ 50 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Rack Mountable | 1.5U |
| Dimensions / Weight | 72 (H) x 440 (W) x 391 (D) mm / 5 Kg (without HDD) |
The Hikvision DS-7716NXI-I4/16P/VPro is an excellent choice for a variety of surveillance applications, particularly in commercial settings such as retail stores, warehouses, and office buildings. For instance, an installer can deploy this 16-channel NVR to monitor multiple areas simultaneously, ensuring comprehensive coverage. The remote monitoring capabilities allow users to access live feeds and recorded footage from anywhere, enhancing security management. With features like AcuSeek and AcuSearch, users can quickly locate specific incidents or individuals, significantly reducing investigation time. The device's support for high-resolution video and advanced facial recognition technology further enhances its effectiveness in identifying potential threats. Additionally, the integration of POS systems allows for seamless transaction monitoring, providing a complete security solution. Overall, the DS-7716NXI-I4/16P/VPro is a robust and versatile option for any security installation.
