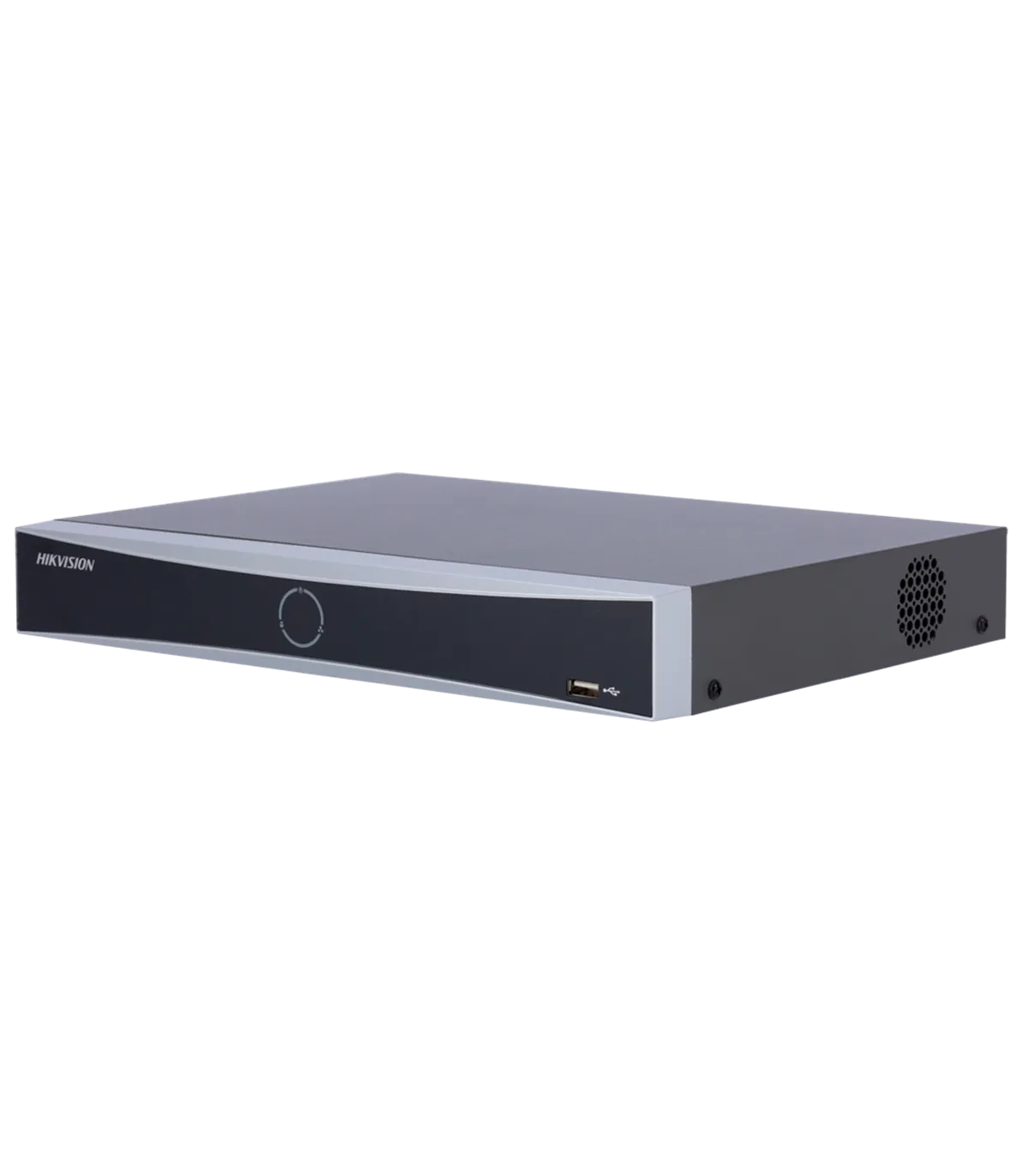

The DS-7604NXI-K1/4P(D) is a sophisticated NVR designed for IP camera systems, ideal for both residential and commercial security applications. This device supports up to 4 channels with PoE capabilities, making it a versatile choice for users seeking reliable video surveillance solutions. With a maximum resolution of 12 MP and advanced features such as motion detection and AcuSense technology, it ensures high-quality monitoring and efficient false alarm filtering.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 4 channels |
| PoE Power | 4-port PoE switch IEEE802.3af/at (max. 50 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA input / 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 40 Mbps input / 80 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | With AI enabled: 2CH@12MPx, 3CH@8MP, 6CH@4MP, 12CH@1080p With AI disabled: 2CH@12MPx, 4CH@8MP, 8CH@4MP, 16CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied to motion detection Available on all channels. |
| AcuSense | Rule-based VCA perimeter protection with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 1 channel of 4 MP. With AcuSense cameras: Available on all channels. |
| Facial Recognition | Face comparison, face capture, face search. Storage in up to 16 libraries with a total of up to 20,000 faces (each image ≤ 4 MB, total capacity ≤ 1 GB). Facial detection and analysis tools on up to 1CH with 8 MP. Face comparison on up to 4 CH. |
| Alarms | None |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 128 |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Internal Storage | 1 SATA 3.5" HDD up to 16 TB (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 48 V / 1.35 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 48 (H) x 320 (W) x 240 (D) mm / 1 Kg (without HDD) |
The DS-7604NXI-K1/4P(D) NVR is ideally suited for a variety of security installations, including retail stores, office buildings, and residential properties. For instance, a retail store can utilize this device to monitor customer activity and enhance security measures. With its 4-channel PoE capability, installation becomes plug-and-play, allowing for quick deployment without the need for additional power sources. The motion detection feature ensures that any suspicious activity is promptly recorded, while the facial recognition technology can help identify known individuals, enhancing overall security. Furthermore, the device's compatibility with ONVIF standards allows for seamless integration with existing security systems. Users can access live feeds and recorded footage remotely via the Hik-Connect app, providing peace of mind and remote monitoring capabilities. Overall, the DS-7604NXI-K1/4P(D) offers a comprehensive solution for effective surveillance and security management.
