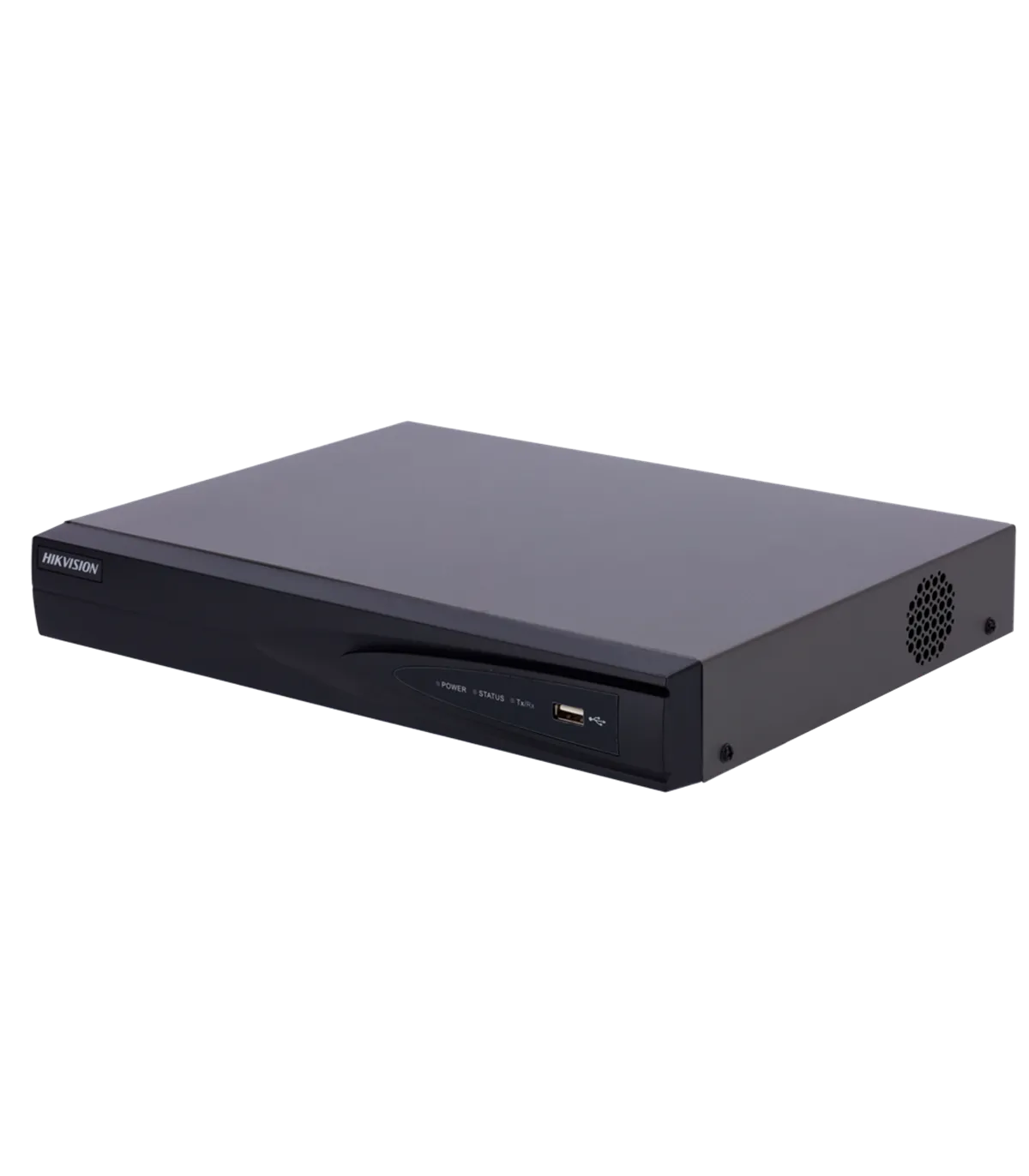

The DS-7604NI-Q1/4P(D) is a professional-grade NVR designed for IP camera systems, ideal for both residential and commercial security applications. With its 4-channel PoE capability and support for up to 8 MP resolution, this device ensures high-quality video surveillance. Its advanced features, including H.265+ compression and dual-stream access, make it a versatile choice for users seeking efficient and reliable video recording solutions.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | 4-port switch |
| PoE Power | 4-port PoE switch IEEE802.3af/at (max. 50 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 input / 1 output |
| Video Outputs | 1xHDMI 4K, 1xVGA simultaneous |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Display Resolution | HDMI: 4096x2160, 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 40 Mbps input / 80 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | 1CH@8MPx, 3CH@4MP, 6CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on up to 1 channel. |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 32 |
| Internal Storage | 1 SATA 3.5" HDD up to 8 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 48 V / 1.35 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 48 (H) x 320 (W) x 240 (D) mm / 1.18 Kg (without HDD) |
The DS-7604NI-Q1/4P(D) NVR is ideally suited for a variety of security installations, from small businesses to larger commercial properties. For instance, a retail store can utilize this device to monitor multiple areas simultaneously, leveraging its 4-channel PoE capability to simplify installation and reduce cabling costs. The H.265+ compression technology allows for efficient storage management, ensuring that high-resolution footage is retained without overwhelming storage resources. Additionally, the remote monitoring feature enables store owners to access live feeds via their smartphones, providing peace of mind while away from the premises. The motion detection 2.0 functionality enhances security by accurately identifying potential threats, such as unauthorized access or suspicious activity. Overall, the DS-7604NI-Q1/4P(D) offers a robust solution for those seeking reliable and efficient video surveillance.
