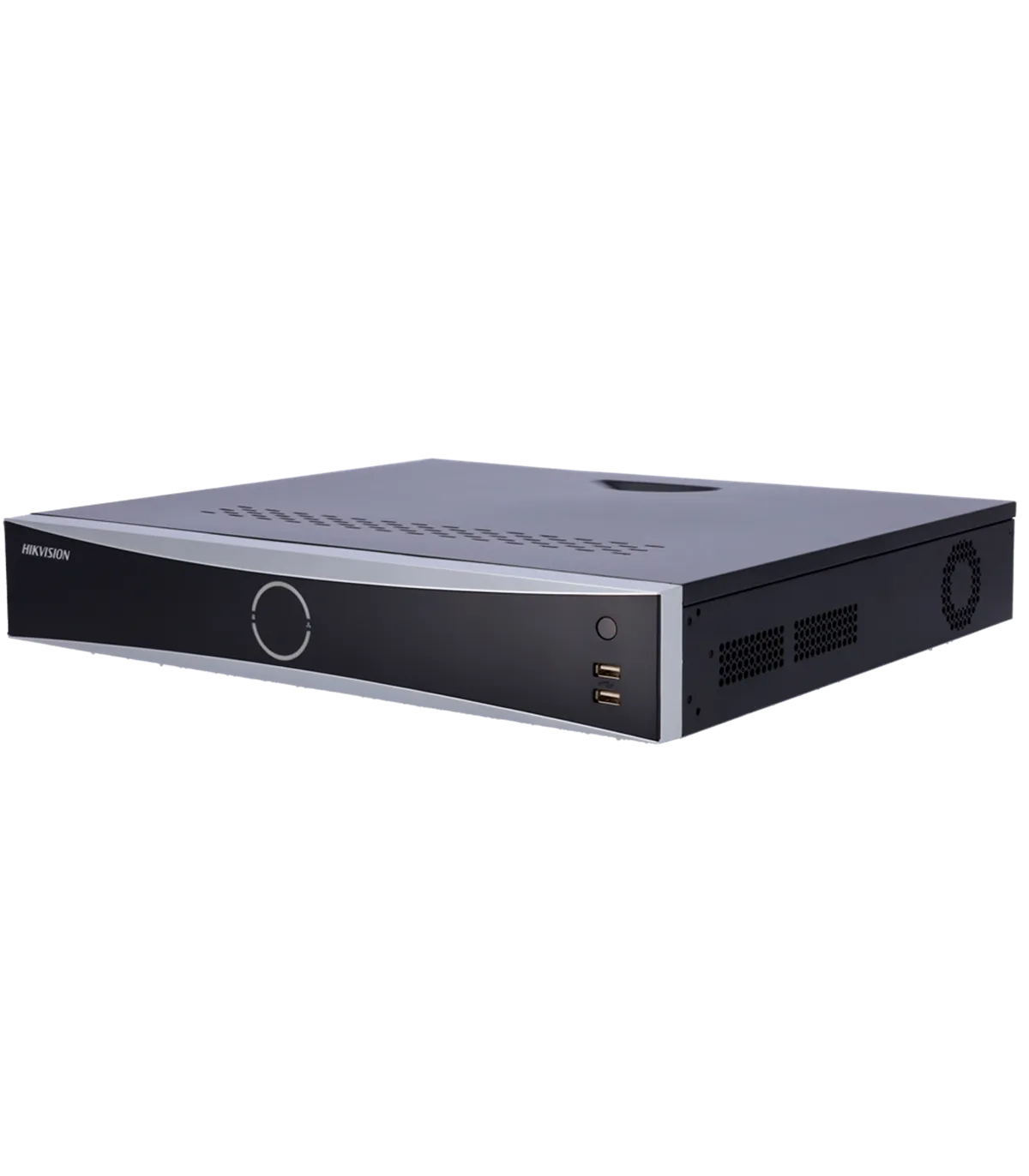

Hikvision 32-Channel 12MP AcuSense NVR DS-7732NXI-I4/S(E)
- Hikvision
- PRO Series
- 32CH IP NVR Recorder
- Maximum Resolution 12MP | Alarms | 2 HDMI 4K
- Bandwidth 256 Mbps | Supports 4 Hard Drives
- MD 2.0 | Face Capture 4 CH | AcuSense 4 CH
Description & Key Features: DS-7732NXI-I4/S(E)
The DS-7732NXI-I4/S(E) is a high-performance NVR designed for IP camera systems, ideal for comprehensive surveillance solutions in various environments. With support for up to 32 channels, this device is perfect for large-scale installations requiring robust video management. Its advanced features, including H.265+ compression and dual stream access, ensure efficient storage and high-quality video playback. The device is compatible with ONVIF, making it versatile for integration with other security systems.
- Hikvision
- PRO Series
- NVR for IP cameras
- 32 CH
- Supported incoming bandwidth 256 Mbps
- Maximum resolution 12 MP
- Compression H.265+/H.265/H.264+/H.264
- Video outputs 2 x 4K HDMI and VGA
- Motion detection 2.0 on all channels
- AcuSense on up to 4 channels
- Facial recognition on up to 8 channels
- Alarms
- Audio
- POS
- Dual Stream IP access
- Mouse
- Space for 4 HDDs
- WEB interface, CMS, and Smartphone compatible
- Compatible with ONVIF
Specifications: DS-7732NXI-I4/S(E)
| Brand | Hikvision |
| Series | PRO |
| IP camera inputs | LAN port up to 32 channels |
| Compatible IP cameras | HIKVISION (native protocol), ONVIF |
| Two-way audio | 1 RCA input / 1 RCA output |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Video outputs | 2xHDMI 4K, 1xVGA HDMI 1 and VGA simultaneous, HDMI 2 and VGA independent |
| Display resolution | HDMI 1: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 HDMI 2: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Total bandwidth | 256 Mbps input / 256 Mbps output |
| Stream type | Video / Video + Audio |
| Main stream recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF * The NVR supports up to 4 video input channels at 32/24 MP |
| Decoding capability | With smart functions disabled: 32CH@1080p With smart functions enabled: 20CH@1080p * Smart functions include Motion Detection 2.0, AcuSense, and Facial Recognition |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion detection | Motion detection 2.0 with human and vehicle classification applied in motion detection Available on all channels. * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two |
| Facial recognition | Face capture up to 4CH with cameras supporting Face Capture up to 2 MP per channel (Cameras XX6G2/XX7G2). Face comparison up to 8 CH (Valid for cameras with HIKVISION or ONVIF protocol) Storage of 16 libraries with up to 50,000 faces Face attributes: glasses, mask, facial expression, body temperature * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two |
| Smart functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available on up to 4 channels with 2MP per channel * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two |
| Alarms | 16 Inputs / 9 Outputs |
| Recording method | Manual, scheduled, motion detection |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote access | Web browser, Hik-Connect Smartphone App, PC software iVMS-4200, and Hik-Central |
| Remote connections | 128 |
| Internal storage | 4 SATA 3.5" HDDs of up to 10 TB each (not included) |
| Communication | 2 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100M (Ethernet) / 2 x RS-485 / 1 x RS-232 / 1 x e SATA |
| Power supply | AC 100~240 V, ≤ 30 W (without HDD) |
| Power output | DC 12 V, 1 A |
| Operating temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 75 (H) x 445 (W) x 391 (D) mm / 3.6 Kg (without HDD) |
Package Contents
- Hikvision NVR Recorder
- Mouse
- Ethernet Cable
- User Manual
- Cabling for hard drive connection
- Power Adapter
Use Case
The DS-7732NXI-I4/S(E) NVR is ideally suited for deployment in commercial settings such as retail stores, warehouses, and office buildings. Installers can leverage its 32-channel capability to connect multiple IP cameras, ensuring comprehensive coverage of the premises. The device's remote monitoring features allow users to access live feeds and recorded footage from anywhere using the Hik-Connect app or web interface. This flexibility enhances security management, enabling quick responses to incidents. Additionally, the motion detection 2.0 feature provides advanced alerts, reducing false alarms and improving overall security efficiency. The integration of facial recognition technology further enhances the system's capability to identify individuals, making it an excellent choice for high-security environments. With its H.265+ compression, users can maximize storage efficiency while maintaining high video quality, making the DS-7732NXI-I4/S(E) a powerful tool for modern surveillance needs.
Data sheet
- Brand
- HIKVISION
- Technology
- IP
- Wi-Fi
- No dispone
- Series
- Pro
- Channels
- 32
Specific References
- EAN13
- 6942160419718
