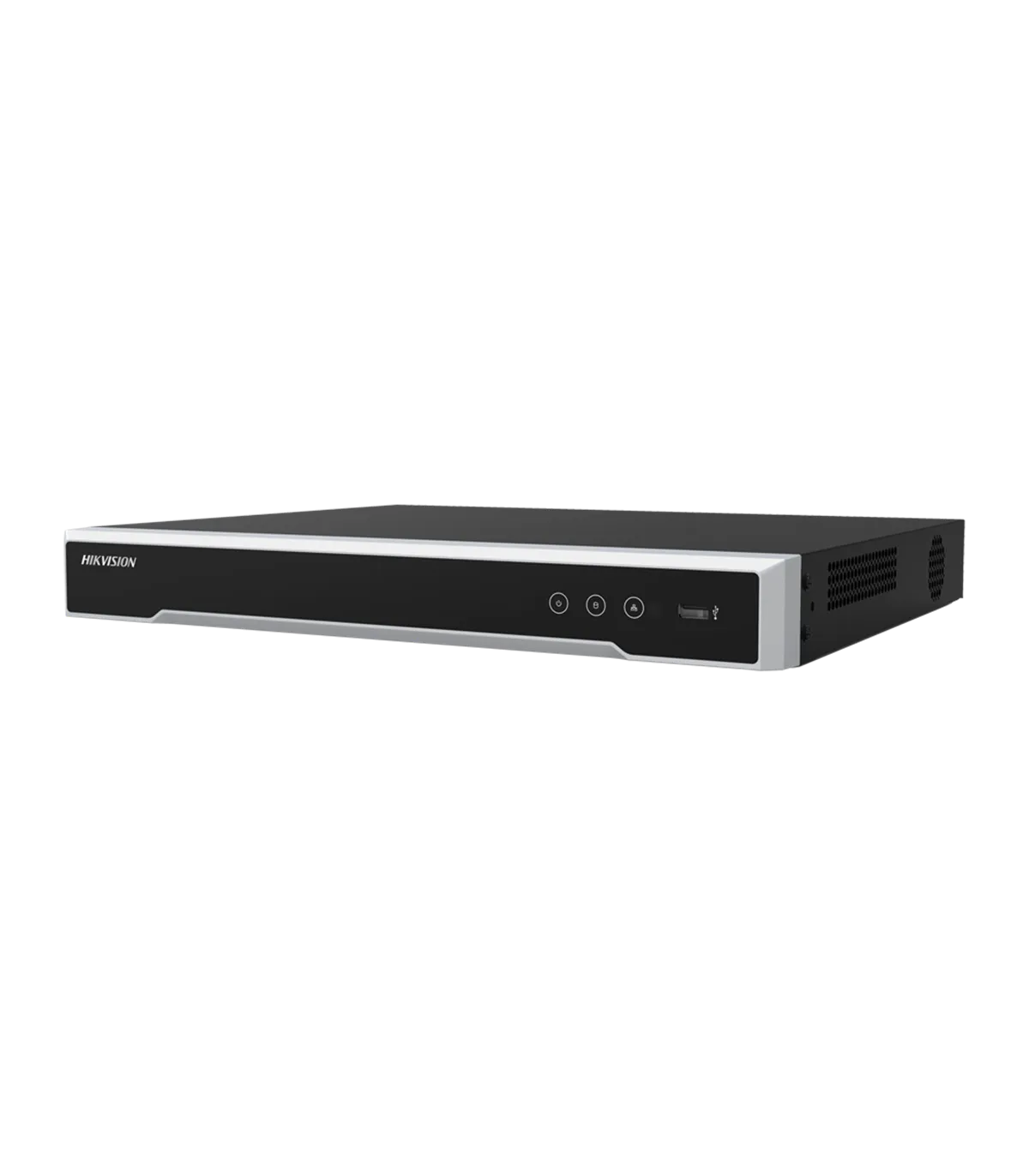

The DS-7608NI-Q2/8P(D) is a professional-grade NVR designed for IP camera surveillance systems. It is ideal for medium to large-scale installations, providing robust performance and high-resolution video recording. This device supports up to 8 channels with PoE capabilities, making it a perfect choice for users seeking reliable and efficient video surveillance solutions.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 8 channels |
| PoE Power Supply | 8-port PoE switch IEEE802.3af/at (max. 80 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xVGA simultaneous |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 4096x2160, 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 80 Mbps input / 80 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | 1CH@8MPx, 3CH@4MP, 6CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on up to 4 channels. |
| Alarms | Not available |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 32 |
| Internal Storage | 2 x 3.5" SATA HDDs up to 8 TB each (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 48 V / 2.5 A, ≤ 15 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 52 (H) x 385 (W) x 315 (D) mm / 2.6 Kg (without HDD) |
The DS-7608NI-Q2/8P(D) is ideally suited for a variety of surveillance applications, including retail stores, office buildings, and residential complexes. With its 8-channel capability and PoE support, installers can easily connect multiple IP cameras without the need for additional power sources. This device allows for remote monitoring through a web interface or mobile app, enabling users to access live feeds and recorded footage from anywhere. The advanced motion detection feature enhances security by providing alerts based on human and vehicle classification, ensuring that users are notified of any suspicious activity. Additionally, the pentaplex functionality allows simultaneous live viewing, recording, playback, backup, and remote access, making it a versatile solution for comprehensive surveillance needs.
