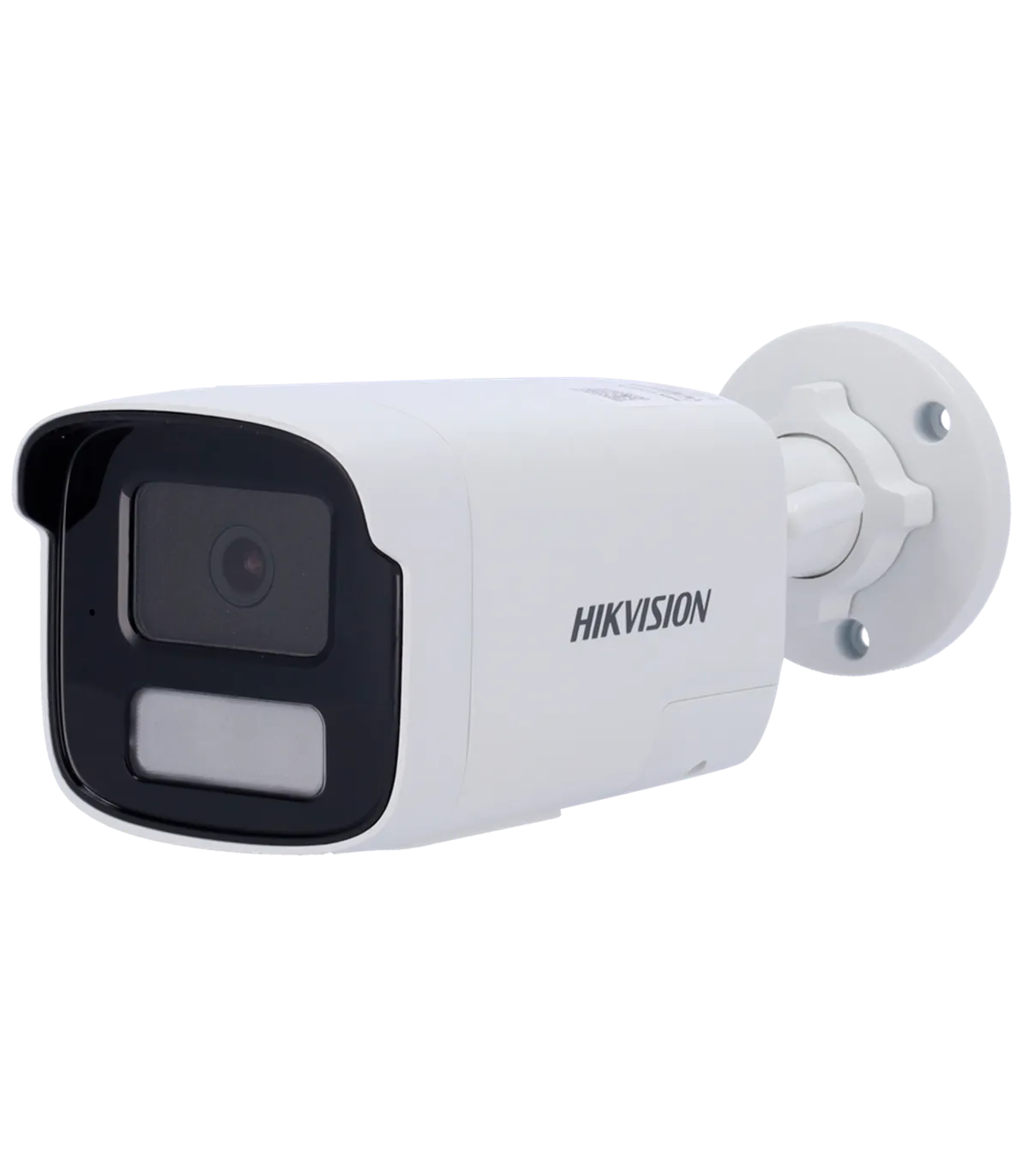

The DS-2CD1T83G2-LIUF/SL(4mm) is a high-performance IP bullet camera designed for outdoor surveillance. With its 8 Megapixel resolution, it delivers exceptional image quality, making it ideal for monitoring large areas such as parking lots, building perimeters, and public spaces. This camera features a hybrid light system that combines infrared and white light, ensuring clear visibility even in complete darkness. Its robust design and IP67 waterproof rating make it suitable for various environmental conditions, providing reliable security solutions.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 12.5 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 12.5 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 4 mm |
| Field of View (FOV) | H: 90°, V: 49°, D: 108° |
| DORI | 102 m (D), 40 m (O), 20 m (R), 10 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR range 50 m |
| Supplementary Lighting | Hybrid Light: IR range 50 m White light range 50 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Deterrent Alarm | Integrated Siren and Strobe Light in the camera |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | 1 RJ45 Ethernet 10 M/100 M self-adaptive |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (profiles S, T, and G), ISAPI, SDK |
| Power Supply | DC 12 V / 750 mA / 9 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 80.7 mm (H) x 83.7 mm (W) x 221.1 mm (D) |
| Weight | 669 g |
The DS-2CD1T83G2-LIUF/SL(4mm) is perfect for a variety of surveillance applications, particularly in commercial settings. For instance, a retail store can deploy this camera at entry points to enhance security monitoring and deter potential theft. With its high-resolution imaging and motion detection capabilities, store owners can receive alerts when suspicious activity is detected. The integrated audio features allow for two-way communication, enabling staff to interact with customers or address security concerns in real-time. Additionally, the camera's remote access capabilities through mobile apps and web browsers provide flexibility for monitoring from anywhere. Its robust design ensures reliable performance in various weather conditions, making it an ideal choice for outdoor installations. Overall, the DS-2CD1T83G2-LIUF/SL(4mm) offers a comprehensive solution for enhancing security and operational efficiency.
