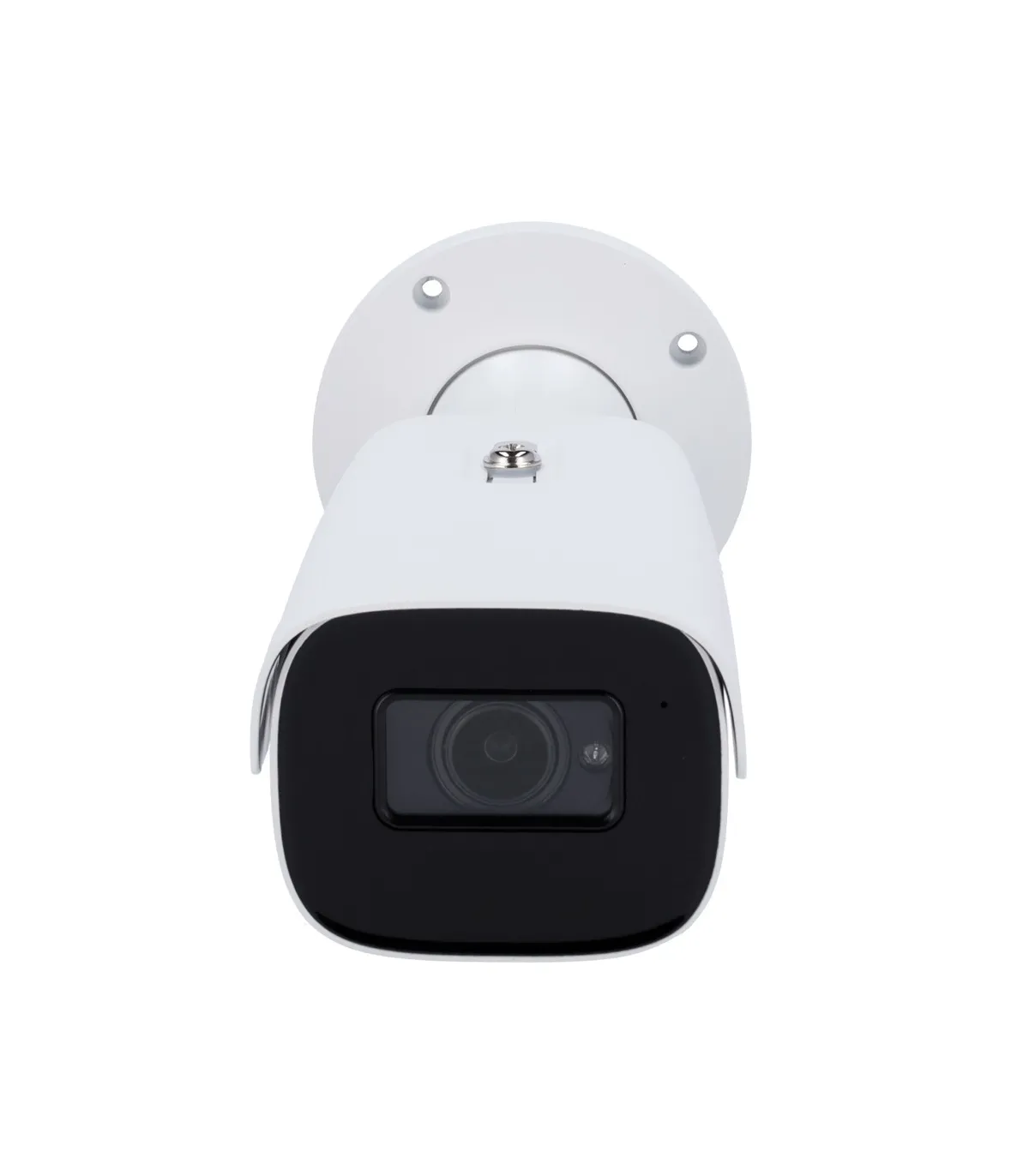

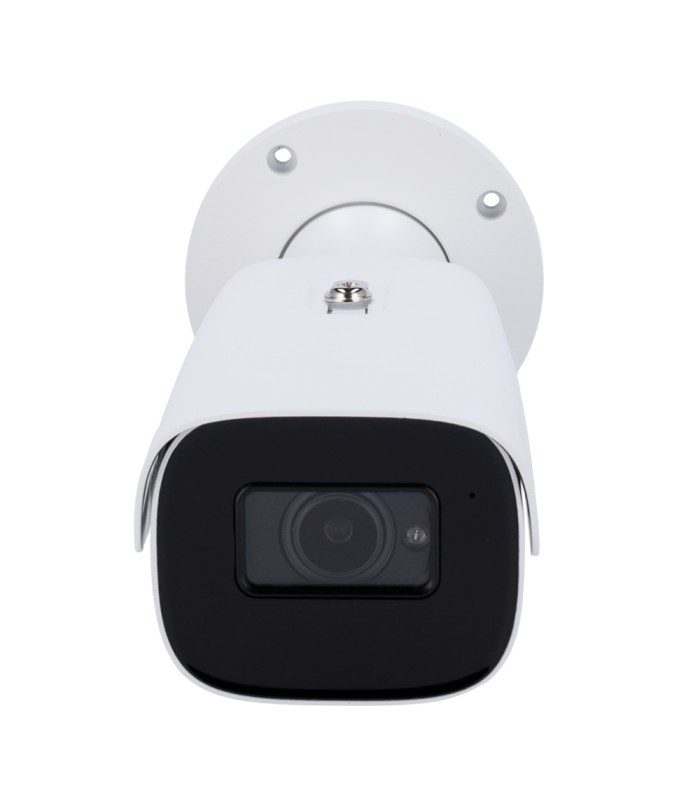

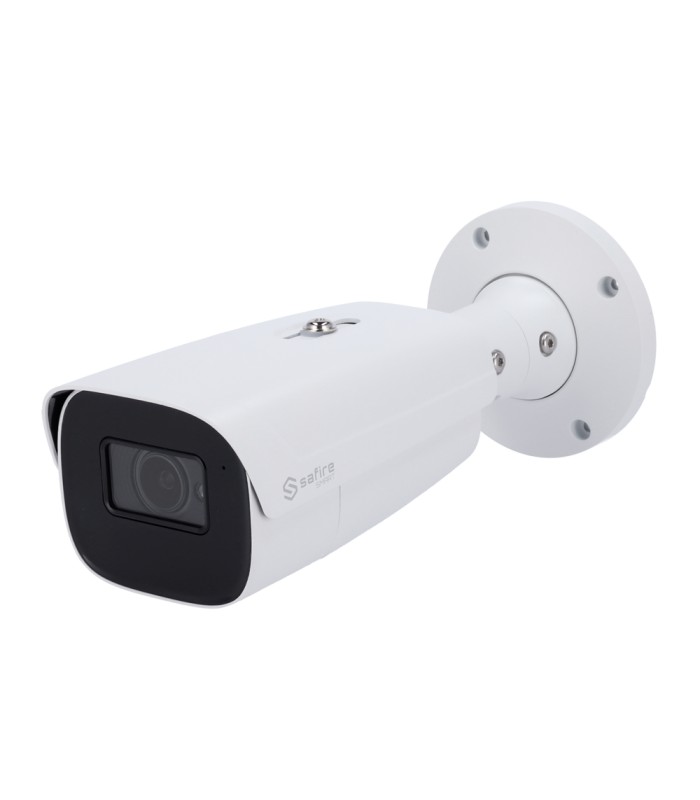

IP Bullet Camera range I1 AI Advanced SF-IPB585ZA-4I1
Brand: SAFIRE SMART
- Safire Smart
- Advanced I1 AI range IP Bullet Camera
- Resolution 4 Megapixel (2592x1520)
- 2.8-12 mm Motorized Lens | Audio | IR 70m
- Advanced AI: Perimeter, Facial, Counting, Metadata
- IP67 waterproofing | PoE (IEEE802.3af) |Alarm
Advanced I1 AI range IP Bullet Camera SF-IPB585ZA-4I1
- Safire Smart
- I1 range with Advanced Artificial Intelligence
- IP Bullet Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2592x1520)
- Motorized lens 2.8-12 mm
- 0 Lux
- IR range 70 m
- Compression H.265+ / H.264+
- WDR 120dB
- 3DNR
- Audio
- Alarms
- Advanced Artificial Intelligence: human, vehicle and non-motorized vehicle detection
- Capture Facial
- Video metadata
- Human, vehicle and non-motorized vehicle counting
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- IP67 waterproof
Technical specifications
| Brand | Safire Smart |
| Range | I1 |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2592x1520) |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 70 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 25 FPS (4Mpx, 2K, 3Mpx, 1080P, 720P) HFR Mode: 60 FPS (1080P / 720P) |
| Extra Rate Stream | 25 FPS (720P, D1, CIF, 480x240) |
| Third Stream Rate | 25 FPS (D1, 480x240, CIF) |
| Optics | Motorized 2.8 ~ 12 mm |
| Angle of view (FOV) | H: 100-28.9°, V: 54.4-16.7°, D: 104.8-33.1° |
| DORI | W: 59 m (D), 24 m (W), 12 m (R), 6 m (I) T: 206 m (D), 82 m (W), 41 m (R), 21 m (I) |
| Image Enhancements | WDR 120dB, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion Detection | Yes |
| Smart Functions | Advanced artificial intelligence based on classification of human, vehicle and non-motorized vehicle on: Area intrusion, Line crossing, entry region, exit region Facial detection and capture face Counting of people, vehicles and non-motorized vehicles Feature extraction: - Human: up to 13 features - Vehicle: up to 5 features - Non-motorized vehicle: Up to 1 features Other smart events: object abandoned, object removed |
| Exceptions | Scene switching, blur detection and abnormal color detection |
| Audio | 1 Input |
| Compression audio | G711A / U |
| Alarms | 1 Input / 1 Relay |
| Network interface | Ethernet 10 / 100M BaseT |

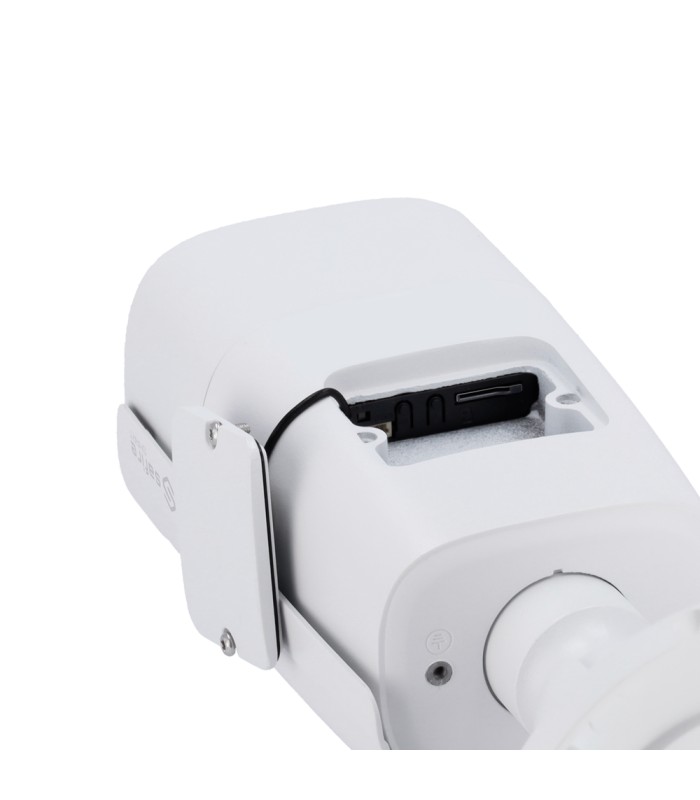

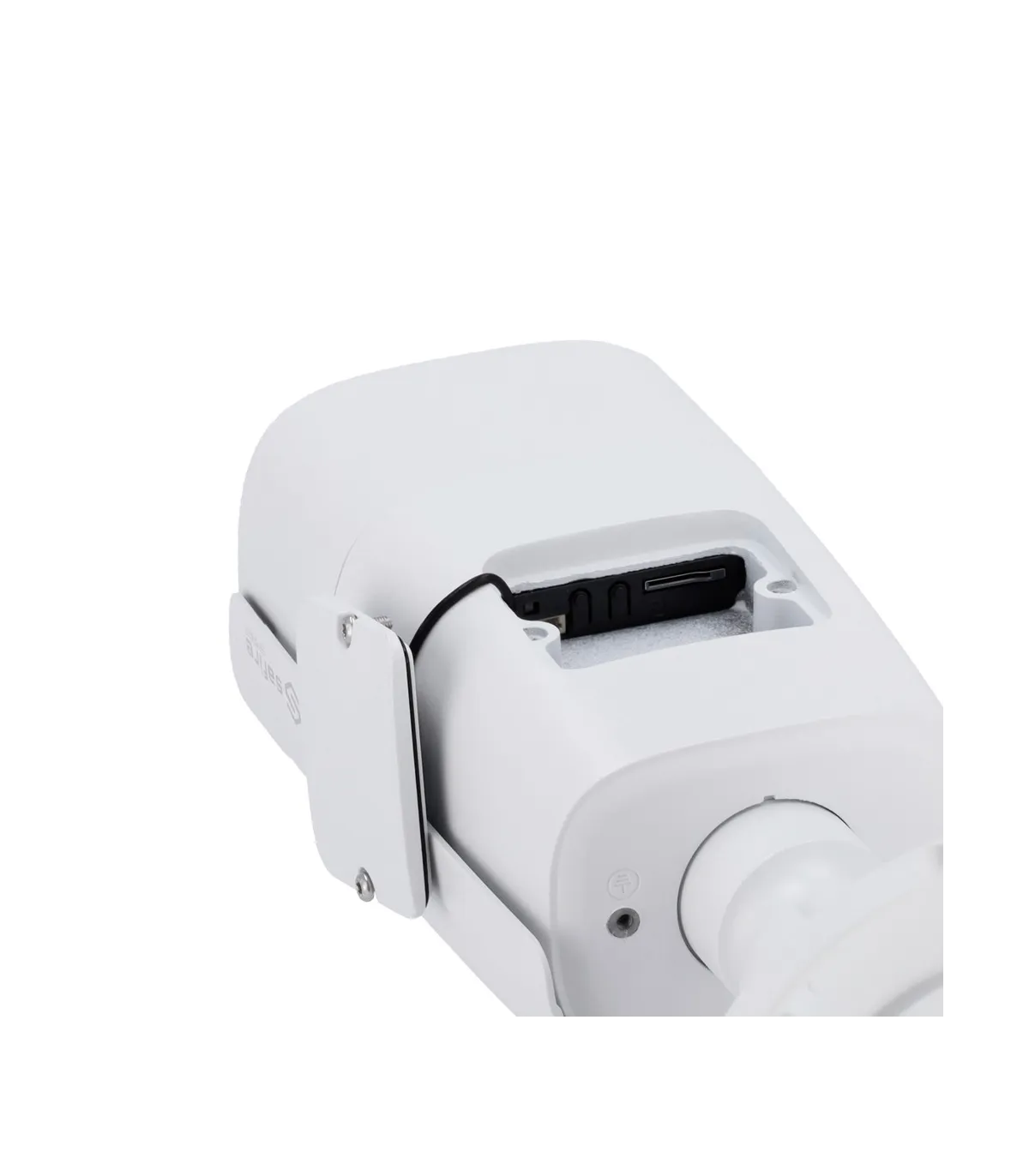

| Internal storage | microSD card up to 256GB |
| Remote access | Web Browser, Safire Smart Smartphone App, Software PC Safire Smart VMS |
| Interoperability | ONVIF |
| Power | DC 12 V / mA / 9 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 88.7 (H) x 100.2 (W) x 278.3 (D) mm |
| Weight | 1000 g |
Contents
- Safire Smart I1 IP Bullet Camera
- Installation material
- Quick installation guide
