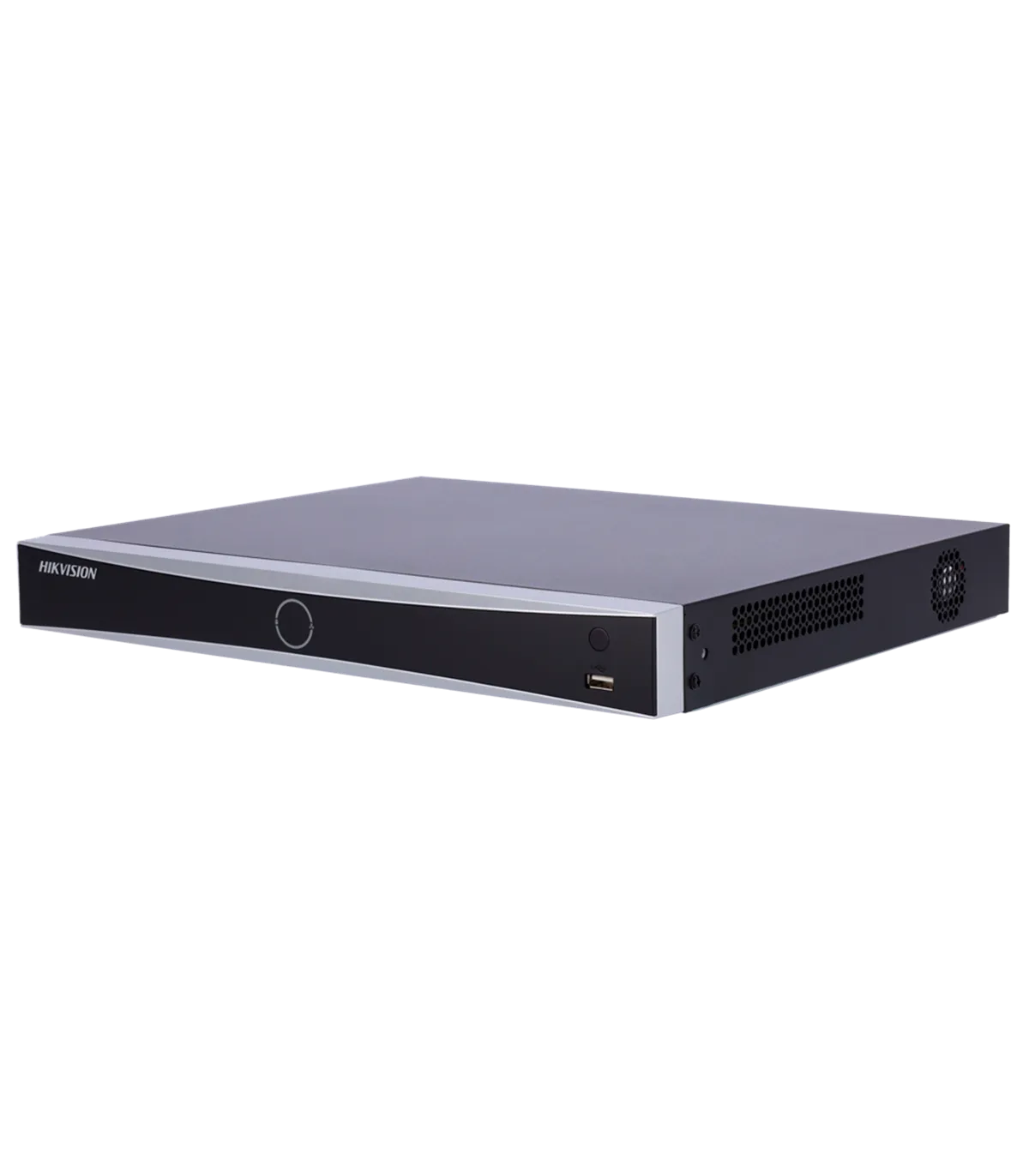

The DS-7616NXI-I2/16P/S(E) is a high-performance NVR designed for IP camera systems, ideal for medium to large-scale surveillance applications. With support for up to 16 channels and advanced features such as facial recognition and ANPR (Automatic Number Plate Recognition), this device is perfect for enhancing security in commercial and industrial environments. Its robust capabilities, including H.265+ compression and dual-stream access, ensure efficient video management and storage.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 16 channels |
| PoE Power | 16-port PoE switch IEEE802.3af/at (max. 200 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Total Bandwidth | 160 Mbps input / 256 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | With AI by NVR enabled: 20CH@1080p With AI by NVR disabled: 32CH@1080p |
| Audio | 1 input / 1 output |
| Two-way Audio | 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection Available on all channels. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available on up to 4 channels with 2 MP per channel With AcuSense cameras, available on all channels. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Facial Recognition | Face Capture on 4 CH with a maximum resolution of 8 MP (Valid for cameras with HIKVISION or ONVIF protocol). Face comparison on up to 8 CH. Storage of 16 Libraries with up to 50,000 faces. Comparison by match level (Successful / Failed) or by Stranger. Search by: Comparison type, Image stored in your Library, or Name. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| ANPR | Available on all channels with license plate recognition cameras. Vehicle attributes: Make, color, type. License plate attributes: Number, color, type. |
| Alarms | 4 Inputs / 1 output |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 2 SATA 3.5" HDDs up to 14 TB each (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 3.0 rear / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | AC 100~240 V, ≤ 30 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 52 (H) x 385 (W) x 317 (D) mm / 2.5 Kg (without HDD) |
The DS-7616NXI-I2/16P/S(E) NVR is ideally suited for a variety of surveillance applications, such as retail stores, office buildings, and industrial sites. In a retail environment, for instance, the NVR can be deployed to monitor customer activity and enhance security. With its remote monitoring capabilities, store managers can access live feeds and recorded footage from anywhere using the Hik-Connect app. The dual-stream access feature allows for efficient bandwidth management, ensuring smooth video playback even in high-traffic areas. Additionally, the facial recognition technology can help identify known shoplifters, while the ANPR functionality can track vehicle movements in parking lots. Overall, the DS-7616NXI-I2/16P/S(E) provides a comprehensive solution for enhancing security and operational efficiency in various settings.
