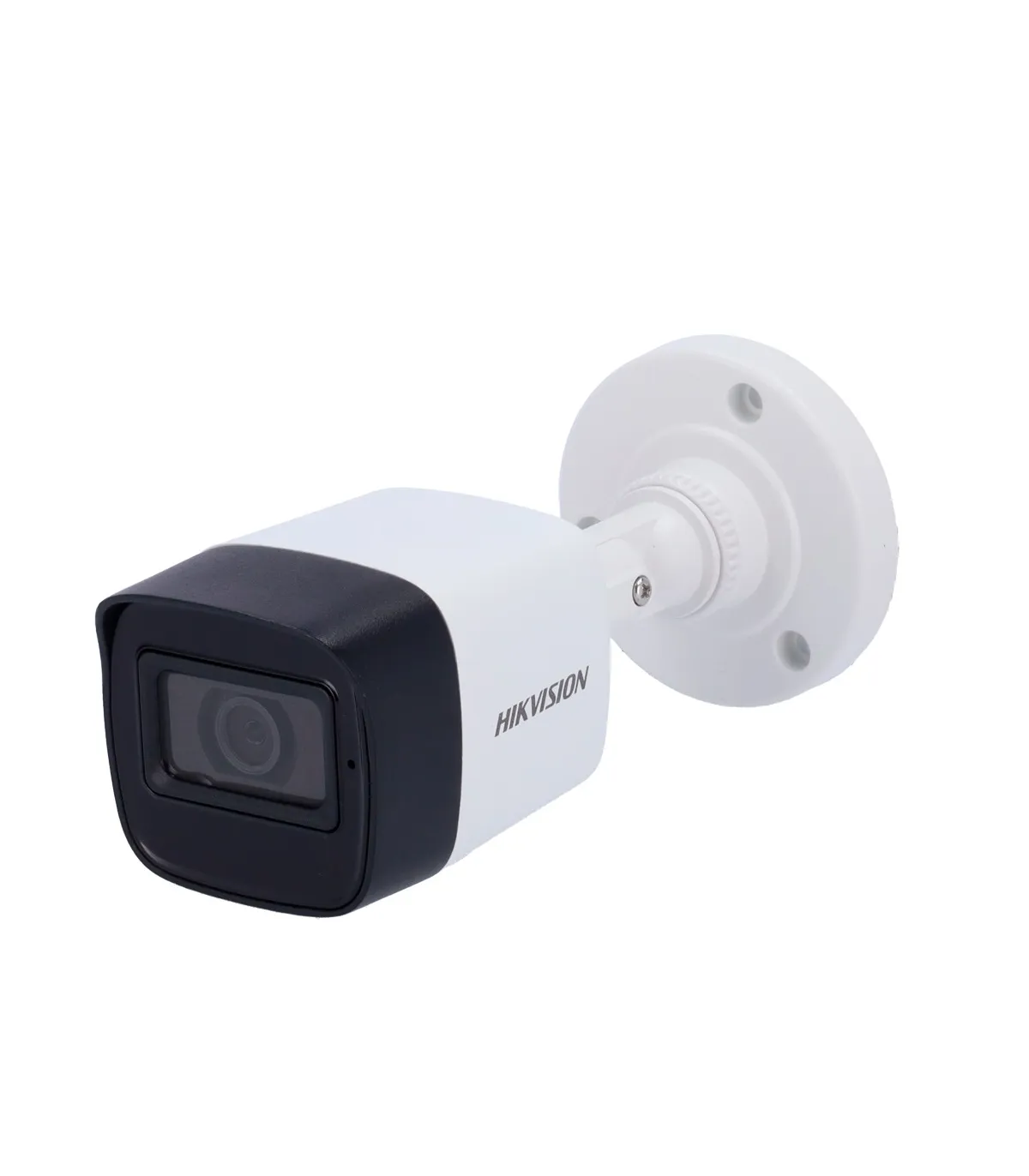

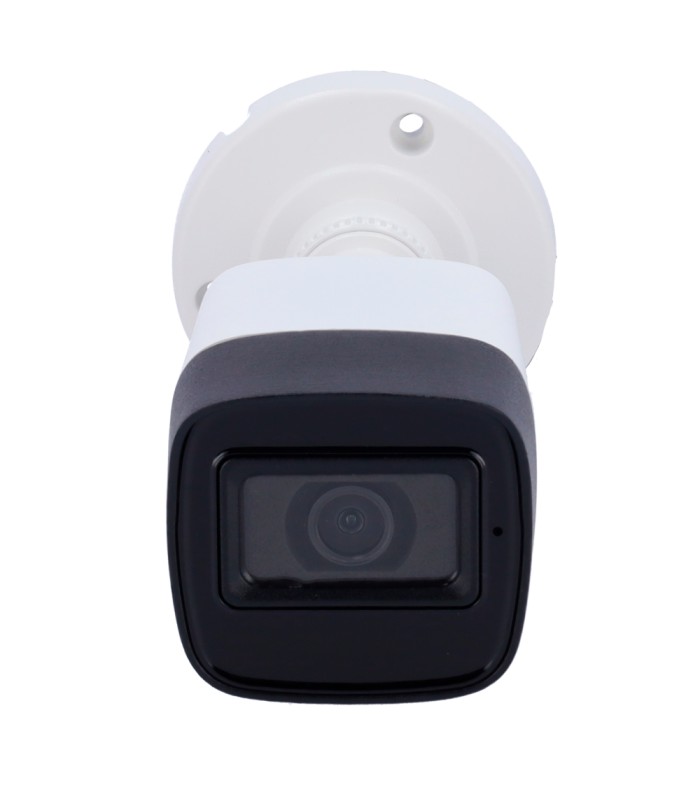

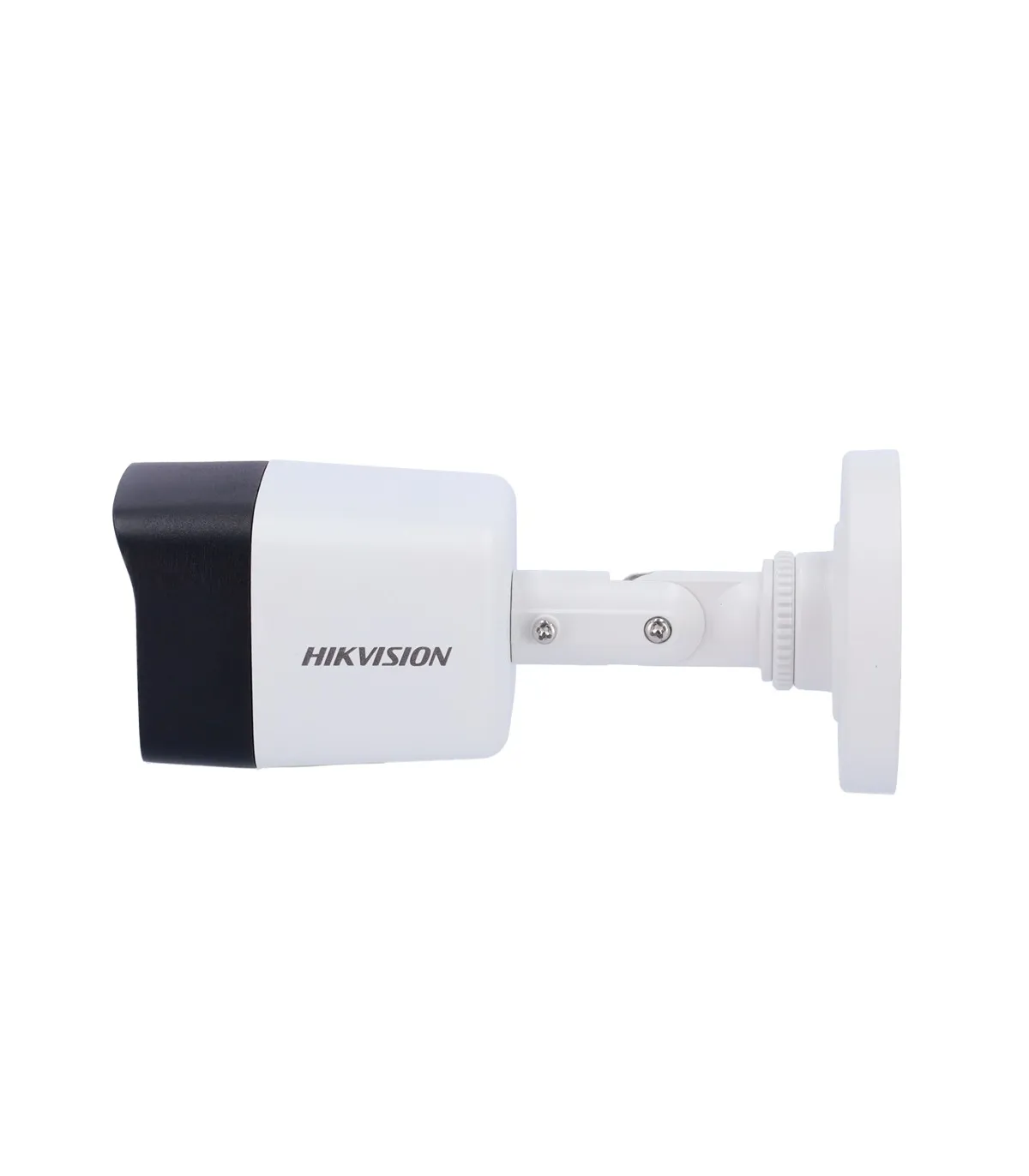

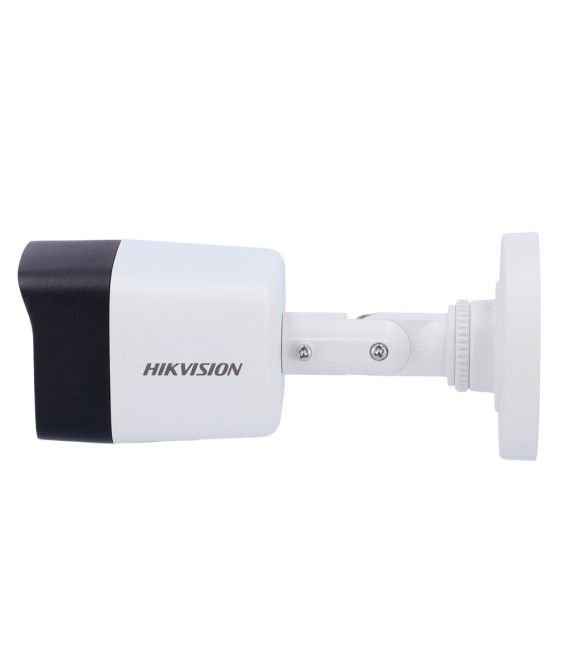

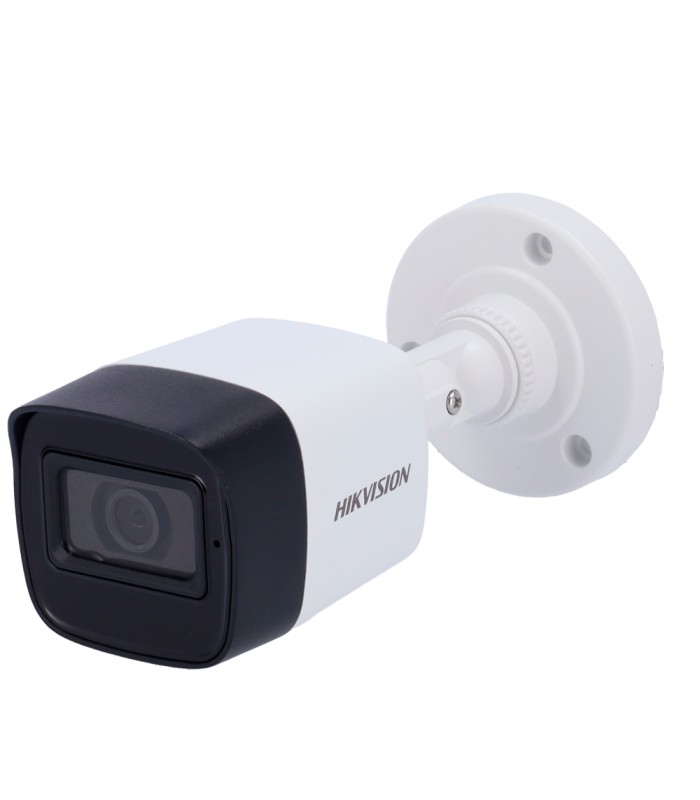

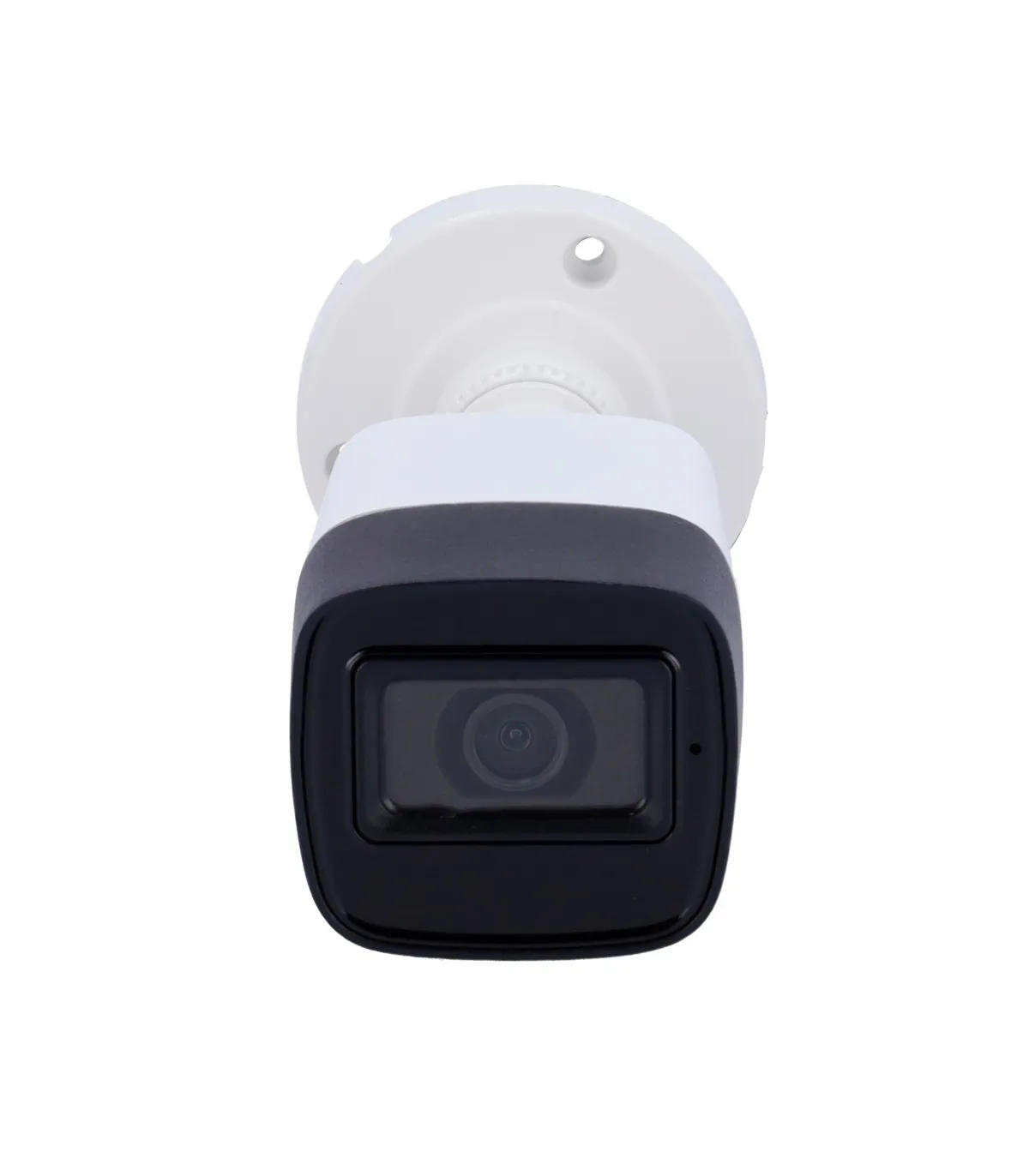

| Brand | Hikvision |
| Range | CORE |
| Image Sensor | High Performance CMOS |
| Maximum resolution | 5Mpx (2560x1944) at 20fps |
| Resolution | TVI: 5Mpx (20fps), 4Mpx (25~30 fps), 1080p (25~30 fps) AHD: 5Mpx (20fps), 4Mpx (25~30 fps), 1080p (25~30 fps) CVI: 4Mpx (25~30 fps), 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.4 mm |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / (Smart EXIR IR range 20 m) |
| Day / Night | Auto / Color / Black and White (ICR) |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| OSD functions configurable | DWDR, BLC, 2DNR, AGC, AWB, AE, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Audio | Not available |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 4.3 W max |
| Protection grade | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 58.9 mm (H) × 61 mm (W) × 163 mm (D) |

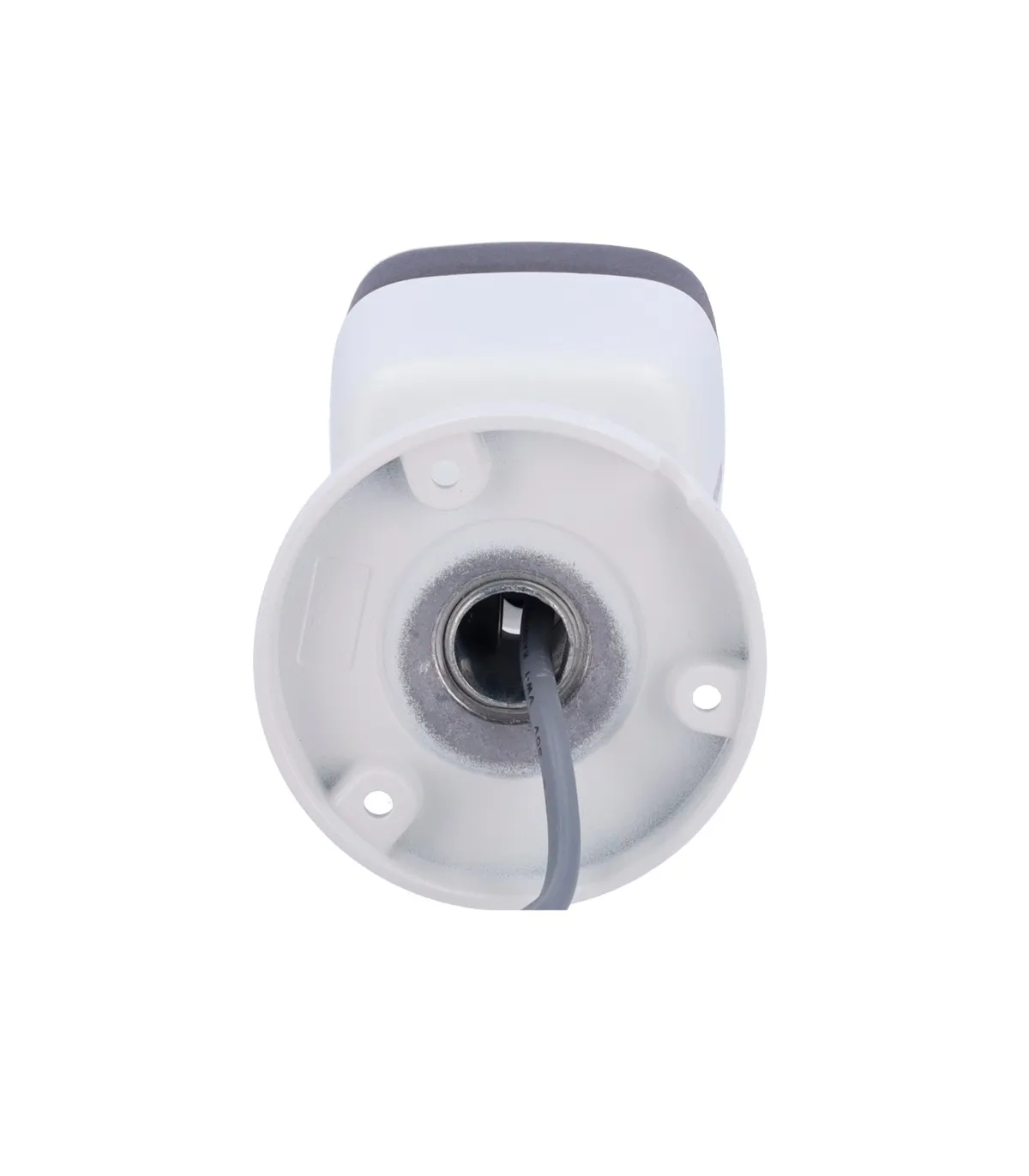

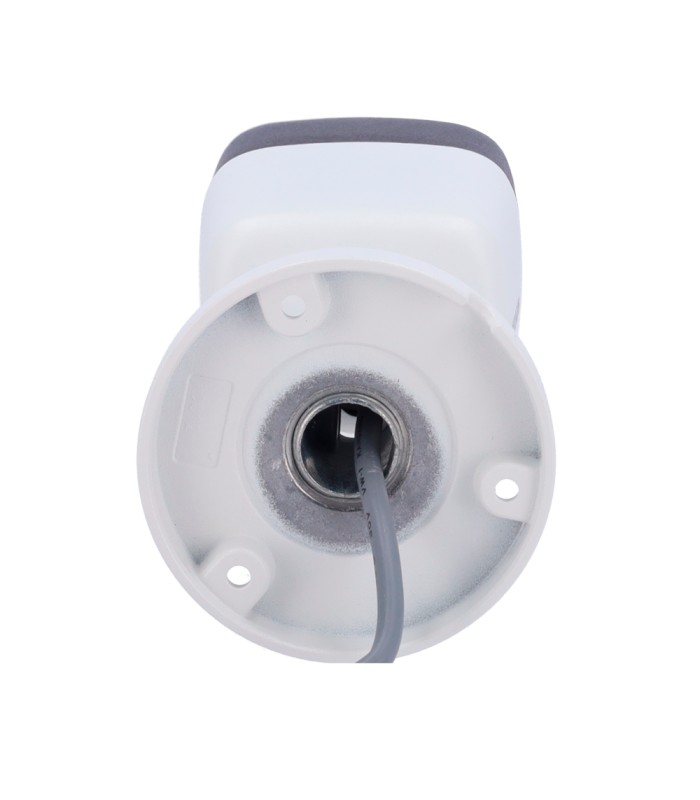

| Base diameter | base Ø 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 350 g |
Data sheet
