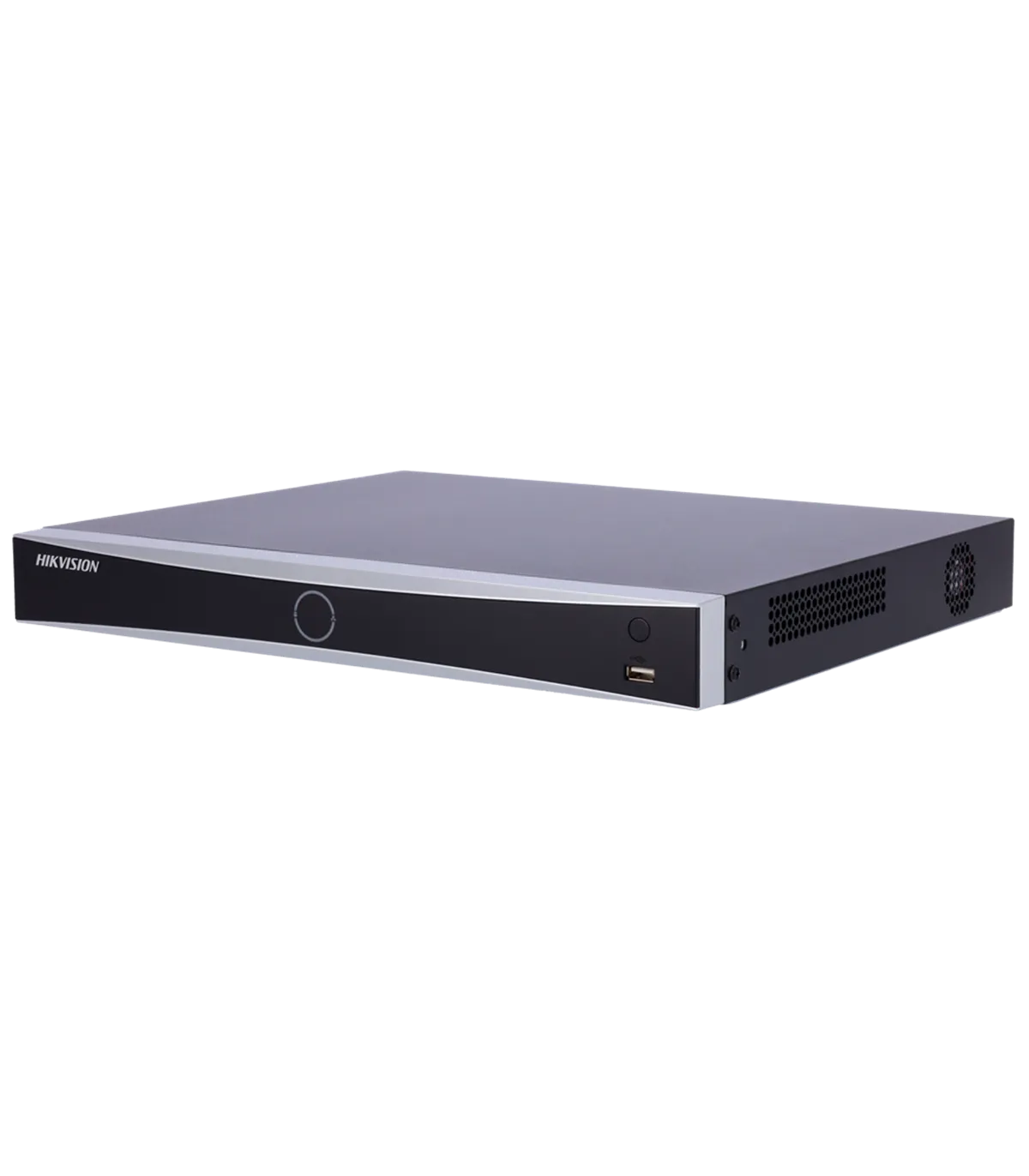

The DS-7616NXI-K2(D) is a high-performance NVR designed for IP camera surveillance systems, making it ideal for both residential and commercial applications. With support for up to 16 channels and a maximum resolution of 12 MP, this device ensures high-quality video recording and playback. Its advanced features, including motion detection and AcuSense technology, enhance security by minimizing false alarms and providing accurate alerts. The device is compatible with ONVIF, allowing seamless integration with various security cameras.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 16 channels |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA input / 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 160 Mbps input / 160 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | With AI enabled: 2CH@12MPx, 3CH@8MP, 6CH@4MP, 12CH@1080p With AI disabled: 2CH@12MPx, 4CH@8MP, 8CH@4MP, 16CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection For the NVR: Available on all channels up to 4 MP. With cameras with motion detection 2.0: Available on all channels. |
| AcuSense | Rule-based VCA perimeter protection with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 2 channels of 4 MP. With AcuSense cameras: Available on all channels. |
| Facial Recognition | Face comparison, face capture, face search. Storage in up to 16 libraries with up to 20,000 faces in total (each image ≤ 4 MB, total capacity ≤ 1 GB). Facial detection and analysis tools on up to 1CH with 8 MP. Face comparison on up to 4 CH. |
| Alarms | 4 Inputs / 1 Output |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 128 |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Internal Storage | 2 SATA 3.5" HDDs of up to 16 TB each (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 12 V / 3.33 A, ≤ 15 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 52 (H) x 385 (W) x 315 (D) mm / 1 Kg (without HDD) |
The DS-7616NXI-K2(D) NVR is ideally suited for a variety of surveillance applications, including retail stores, office buildings, and residential complexes. In a retail environment, for instance, the device can be deployed to monitor customer activity and enhance security. With its remote monitoring capabilities, store managers can access live feeds and recorded footage from anywhere using the Hik-Connect app. The dual stream IP access feature allows for efficient bandwidth management, ensuring that high-resolution video is available without compromising network performance. Additionally, the motion detection 2.0 technology significantly reduces false alarms, providing peace of mind for users. The facial recognition feature can be utilized for identifying known customers or potential threats, enhancing overall security. This NVR's ability to support up to 16 channels makes it a versatile choice for comprehensive surveillance needs.
