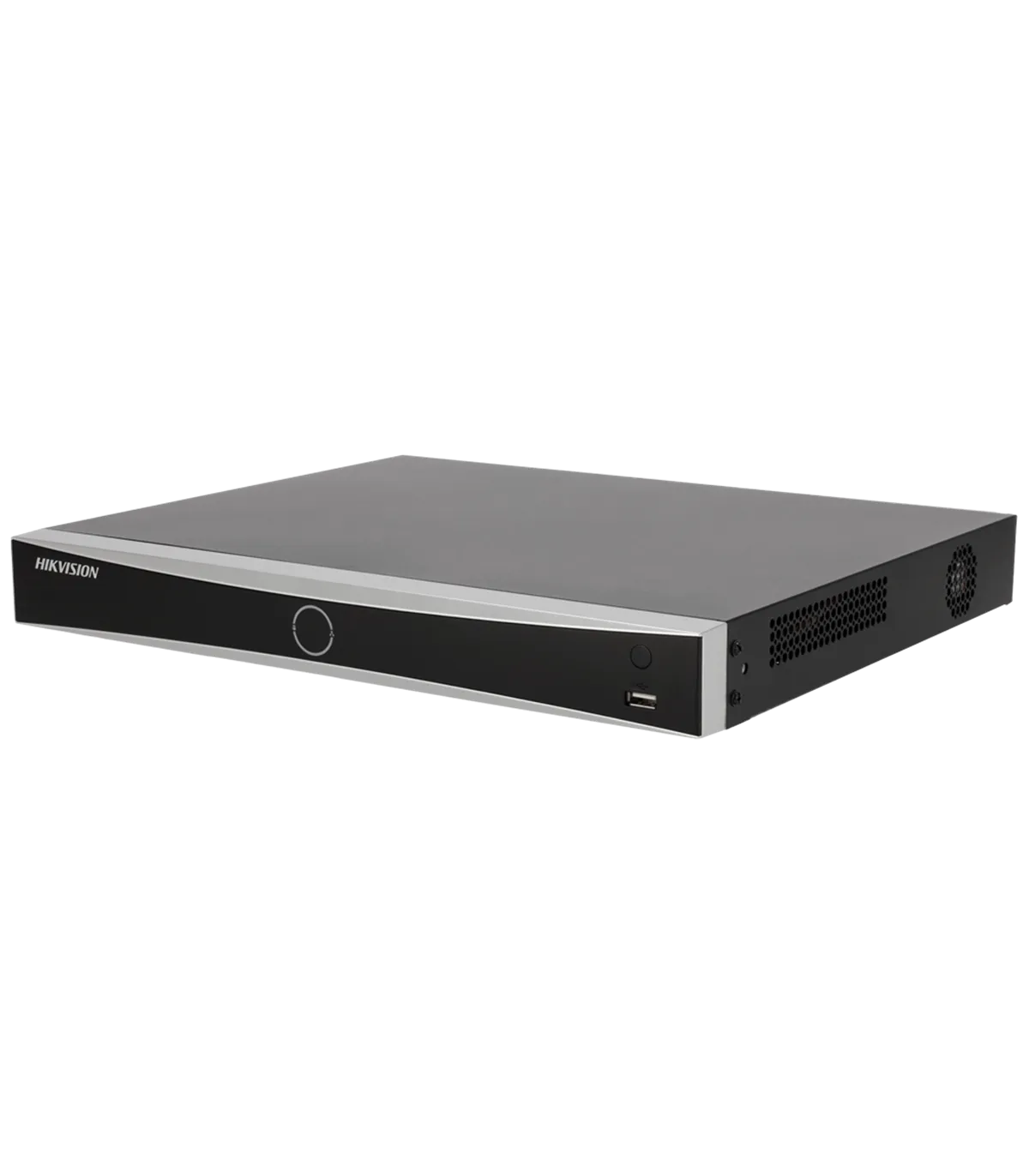

The DS-7608NXI-I2/8P/S(E) is a sophisticated NVR designed for IP camera systems, ideal for both residential and commercial security applications. With its advanced features, it supports up to 8 channels with PoE capabilities, making it a perfect fit for installations requiring efficient power management and high-resolution video recording. This device is equipped with cutting-edge technologies such as facial recognition and motion detection, ensuring enhanced security and monitoring capabilities.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 8 channels |
| PoE Power Supply | 8-port PoE switch IEEE802.3af/at (max. 150 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Total Bandwidth | 80 Mbps input / 256 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | With AI enabled on NVR: 20CH@1080p With AI disabled on NVR: 32CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Intelligent Functions | The NVR can apply these intelligent functions: Facial recognition, AcuSense, Motion detection 2.0 The NVR can accept cameras that utilize these intelligent functions: Facial recognition, AcuSense, Motion detection 2.0, Video structuring, Object launch from buildings, ANPR, People counting, VCA. Only one intelligent function can be enabled at a time. |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection By NVR: Available on all channels with Hikvision cameras By camera: Available on all channels |
| Facial Recognition | Facial detection and analysis functions on up to 4 CH with a maximum resolution of 8 Mpx. Storage of 16 Libraries with up to 50,000 faces Analysis capability: Image comparison, face capture, image search by face. |
| AcuSense (Perimeter Protection) | Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line crossing, Area intrusion, Area entry, and Area exit. By NVR: Available on up to 4 channels with 2Mpx per channel By camera: Available on all channels |
| ANPR | By camera: Available on all channels. License plate attributes: Number, Color, Type Vehicle attributes: Brand, Color, Type |
| POS | Yes |
| Alarms | 4 Inputs / 1 Output |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 2 SATA 3.5" HDDs up to 14 TB each (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 3.0 rear / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | AC 100~240 V, ≤ 30 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 52 (H) x 385 (W) x 317 (D) mm / 2.5 Kg (without HDD) |
The DS-7608NXI-I2/8P/S(E) NVR is ideally suited for a variety of security installations, from small businesses to large enterprises. For instance, a retail store can deploy this high-performance NVR to monitor multiple areas simultaneously, utilizing its 8-channel PoE capability to simplify wiring and reduce installation costs. With features like facial recognition and motion detection 2.0, store owners can enhance security by identifying potential threats and monitoring customer behavior. The device's remote access capabilities allow managers to view live feeds and recorded footage from anywhere, ensuring peace of mind. Additionally, the integration of AcuSense technology minimizes false alarms, making it a reliable choice for perimeter protection. Overall, the DS-7608NXI-I2/8P/S(E) offers a comprehensive solution for effective surveillance and security management.
