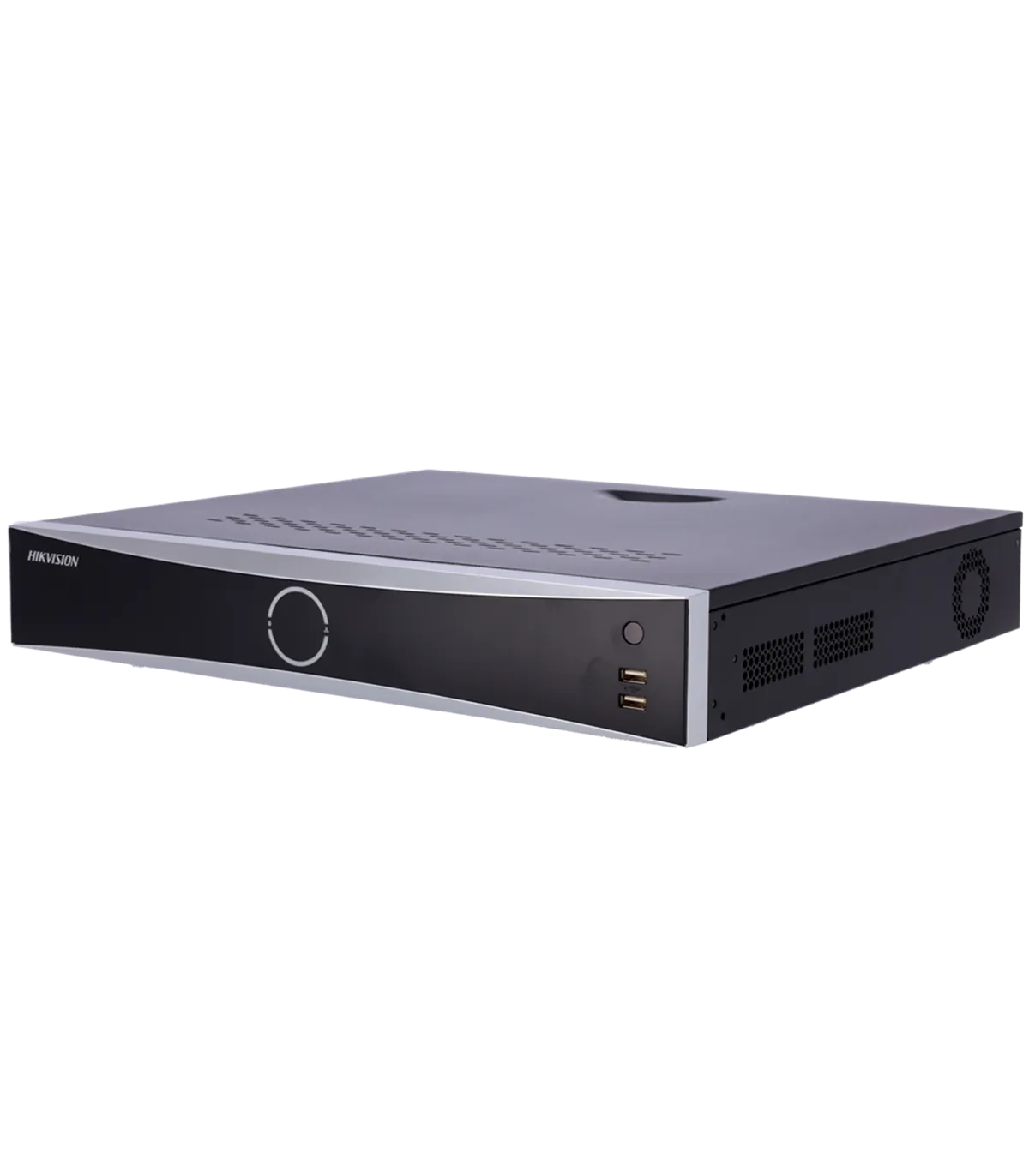

The DS-7716NXI-I4/S(E) is a high-performance NVR designed for IP camera systems, ideal for medium to large-scale surveillance installations. With support for up to 16 channels and a maximum resolution of 32 MP, this device is perfect for users seeking advanced video surveillance capabilities. Its robust features include H.265+ compression for efficient storage and bandwidth management, making it a top choice for those requiring reliable and high-quality security solutions.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 16 channels |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA input / 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xHDMI 1080p, 1xVGA (HDMI 4K and VGA simultaneous, HDMI 1080p and VGA independent) |
| Display Resolution | HDMI 4K: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 HDMI 1080p: 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Total Bandwidth | 160 Mbps input / 256 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | 16CH@1080p * When "Ultra HD resolution" mode is enabled, the NVR supports up to 1 channel at 32 MP for recording and previewing |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied to motion detection Available on all channels. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Facial Recognition | Face Capture on 1 CH with a maximum resolution of 8 MP (Valid for cameras with HIKVISION or ONVIF protocol) Up to 4CH with cameras with Face Capture up to 2 MP per channel (Cameras XX6G2/XX7G2) Storage of 16 Libraries with up to 10,000 faces Comparison by match level (Successful / Failed) or by Stranger Search by: Comparison type, Stored image in your Library, or Name * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available on up to 4 channels with 2MP per channel * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Alarms | 16 Inputs / 4 Outputs |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 4 SATA 3.5" HDDs of up to 10 TB each (not included) |
| Communication | 2 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100M (Ethernet) / 1 x RS-485 / 1 x RS-232 / 1 x e SATA |
| Power Supply | AC 100~240 V, ≤ 30 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 75 (H) x 445 (W) x 400 (D) mm / 5.6 Kg (without HDD) |
The DS-7716NXI-I4/S(E) NVR is ideally suited for a variety of surveillance applications, including retail stores, office buildings, and public spaces. For instance, in a retail environment, the device can be deployed to monitor customer traffic and enhance security. With its 16-channel capability, users can connect multiple IP cameras to cover all critical areas. The motion detection 2.0 feature allows for precise monitoring, reducing false alarms and ensuring that security personnel are alerted only when necessary. Additionally, the facial recognition functionality can help identify known individuals, enhancing overall security measures. The device's remote access capabilities enable managers to monitor live feeds from anywhere, providing peace of mind and ensuring that the premises are secure at all times. Overall, the DS-7716NXI-I4/S(E) is a powerful tool for any organization looking to implement a comprehensive video surveillance system.
