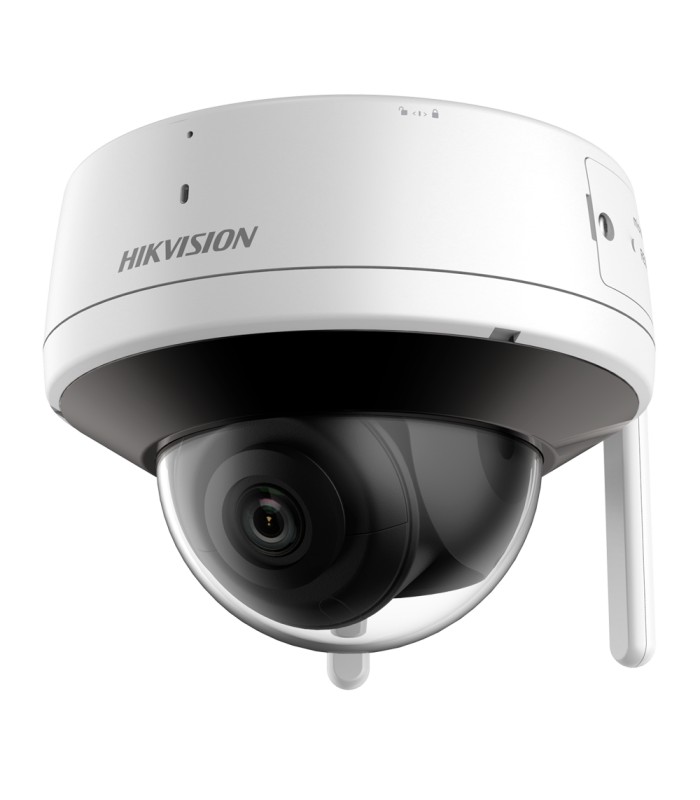

Hikvision IP Dome Camera DS-2CV2141G2-IDW(2.8mm)(E)
Brand: HIKVISION VALUE
- Hikvision IP Dome Camera
- Wi-Fi Range | microSD 512 GB
- 4 MP | 2.8 mm Lens | 2 antennas
- IR 30 m | WDR 120 dB
- H.265+| IP66 | Built-in Microphone and Speaker
- WEB, CMS Software, Smartphone, and NVR compatibility
Hikvision DS-2CV2141G2-IDW(2.8mm)(E) IP Dome Camera
- Hikvision
- Wi-Fi Range
- IP Dome Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- 2.8 mm lens
- 0 Lux
- EXIR IR range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Built-in microphone
- Built-in speaker
- WDR (120 dB)
- 3D-DNR
- MicroSD card slot up to 512 GB
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- Wi-Fi IEEE802.11b/g/n
- Waterproof IP66
Technical specifications
| Brand | HIKVISION | |
| Range | Wi-Fi | |
| Image Sensor | 1/2.7" Progressive Scan CMOS | |
| Maximum resolution | 4 Megapixel (2560x1440) | |
| Main Stream Rate | 20 fps /2560x1440), 25 fps (1920×1080, 1280×720) | |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) | |
| Compression | H.265+ / H.264+ / H.265 / H.264 | |
| Bitrate | 32 Kbps ~ 8 Mbps | |
| Optics | 2.8 mm | |
| Viewing angle (FOV) | H: 95°, V: 53°, D: 111° | |
| DORI | 63m (D), 25 m (W), 12 m (R), 6 m (L) | |
| Electronic Shutter | 1/3~1/100,000 s | |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with EXIR IR scope 30 m | |
| Day/night | Removable ICR mechanical filter | |
| Image enhancements | WDR (120 dB), BLC, 3D-DNR, Mirror | |
| ANR | Yes | |
| Motion Detection | Yes | |
| Internal storage | MicroSD card slot up to 512 GB | |
| Audio | Built-in microphone and speaker | |
| Network interface | Ethernet 10 / 100 BaseT Wi-Fi IEEE802.11 b/g/n | |
| WiFi frequency | 2.412 GHz ~ 2.472 GHz | |
| WiFi Modulation | 802.11n: OFDM 802.11b: CCK, QPSK, BPSK 802.11g: OFDM | |
| Access remote | With wired connection: Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software >Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 500 mA / 6 W max. | |
| Degree of protection | Waterproof IP66 | |
| Material | Cover: Polycarbonate Body: Polycarbonate | |
| Temp. operation | -30º C ~ +60º C | |
| Dimensions | Ø 126 mm × 96.1 mm (H) | |
| Dimensions of the base | Ø base 126 mm / Ø between screws 83.6 mm / 2 screws | |
| Weight | 590 g |
Contents
- IP Dome Camera Hikvision
- Installation material
- Instructions for use
