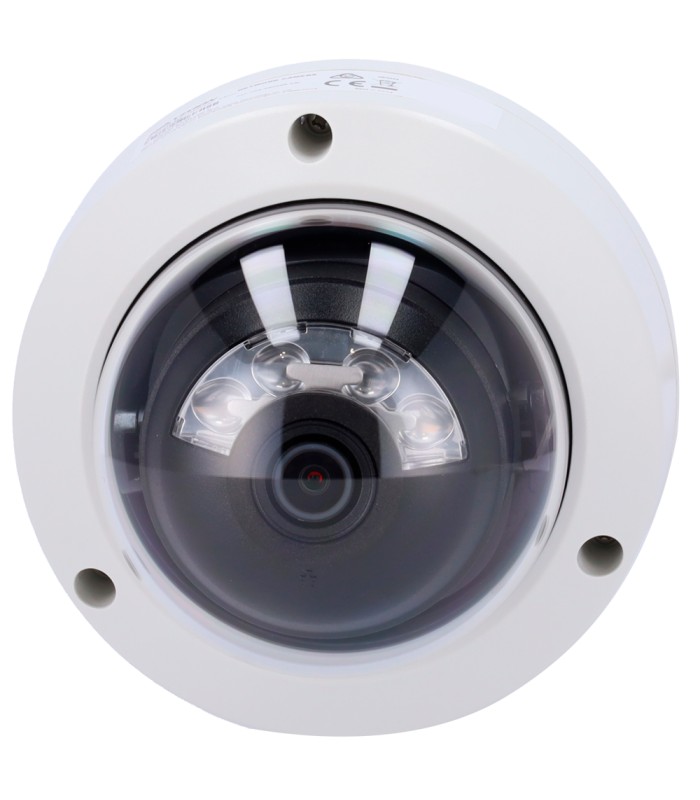

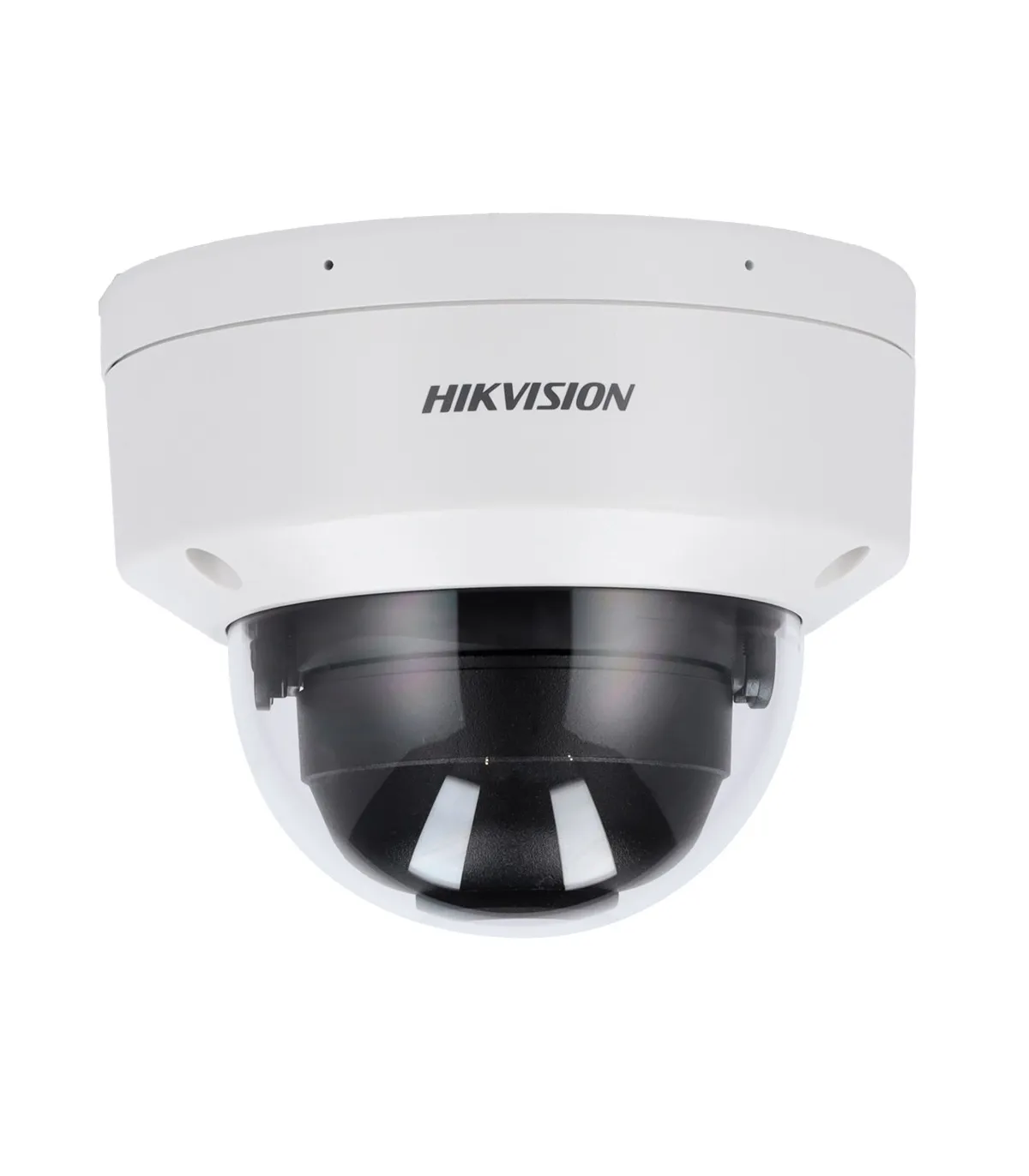

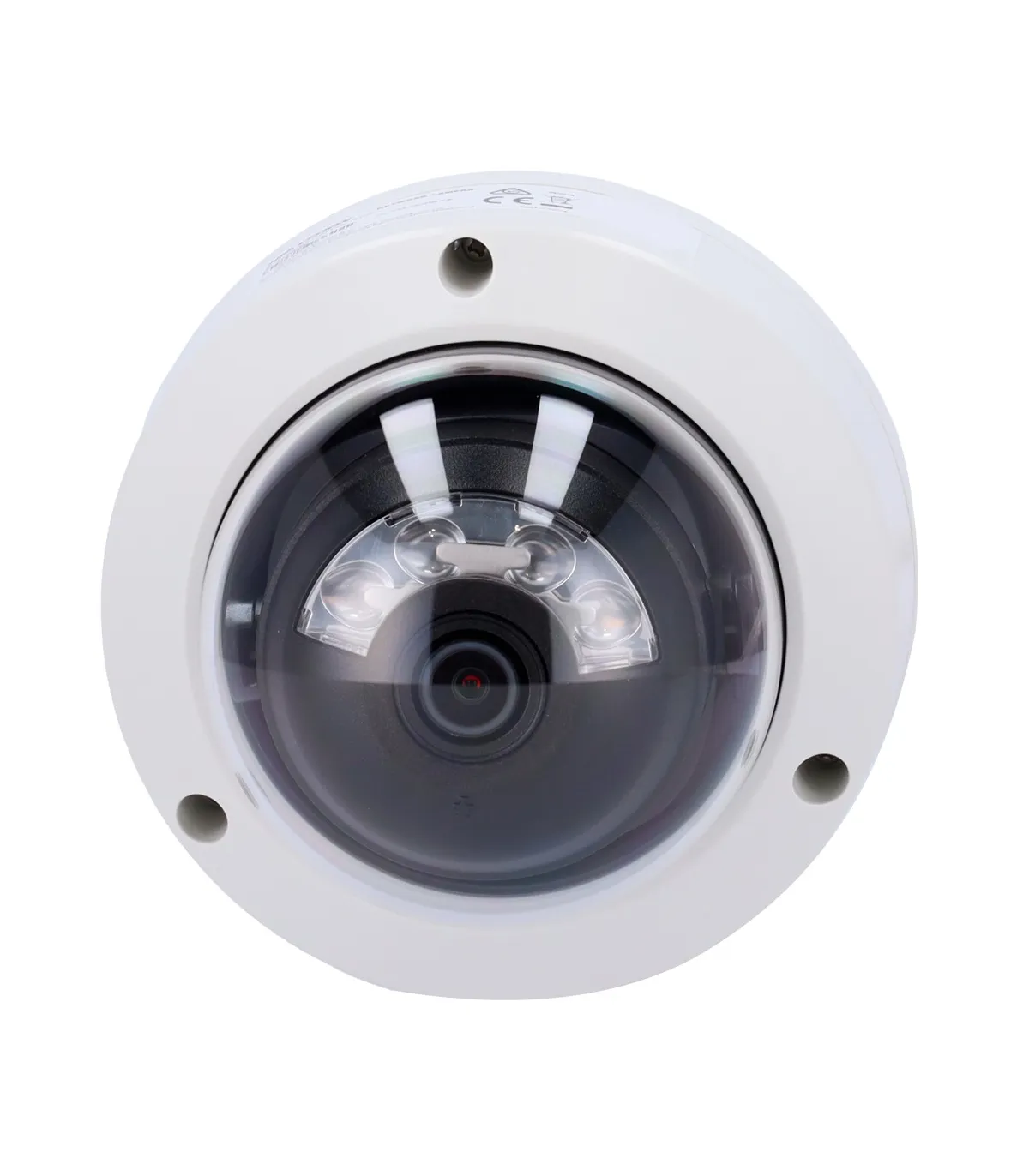

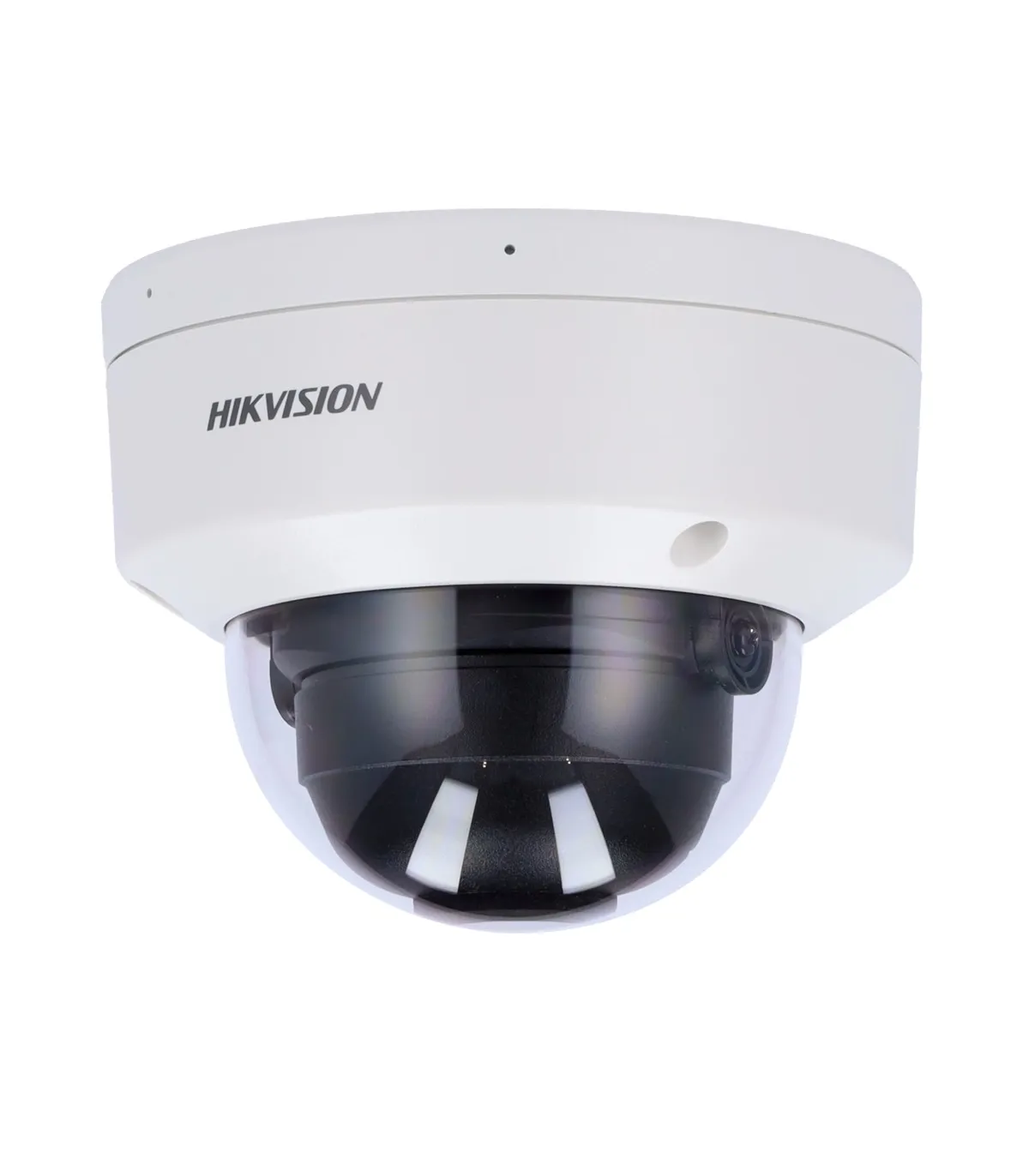

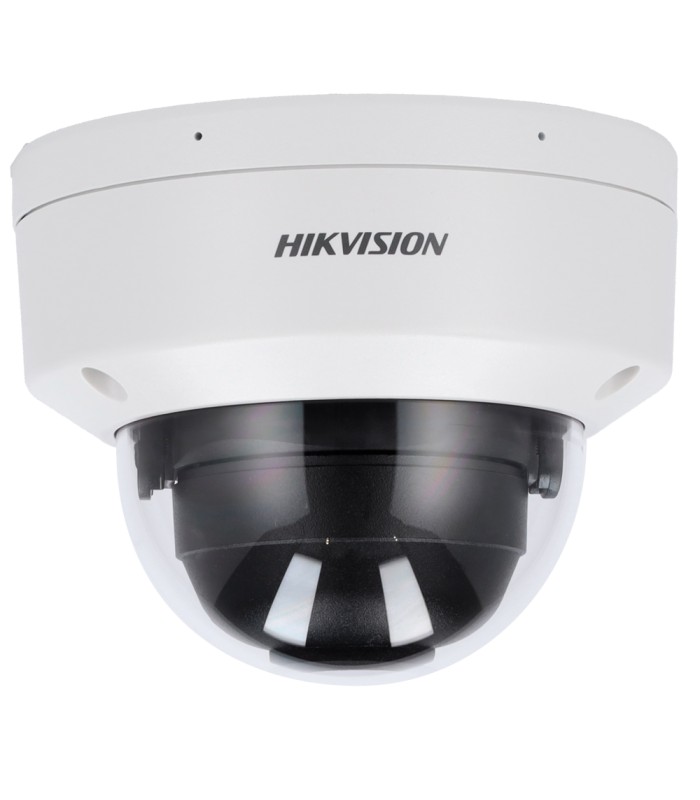

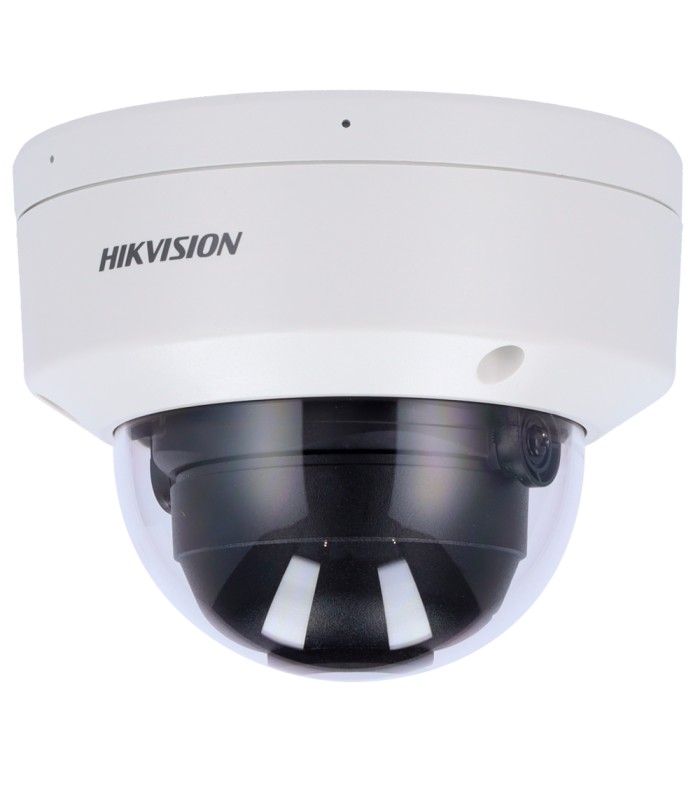

Hikvision IP Dome Camera DS-2CD1163G2-LIU(2.8mm)
Brand: HIKVISION VALUE
- Hikvision IP Dome Camera
- Value Range
- 4 MP | 2.8 mm Lens | Built-in Microphone
- IR 30 m | WDR 120 dB
- PoE | H.265+ | IP67 | IK08 | Motion Detection 2.0
- WEB, CMS Software, Smartphone, and NVR
Hikvision DS-2CD1163G2-LIU(2.8mm) IP Dome Camera
- Hikvision
- Value Range
- IP Dome Camera
- 1/2.4" Progressive Scan CMOS
- 6 Megapixel (3200x1800)
- Lens 2.8 mm
- 0 Lux
- Hybrid light: IR and White Light range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion detection 2.0
- WDR (120 dB)- 3D-DNR
- Integrated microphone
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
- Vandal-proof IK08
Technical specifications
| Brand | HIKVISION |
| Range | Value |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 20 fps (1280x720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Angle of view (FOV) | H: 105°, V: 55°, D: 127° |
| DORI | 76 m (D), 30 m (W), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary lighting | Hybrid light: IR range 30 m White light range 30 m |
| Day/night | Mechanical ICR filter removable |
| Image enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Detection of movement | Motion Detection 2.0 with classification of humans and vehicles applied in motion detection. |
| Internal storage | Not available |
| Audio | Built-in microphone |
| Audio type | Mono |
| Audio compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bit rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |

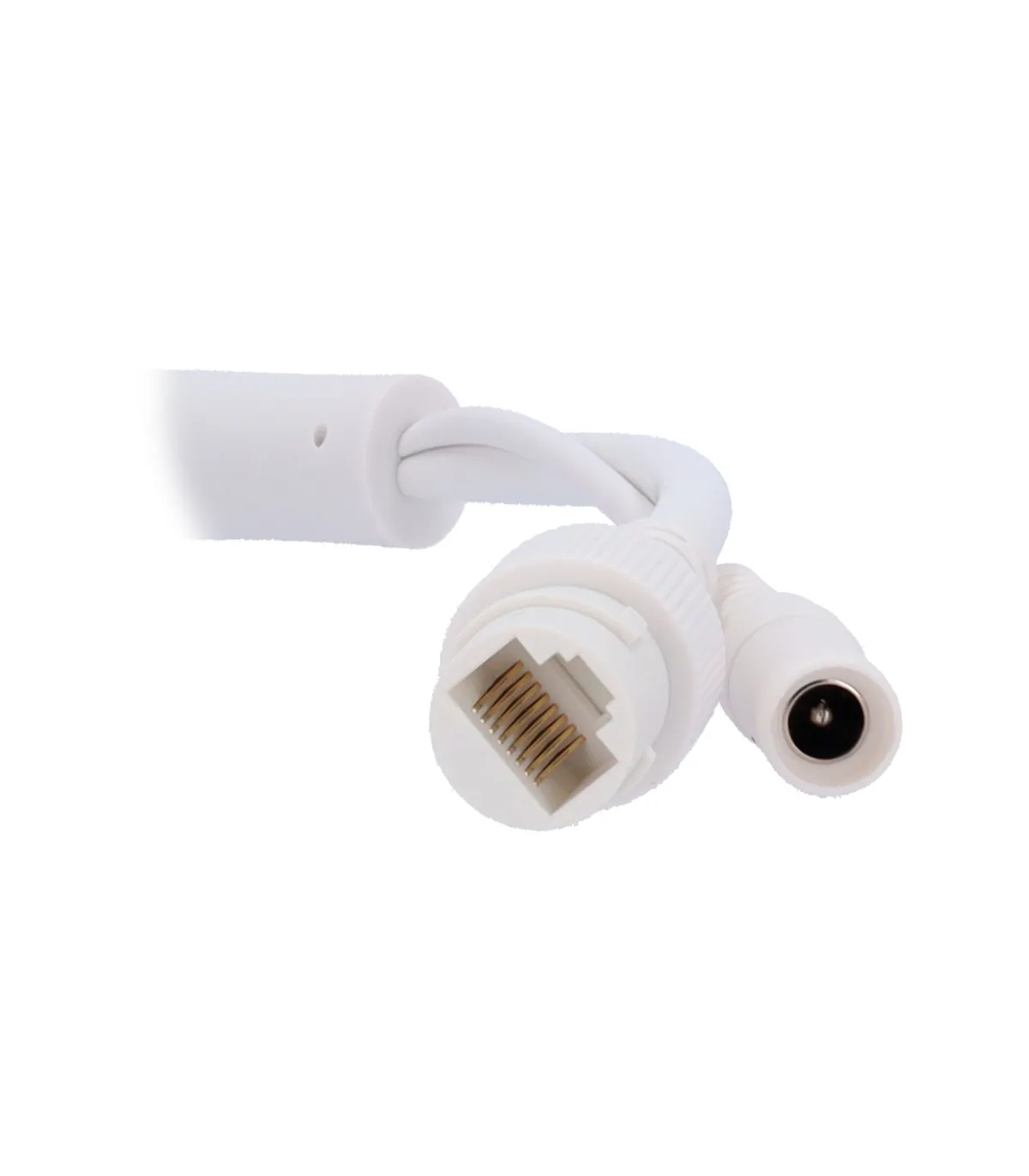

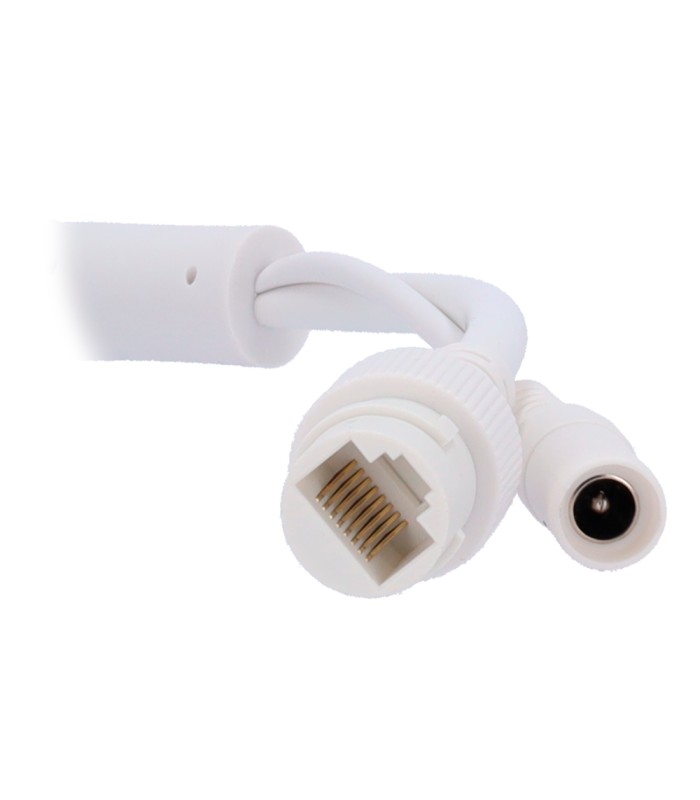

| Network interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 500 mA / 6 W max. / PoE IEEE802.3af |
| Protection degree | Waterproof IP67, vandal-resistant IK08 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 121.5 x 97.6 mm (H) |

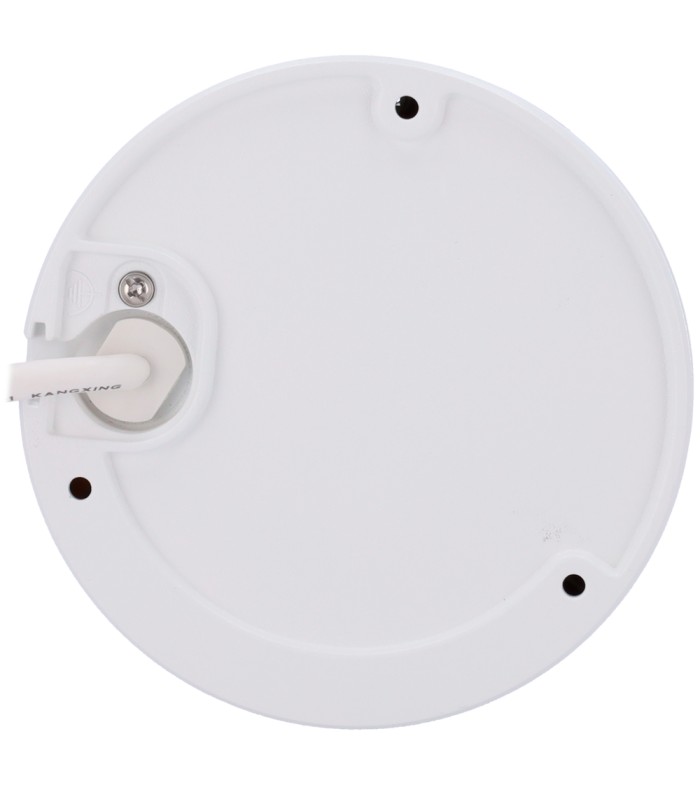

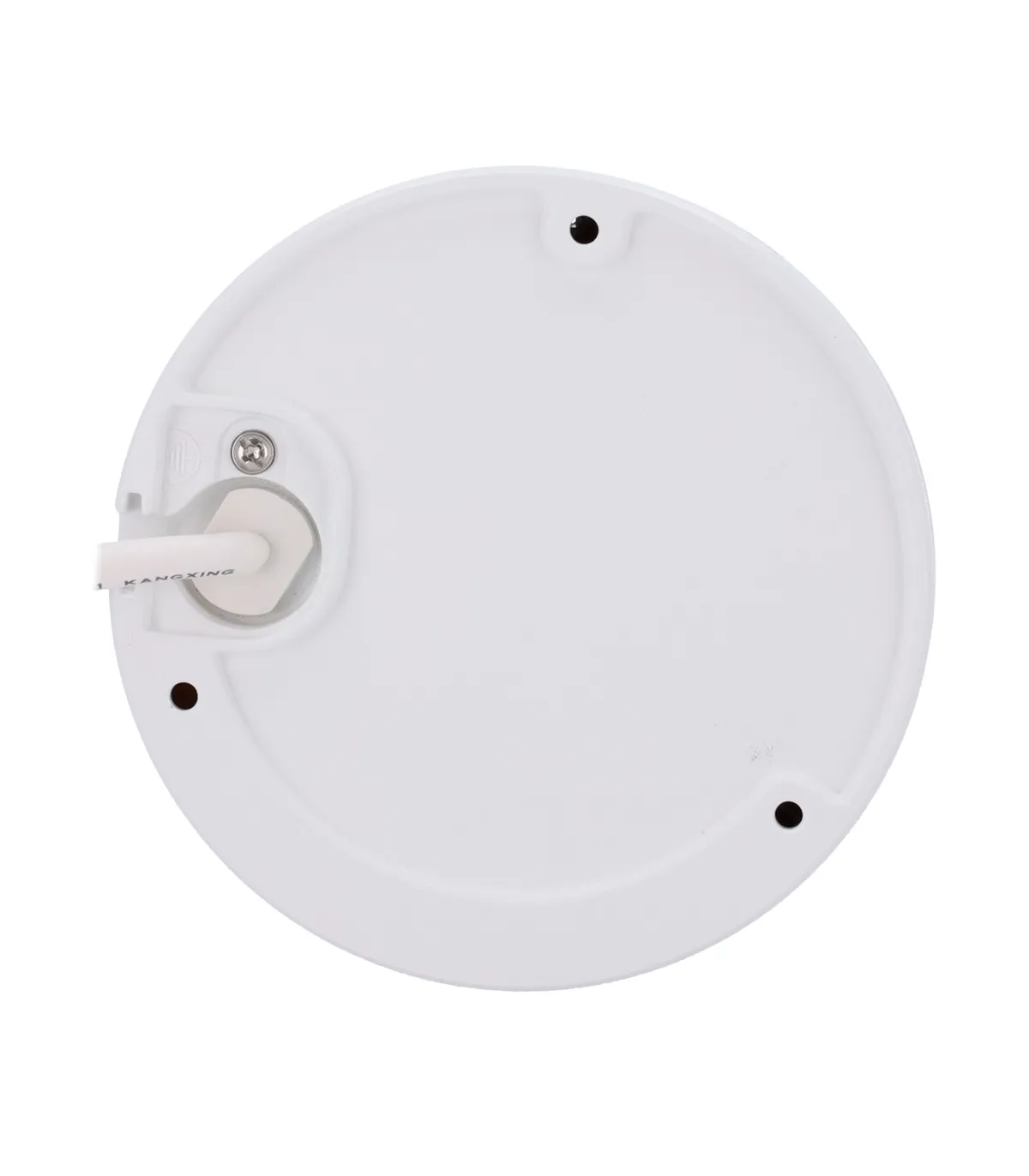

| Dimensions of the base | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 550 g |
Contents
- Dome Camera IP Hikvision Value
- Installation material
- Instructions for use
| Brand | Hikvision |
| Type of camera | Dome |
| Max. Resolution | 4 Megapixel |
| Technology | IP |
| PoE powered | PoE |
