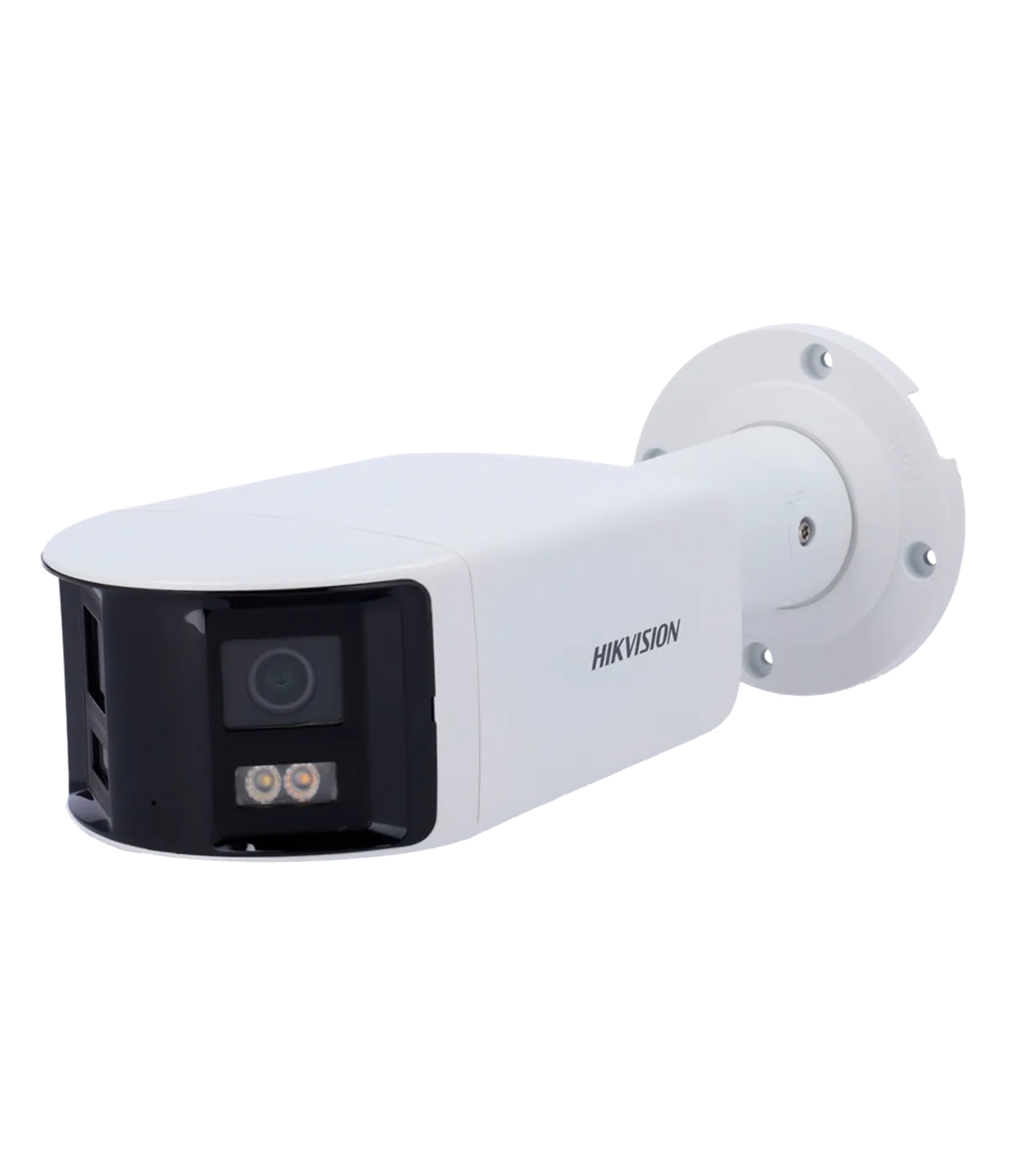

The DS-2CD2T47G2P-LSU/SL(2.8mm)(C) is a high-performance IP bullet camera designed for comprehensive surveillance solutions. Ideal for both indoor and outdoor environments, this camera offers a 180-degree panoramic view and features advanced ColorVu technology for 24-hour color imaging. With its robust Hikvision PRO series specifications, it is perfect for applications requiring detailed monitoring and enhanced security.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 2 x 1/2.5" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (3040x1368) |
| Main Stream Rate | 25 fps (3040x1368) |
| Extra Stream Rate | 25 fps (1200x536, 960x432) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 180°, V: 81° |
| DORI | 38 m (D), 15 m (O), 7.5 m (R), 3.5 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with White Light Range 40 m |
| Day/Night | ColorVu: 24-hour Color Imaging |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror Function |
| ANR | Yes |
| Alarms | 1 input / 1 relay |
| Deterrent Alarm | Integrated Siren and Strobe Flash in the Camera |
| Audio | 1 input / 1 output Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD Card Slot up to 256 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 880 mA / 10.5 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 105.1 mm (H) x 118.6 mm (W) x 306.5 mm (D) |
| Base Dimensions | Ø base 105.1 mm / 4 screws |
| Weight | 1400 g |
In a typical deployment scenario, the DS-2CD2T47G2P-LSU/SL(2.8mm)(C) can be installed in a retail environment to enhance security and monitor customer activity. With its 180-degree panoramic view, the camera can cover wide areas, reducing blind spots and ensuring comprehensive surveillance. The ColorVu technology allows for clear color images even in low-light conditions, making it ideal for 24/7 monitoring. The integration of AcuSense technology enables the camera to differentiate between humans and vehicles, significantly reducing false alarms. This feature is particularly beneficial in busy retail settings where unnecessary alerts can disrupt operations. Additionally, the camera's remote access capabilities allow store managers to monitor live feeds from their smartphones, providing peace of mind and enhancing overall security management.
