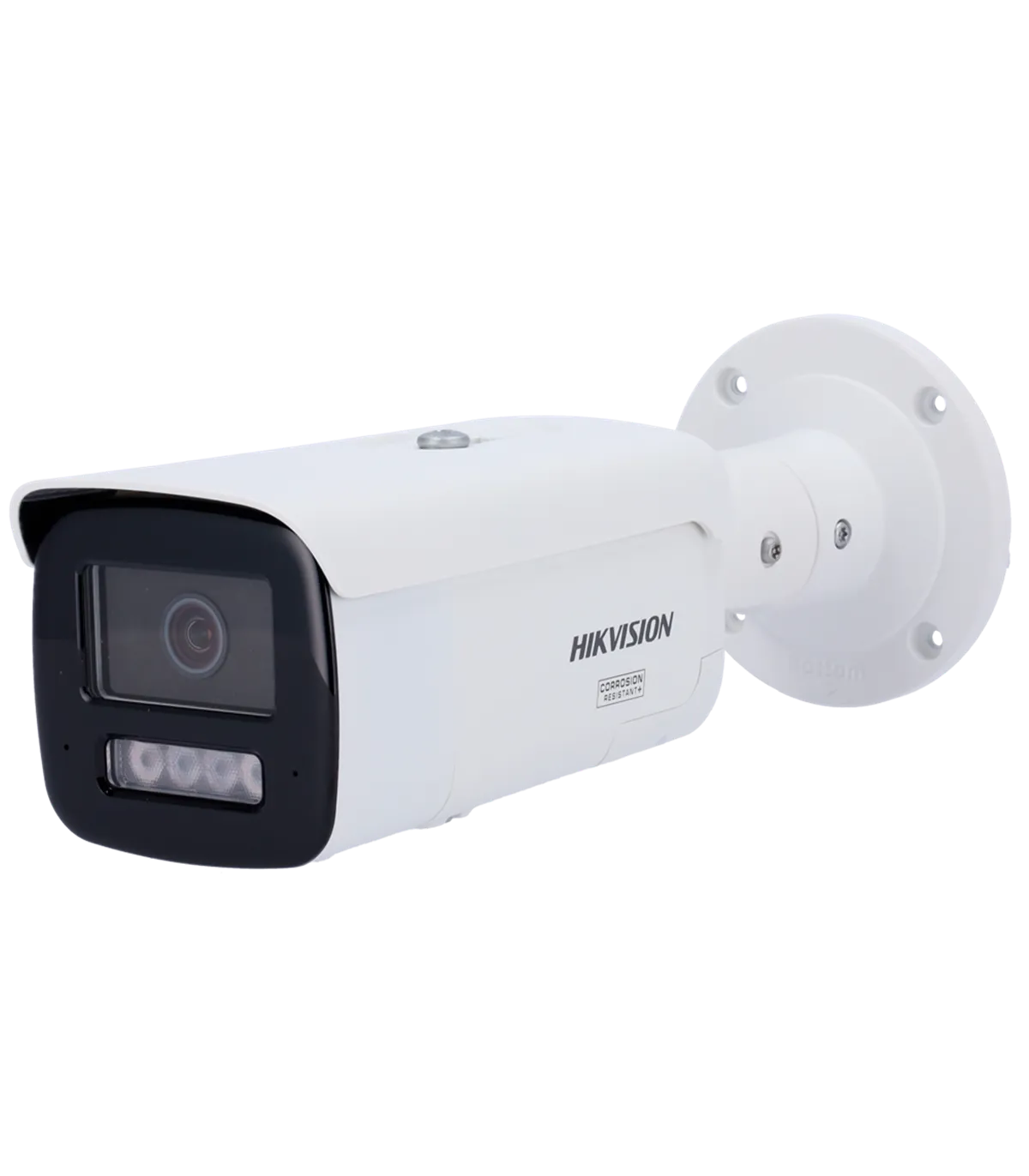

The Hikvision Pro Series with ColorVu 3.0 redefines video surveillance by delivering full-color images even in low-light environments. This device is ideal for security applications where clarity and detail are paramount, utilizing advanced sensor technology and lenses with a super aperture to capture more light without the need for additional illumination. With the integration of HikAI-ISP, an intelligent image processor, it optimizes visual quality by reducing noise and enhancing sharpness in challenging conditions. The AcuSense 3.0 technology allows for precise detection of humans and vehicles, making it a perfect choice for comprehensive security solutions. Additionally, it features Audio 2.0 for more efficient communication.
The Pro Series camera includes:
| Brand | HIKVISION |
| Range | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 111°, V: 57.6°, D: 138.5° |
| DORI | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.0001 Lux @(F1.0, AGC ON) |
| ColorVu 3.0 | 24/7 color imaging with HikAI-ISP, F1.0, and 1/1.8" sensor AI noise reduction offers the advantage of higher static brightness Dynamic motion blur reduction, providing sharp image quality even in low light conditions |
| Hybrid Light | IR and white light up to 60m |
| Day/Night | Auto / Manual / Programmable |
| Audio 2.0 | Integrated dual microphone (AUDIO 2.0: Enhancing detection range and eliminating background noise) |
| Deterrent Alarm | Integrated siren and strobe flash in the camera (White LED) |
| Image Enhancements | AI WDR (130 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense 3.0: Enhances detection effectiveness by analyzing the scene and generating alarms for objects that recently entered the scene, Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSearch | Yes (Requires recorder for searches) |
| Internal Storage | MicroSD card slot up to 512GB |
| Alarms | 1 Input / 1 Output |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1A / 12W max. / PoE IEEE802.3at |
| Protection Grade | IP67 waterproof, NEMA 4X (Corrosion protection) |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 156 mm (W) x 155 mm (H) x 286.7 mm (D) |
| Base Dimensions | Between screws 62.58x62.58 mm / 4 screws |
| Weight | 1250 g |
In a typical deployment scenario, the DS-2CD2T47G3-LIS2UY/SL(2.8mm) camera can be installed in a retail environment to enhance security and surveillance. With its 24/7 color imaging capabilities, it provides clear visuals even in low-light conditions, making it ideal for monitoring entrances and high-traffic areas. The AcuSense 3.0 technology allows for accurate detection of human and vehicle movements, significantly reducing false alarms and ensuring that security personnel can respond promptly to real threats. Additionally, the integrated dual microphone enhances audio monitoring, allowing for effective communication and deterrence. The camera's IP67 waterproof rating ensures durability in various weather conditions, making it suitable for both indoor and outdoor installations. Furthermore, the remote access feature enables users to monitor live feeds from anywhere, providing peace of mind and enhancing overall security management.
