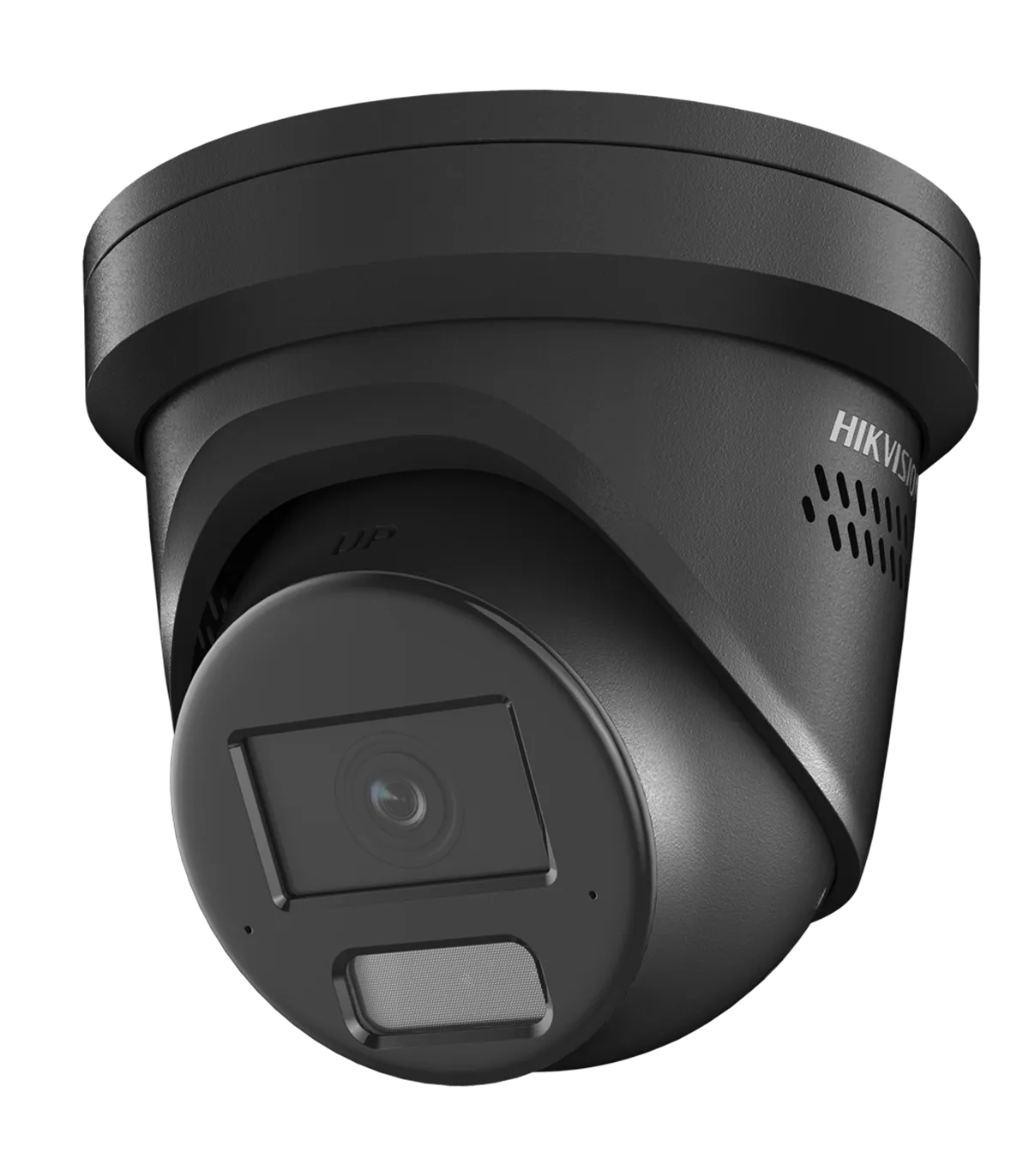

The DS-2CD2346G2H-IS2U/SL(2.8mm)(eF)/BLACK is a high-performance IP turret camera designed for advanced surveillance applications. With its 4 Megapixel resolution and 30m IR range, it is ideal for monitoring both indoor and outdoor environments, providing clear images even in low-light conditions. This camera is equipped with features such as motion detection and AcuSense technology, which significantly reduce false alarms, making it a reliable choice for security professionals.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640x360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 100°, V: 55°, D: 120° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and white light flash in the camera |
| Audio | 1 input / 1 output 2 Integrated microphones and speaker |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0 and AcuSense cannot be enabled simultaneously. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0 and AcuSense cannot be enabled simultaneously. |
| Facial Recognition | Face Capture * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1340 mA / 16 W max. PoE+ IEEE802.3at |
| Protection Rating | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm x 115.4 mm (H) |
| Base Dimensions | Ø base 138.3 mm / Ø between screws 96 mm / 4 screws |
| Weight | 780 g |
| Color | Black |
The DS-2CD2346G2H-IS2U/SL(2.8mm)(eF)/BLACK is perfect for a variety of surveillance scenarios, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entry points to monitor customer flow and deter theft. With its high-resolution imaging and night vision capabilities, it ensures that every detail is captured, even in low-light conditions. The integrated audio features allow for two-way communication, enhancing security measures. Additionally, the remote access capabilities enable security personnel to monitor live feeds from anywhere, providing peace of mind. The AcuSense technology further enhances security by minimizing false alarms, allowing for more efficient monitoring and response. This camera is an excellent choice for those looking to enhance their security infrastructure with reliable and advanced technology.
