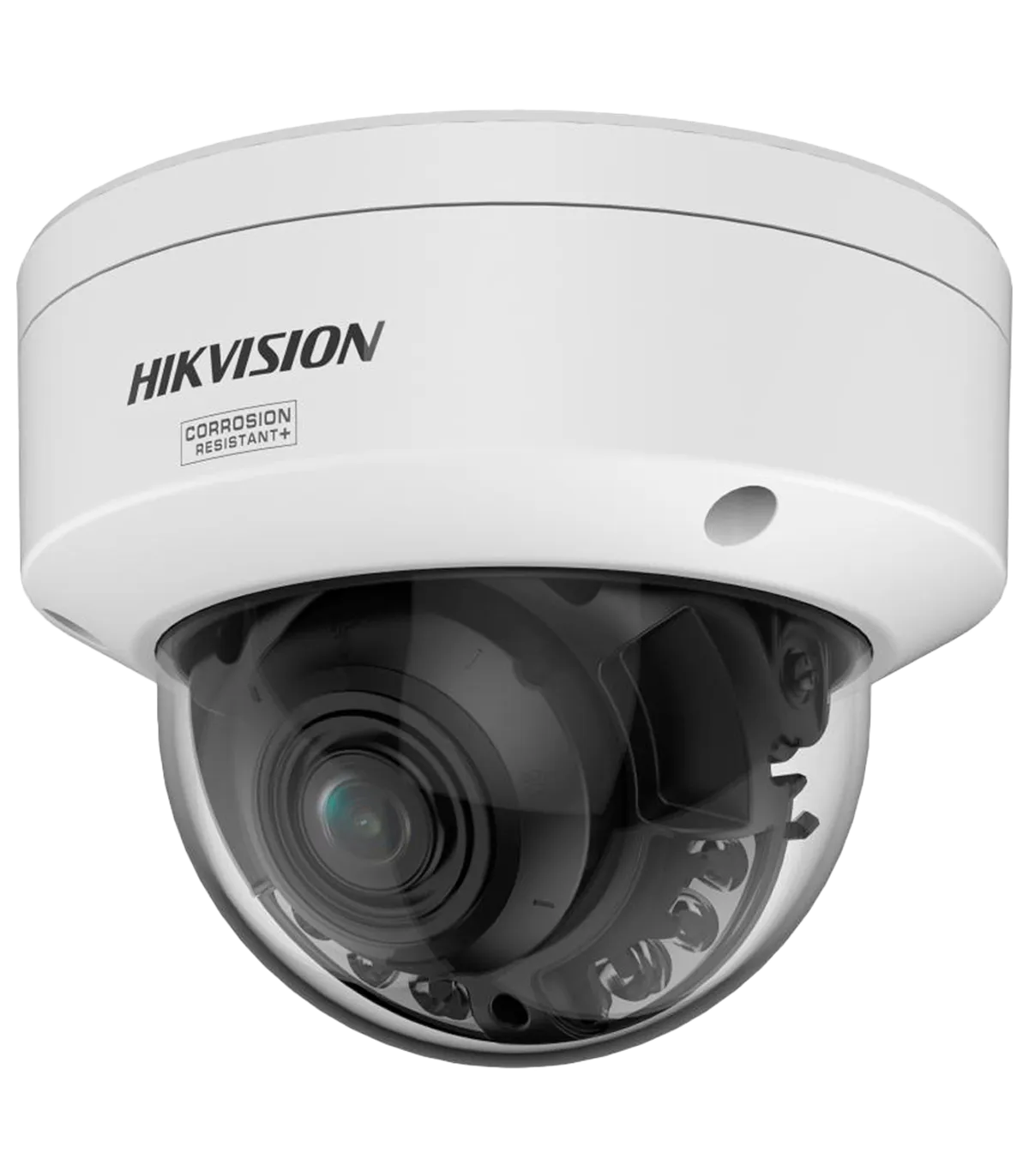

The Hikvision Pro Series with ColorVu 3.0 redefines video surveillance by providing full-color images even in low-light environments. This device is ideal for various applications, including commercial security and residential monitoring, thanks to its advanced sensor and lens technology that captures more light for enhanced clarity and detail without the need for additional lighting. It features HikAI-ISP, an intelligent image processor that optimizes visual quality by reducing noise and improving sharpness in challenging conditions.
In terms of intelligence, AcuSense 3.0 enables precise detection of humans and vehicles.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | Motorized 2.8~12 mm |
| Field of View (FOV) | H: 114.6-41.8°, V: 59.3-23.6°, D: 141.3-48.1° |
| DORI | WIDE: 61.5 m (D), 24.4 m (O), 12.3 m (R), 6.2 m (I) TELE: 151.7 m (D), 60.2 m (O), 30.3 m (R), 15.1 m (I) |
| Minimum Illumination | Color: 0.0005 Lux @(F1.2, AGC ON) |
| ColorVu 3.0 | Color image 24/7 with HikAI-ISP, F1.2, and 1/1.8" sensor AI noise reduction offers the advantage of higher static brightness Dynamic motion blur reduction, providing sharp image quality even in low-light conditions |
| Hybrid Light | IR and White Light up to 40 m |
| Day/Night | Auto / Manual / Programmable |
| Audio | 1 Input / 1 Output |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Alarms | 1 Input / 1 Output |
| Image Enhancements | AI WDR (130 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| ESI (Image Stabilizer) | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense 3.0: Enhances detection effectiveness by analyzing the scene and generating alarms for objects that recently enter the scene, Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSearch | Yes (Requires recorder for searches) |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 0.88 A / 10.5 W max. PoE IEEE802.3af |
| Protection Grade | IP67 waterproof IK10 vandal-proof NEMA 4X (Corrosion protection) |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 141 x 112 mm (H) |
| Base Dimensions | Ø base 141 mm / Ø between screws 125 mm / 3 screws |
| Weight | 850 g |
In a typical deployment scenario, the DS-2CD2747G3T-LIZSY(2.8-12mm) camera can be installed in a retail environment to enhance security monitoring. With its ColorVu 3.0 technology, the camera provides clear, full-color images even in low-light conditions, making it ideal for 24/7 surveillance. The motorized lens allows for flexible viewing angles, ensuring comprehensive coverage of the premises. Additionally, the AcuSense 3.0 feature significantly reduces false alarms by accurately detecting humans and vehicles, which is crucial for minimizing unnecessary alerts. This camera's robust IP67 rating ensures it can withstand harsh weather conditions, making it suitable for both indoor and outdoor installations. Furthermore, the ability to access the camera remotely via the Hik-Connect app allows security personnel to monitor live feeds and receive alerts on-the-go, enhancing overall security management.
