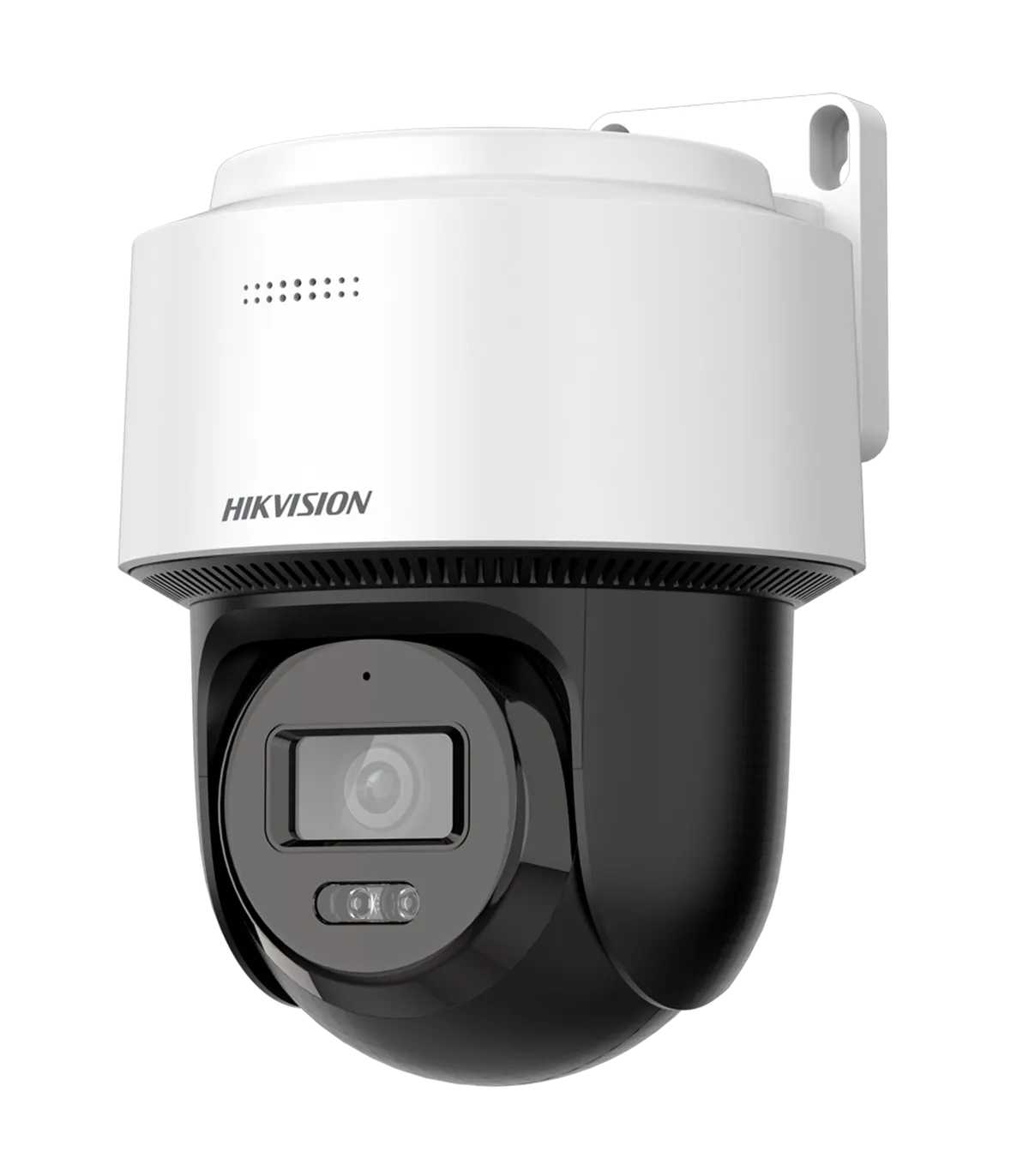

The DS-2DE2C200MWG-E(2.8mm) is a high-performance mini IP PT camera designed for versatile surveillance applications. With its 2 Megapixel resolution and fixed 2.8 mm lens, it delivers clear and detailed images suitable for both indoor and outdoor environments. This camera features hybrid light technology that combines infrared and white light illumination, ensuring visibility up to 30 meters even in low-light conditions. Ideal for security installations, it supports H.265/H.264 compression for efficient video storage and transmission.
| Brand | HIKVISION |
| Range | VALUE |
| Image Sensor | 1/2.9“ Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (640x480, 640x360) |
| Minimum Illumination | Color: 0.01 Lux @ (F2.0, AGC ON) 0 lux with IR |
| Supplementary Illumination | Hybrid light: IR and white light IR range: 30 m White light range: 30 m |
| Compression | H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Fixed lens 2.8 mm |
| Field of View (FOV) | 105º (H), 58º (V), 123º (D) |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, Mirror effect |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Pan/Tilt Range | Horizontal: 0~345°, Vertical: 0~80° |
| Manual Speed | Horizontal: up to 25 °/s, Vertical: up to 20 °/s |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated microphone and speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM) |
| Alarms | Not available |
| PTZ Control | Via network access |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 750 mA / 9 W max. PoE (IEEE802.3af) |
| Operating Temperature | -30º C ~ +40º C |
| Material | Plastic |
| Protection Grade | IP66 |
| Dimensions (without mount) | 163.9 (L) mm x 131.9 mm (W) x 185.8 mm (H) |
| Weight (without mount) | 600 g |
The DS-2DE2C200MWG-E(2.8mm) is ideally suited for a variety of surveillance scenarios, including retail stores, parking lots, and residential areas. Its remote monitoring capabilities allow users to access live feeds from anywhere, ensuring constant vigilance. The camera's motion detection 2.0 feature enhances security by classifying detected movements as human or vehicle, reducing false alarms. With its IP66 waterproof rating, it can withstand harsh weather conditions, making it perfect for outdoor installations. Additionally, the integrated audio functionality provides two-way communication, enhancing user interaction. The hybrid light technology ensures visibility in complete darkness, making it a reliable choice for 24/7 surveillance.
