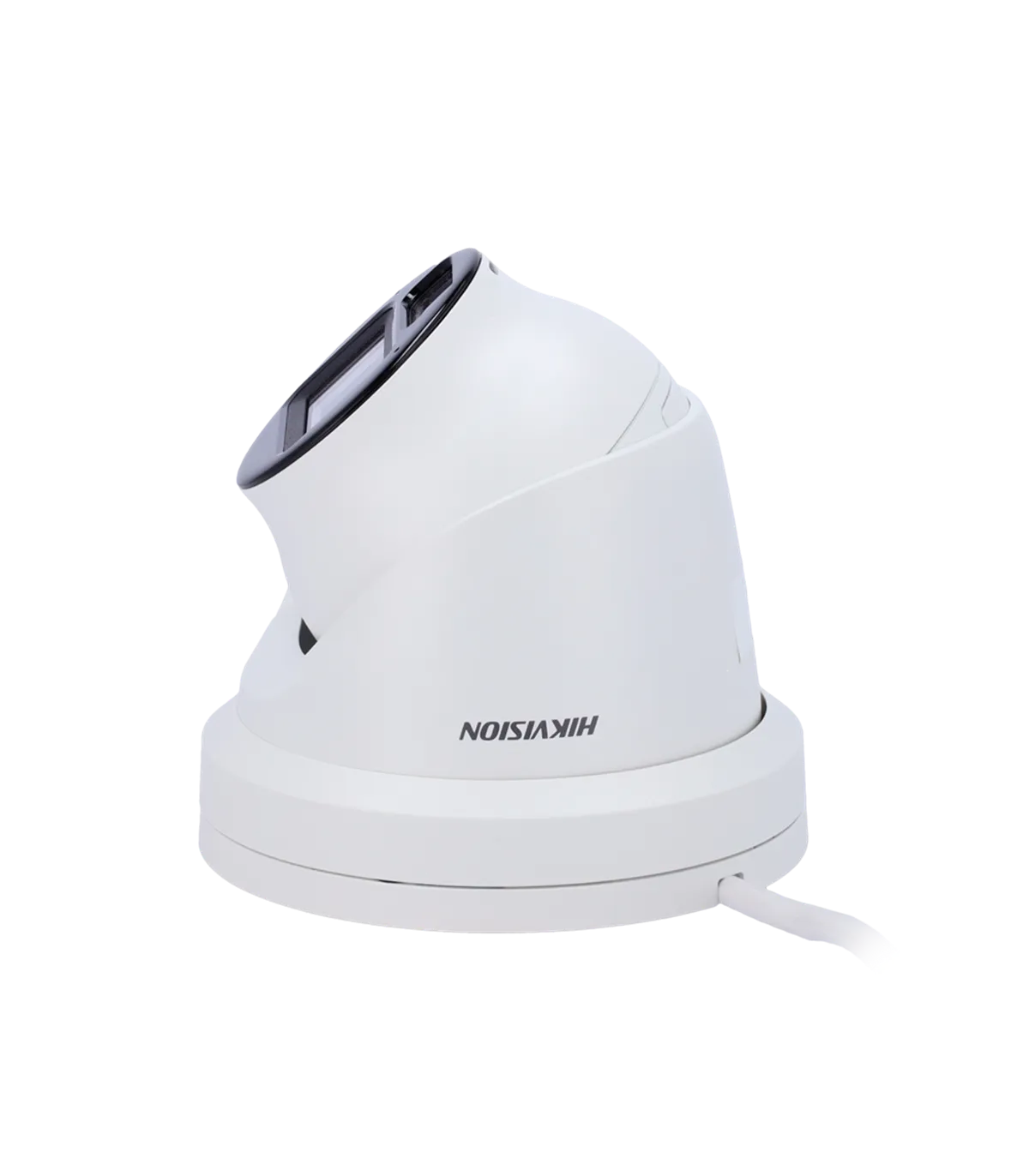

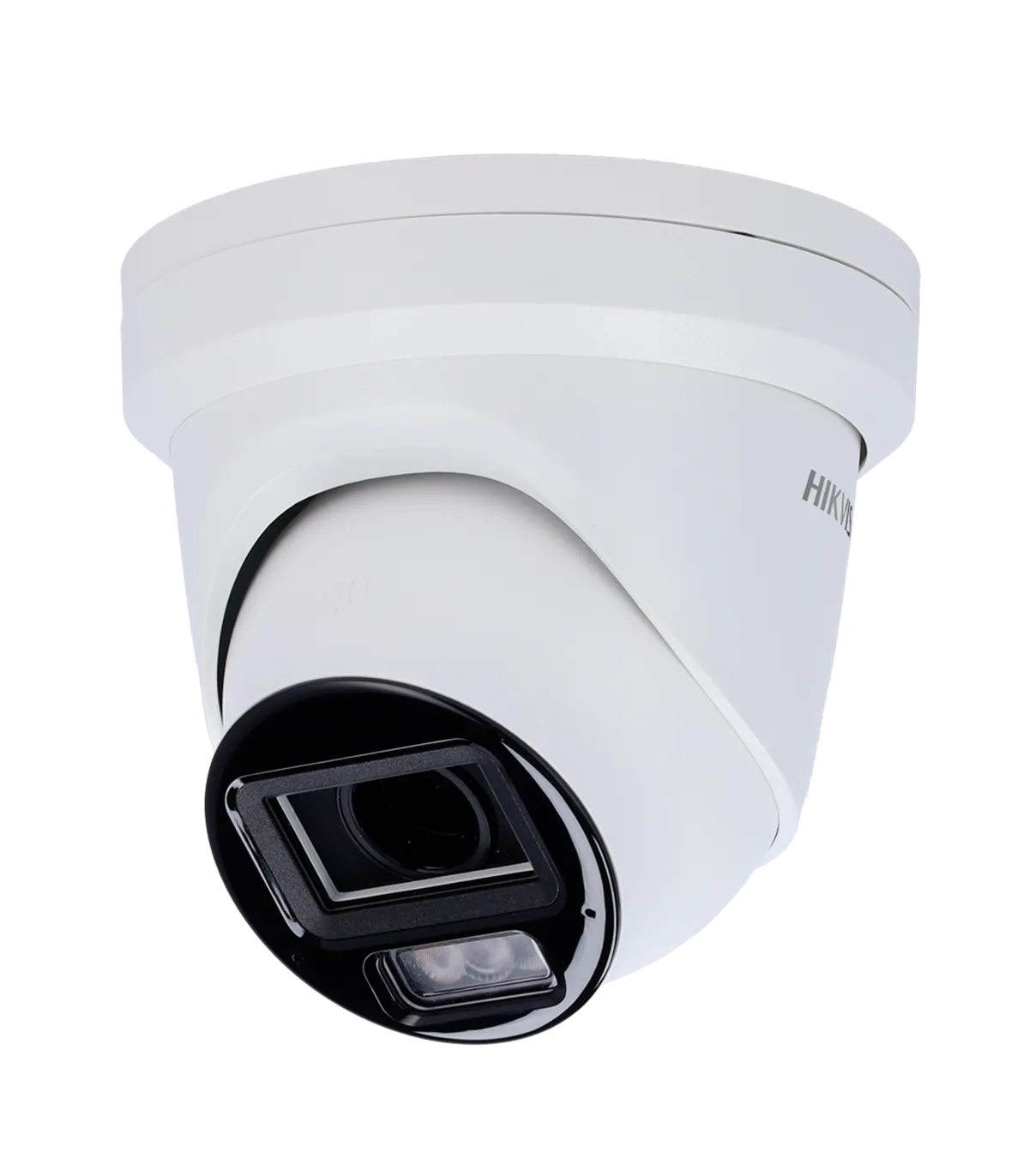

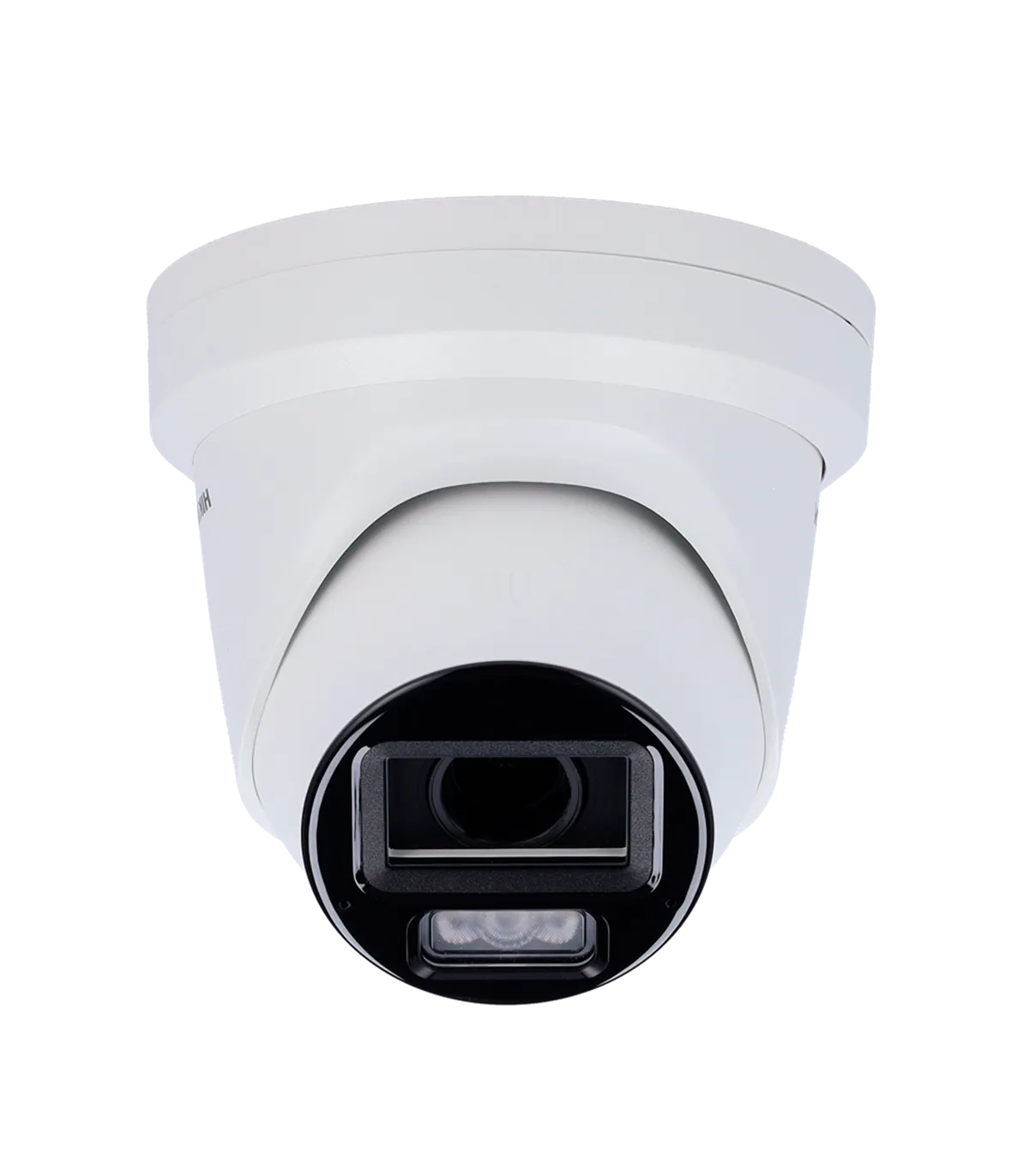

The DS-2CD2H83G2-LIZS2U(2.8-12mm) is a high-performance IP turret camera designed for advanced surveillance applications. With its 8 Megapixel resolution and varifocal motorized lens, this camera is ideal for both indoor and outdoor environments, providing exceptional image clarity and detail. The device features hybrid illumination capabilities, combining infrared and white light for enhanced visibility up to 40 meters, making it suitable for low-light conditions. Its advanced motion detection technology, including AcuSense for reducing false alarms, ensures reliable monitoring of critical areas.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 106.5~30.2°, V: 55.7~17°, D: 128.5~34.7° |
| DORI | 88.3~289.7 m (D), 35~114.9 m (O), 17.7~57.9 m (R), 8.8~29 m (I) |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 40 m |
| Supplementary Illumination | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK |
| Power Supply | DC 12 V / 880 mA / 10.56 W max. PoE IEEE802.3af |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm x 123 mm (H) |

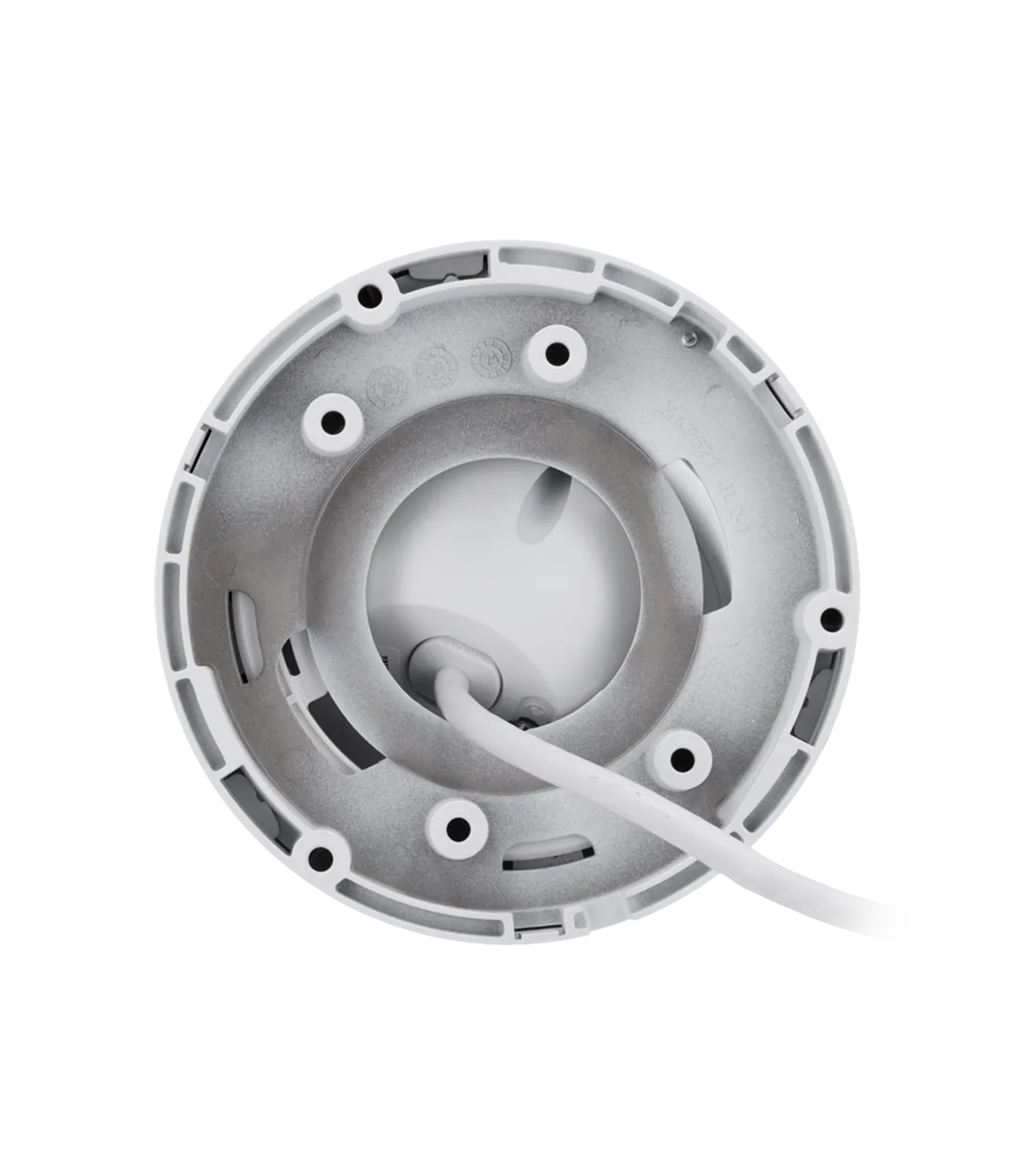

| Base Dimensions | Ø base 138.3 mm / Ø between screws 96 mm / 4 screws |
| Weight | 860 g |
The DS-2CD2H83G2-LIZS2U(2.8-12mm) camera is perfect for a variety of surveillance scenarios, such as monitoring retail stores, parking lots, or residential areas. Installers can easily set up this plug-and-play device, leveraging its remote monitoring capabilities through web browsers or mobile applications. The camera's high-resolution imaging ensures that every detail is captured, while the AcuSense technology minimizes false alarms by accurately distinguishing between humans and vehicles. This feature is particularly beneficial in busy environments where traditional motion detection may trigger unnecessary alerts. Additionally, the camera's robust IP67 rating and IK10 vandal-proof design make it suitable for outdoor installations, ensuring durability against harsh weather conditions and potential tampering. Overall, the DS-2CD2H83G2-LIZS2U(2.8-12mm) provides a comprehensive solution for effective surveillance and security management.
