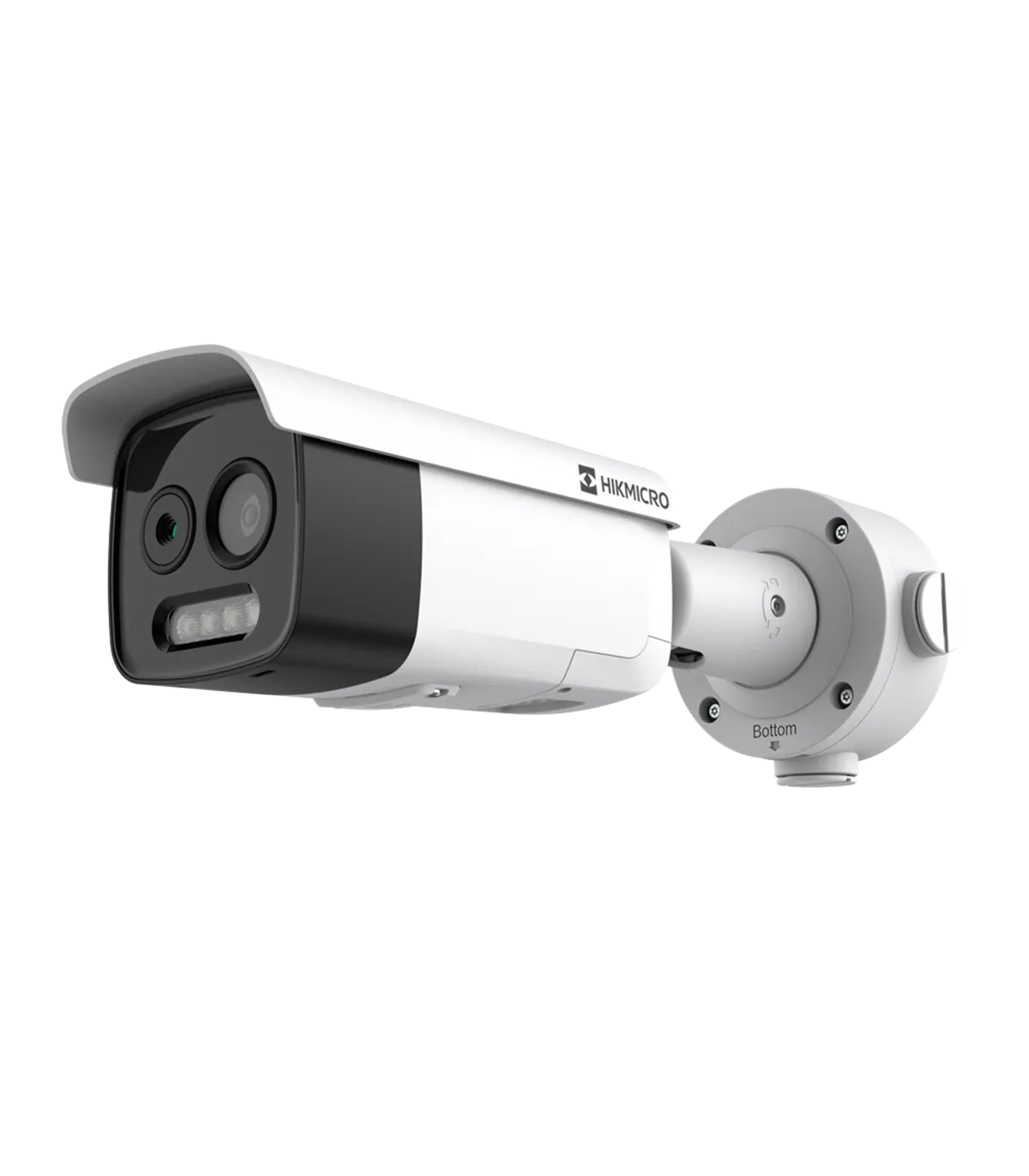

The HM-TD2618-3/G0/T1A is a state-of-the-art dual IP thermal bullet camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this device excels in temperature measurement and fire detection, making it a perfect fit for critical security installations. With its robust features, including a 5 Megapixel optical sensor and a thermal sensor, it provides comprehensive monitoring capabilities, ensuring safety and security in various settings.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 160x120 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 5 Megapixel (2688x1944) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688x1944, 2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 3.6mm (Thermal) / 4.3mm (Visible) |
| DORI | Person: 150 m (D), 38 m (R), 19 m (I) Vehicle: 460 m (D), 112 m (R), 56 m (I) |
| VCA Ranges | Person: 30m Vehicle: 90m Temperature Measurement (Object 0.2x0.2m): 11.7m Temperature Measurement (Object 0.5x0.5m): 29m Fire Detection (Object 0.5x0.5m): 25.8m Smoker Detection: 5.4m |
| Field of View | Thermal: 50° (H), 37.3° (V) Optical: 84° (H), 43.1° (V) |
| Thermal Sensitivity | ≤25mK (25°C, F1.0) |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 relays |
| Internal Storage | MicroSD card slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | 12VDC ± 25% PoE (802.3at, class 4) |
| Power Consumption | 12VDC ± 25%: 1.67A to 2.5A, max. 24W PoE (802.3at, class 4): 42.5V to 57V, 0.56A to 0.42A, max. 24W |
| Operating Temperature | -40ºC ~ +65ºC |
| Protection Grade | IP67 waterproof, 6000V surge protection IK10 vandal-proof |
| Dimensions | 349.1mm x 113mm x 105mm |
| Weight | 1710g |
The HM-TD2618-3/G0/T1A is ideally suited for deployment in environments requiring stringent security measures, such as warehouses, data centers, and critical infrastructure facilities. With its dual IP thermal and optical capabilities, this camera provides comprehensive surveillance, allowing for both real-time monitoring and recording of incidents. The device's fire detection feature enhances safety by alerting personnel to potential hazards before they escalate. Additionally, the camera's remote access capabilities enable users to monitor feeds from anywhere, ensuring peace of mind. Its robust construction, rated at IP67 and IK10, guarantees durability in harsh conditions, making it a reliable choice for outdoor installations. Overall, the HM-TD2618-3/G0/T1A is an excellent investment for organizations looking to enhance their security infrastructure.
