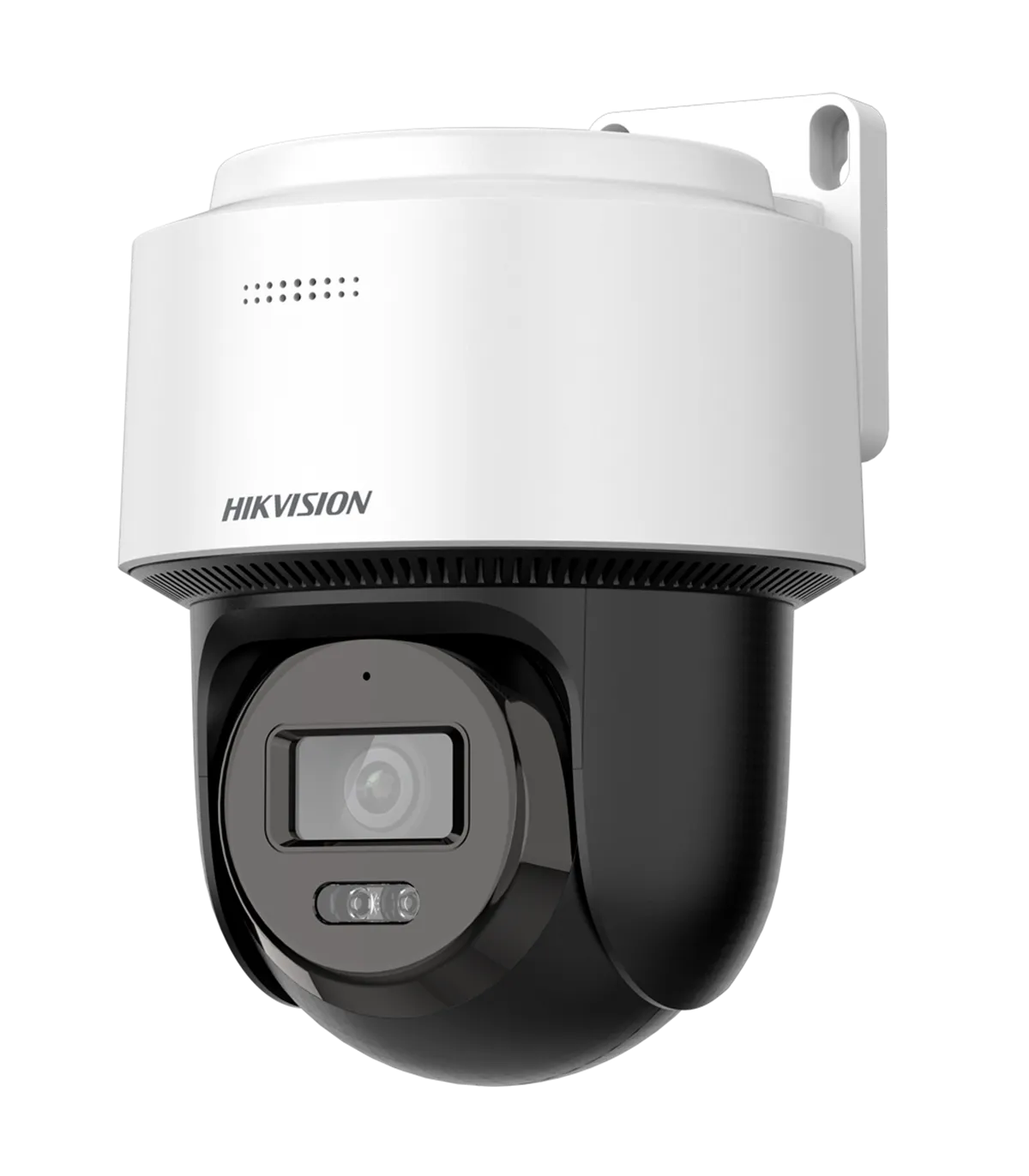

The DS-2DE2C400MWG-E(2.8mm) is a high-performance mini IP PT camera designed for versatile surveillance applications. With its 4 Megapixel resolution and 2.8 mm fixed lens, it delivers clear and detailed images, making it ideal for monitoring both indoor and outdoor environments. This camera features a hybrid light system that combines IR and white light illumination, ensuring visibility up to 30 meters in low-light conditions. Its compatibility with ONVIF standards allows for seamless integration into existing security systems, enhancing overall security management.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/3“ Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 25 fps (2560x1440, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640x360) |
| Minimum Illumination | Color: 0.01 Lux @ (F2.0, AGC ON) 0 lux with IR |
| Supplementary Illumination | Hybrid light: IR and white light IR range: 30 m White light range: 30 m |
| Compression | H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Fixed lens 2.8 mm |
| Field of View (FOV) | 94º (H), 49º (V), 114º (D) |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, Mirror effect |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Pan/Tilt Range | Horizontal: 0~345°, Vertical: 0~80° |
| Manual Speed | Horizontal: up to 25 °/s, Vertical: up to 20 °/s |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated microphone and speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM) |
| Alarms | Not available |
| PTZ Control | Via network access |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 750 mA / 9 W max. PoE (IEEE802.3af) |
| Operating Temperature | -30º C ~ +40º C |
| Material | Plastic |
| Protection Grade | IP66 |
| Dimensions (without mount) | 163.9 (L) mm x 131.9 mm (W) x 185.8 mm (H) |
| Weight (without mount) | 600 g |
The DS-2DE2C400MWG-E(2.8mm) is an excellent choice for both residential and commercial surveillance needs. For instance, a retail store can deploy this camera at entry points to monitor customer traffic and enhance security management. With its remote monitoring capabilities, store owners can access live feeds via the Hik-Connect app, ensuring they can respond to incidents in real-time. The camera's motion detection feature, which classifies humans and vehicles, allows for precise alerts, minimizing false alarms. Additionally, the IP66 waterproof rating ensures reliable performance in various weather conditions, making it suitable for outdoor installations. The integration of a microSD card slot for local storage provides flexibility in data management, allowing users to store footage without relying solely on cloud services. Overall, this camera is a robust solution for enhancing security and operational efficiency.
