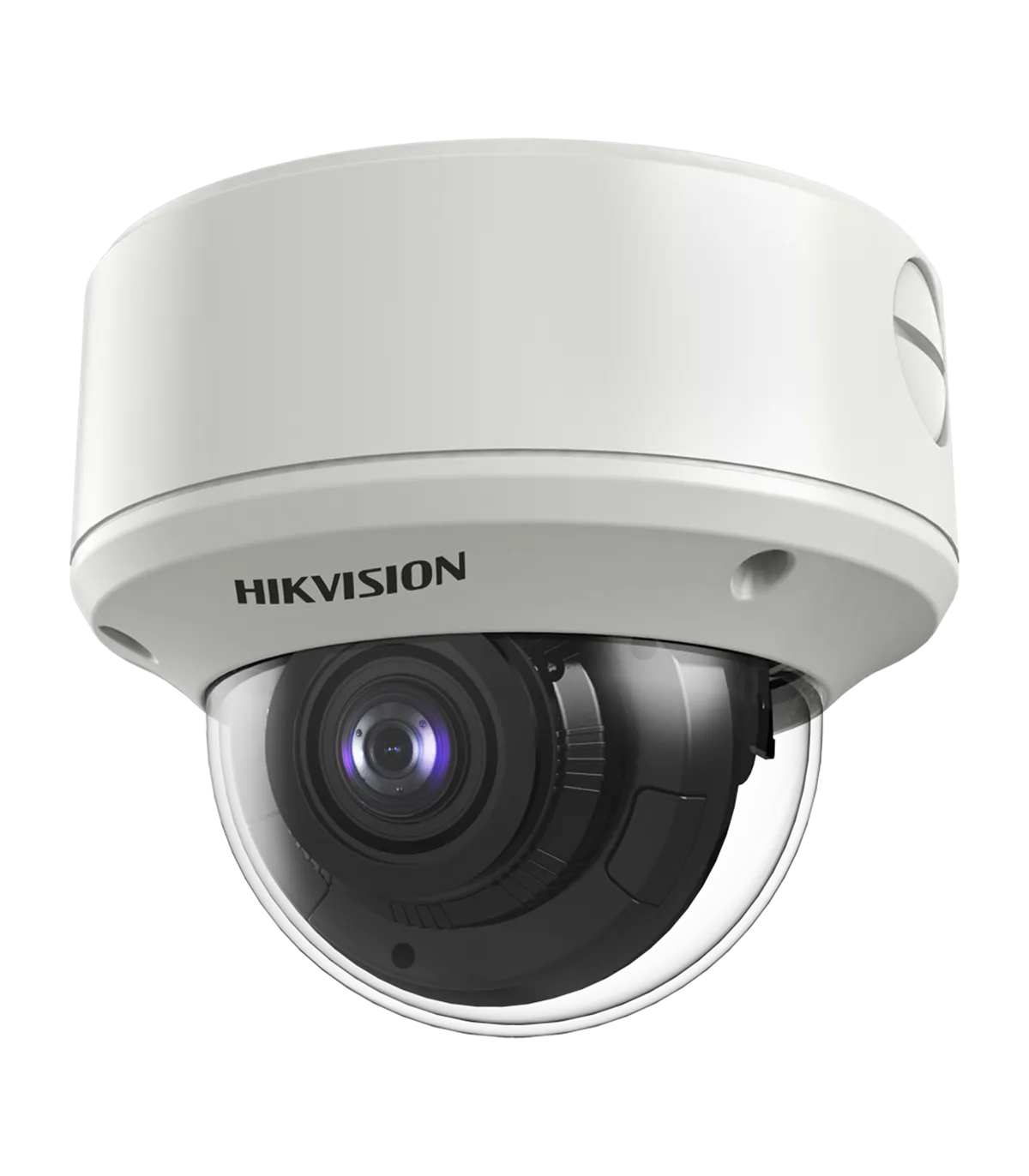

Hikvision 1080p Motorized Varifocal Dome Camera 2.7–13.5 mm IP67 IK10 DS-2CE56D8T-VPIT3ZF (2.7–13.5 mm)
- Hikvision
- 4-in-1 PRO Series Dome Camera
- 1080p Resolution (1920x1080)
- 2.7~13.5 mm Motorized Autofocus Lens
- Smart IR Range 60 m
- IP67 Waterproof | IK10 Vandal Resistant
Description & Key Features: DS-2CE56D8T-VPIT3ZF(2.7-13.5mm)
The DS-2CE56D8T-VPIT3ZF is a versatile security camera designed for high-definition surveillance in various environments. This device is ideal for both indoor and outdoor applications, providing exceptional image quality and reliability. With its 2 MP CMOS sensor and 1080p resolution, it ensures clear video capture, making it suitable for monitoring critical areas. The camera features a motorized varifocal lens with a focal length of 2.7 to 13.5 mm, allowing for flexible installation and precise focusing. Its robust construction, rated IP67 for water resistance and IK10 for vandal resistance, ensures durability in challenging conditions.
- Hikvision
- PRO Series
- HDTVI, HDCVI, AHD, and CVBS Dome Camera
- 2 MP CMOS
- 1080p (1920x1080)
- 4-in-1 Output - Motorized Varifocal Lens 2.7~13.5 mm Autofocus
- 0 Lux
- IR Range 60 m
- WDR (130 dB)
- 3D-DNR
- IR CUT
- IP67 Waterproof
- IK10 Vandal Resistant
Specifications: DS-2CE56D8T-VPIT3ZF(2.7-13.5mm)
| Brand | Hikvision |
| Series | PRO |
| Image Sensor | 2 MP progressive scan CMOS |
| Maximum Resolution | 1080p (1920x1080) at 30 fps |
| Resolution | 1080p (25~30 fps) |
| Lens | Motorized Varifocal Lens 2.7~13.5 mm Autofocus |
| Field of View (FOV) | 103~32.1º (H) |
| Minimum Illumination | 0.003 Lux @ (F1.2, AGC ON) |
| Infrared Illumination | 0 Lux / Smart IR range 60 m |
| Day/Night | Auto / Color / Black and White (ICR) |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via switch |
| Basic Functions | OSD Menu (remote) |
| Configurable OSD Functions | WDR (130 dB), BLC, HLC, 3DNR, AGC, Mirror Function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 5.8 W max. |
| Protection Rating | IP67 Waterproof, IK10 Vandal Resistant |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 145.2 mm x 124.1 mm (H) |
| Base Dimensions | Ø base 145.2 mm / Ø between screws 119 mm / 4 screws |
| Weight | 610 g |
Package Contents
- Hikvision PRO 4-in-1 Dome Camera
- Mounting Material
- User Instructions
Use Case
The DS-2CE56D8T-VPIT3ZF camera is an excellent choice for security professionals looking to enhance surveillance in commercial properties, retail stores, or residential areas. Its motorized varifocal lens allows for easy adjustments to the field of view, making it adaptable to various installation scenarios. With a robust IP67 rating, this camera can withstand harsh weather conditions, ensuring reliable performance outdoors. The 60 m IR range enables effective night vision, providing clear images even in complete darkness. Additionally, the camera's WDR technology helps to balance lighting in scenes with both bright and dark areas, making it ideal for entrances and parking lots. For installers, the plug-and-play setup simplifies the installation process, while end users benefit from the high-quality video output for effective monitoring.
Data sheet
- Brand
- HIKVISION
- Resolution
- 1080p
- Technology
- HD-Coaxial
- Audio
- No dispone
- Lens
- 2.7 ~ 13.5 mm Motorizada
- Compatible models
- DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1273ZJ-140B,DS-1273ZJ-140B,DS-1273ZJ-140,DS-1273ZJ-140,DS-1271ZJ-140,DS-1271ZJ-140,DS-1253ZJ-L,DS-1253ZJ-L,DS-1250ZJ,DS-1250ZJ,DS-1241ZJ,DS-1241ZJ,DS-1240ZJ,DS-1240ZJ
Specific References
- EAN13
- 6954273681203
